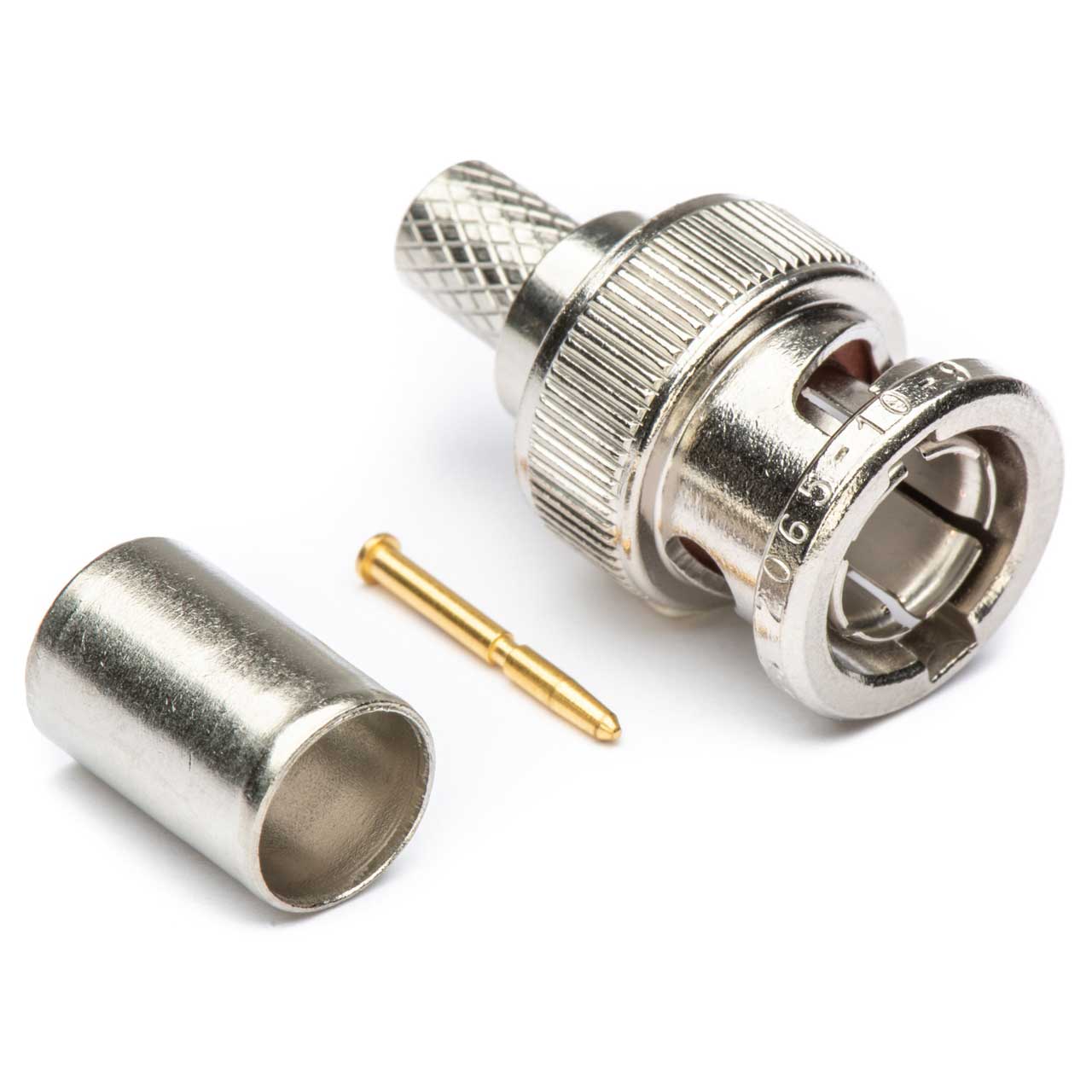

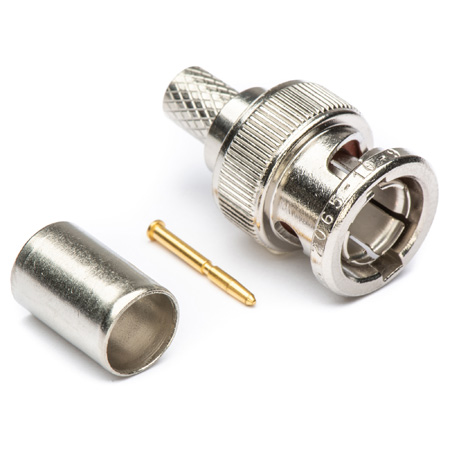

Winchester's 2065-10-9-M66 KINGS® brand 75 Ohm BNC series RF connectors are manufactured with a reduced dielectric to achieve 75 Ohm nominal impedance. They will mate with 50 Ohm BNC connectors with no damage. All the connectors in this group have captive center contacts.
RF BNC connectors are the most popular and widely used miniature size connectors for coaxial cables. The KINGS® brand 2065 Series True 75 Ohm BNC connectors are ideal for Broadcast applications - meeting the industry's stringent HDTV standards. Kings 75 Ohm BNCs feature a full crimp design, and are field installable using our hand crimping tools, which were developed to perfectly fit our connector design. KINGS® 75 Ohm BNC connectors feature a bayonet coupling for quick connect and disconnect, and are designed to terminate to the most commonly used coaxial cables in the broadcast industry.e broadcast industry.
