Belden 1694SB RG6 18AWG Serial Digital Coax Video Cable with Low Smoke Zero Halogen Jacket - 1000 Foot

    Questions? Ask a Markertek Expert:
    800-522-2025 Email

    Belden 1694SB RG6 18AWG Serial Digital Coax Video Cable with Low Smoke Zero Halogen Jacket - 1000 Foot

    Manufacturer: Belden

    Item #: BL-1694SB-1000   •   MFG #: 1694SB 0101000



    List Price:$933.90
    Our Price:$694.05

    free ship


    Availability: Usually ships in 3-10 business days
    i
    This item is currently out of stock and will ship the minute we receive it – typically 3-10 business days. Need it sooner? Expedited delivery options may be available. Email [email protected] or call customer service at 800-522-2025 and we'll make it happen.


    • Special Order Item: non-cancelable, non-returnable, non-refundable.


    Share!

    California Residents:
    8pt-triangleWARNING:
    Cancer and Reproductive Harm - www.P65Warnings.ca.gov

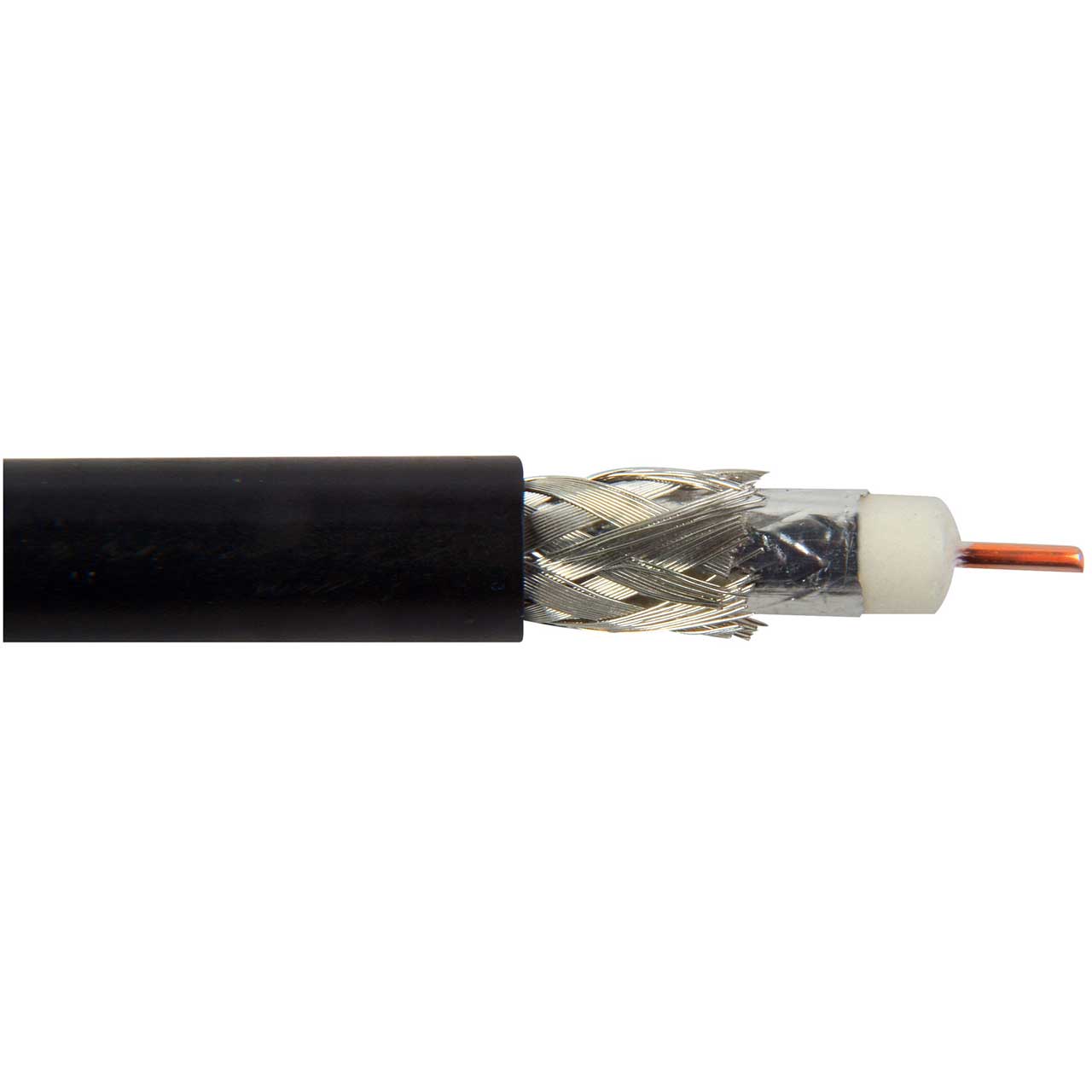

    18 AWG solid .040" bare copper conductor, gas-injected foam HDPE insulation, Duofoil (100% coverage) plus a tinned copper braid shield (95% coverage), LSZH jacket. Ideal for Video, CCTV, CATV, MATV, Broadband, or Broadcast use in Marine Shipboard and Offshore use.


    • Specifications

      • Physical Characteristics
      • Conductor: 1 Coax, 18 AWG, Solid BC - Bare Copper .040" Dia.
      • Total Number of Conductors: 1
      • Insulation Material: Gas-injected FHDPE - Foam High Density Polyethylene .180" Dia.
      • Outer Shield Material: Duofoil Aluminum Foil-Polyester Tape-Aluminum Foil 100% Coverage, Braid TC - Tinned Copper 95% Coverage
      • Outer Jacket Material: LSZH - Low Smoke Zero Halogen
      • Overall Cable Nominal Diameter: 0.274 in.
      • Mechanical Characteristics
      • Operating Temperature Range: -30°C To +75°C
      • Bulk Cable Weight: 42 lbs/1000 ft.
      • Maximum Recommended Pulling Tension: 69 lbs.
      • Minimum Bend Radius/Minor Axis: 2.750 in.
        Applicable Standards and Environmental Programs
      • NEC/(UL) Specification: CMG-LS
      • CEC/C(UL) Specification: CMG-LS
      • EU Directive 2011/65/EU (ROHS II): Yes
      • IEEE Specification: Std. 45 clause 23
      • EU CE Mark: Yes
      • EU Directive 2000/53/EC (ELV): Yes
      • EU Directive 2002/95/EC (RoHS): Yes
      • EU RoHS Compliance Date (mm/dd/yyyy): 08/01/2005
      • EU Directive 2002/96/EC (WEEE): Yes
      • EU Directive 2003/11/EC (BFR): Yes
      • CA Prop 65 (CJ for Wire & Cable): Yes
        MII Order #39 (China RoHS): Yes
      • Other Specification: UL444, ABS Type Approval Certificate 05-HS500072C
      • RG Type: 6/U
      • UL Flame Test: UL1685 FT4 Loading, Limited Smoke
      • CSA Flame Test: FT4
      • IEC Flame Test: 60332-1, 60332-3-22 (Category A)
      • IEEE Flame Test: 1202
      • Suitability - Indoor: Yes
      • Suitability - Outdoor: Yes
      • Sunlight Resistance: Yes
      • Electrical Characteristics
      • Nom. Characteristic Impedance: 75 ohms
      • Nom. Inductance (µH/ft): 0.106
      • Capacitance (pF/ft): 16.2
      • Nominal Velocity of Propagation (%): 82
      • Delay (ns/ft): 1.24
      • Nom. Conductor DC Resistance at 20°C (Ohm/1000 ft): 6.4
      • Nominal Outer Shield DC Resistance at 20°C (Ohm/1000 ft): 2.8
      • Max. Operating Voltage - UL: 300 V RMS
