LEN L3GF01 3G-SDI Ground Isolator

ITEM #: 3GF01 MFG #: 3GF01

Primary Image
  • Product Image Thumbnail 1 of 2
  • Product Image Thumbnail 2 of 2
Free Shipping with $49 Minimum Order

List Price:

$214.00

Our Price:

$203.00

Availability: Usually Ships in 5-14 Days.
Please Email, Chat or Call (800) 522-2025 for Detailed Delivery Info
iAvailability Description Popup


    3GF01 - Overview

    Traditional "Humbucker" and Isolation Transformer approaches to interference are not applicable to SDI signals. Mains hum is well below the SDI signal frequency spectrum and (unlike analogue video) the SDI signal is not sensitive to near-DC attenuation. However, the problems of signal distortion and operator shocks caused by a voltage difference between two pieces of equipment connected by a HD-SDI signal feed still exist.

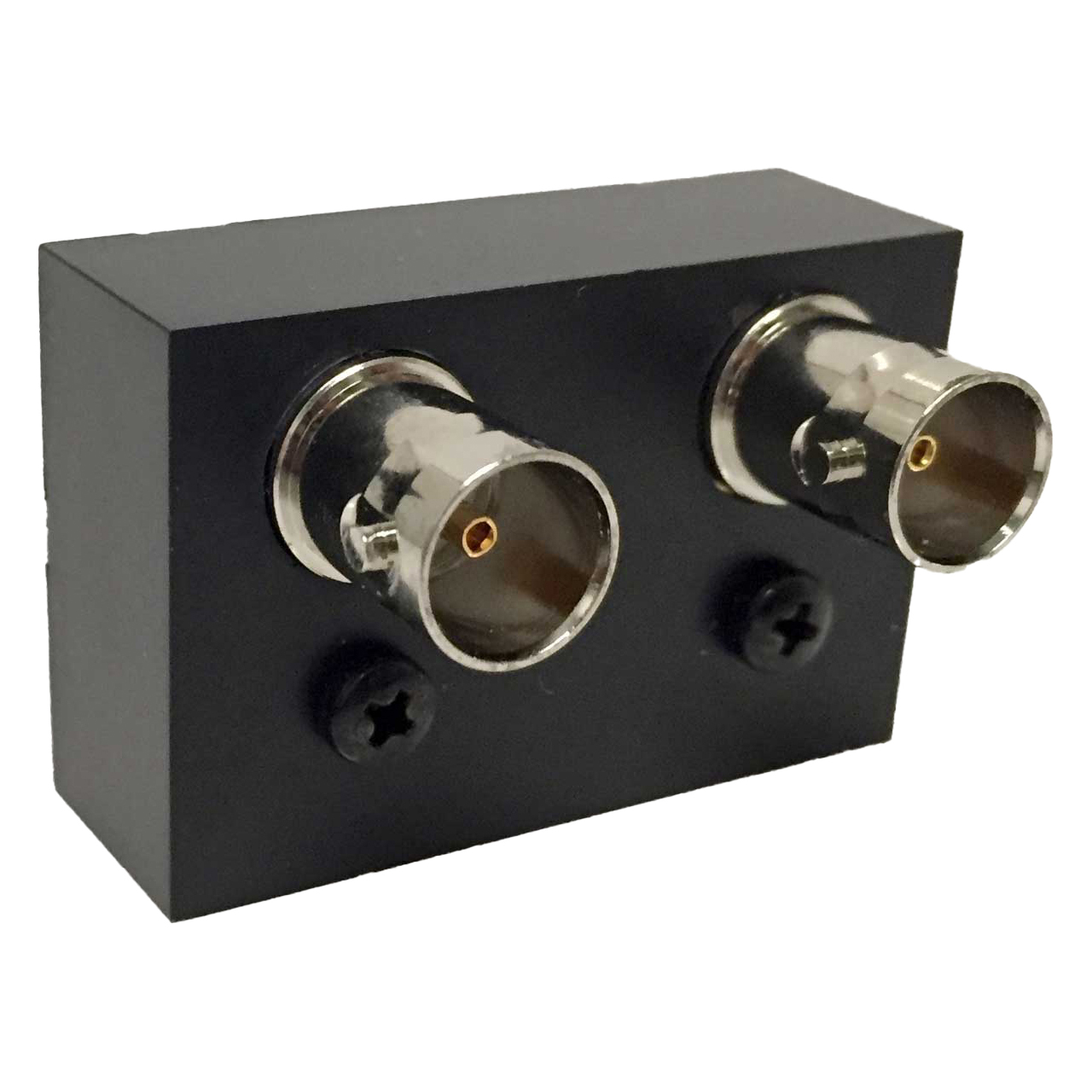

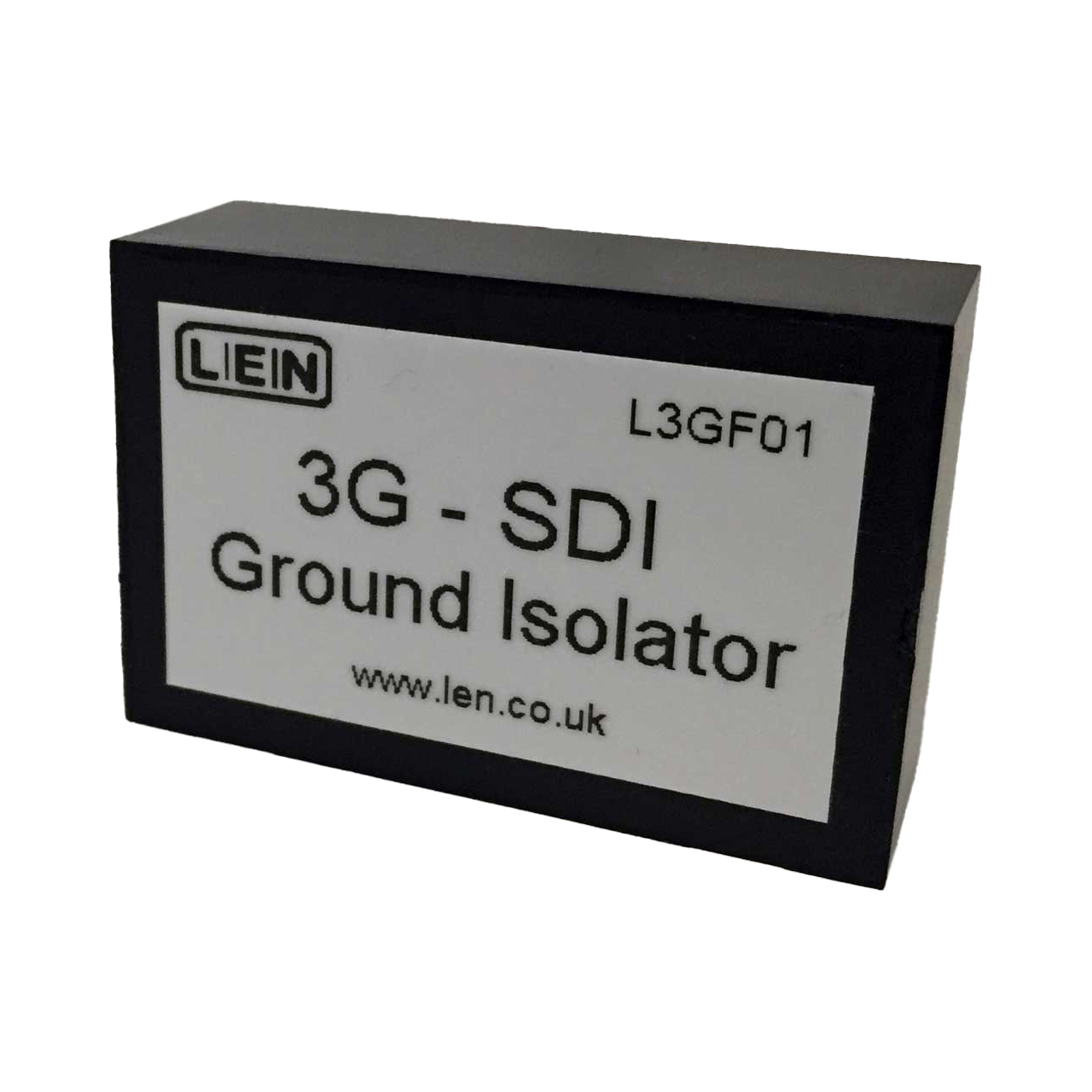

    The LEN L3GF01 3G-SDI Ground Isolator uses a broadband highpass filter to provide DC electrical iisolation between the two pieces of equipment, whilst permitting the full bandwidth of the 3G-SDI signal to pass. This method outperforms all other broadband transformers for SDI signals currently available.Also known as the 3G-SDI DC Isolation Highpass Filter, it is non-inverting and suitable for ASI format.

    • Features:

      • Electrical Grounding between equipment
      • No distortion of full bandwidth signal
      • Effective on3G, HD and SD signals
      • Suitable for ASI format
      • Small and lightweight
