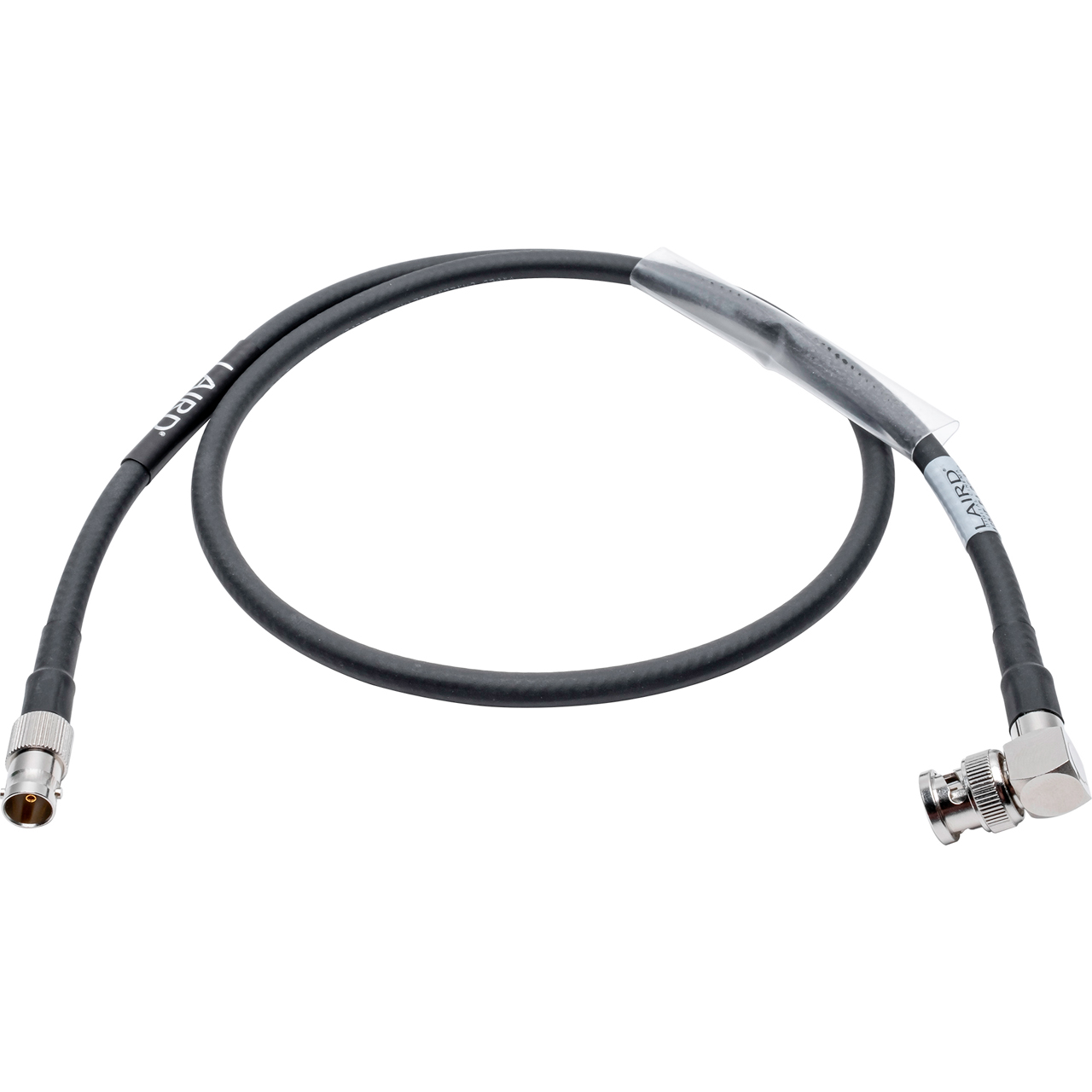

When space is limited and you need to connect your 12G-SDI equipment, the Laird 4694F-BA-BF series is the perfect solution. Combining the ultra-flexibility of Belden 4694F coaxial with a right-angle BNC connector, these cables are designed to maximize space and ensure a seamless connection. This series features a handy Right Angle BNC male to BNC Female for easy connections in tight spaces.
Larid 12G BNC cables are the reliable choice when setting up your studio backbone and infrastructure. There's no longer a need to quad-link cables when one will do the job! Laird's BNC cables are meet today's high bandwidth 12G-SDI signal / data serial interface requirements. The 4694F Series is the flexible 12G-SDI equivalent of Belden's famous 4694R cable. It features a silver-plated copper center conductor and is the ideal choice for installations in studios, stadiums and live event venues. Custom lengths are always available.
12G-SDI Maximum Distance
Laird Certifies this cable to work at a Max Transmission Distance of 125 Feet for 12G-SDI even though Belden may show this distance as 184 Feet. To meet the Laird max transmission standard, signal integrity must remain 100% functional without any CRC errors. Your 12G-SDI ST 2082 signals may function at or beyond the manufacturer-certified lengths without issues; however, when CRC errors are present there could be drops in audio, video, meta, and ancillary data. In most circumstances, video integrity remains intact at OEM distance.
