Pure Resonance Audio Premium Office Sound Masking System with 8x C5 4-Inch 70V Ceiling Speakers & 120W Mixer Amp

ITEM #: 8C5MA120BTSMG MFG #: SMSS-8C5MA120BTSMG1

Primary Image
  • Product Image Thumbnail 1 of 5
  • Product Image Thumbnail 2 of 5
  • Product Image Thumbnail 3 of 5
  • Product Image Thumbnail 4 of 5
  • Product Image Thumbnail 5 of 5
Free Shipping with $49 Minimum Order

List Price:

$2,163.99

Our Price:

$1,786.99

Availability: Usually Ships in 5-14 Days.
Please Email, Chat or Call (800) 522-2025 for Detailed Delivery Info
iAvailability Description Popup


SMSS-8C5MA120BTSMG1 - Overview

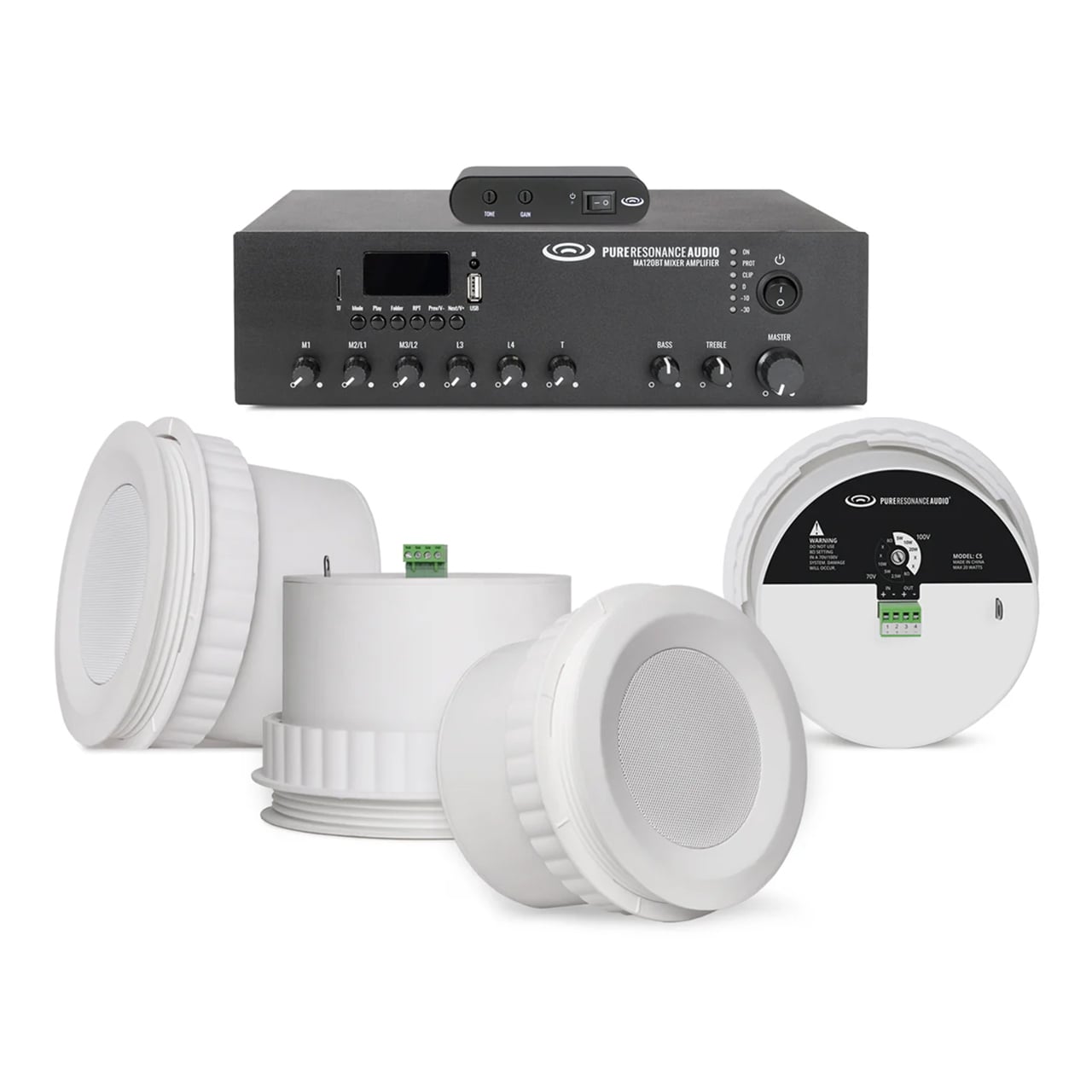

The Pure Resonance Audio 8C5MA120BTSMG commercial office sound masking system reduces distractions from other co-workers, telephones, loud equipment, and outside noises while also providing speech privacy. The white noise blends into the background making your space more acoustically comfortable, which can increase productivity and focus. This sound masking system for offices is extremely versatile and simple to use. It combines eight 4" recessed ceiling speakers with a 120W mixer amplifier and a sound masking generator for plug-n-play sound masking.

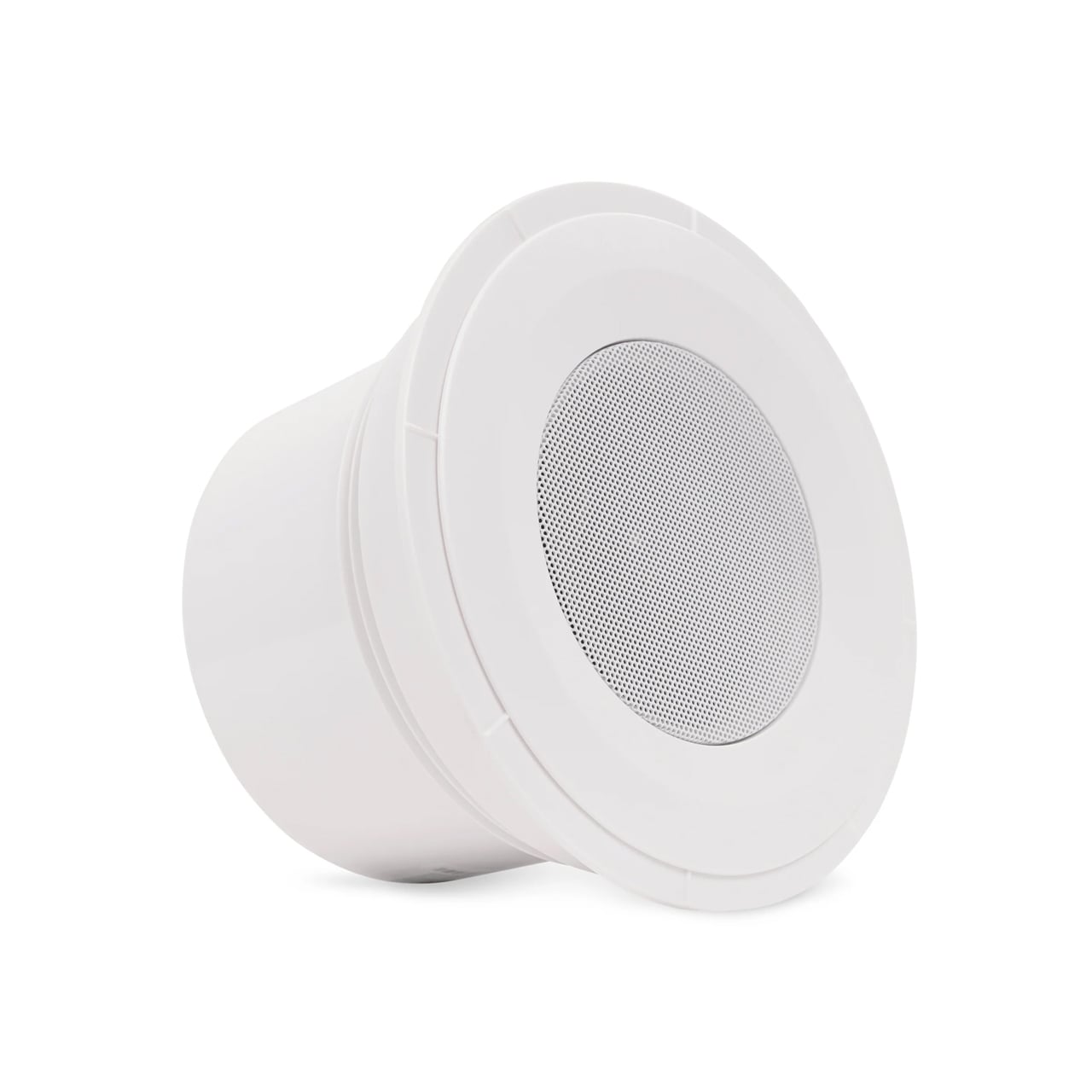

C5 Micro 4" 70 Volt Ceiling Speakers
The Pure Resonance Audio C5 is a compact 4" micro 70V ceiling mount speaker known for its seamless integration. It offers high-quality audio for music, paging, and sound masking in commercial spaces, including offices, retail stores, restaurants, hotels, and so much more. The speaker features a 4" driver and a frequency response of 90Hz - 20kHz with 91dB sensitivity. It includes a built-in 70V/100V transformer with an 8Ω bypass and is easy to install with the provided screw-on Easy-Mounting ring and C5-TB tile bridge for added support.

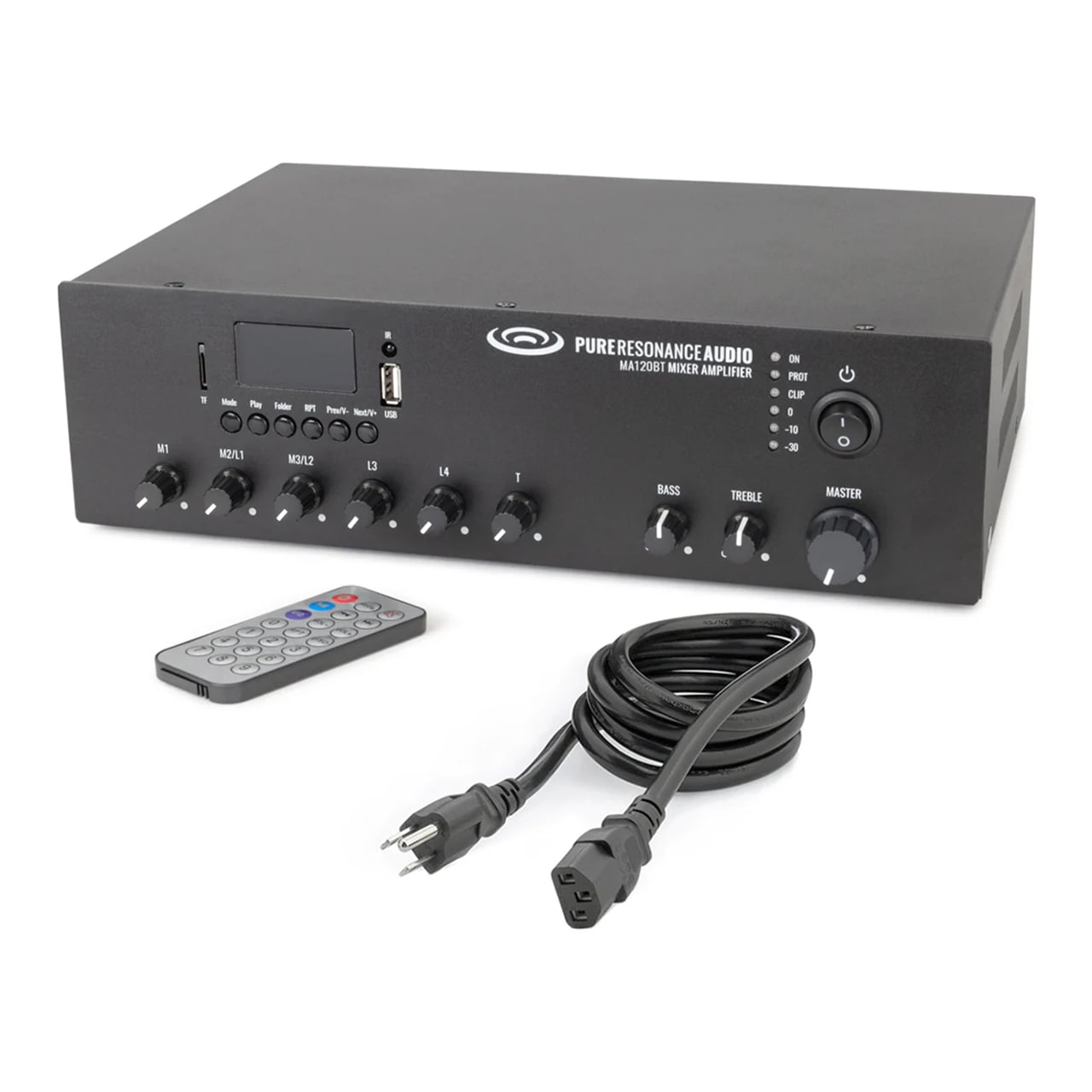

MA120BT 7-Channel 120W Mixer Amplifier
The Pure Resonance Audio MA120BT mixer amplifier with built-in Bluetooth and 70V/100V transformer technology provides a simple-to-operate and reliable 6-input solution with a built-in Bluetooth media player for installation in commercial applications. With an easy-to-use interface, balanced and unbalanced inputs, and 70V, 100V, 8Ω, or 4Ω outputs, this versatile and compact mixer-amp is an easy choice for any application.

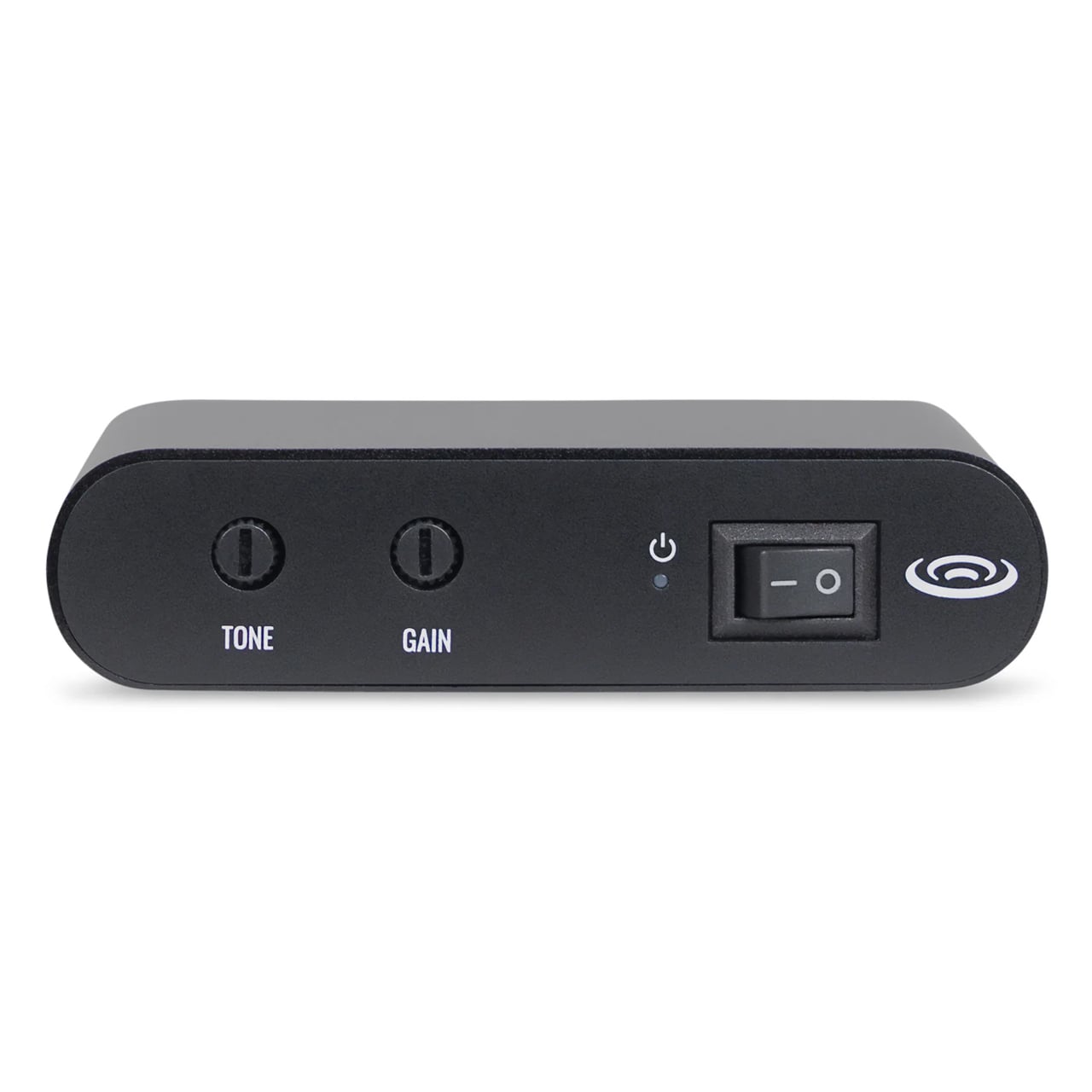

SMG1 Sound Masking Generator
The Pure Resonance Audio SMG1 is a versatile and affordable white noise sound masking generator designed to enhance speech privacy and reduce distractions in commercial environments. The SMG1 combines proprietary masking noise and flexible integration with a simple setup and compact design. With frequency adjustment for white, brown, and pink noise options, this robust sound masking generator is a user-friendly solution ideal for offices, medical facilities, hotels, call centers, and other sensitive spaces.

  • Features:

    • Quick and Easy to Install: Ideal for drop tile ceilings, these speakers are engineered for ceiling tiles with the screw on Easy-Mounting threaded mounting rings.
    • Recessed Design: The C5's compact recessed design with an ultra-thin flat bezel offers a small footprint that seamlessly integrates into any ceiling while maintaining quality audio.
    • SMG1 Sound Masking Generator: Adjustable tone control for customized sound masking with white, brown, or pink noise. Compact, durable design for reliable, privacy-enhancing performance. Easy plug-and-play setup to reduce distractions and boost productivity.
    • Sound Masking and More: The MA120BT allows the user to select, play and control sound masking, music and paging to the desired levels and mix proportions of music and masking sounds.
    • Connect Your Equipment: The MA120BT is equipped with inputs for wired or wireless microphones, CD/DVD players, laptops, computers, TF cards and USB thumb drives.
    • Remote Control: The included remote control manages volume levels, play/pause, skip and more all from a distance.

  • Specifications:

      C5 Ceiling Speaker
    • RMS Power Rating: 10W
    • Frequency Response: 90Hz - 20kHz
    • Low Frequency (-10dB): 120Hz - 20kHz
    • Impedance: 8Ω
    • Transformer Taps:
      - 2.5W, 5W, 10W @ 70V
      - 5W, 10W, 20W @ 100V
      - 8 Ohm Bypass
    • Transducer: Full-range 4" driver
    • Nominal Coverage Angle: 120° x 120°
    • Maximum SPL: 104dB ±3dB
    • Cutout Size: 6.25" (158.75mm)
    • Easy-Mounting Ring (Dia): 7.46" (189.4mm)
    • Mounting Depth: 5.51" (139.83mm) with connector
    • Overall Dimensions (DiaxD): 6.7" x 5.55" (170.2mm x 141mm) with connector
    • Weight: 2.93lbs (1.33kg)

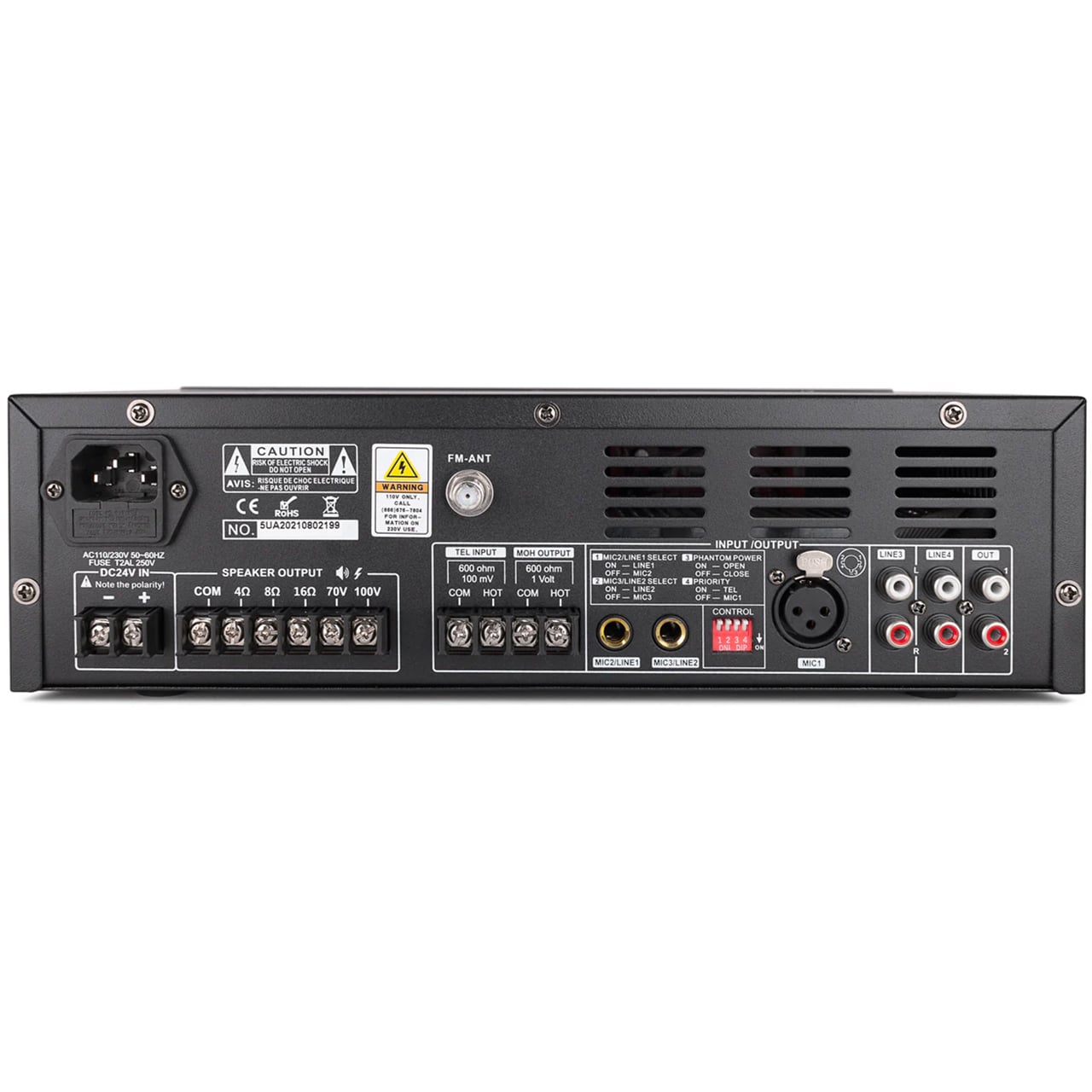

      MA120BT Mixer Amplifier
    • Rated Power Output: 120W
    • Speaker Outputs: 70V, 100V and 4Ω, 8Ω or 16Ω
    • Connectors:
      - Mic 1 input by balanced XLR with phantom power
      - Input 2-3 Mic/Line switchable unbalanced 1/4" phone jack
      - Line 1-2 inputs by RCA; Line output by RCA
    • Attenuation: Microphone 1-3, Line 1-2 and MP3/FM Radio, Bass/Treble and Master
    • Input:
      - MIC 1-3: 5mV - 8mV, 600Ω
      - Line: 150mV - 470mV, 10kΩ, unbalanced RCA
    • Line Out: 0.775V (0dBV)
    • Frequency Response: 60Hz - 15kHz (±3dB)
    • S/N Ratio:
      - Line: ≥85dB
      - Mic: ≥72dB
    • THD: Less than 0.5%
    • Protection: Short-circuit, clip, overload and high temp protection
    • Power Consumption: 60W
    • Power Supply: 115V 60Hz & 24V DC
    • Remote Control: IR remote control with (replaceable) CR2025 3V lithium battery
    • Dimensions (HxWxD): 3.5" x 11.8" x 10.8" (88mm x 300mm x 275mm)
    • Weight: 6.6lbs (3kg)

      SMG1 Sound Masking Generator
    • Noise Type: White, brown, and pink with tone adjustment
    • Outputs:
      - Dual RCA
      - Balanced 3.5mm TRS
    • Material: Aluminum
    • Power Supply: 12V DC
    • Dimensions: 0.87" x 3.54" x 3.74" (22mm x 90mm x 84mm)
    • Weight: 0.35lbs (0.16kg)
    • Shipping Dimensions: 6.15" x 8.63" x 1.5" (156mm x 219mm x 38mm)
    • Shipping Weight: 1lb (0.45kg)

  • Item Includes:

    • 8x Pure Resonance Audio C5 Micro 4" 70 Volt Ceiling Mount Speakers
    • 8x Pure Resonance Audio C5-TB Tile Bridges for C5 4" Ceiling Speakers
    • 1x Pure Resonance Audio MA120BT 120W Bluetooth Mixer Amplifier
    • 1x IR Remote Control
    • 1x Power Cord
    • 1x Pure Resonance Audio SMG1 Sound Masking Generator
    • 1x 18/2 Gauge Speaker Wire

  • Warranty:

    • 2 Year Limited Warranty (Speakers)
    • 1 Year Limited Warranty (Amplifiers and Electronics)

  • GTIN:

    0810093051526
