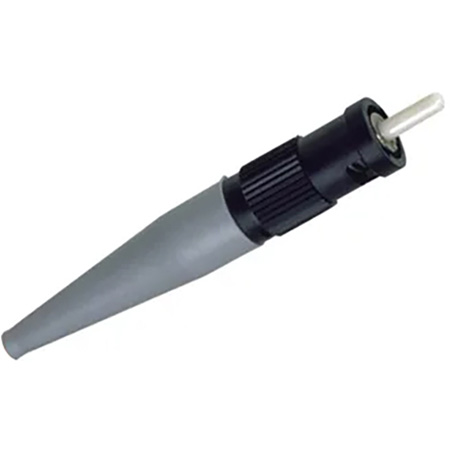

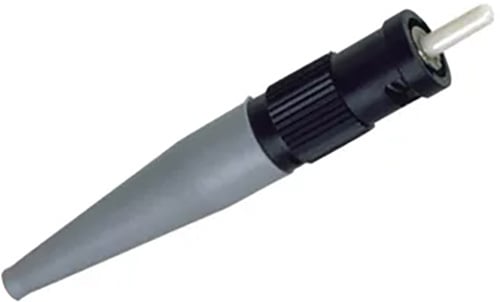

Belden A0408835 62.5 um Multimode ST Connector for 900 um Buffered Fiber

ITEM #: A0408835 MFG #: A0408835

free ship

Item unavailable. Please select another option.

Ask a Markertek Expert if you need assistance finding an appropriate substitute.

List Price:

$28.27

Our Price:

$25.96

Availability: Typically Ships in 3-10 Days
iAvailability Description Popup
  • Special Order Item: non-cancelable, non-returnable, non-refundable.


A0408835 - Overview

Optimax connectors are reliable, field installable fiber connectors that are easy to install. They do not require epoxy, curing or polishing. Their unique design incorporates a factory polished fiber stub in a splice mechanism which provides a fast, secure, and reliable termination on optical fiber cables. All critical steps are performed in the factory, ensuring a superior-quality connection every time. Only simple tools are required for installation, making Optimax a cost effective field termination. No complicated tools required. Optimax family of connectors include LC, SC and ST Compatible connectors for 62.5 or 50/125 æm Multimode fiber and Singlemode fiber installations. Connectors use a ceramic ferrule with a physical contact (PC) polish for multimode connectors and a super physical contact(SPC) polish for singlemode connectors that ensure the best possible mating of optical fibers. Use with 900um buffer diameter fiber optic cable (shown below).
NOTE: Epoxy Field Installable Connector available - please call.

  • Specifications:

    • ST Compatible Connectors
    • A0408835 ST Compatible 62.5 æm, Multimode for 900 æm buffered fiber only
    • A0408837 As above, Multimode for 900 æm buffered or jacketed fiber
    • AX101074 ST Compatible 50 æm, Multimode for 900 æm buffered or jacketed fiber.
    • AX101075 ST Compatible 50 æm, Multimode for 900 æm buffered fiber only.
    • AX101791 ST Compatible, Singlemode for 900 æm buffered fiber only

      LC Connectors
    • AX101981 LC 62.5 æm, Multimode for 900 æm buffered fiber only.
    • AX101982 LC 50 æm, Multimode for 900 æm buffered fiber only
    • AX101983 LC, Singlemode for 900 æm buffered fiber only.

      SC Connectors
    • AX100029 SC 62.5 æm, Multimode for 900 æm buffered fiber only.
    • AX100028 SC 62.5 æm, Multimode for 900 æm buffered or jacketed fiber.
    • AX101077 SC 50 æm, Multimode for 900 æm buffered fiber only
    • AX101076 SC 50 æm, Multimode for 900 æm buffered or jacketed fiber
    • AX101792 SC, Singlemode for 900 æm buffered fiber only.

  • GTIN:

    0611589016315
