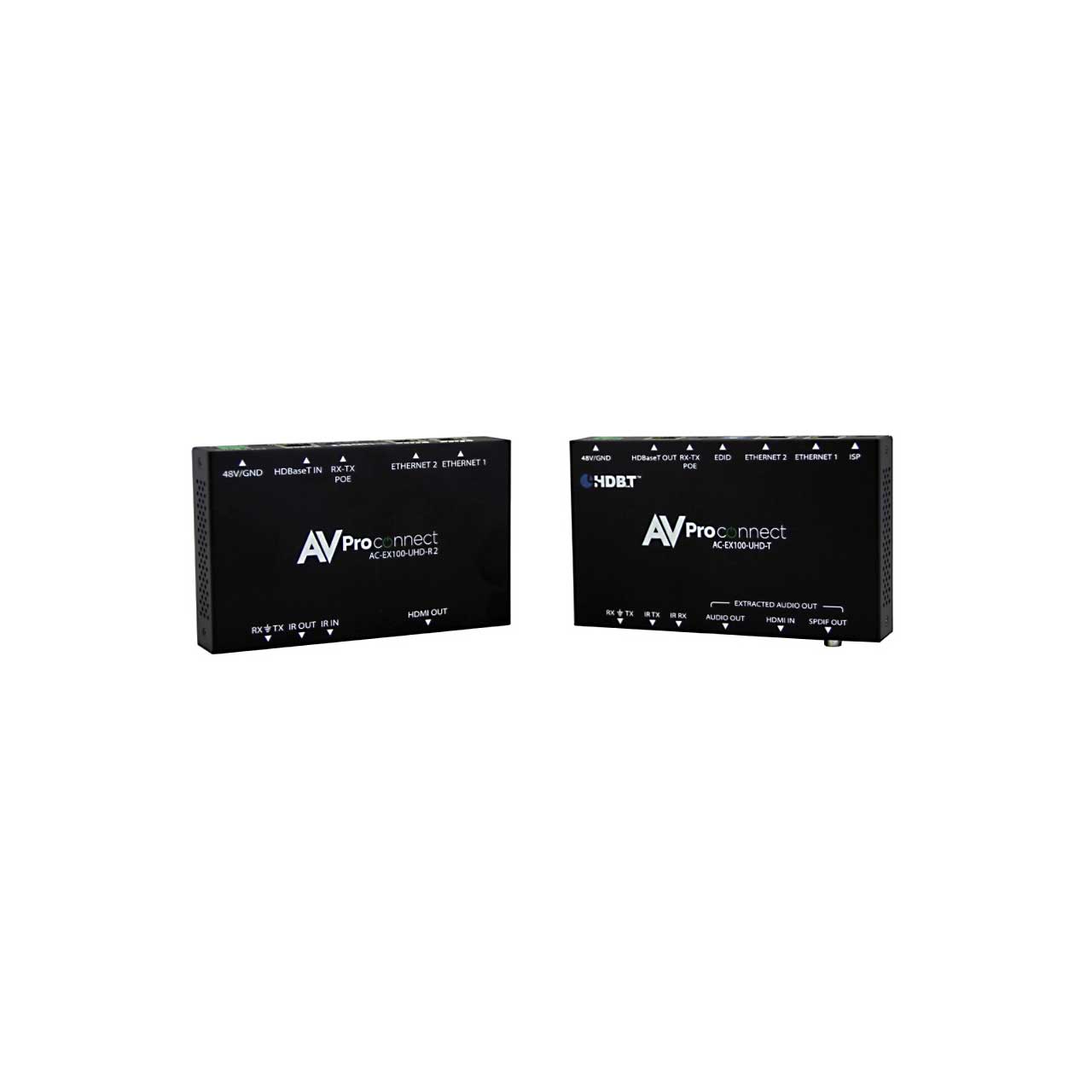

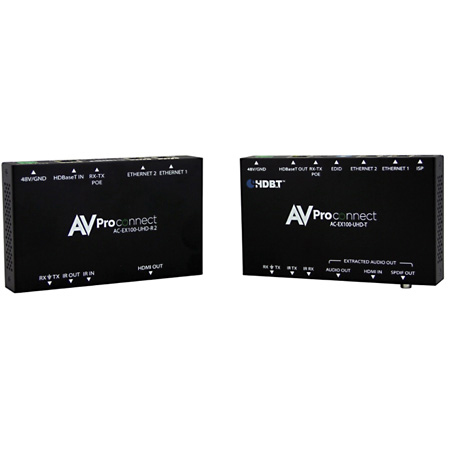

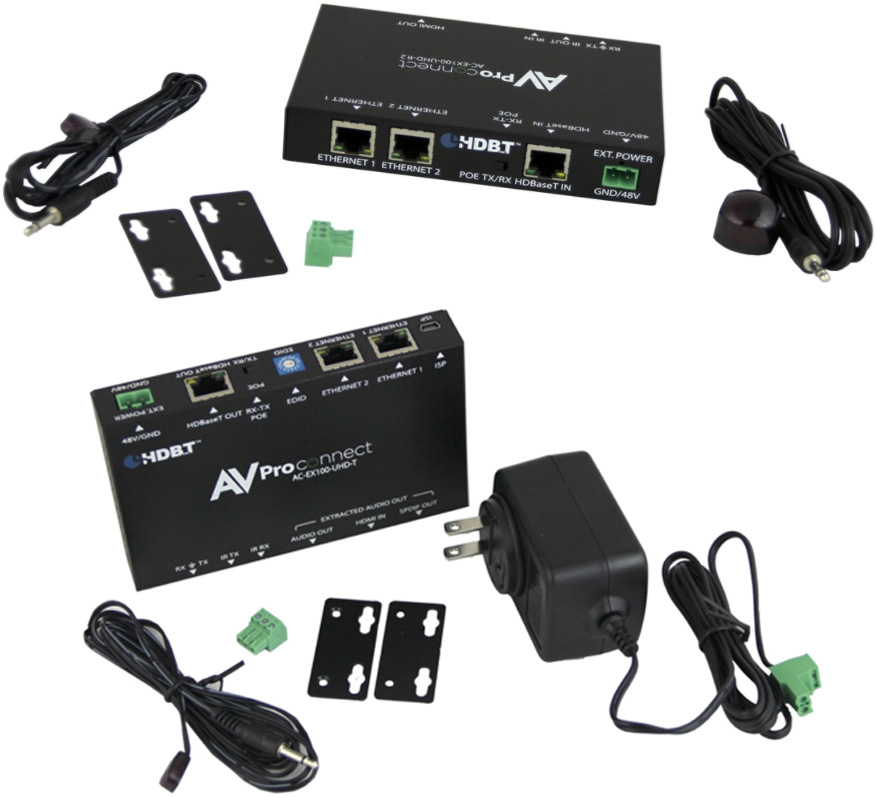

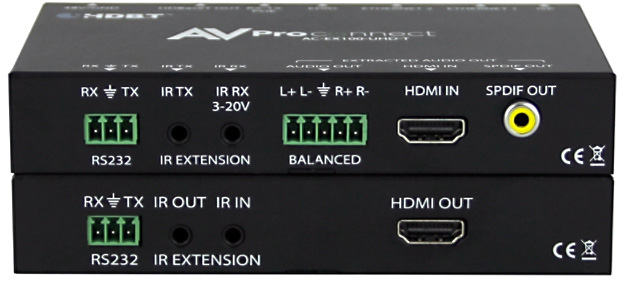

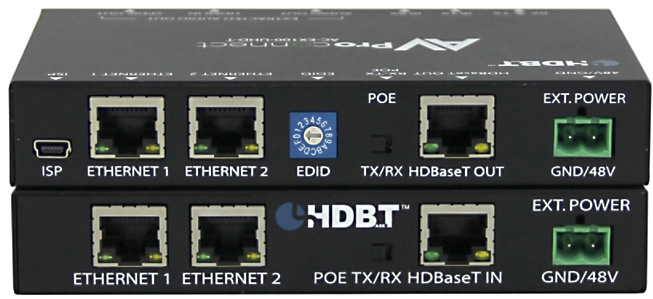

AVPro Edge AC-EX100-UHD-KIT-P 100 Meter HDMI via HDBaseT Extender with Bi-Directional Transmitter & Receiver Included

Manufacturer: AVPro Edge

Item #: AC-EX100-UHD-KIT   •   MFG #: AC-EX100-UHD-KIT-P




Our Price:$1,399.00

free ship


Availability: Usually ships in 3-10 business days
i
This item is currently out of stock and will ship the minute we receive it – typically 3-10 business days. Need it sooner? Expedited delivery options may be available. Email [email protected] or call customer service at 800-522-2025 and we'll make it happen.



    California Residents:
    8pt-triangleWARNING:
    Cancer and Reproductive Harm - www.P65Warnings.ca.gov





    The AC-EX100-UHD-P is our 100m HDMI Extender via HDBaseT, the kit comes with a Transmitter and Receiver that include Bi-Directional Power, RS-232, IR, Ethernet, Audio Extraction and EDID Management.

    This long range (100m/330ft - 1080p; 70m/230ft - UHD 4K) is unrivaled when it comes to the features it comes with. These extenders are designed to be a true problem solver. When the situation requires more power, distance, added Ethernet and reverse power or control, the B.A.E has it covered. Using the most powerful HDBaseT technology on the market, this product is sure be a robust long lasting part of your infrastructure.

    Key Benefits Include:

    Ultra High Definition: The length of manufactured HDMI cable is unchangeable after it is made and they are unreliable after about 25FT. Additionally, HDMI connectors can only be terminated in specialized factory environment due to its extremely high frequencies and high density. This does not allow installers or users to remake or make cables on a DIY basis. CAT-5E/6A cables are available widely and can be reworked easily by the installer or end-user. Our AC-EX100-UHD supports 4K up to 70M (230FT) with crystal clear 4K Resolution.

    Distance: By using AC-EX100-UHD, the transmission distance for HD 1080P is 100 meters (330ft) and for UHD 4K it's 70 meters (230ft).

    EDID Management: Control the source device with EDID management. With the multitude of sources out there, this feature allows you to fix a known good EDID so the source device knows what to output. Every time.

    Control: IR & RS-232 are bidirectional and can control the sources from the sinks or vice versa. This allows unlimited flexibility when controlling sinks, and sources. Control the rack or source and the display or sink over the same single wire.

    Bi-Directional Power: Ultra stable bi directional PoE allows you to really be flexible as you can choose where you want to power. Eliminate power supplies at the rack and power the Tx remotely from the display (Rx) end.

    Audio Extraction: The Tx on the pair has audio outputs for PCM audio - You have balanced 2-channel and SPDIF outputs to run audio directly into a local AVR or even more common, use the 2-channel audio to go into a distributed audio amplifier/matrix.

    I-PASS: Plug your Control System emitter ports directly into the IR port on the transmitter (via mono 3.5mm cable) for clean and reliable IR pass through, our unique VPC (Voltage Protection Circuit) allows you to do this without wear and tear on the sensitive electronics inside.


    • Features

      • Plug & Play - Field Firmware Update-able
      • 10.2 GBPS Video Bandwidth
      • Use single UTP/STP LAN cable (CAT-5E/6A) with substitute HDMI cable to achieve long distance transmission.
      • UTP/STP cable termination follows the standard of IEEE-568B.
      • Transmission distance reaches up to 100 meters at 1080P and UHD 4K up to 70 meters.
      • PoE (Bi Directional) ieee certified.
      • HDMI V2.0 supported.
      • HDCP2.2 / 1.4 compliant.
      • HDR Support
      • UHD support: 4Kx2K 30Hz or 4Kx2K 60Hz YUV 4:2:0
      • LED indicators monitoring power status.
      • ESD protection circuitry (Inputs / Outputs) till 7KV.
      • Pair of mounting ears (supplied)
      • Transfer Bi-directional IR & RS-232
      • I-PASS IR Direct Connect with VPC (Voltage Protection Circuit)
      • Ethernet hub
      • Advanced EDID Management
      • Audio Extraction (SPDIF & Balanced 2-Channel PCM on Tx)
      • Can Cascade

    • Warranty

      • 10 Year

    • GTIN:

      0859762007150
