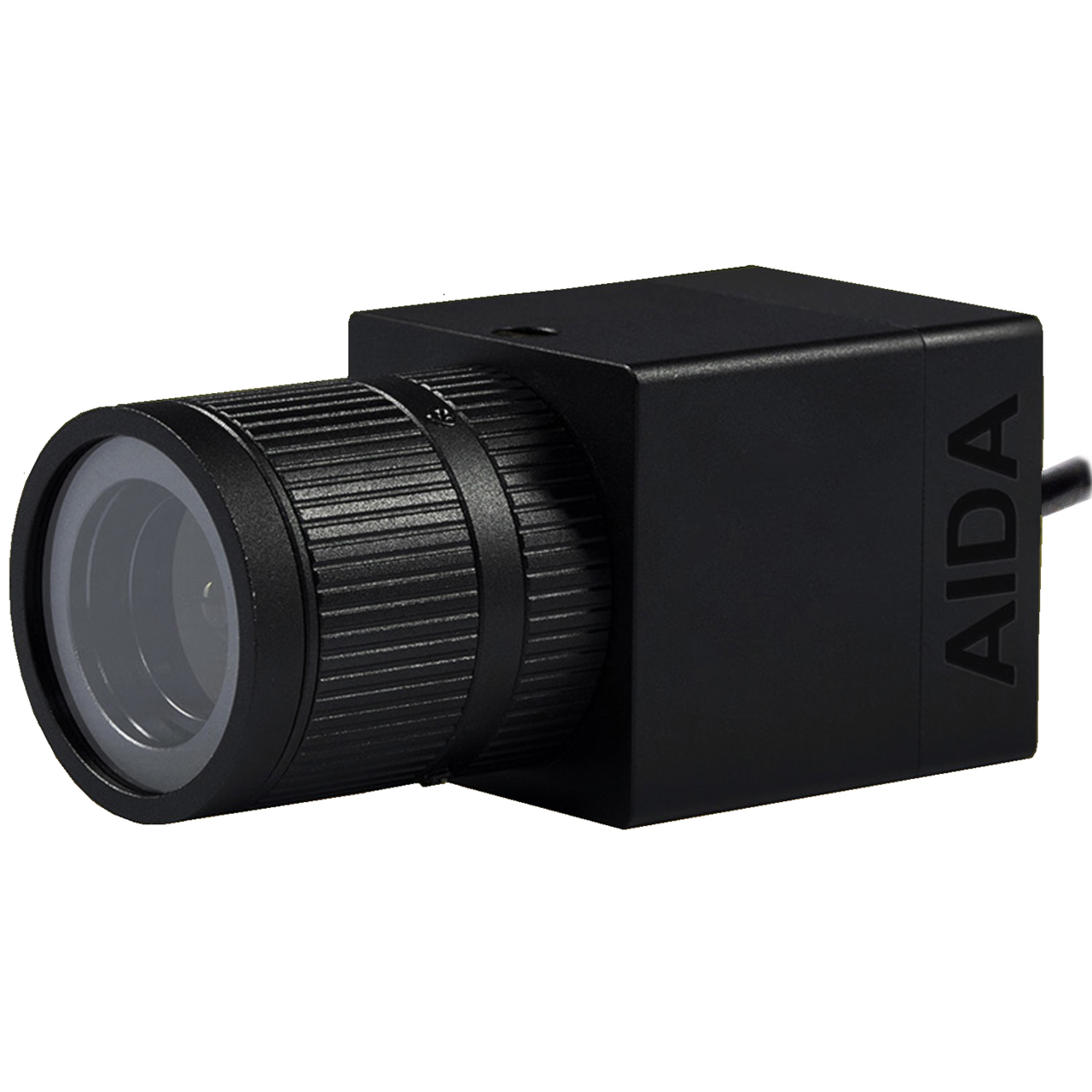

AIDA Imaging HD-100A-VF FHD HDMI POV Weatherproof Camera with 2.8-12mm Lens & TRS Stereo Audio Input

ITEM #: AIDA-HD-100A-VF MFG #: HD-100A-VF

Primary Image
  • Product Image Thumbnail 1 of 5
  • Product Image Thumbnail 2 of 5
  • Product Image Thumbnail 3 of 5
  • Product Image Thumbnail 4 of 5
  • Product Image Thumbnail 5 of 5
Free Shipping with $49 Minimum Order

Our Price:

$450.00

Availability: Usually Ships in 5-14 Days.
Please Email, Chat or Call (800) 522-2025 for Detailed Delivery Info
iAvailability Description Popup


HD-100A-VF - Overview

Affordable & Versatile Video Streaming, On-the-go!

Not Wide Enough? Not Tight Enough? HD-100A-VF: "Why Not Both?"
The AIDA Imaging HD-100A-VF is the perfect POV to adapt to either situation. Its 2.8mm - 12mm varifocal lens is adjustable from a roomy 80° wide to a 32° zoomed-in view, allowing for the flexibility in many different scenarios.

On top of the custom varifocal lens, you get a beautiful uncompressed 1080p image over HDMI, wrapped in a IP54 shell tough enough to withstand dust and splashes! This POV camera comes prepared given any situation!

It's All About the HD-100A Family
Built on the same foundation of AIDA's famous HD-100A, you can get the same tried and trusted quality of the HD-100A, alongside its IP54 attached varifocal lens.

Unmatched Quality
The HD-100A-VF outputs uncompressed low latency 1080p video at various framerates for your viewing pleasure. Whether it goes into a switcher, or a monitor, you are getting the best, of the best!

Vari-ous Solutions to Fo-cus On!
The built-in 2.8-12mm varifocal lens swinging from 80° to 32° HFOV, is sealed in an IP54 shell built for your various shooting solutions needs!

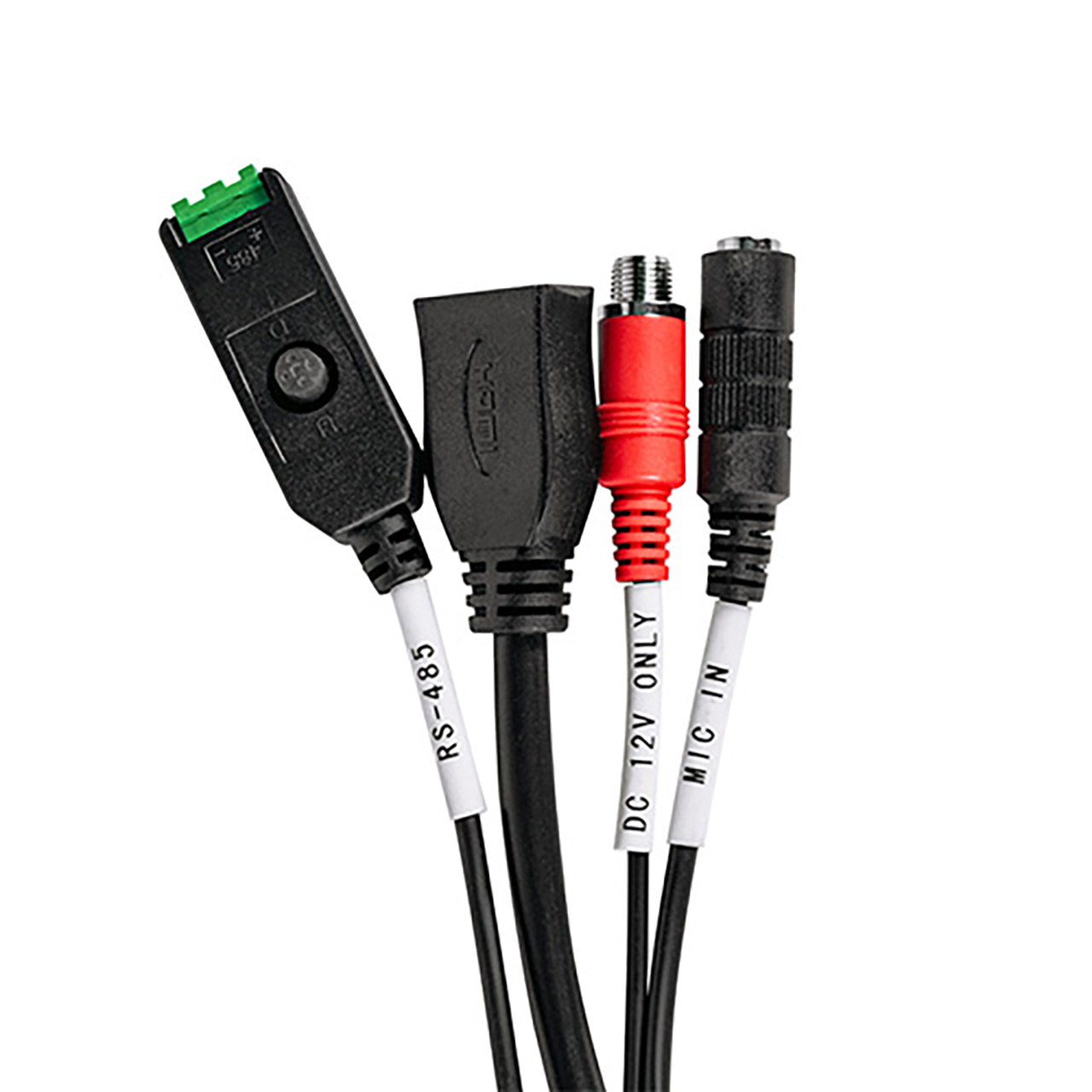

Safety Cabling
The camera has a 3ft (1m) IP-rated cabling to keep the most important of connections safe from nature's way!

Communication is Key
The HD-100A-VF uses RS232 to communicate our VISCA protocol with, so using something like their CCS-USB ensures you are always in control with your camera!

Vari-ous Mounting Positions
The HD-100A-VF has 2 standard 1/4"-20 mounting solution at the top and bottom of the camera, allowing for easy installation on any standard tripod thread.

  • Features:

    • HDMI 1.3a
    • 1080P streaming
    • Attached VF Lens - IP54 2.8mm - 12mm VF lens (32° - 80° HFOV)
    • 3.5mm Stereo Line in - Syncing audio over HDMI made easy!

  • Specifications:

      Video
    • Image Sensor: 1/3" Progressive CMOS
    • Effective Pixels:
      - Horizontal: 1920
      - Vertical: 1080
    • Pixel Size: 2.75µm (H) x 2.75µm (V)
    • Resolution: 1080p, 1080i, 720p
    • Resolution Rate:
      - 1080 60p/59.94/50p/30p/29.97p/25p/24p
      - 1080 60i/59.94i/50i
      - 720 60p/59.94p/50p
    • Output: HDMI 1.3a
    • Color Space: 4:2:2 (YCbCr) 10bit
    • Min Illumination: 0.2Lux (day), 0.1Lux (Night)
    • White Balance: Auto & Manual (9000K - 11,000K)

      Lens
    • Lens:
      - 2.8mm - 12mm Custom Lens
      - FOV:
       • Wide: 120°
       • Tele'd: 36°

      Audio
    • Input: 3.5mm TRS Stereo
    • Sample Rate: 16/24/32 Bits

      Physical
    • Camera Control: Serial VISCA, OSD Button
    • Operation Temp: 32°F - 104°F

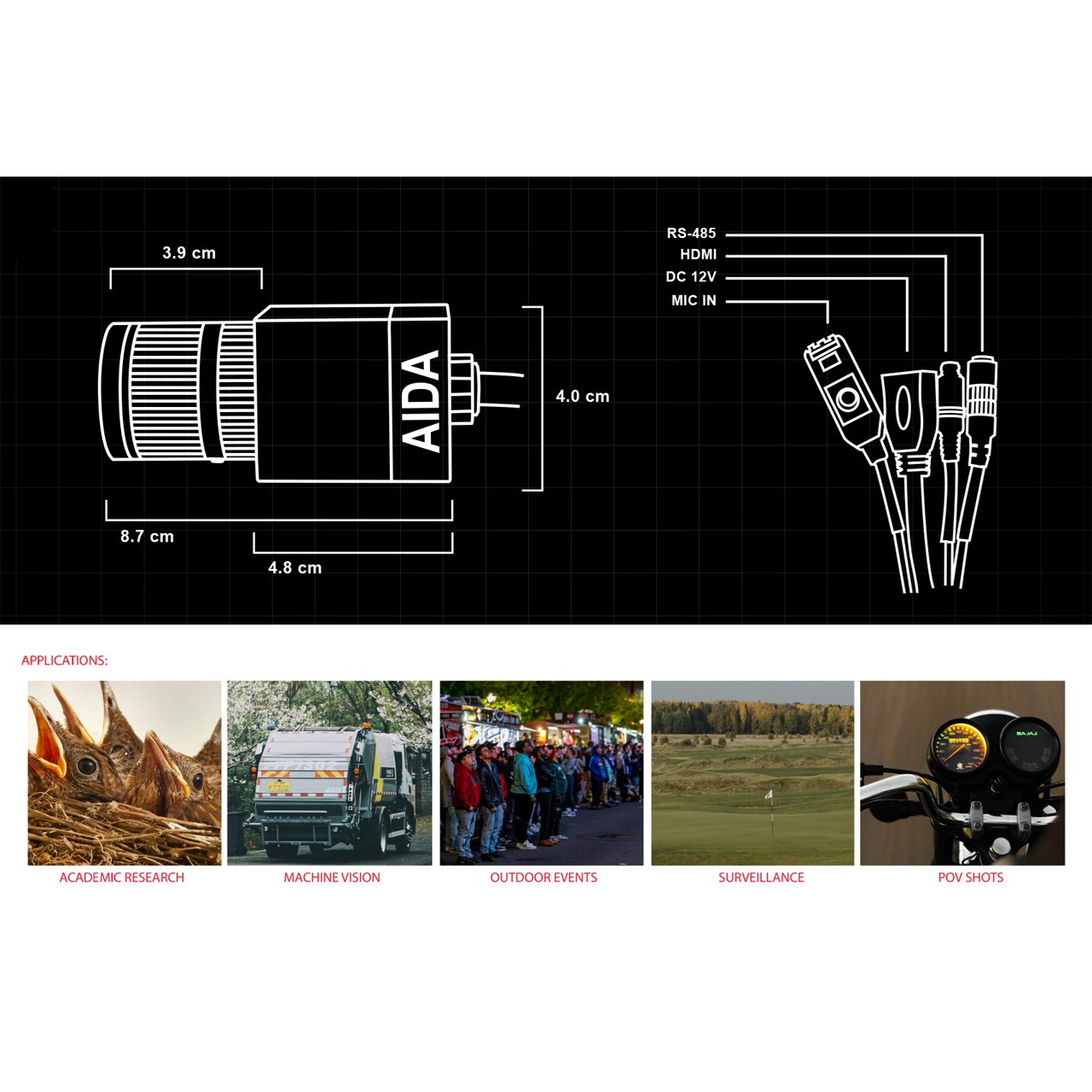

    • Dimension: 2.86" x 1.61" x 1.61" (73mm x 41mm x 41mm)(with added lens)
    • Weight: 1lb (454g)
    • Power: 12VDC (+9V - +15VDC)

  • Item Includes:

    • 1x DC 12V Power Supply & Sockets Adapter

  • GTIN:

    0783970765239
