AIDA Imaging UHD6G-X20L UHD 4K/30 HDMI 1.4 and 6G-SDI 20x Zoom POV Streaming Camera

ITEM #: AIDA-UHD6G-X20L MFG #: AIDA-UHD6G-X20L

Primary Image
  • Product Image Thumbnail 1 of 5
  • Product Image Thumbnail 2 of 5
  • Product Image Thumbnail 3 of 5
  • Product Image Thumbnail 4 of 5
  • Product Image Thumbnail 5 of 5
Free Shipping with $49 Minimum Order

Our Price:

$1,480.00

After Savings:

$1,184.00

Availability: Usually Ships in 5-14 Days.
Please Email, Chat or Call (800) 522-2025 for Detailed Delivery Info
iAvailability Description Popup
Aida Imaging Instant Savings!Enjoy Instant savings on select Aida Imaging equipment this holiday season! Get yours today through Markertek while the savings last!


AIDA-UHD6G-X20L - Overview

The perfect 6G-SDI Livestreaming Solution!

The AIDA Imaging UHD6G-X20L combines the power of 6G-SDI and HDMI to simultaneously output uncompressed, quality 4K video. Combined with a powerful 4K 20X optical zoom module, the camera is capable of capturing clear imaging from up to 60ft, revel in unparalleled video quality that rivals even the best 6G-SDI POV cameras.

The Dynamic Duo
The UHD6G-X20L outputs both 6G-SDI and HDMI at up to 4K resolution, 30hz!

Bigger Sensor
The UHG6G-X20L comes packed with a 1/1.7" sensor, perfect for both low light and streaming purposes!

Streaming Made Easy!
With a innate 60° HFOV, enjoy capable zoom levels up to 60ft (20M) with autofocus capability!

AIDA's Famous Rugged Design
The UHG6G-X20L's rugged, discreet design makes it a perfect look for any production workflow.

Line-Level Audio Sync
Enjoy embedded audio over SDI or HDMI, keeping streams in sync no matter the time!

Remote Control
Feel free to control the UHD6G-X20L with its handheld remote, or via RS485 Serial VISCA!

Mounting Options
The UHG6G-X20L has a 1/4" 20 standard tripod mount on the bottom of it, making it easily mountable on most existing tripods!

  • Features:

    • 4K 1/1.7" Progressive Scan CMOS sensor capable of capturing up to 30fps over 6G-SDI and HDMI
    • Advanced digital imaging processor provides vivid and detailed images by utilizing Dynamic Range, Auto White Balance, and Noise Reduction
    • Superb motion-compensated temporal noise reduction filter for motion video without blurring
    • SD control breakout cable with power input and RS-485 for remote communication
    • Flawlessly relays multi-channel embedded audio via SDI
    • Perfectly suited for broadcast, pro audio/video, and security
    • Conforming with SMPTE 292M, 424M, and 2081-10
    • Versatile, compact, and rugged design with 1/4" 20 mounting on bottom

  • Specifications:

      Video
    • Image Sensor: 1/2.8" Progressive CMOS
    • Effective Pixels: Horizontal: 3840, Vertical: 2160
    • Pixel Size: 1.85 μm (H) x 1.85μm (V)
    • Resolution: 2160p, 1080p, 1080i, 720p
    • Resolution Rate:
      - 2160 30p/29.97p/25p/24p
      - 1080 60p/59.94/50p/30p/25p/24p
      - 1080 60i/59.94i/50i
      - 720 60p/59.94p/50p
    • Output: 6G-SDI / HDMI
    • Color Space: 4:2:2 (YCbCr) 10bit
    • Min Illumination: 0.2Lux (day), 0.1Lux (Night)
    • White Balance: Auto & Manual (9000 - 11,000 K)

      Lens
    • Module: 20x Optical Zoom Module F1.5~F3.0
    • FOV: 61~3.4°

      Audio
    • Audio Embed: Embed over SDI ONLY
    • Input: 3.5mm Line Input

      Standard
    • Control Protocol: Serial VISCA

      Physical
    • Camera Control Protocol: RS485
    • Operation Temp: 32°F - 104°F

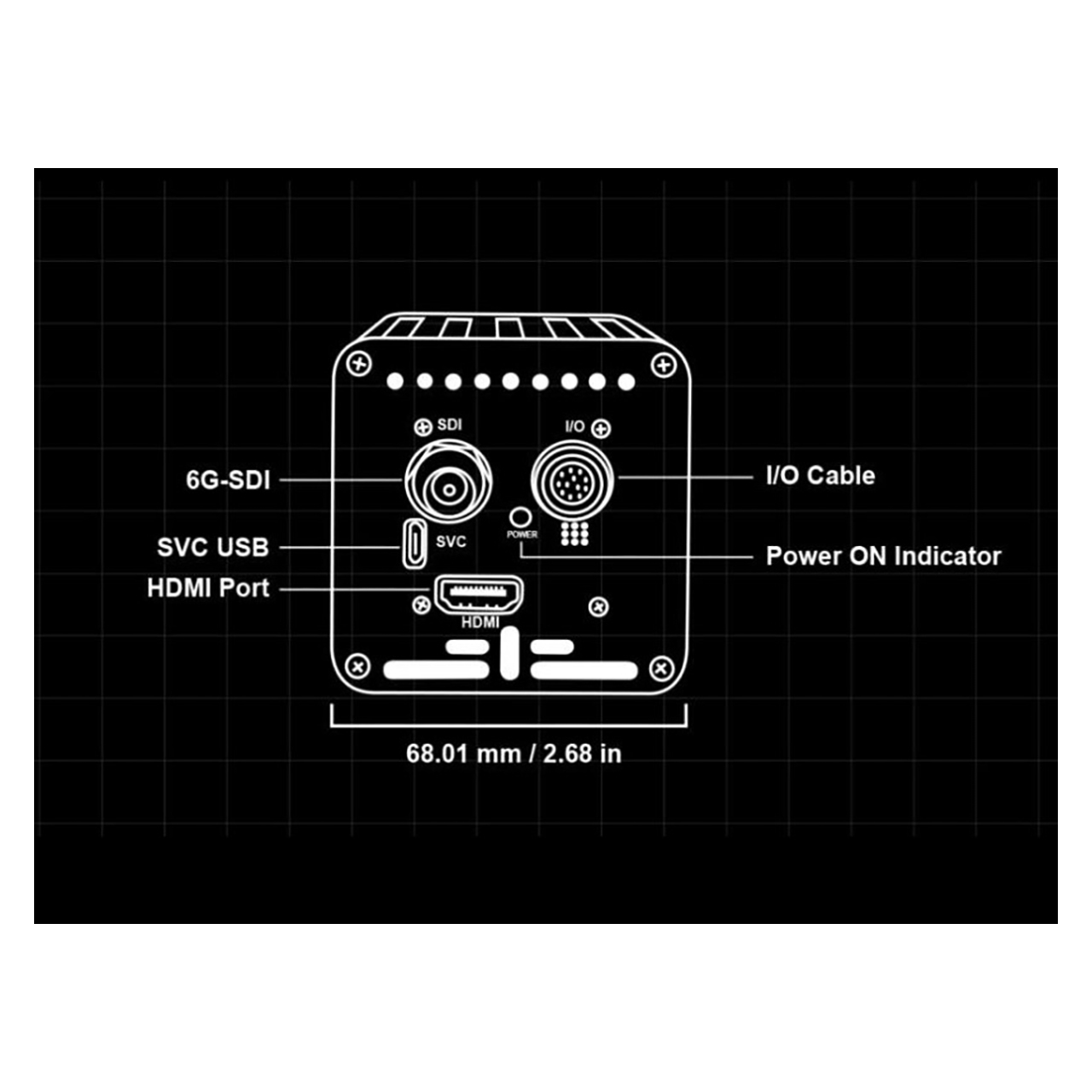

    • Dimension: 2.68" x 5.74" x 2.68" (68mm x 146mm x 68mm)
    • Weight: 2lbs (750g)
    • Power: 12V DC (9V - 15V DC)

  • Item Includes:

    • 1x AIDA Imaging UHD6G-X20L UHD 4K/30 HDMI 1.4 and 6G-SDI 20X Zoom POV Camera
    • 1x IR Remote Control
    • 1x DC 12v Power Supply & Sockets Adapter
    • 1x I/O Breakout Cable

  • Warranty:

    • 2 Year Limited Warranty

  • GTIN:

    0792671146889
