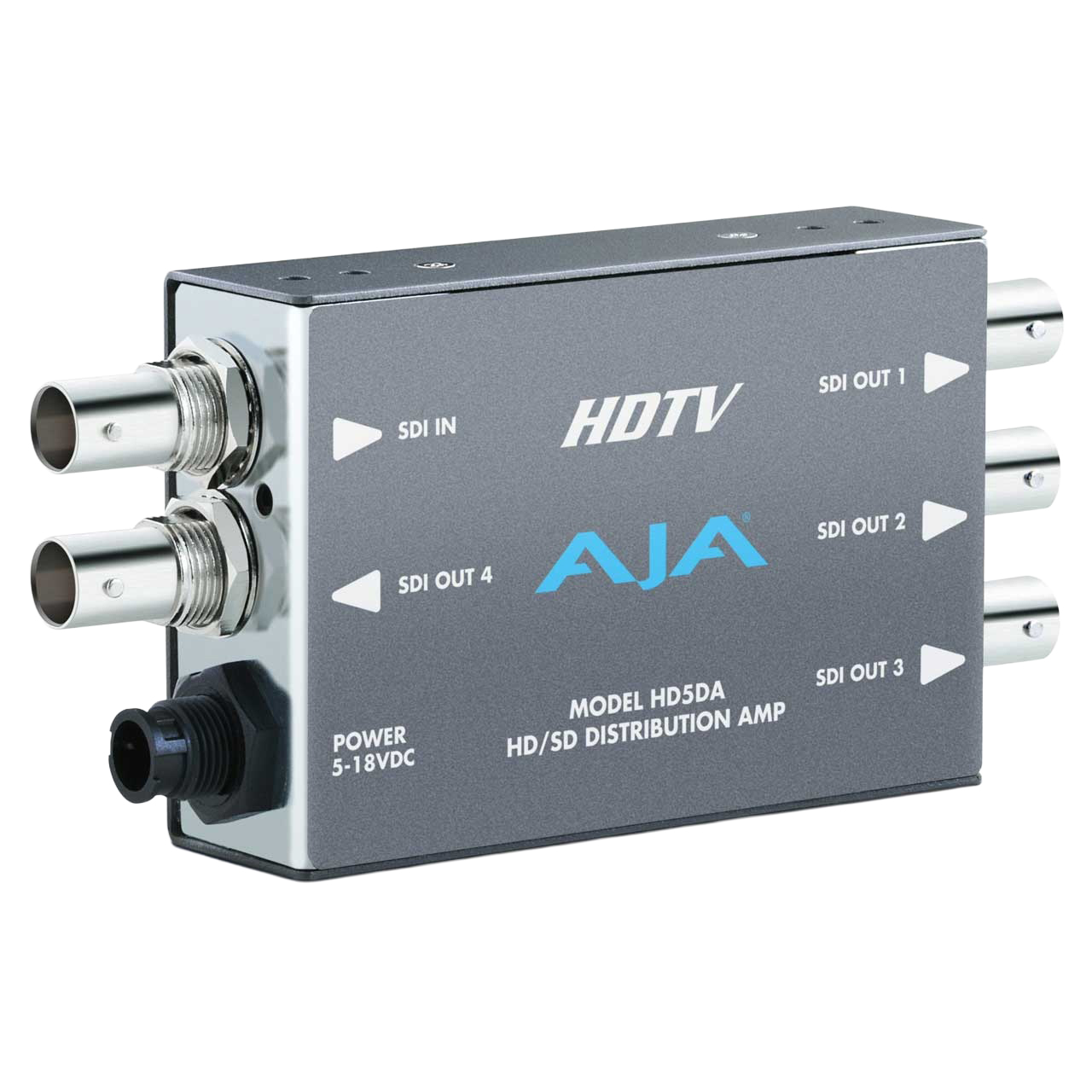

AJA HD5DA 1x4 HD-SDI/SDI Splitter Distribution Amplifier - B-Stock (Vendor Refurbished)

AJA-HD5DA-BSTK - Overview

• Features:

  • Compact HD-SDI/SDI Distribution
  • Four Separately Buffered Serial HD-SDI/SDI Outputs
  • Auto Equalization
  • Acts as a Low Cost Repeater
  • Automatic multi-standard
  • Miniature Size
  • Universal Power Supply


• Specifications:

  Formats
  • 1.5 Gb, 143, 177, 270, 360 Mb, Auto Select

    Inputs
  • 1x HD-SDI, 1x SDI (SMPTE 292/296), 1x BNC

    Outputs
  • 4x HD-SDI, 4x SDI, 4x BNC; Equalizing

    Return Loss
  • >15dB - 270 Mhz (Input and Output)

    General
  • Safe Operating Temperature: 32 to 104°F (0 to 40°C)
  • Safe Storage Temperature (Power OFF): -40 to 140°F (-40 to 60°C)
  • Operating Relative Humidity: 10-90% noncondensing
  • Operating Altitude: <3,000 meters (<10,000 feet)
  • Dimensions (WxDxH): 5.8 x 2.4 x 1.0" (131 x 61 x 25mm)
  • Power: 5VDC Regulated, 2.5 watts, power supply required, included with purchase
  • Operating Altitude: <3,000 meters (<10,000 feet)
  • Dimensions (WxDxH): 5.8 x 2.4 x 1.0" (131 x 61 x 25mm)
  • Power: 5VDC Regulated, 2.5 watts, power supply required, included with purchase
