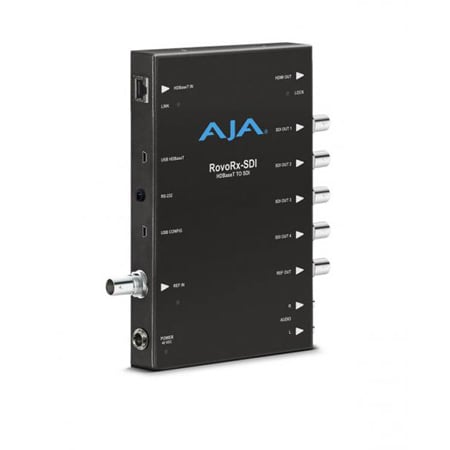

AJA RovoRx-SDI UltraHD/HD HDBaseT Receiver to 6G/3G-SDI & HDMI Frame Sync with PoH & Genlock

    Questions? Ask a Markertek Expert:
    800-522-2025 Email

    AJA RovoRx-SDI UltraHD/HD HDBaseT Receiver to 6G/3G-SDI & HDMI Frame Sync with PoH & Genlock

    Manufacturer: AJA Video

    Item #: AJA-ROVORX-SDI   •   MFG #: ROVORX-SDI




    Our Price:$995.00
    Add to Cart for Better Price

    free ship


    Availability: In Stock
    i
    Item is Available for immediate shipping from our warehouse.




      Share!

      California Residents:
      8pt-triangleWARNING:
      Cancer and Reproductive Harm - www.P65Warnings.ca.gov





      Required Accessories

          Show More

      RovoRx-SDI is an UltraHD/HD HDBaseT Receiver with four integrated 6G/3G-SDI outputs and HDMI video and audio outputs specifically designed to receive RovoCam's output. Receive the RovoCam's video and audio up to 100m away from the camera, and output to SDI monitors, routers and recorders and HDMI TVs and devices. RovoRx-SDI also offers a DA (Distribution Amplifier) Mode for extensive output options. The HDBaseT connector on RovoRx-HDMI supports camera uncompressed video, audio, power, and control, all over a single Cat 5e/6 cable, greatly simplifying cabling and systems integration.

      RovoRx-SDI offers a lot of power for HDBaseT workflows, receiving uncompressed video and audio, offering bidirectional VISCA support and PoH for powering RovoCam, all across a single Cat 5e/6 cable. With multiple 6G/3G-SDI outputs as well as HDMI, your options for distribution of RovoCam's UltraHD or HD imagery simplify any project's needs.

      RovoRx-SDI uniquely offers a DA Mode for Distribution Amplification output of incoming HDBaseT video sources.

      DA Mode allows one HDBaseT video source to be output via multiple 6G/3G-SDI connections, opening up the opportunity for simultaneous recording, routing and display of RovoCam imagery.

      PoH or Power over HDBaseT is a lifesaver for those working on live events, in studios and other signal sensitive environments. By supplying RovoCam's power from a remote location, signal interference is mitigated and cabling is greatly simplified. RovoRx-SDI can provide power to RovoCam or to third party HDBaseT transmitters, all across a single category cable alongside video, audio and control signals.


      • Features

        • 4x 6G/3G-SDI outputs support video and embedded audio for incredible multi-format compatibility
        • 8-Channels (4 pairs) of SDI embedded audio supported
        • DA Mode for distributing 6G/3G-SDI UltraHD and HD signals from HDBaseT sources
        • HDMI simultaneous output for UltraHD and HD displays
        • REF in/out that can be genlocked with other broadcast gear
        • USB port for software configuration of SDI settings
        • Power over HDBaseT (PoH), allowing RovoCam to be powered remotely from its physical location

      • Specifications

        • Video Input: HDbaseT (RJ-45)
        • Video Output Digital (When in use with RovoCam): HDMI 1.4b
        • Audio Output Analog: 2-channel unbalanced 2 x RCA connectors
        • RS-232: 1 x 3.5mm TRS Input for VISCA camera control.
        • USB: 1 x USB for firmware and additional control

          Video Formats
        • (UltraHD) 3840 x 2160p 25, 29.97
        • (HD) 1080p 50, 59.94
        • (HD) 1080i 25, 29.97
        • (HD) 720p 50, 59.94
        • (SD) 625i, 525i

          Video Input
        • HDBaseT (RJ-45), Analog Video reference terminating input

          Video Outputs
        • HDMI 1.4b, No EDID negotiation, No embedded audio
        • 6G-SDI output on SDI 1-4
        • 4 x 6G-SDI while in "DA Mode"
        • UltraHD 3840 x 2160p 25, 29.97
        • UltraHD 4:2:2 or 4:4:4 (4 x BNC)
        • 4K/UltraHD LFR 3.0 GB 2SI (2 x BNC)
        • 4K/UltraHD LFR 1.5 GB 2SI (4 x BNC)
        • 4K/UltraHD HFR 3.0 GB Level A 2SI (4 x BNC)
        • 4K/UltraHD HFR 3.0 GB Level B 2SI (4 x BNC)
        • 3G-SDI (Level A or B)
        • (HD) 1920 x 1080p 50, 59.94
        • HD-SDI
        • (HD) 1920 x 1080i 50, 59.94
        • (HD) 1280 x 720p 50, 59.94
        • SD-SDI
        • (SD) 625i 50
        • (SD) 525i 59.94

          Audio Output Digital
        • 8-Channels (4 pairs) of SDI embedded audio supported
        • Rates supported: 48 kHz
        • *NOTE: No Audio on HDMI output
        • 1 x RCA connector, 2-Channel unbalanced
        • *NOTE: This feature only works when used in conjunction with RovoCam Audio
        • RS-232
        • 1 x 3.5mm TRS Input for RS-232 bidirectional signal

        • USB Config: 1 x USB
        • Size (w x d x h): 4.66" x 6.97" x 0.94" (118mm x 177mm x 23.9mm)
        • Weight: 0.8 lbs (0.4kg)
        • Power: RovoRx-SDI only: 48V @ 303mA = 14.5W typical, 48V @ 335mA = 16W max
        • Power: RovoRx-SDI powering RovoCam: 48V @ 450mA = 21.6W typical, 48V @ 480mA = 23W max
        • Safe Operating Temperature: 0 to 40 degrees C (32 to 104 degrees F)
        • Safe Storage Temperature (Power OFF): -40 to 60 degrees C (-40 to 140 degrees F)
        • Operating Relative Humidity: 10-90% noncondensing
        • Operating Altitude: <3,000 meters (<10,000 feet)

      • GTIN:

        0892448000649
