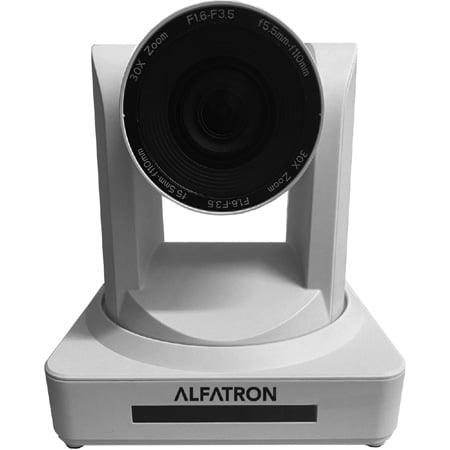

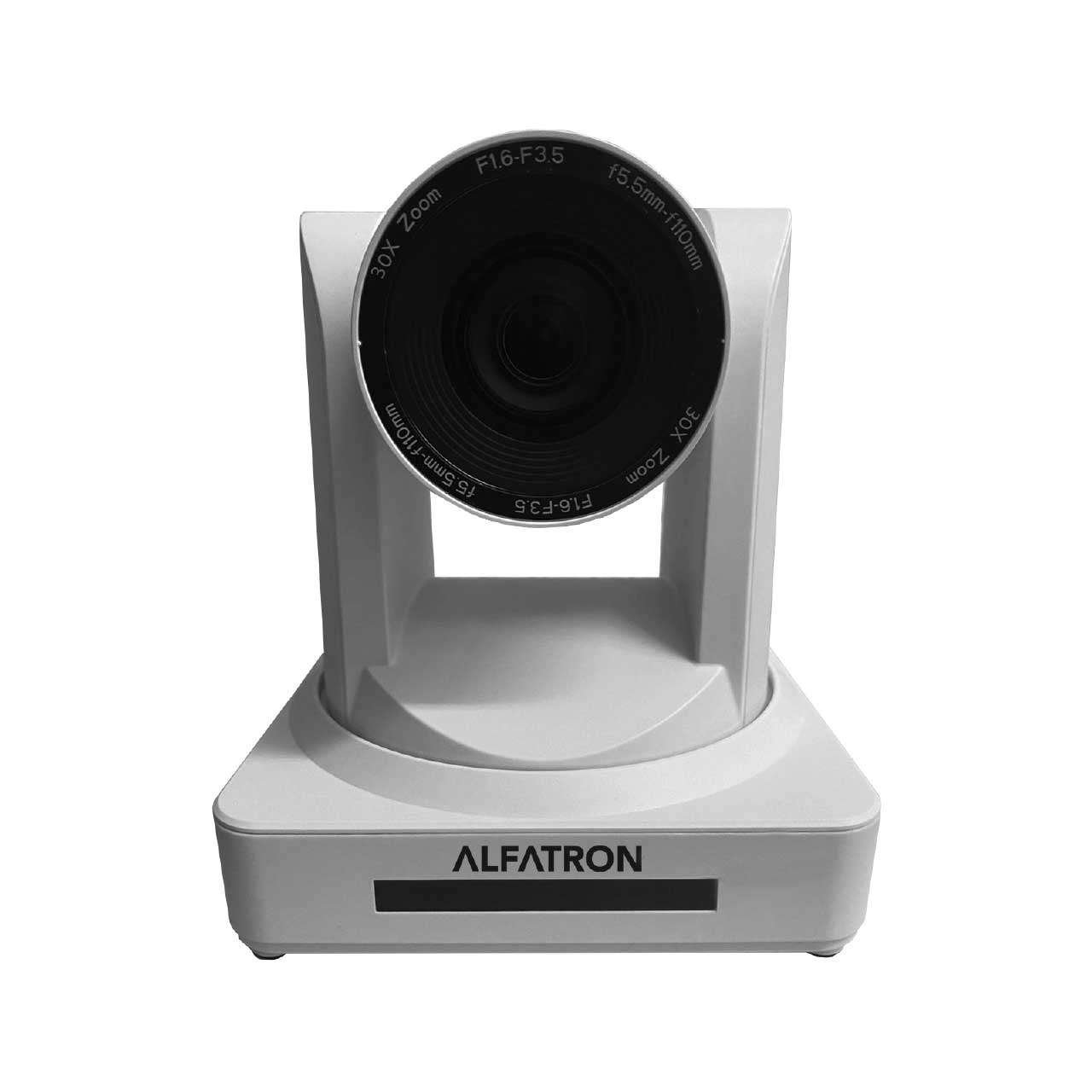

Alfatron ALF-30X-SDIW 1080P HD PTZ Camera with SDI and a 30x Zoom Lens - WHITE

ALF-30X-SDIW - Overview

• Features:

  • 1080P video with a Frame rate up to 60fps
  • 30x Zoom Lens which gives you a clear and a fluent image
  • Leading Auto Focus Technology
  • Low Noise and High SNR
  • Quiet PTZ
  • 255 Presets
  • Multiple Network Protocol - Supports IP VISCA, ONVIF, RTSP & RTMP
  • Control Protocols - VISCA IP, ONVIF, PELCO-D, PELCO-C and VISCA standard protocols
  • Field of view 2.34°(Tele) - 65.1°(Wide)
  • HDMI, SDI, LAN, RS-232, audio input and is supplied with an IR remote control
  • PC control using Sony Visca or Pelco-D/P commands
  • 12V DC or POE Powered

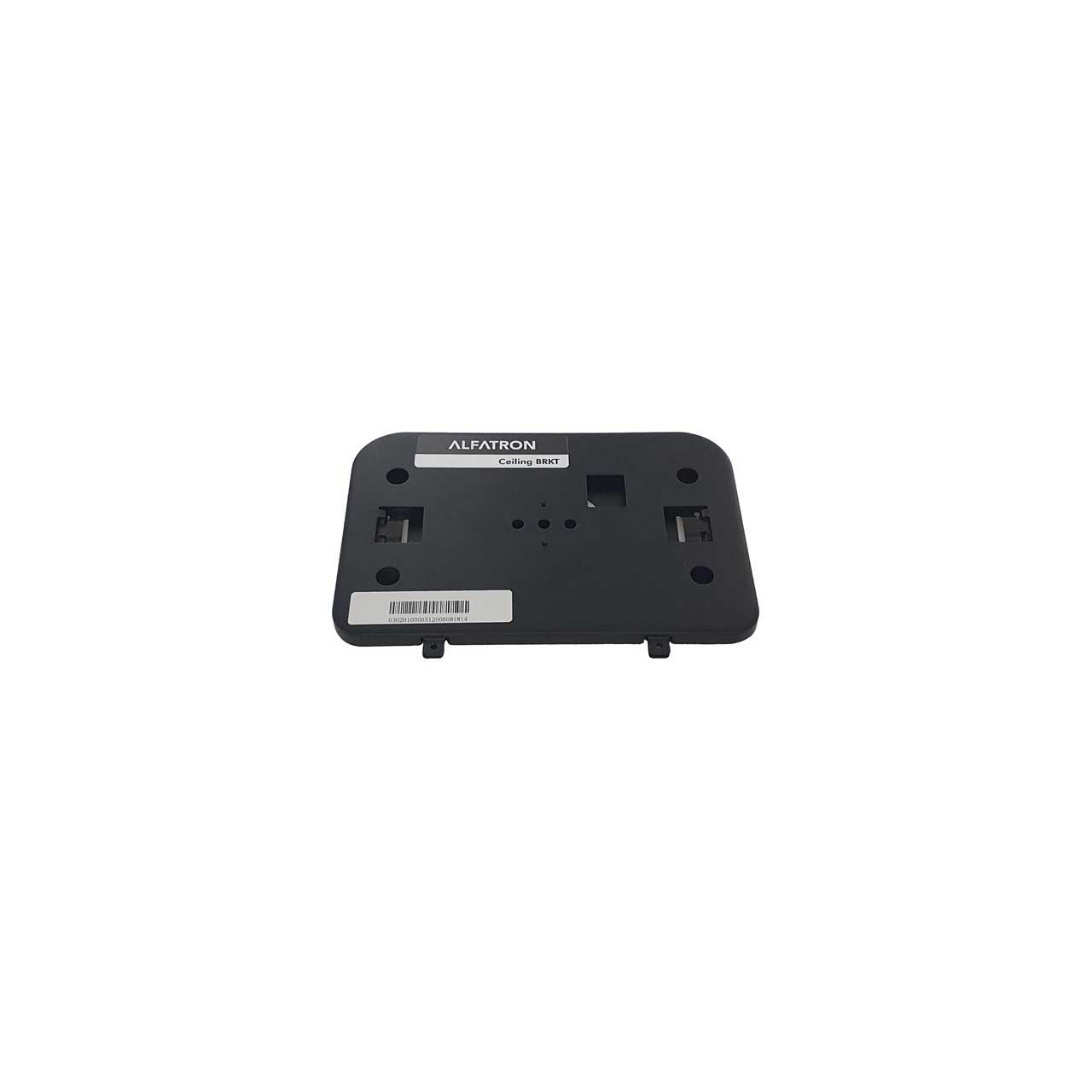

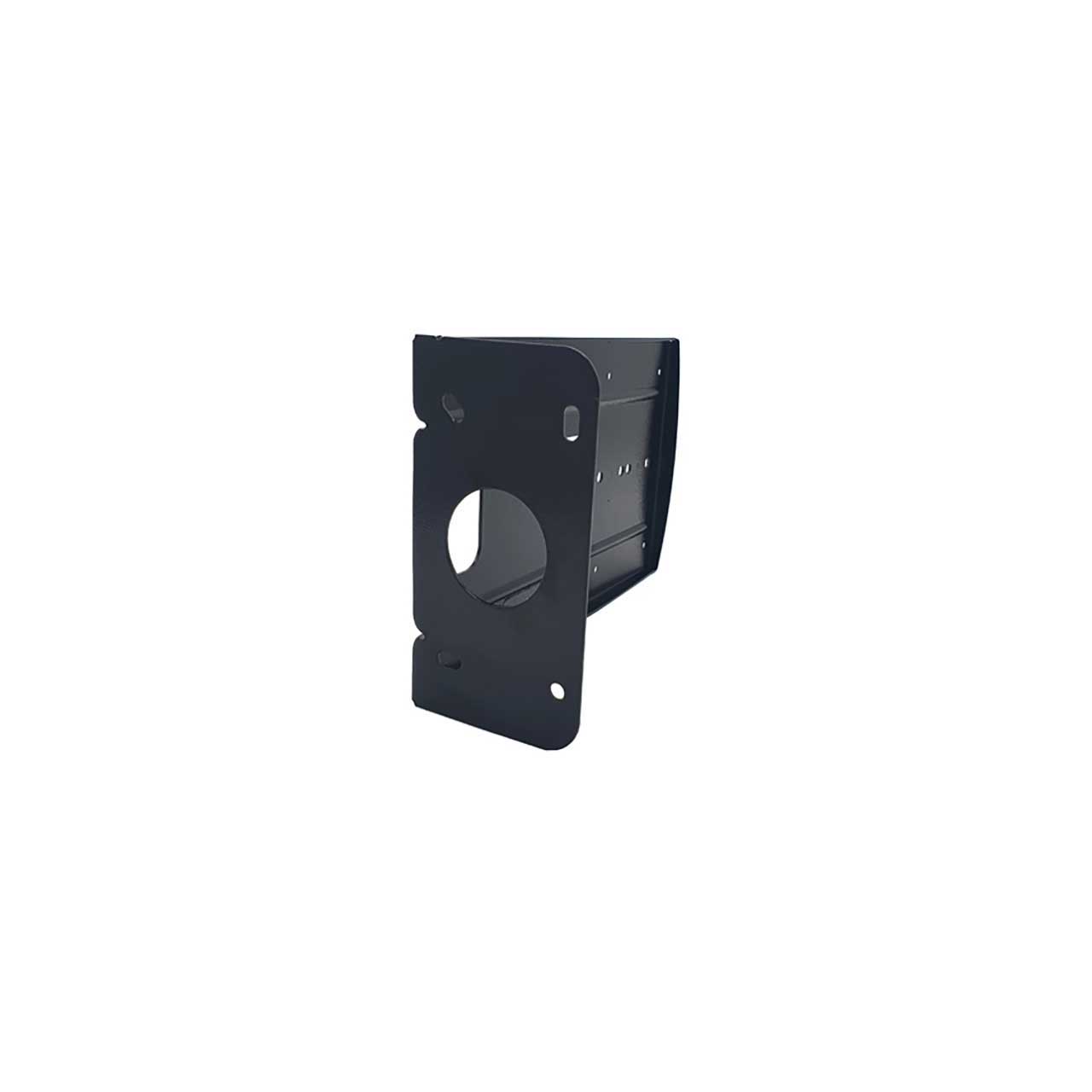

  • Ships with either a Ceiling or Wall mount bracket


• Specifications:

  • Camera Parameter
  • Sensor: 1/2.8 inch high quality HD CMOS sensor
  • Effective Pixels: 16: 9, 2.07 megapixel
  • Video Format: HDMI/SDI video format - 1080P60/50/30/25/59.94/29.97;1080I60/50/59.94;720P60/50/30/25/59.94/29.97
  • Optical Zoom: 30X f=4.3~129mm
  • View Angle: 2.34°(tele)-65.1°(wide)
  • AV: F1.6 ~ F4.7
  • Digital Zoom: 10X
  • Minimum Illumination: 0.5Lux (F1.8, AGC ON)
  • DNR: 2D & 3D DNR
  • White Balance: Auto / Manual/ One Push/ 3000K/ 4000K/5000K/6500K
  • Focus: Auto/Manual
  • Aperture: Auto/Manual
  • Electronic Shutter: Auto/Manual
  • BLC: ON/OFF
  • WDR: OFF/ Dynamic level adjustment
  • Video adjustment: Brightness, Color, Saturation, Contrast, Sharpness, B/W mode, Gamma curve
  • SNR: >55dB

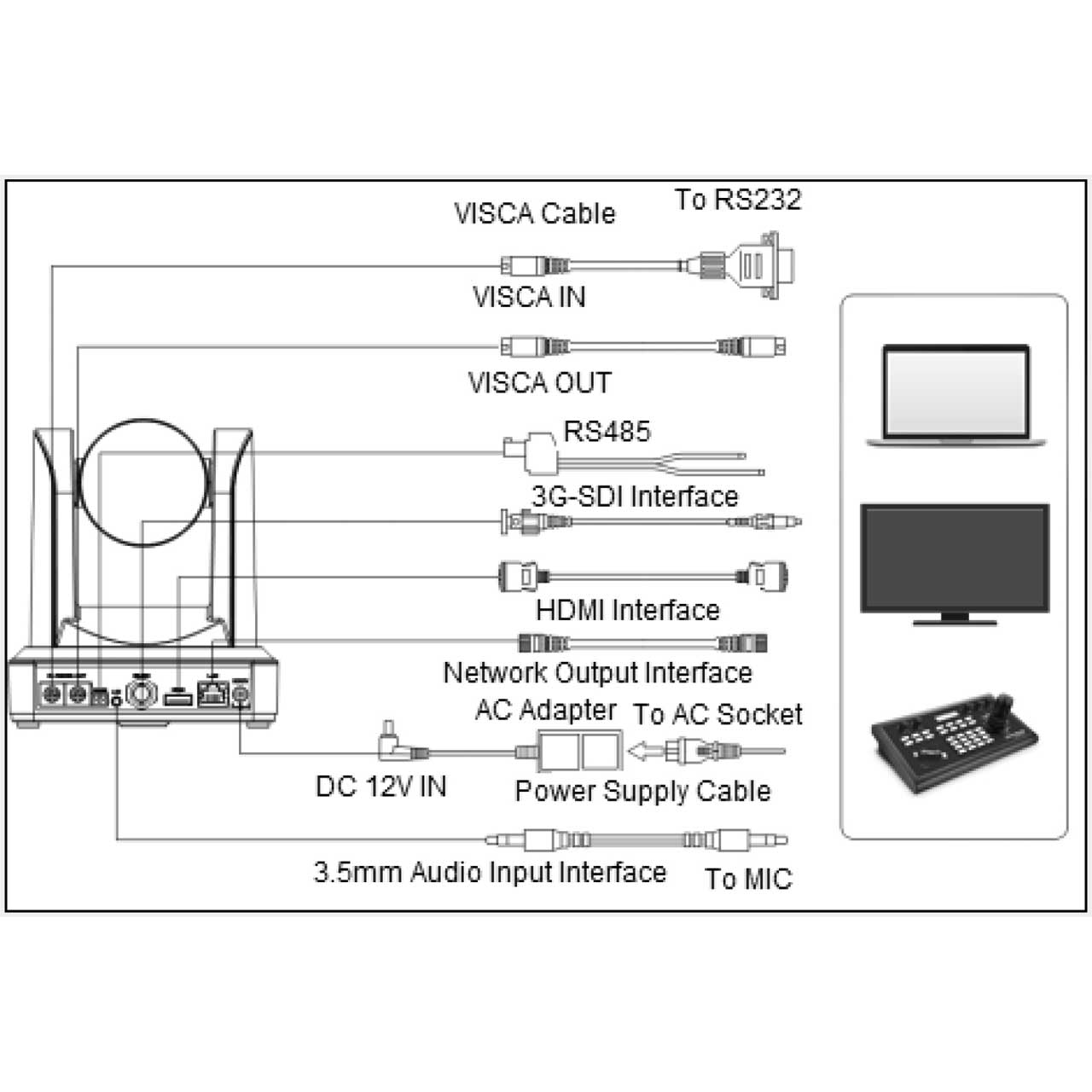

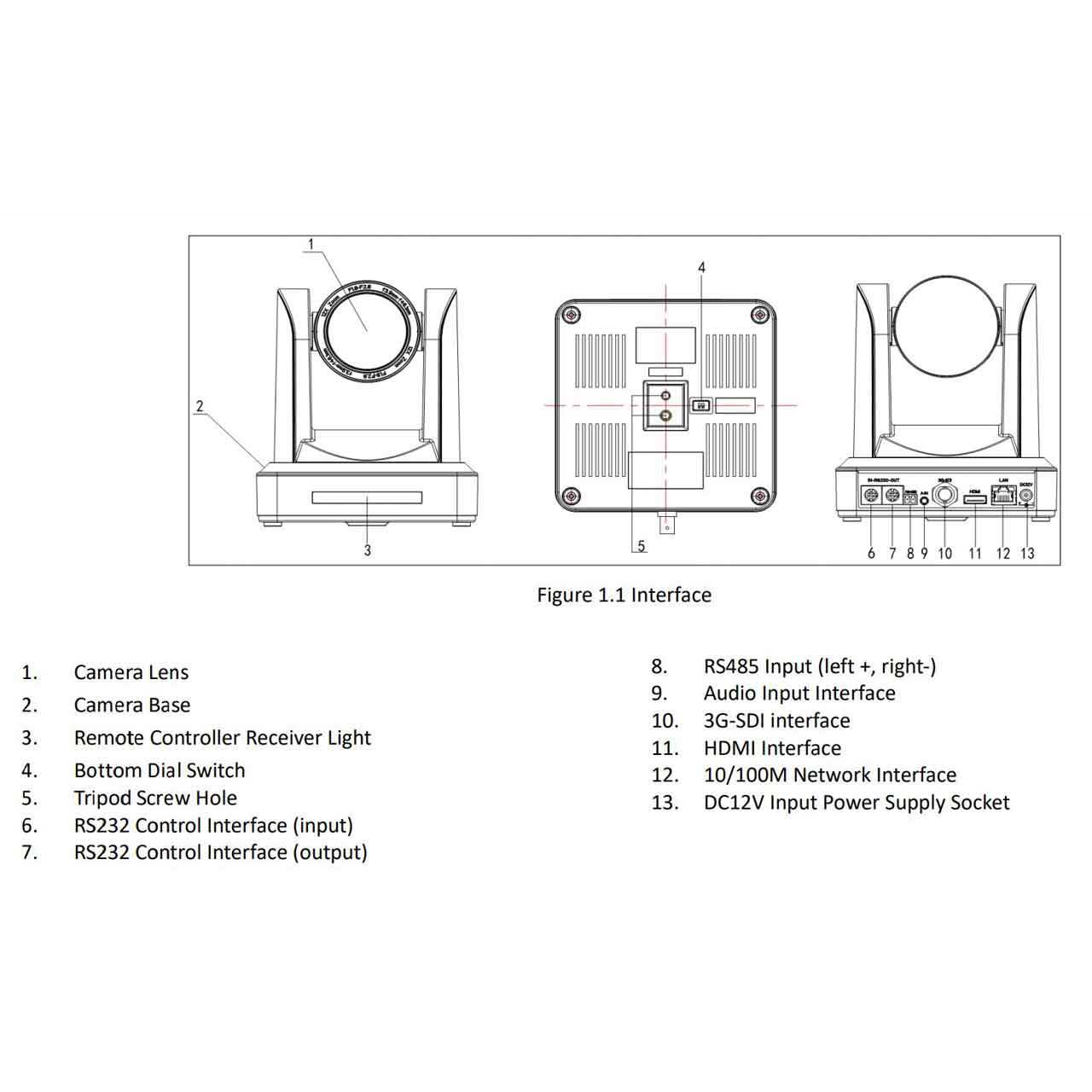

    Input/Output Interface
  • Video Interfaces: HDMI, 3G-SDI, LAN, Audio-in
  • Image code stream: Double streams outputs simultaneously
  • Video Compression format: H.264, H.265
  • Control Signal Interface: RS-232 Ring through RS232 output, RS-485
  • Control Protocol: VISCA/Pelco-D/Pelco-P; Baud Rate: 115200/9600/4800/2400bps
  • Audio input Interface: Double track 3.5mm linear input;
  • Audio Compression Format: AAC/MP3/PMC Audio compression
  • HD IP Interface: 100M IP port (100BASE-TX); support IP Visca control protocol
  • Network Protocol: RTSP/ RTMP, ONVIF
  • Power Interface: HEC3800 outlet (DC12V)

    PTZ Parameter
  • Pan Rotation: ±170°
  • Tilt Rotation: -30°~+90°
  • Pan Control Speed: 0.1 -180°/sec
  • Tilt Control Speed: 0.1-80°/sec
  • Preset Speed: Pan: 60°/sec, Tilt: 30°/sec
  • Preset Number: 255 presets (10 presets by remote controller)

    Other Parameter
  • Supply Adapter: AC110V-AC220V to DC12V/2A
  • Input Voltage: DC12V±10%
  • Input Current: 1A(Max)
  • Consumption: 12W (Max)
  • Store Temperature: -10°C to +60°C
  • Store Humidity: 20% - 95%
  • Working Temperature: -10°C to +50°C
  • Working Humidity: 20%-80%
  • Dimension: 150mmX150mmX167.5mm
  • Weight: 1.4KG
  • Working Environment: Indoor
  • Remote Operation (IP): Remote Upgrade, Reboot and Reset


• Item Includes:

  • 1x Power Supply
  • 1x RS232 Control Cable
  • 1x Remoter
  • 1x Manual
  • 1x Warranty card


• Warranty:

  • 7 Year
