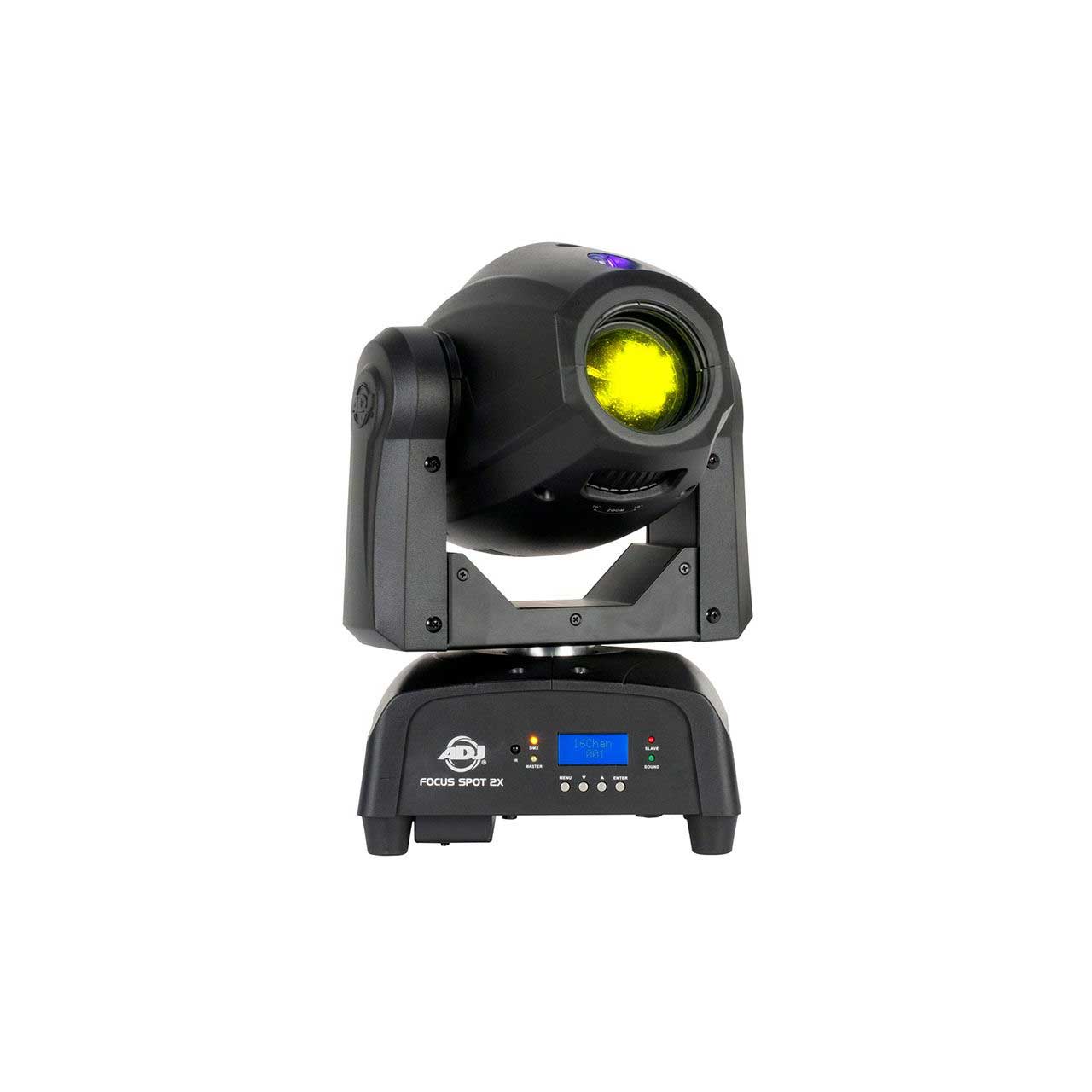

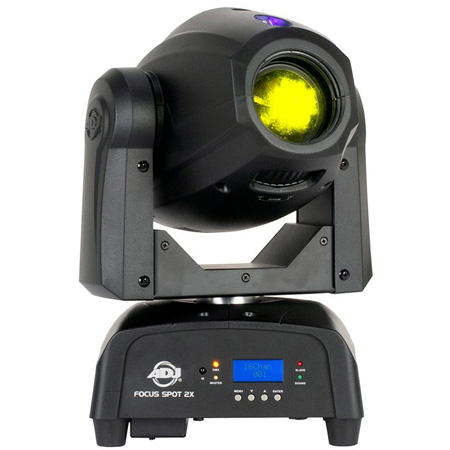

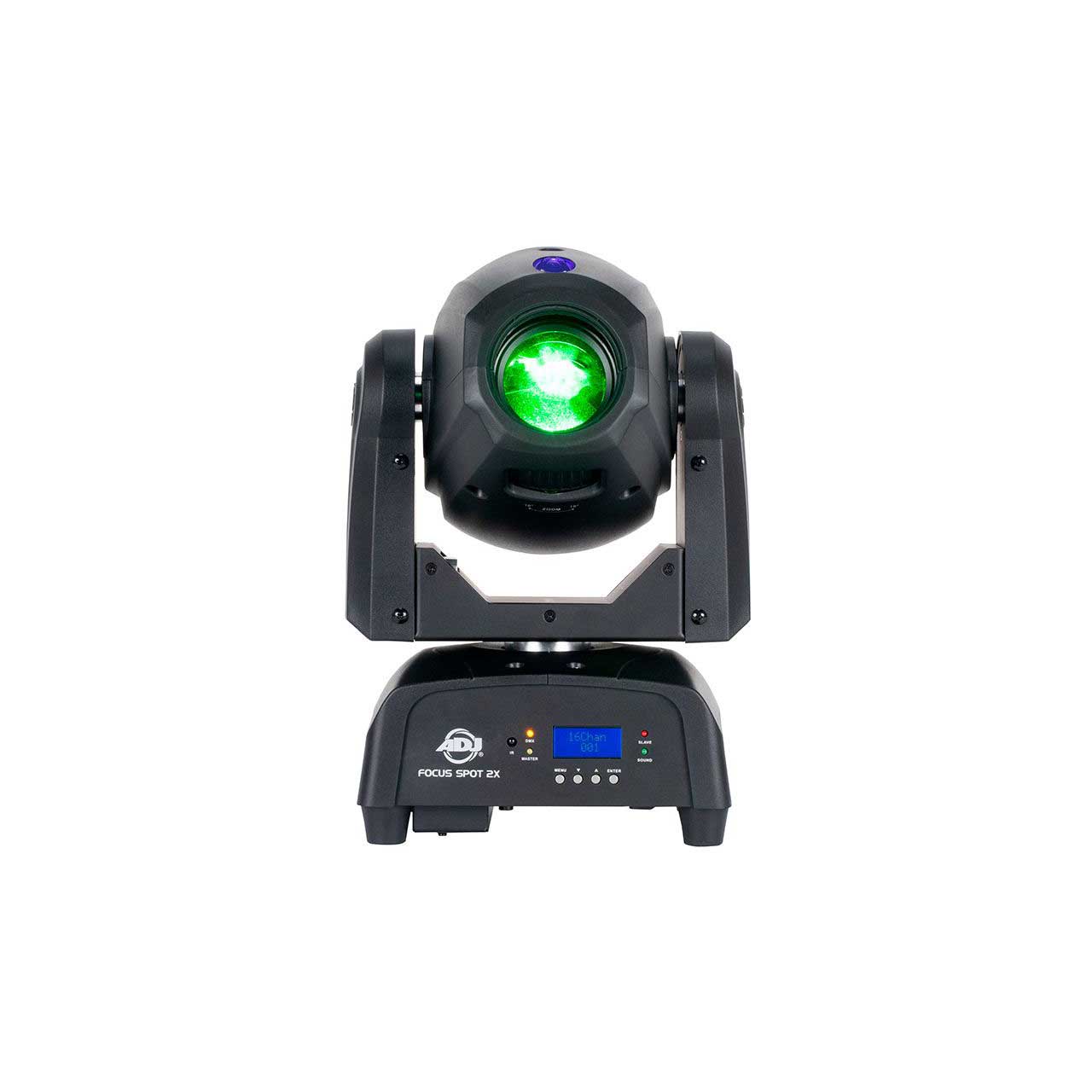

ADJ Focus Spot 2x 100W LED Moving Head with a 3W UV LED included

ITEM #: AMDJ-FOC286 MFG #: FOC286

Primary Image
  • Product Image Thumbnail 1 of 4
  • Product Image Thumbnail 2 of 4
  • Product Image Thumbnail 3 of 4
  • Product Image Thumbnail 4 of 4
Free Shipping with $49 Minimum Order

List Price:

$1,459.95

Our Price:

$699.99

Availability: Ships Factory Direct, Typically in 3-10 Business Days
iAvailability Description Popup


FOC286 - Overview

The ADJ Focus Spot 2X (FOC286) is a 100W LED Moving Head with a 3W UV LED included for black lighting or additional color hues. It features two prism effects; a 6-facet circular prism and a 6-facet linear prism. In addition, ADJ has fitted the FS2X with a GOBO wheel with replaceable, rotating and indexable GOBOs. The GOBOs are easy to replace by removing the top housing with one screw that’s on a hinge. GOBOs easily lock in and out of the GOBO wheel. This mover is also equipped with motorized focus, Gobo Indexing, EZ Gobo replacement and a manual zoom knob near the lens to change the beam angle from 16 ~ 19 degrees.

The Focus Spot 2X is extremely versatile and has everything clubs, theaters, churches, concert productions and lighting professionals are looking for in a LED spot moving head. It has 16 & 18 DMX channel modes, Pan/Tilt Inversion, 16-Bit Fine Pan/Tilt, 3-pin DMX In/Out, locking In/Out power connectors, and a 4-Button DMX LCD menu.

The Focus Spot 2X is fitted with 8 colors plus spot and split colors. It has 6 rotating, replaceable GOBO patterns plus spot. The color wheel and GOBO wheel work independent of each other. All GOBOs are indexable.

  • Features:

    • Motorized Focus
    • Manual Zoom knob on head: 16 ~ 19 degree beam angle
    • Fan cooled
    • Strobe/Pulse effect; random strobe slow to fast
    • UC IR & Airstream IR Compatible (Sold Separately)

  • Specifications:

    • Light Source
    • 1x 100W Cold White LED (7600?K, 50,000 hr.)
    • 1x 3W UV LED

      Color Wheel
    • 8 Colors + White & Split Colors

      GOBO Wheel
    • 6 Rotating, replaceable Gobos + Spot
    • Gobo Size: Outer: 23mm/Inner:19mm/Thickness: 0.5mm
    • Gobo Indexing
    • EZ Gobo replacement with hinged head cover
    • Gobo Shake effect

      Prism Wheel
    • 6-facet circular prism
    • 6-facet linear prism

      Control
    • 3 Operational Modes: Sound Active, Show Mode, & DMX Controlled
    • Primary/Secondary
    • 4 Built-in lighting shows
    • 16 & 18 DMX channel modes
    • Electronic Dimming: 0% - 100%
    • 5 Dimmer Curves
    • 4-Button DMX LED menu
    • Stepper motors with micro stepping
    • With Wired Digital Communication Network

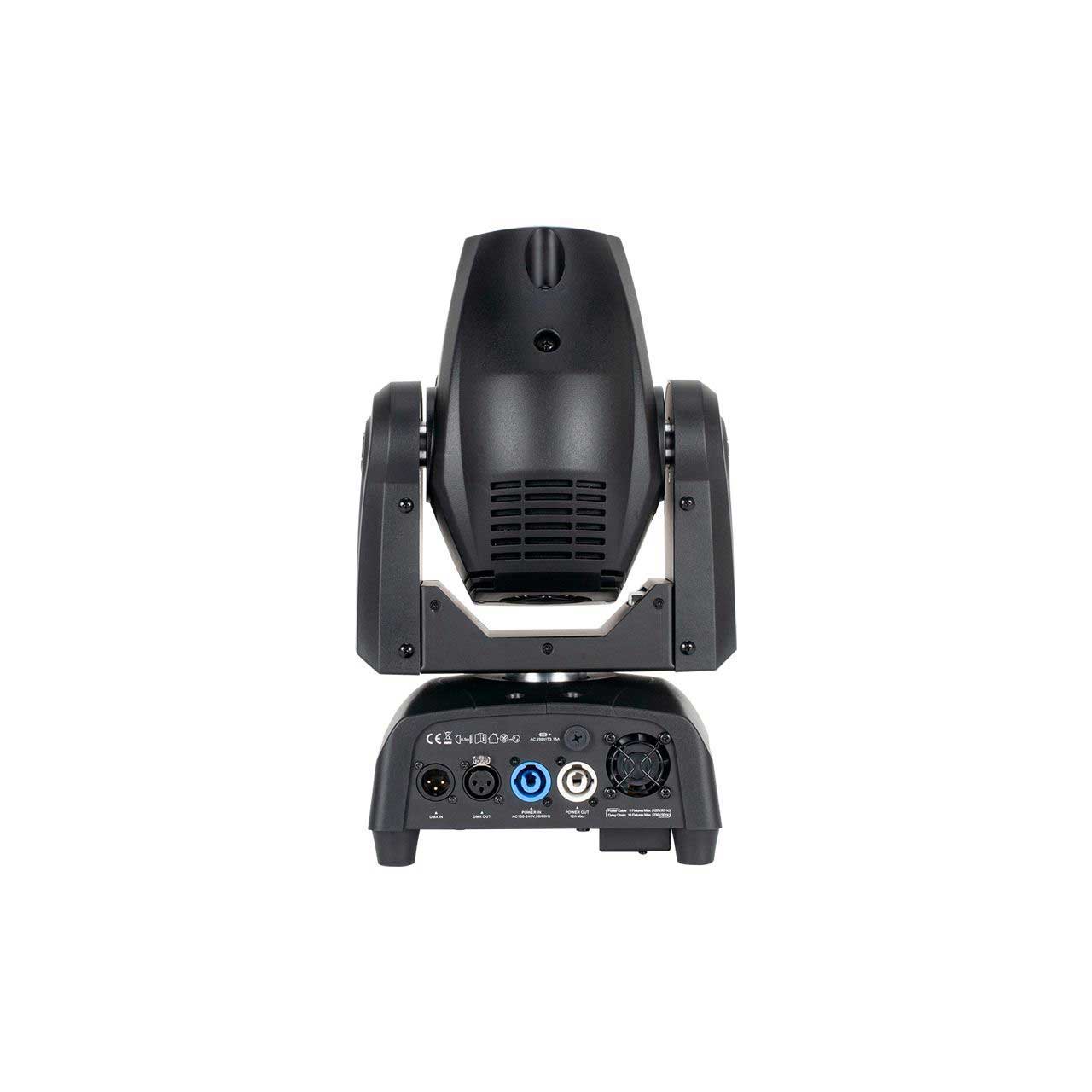

      Connections
    • 3-pin DMX In/Out
    • Twist locking power In/Out connections on rear to daisy chain power (up to 9 Focus Spot 2X’s @ 120V and 16 Focus Spot 2X’s @ 230V)

      Pan/Tilt
    • Fast and precise Pan/Tilt Movements
    • 16-Bit Fine Pan/Tilt control
    • Pan: 540-degree
    • Tilt: 270-degree
    • Pan/Tilt Invert Mode
    • 4, Built-In, Pan/Tilt Target Modes

      Electrical
    • Multi-voltage Operation: 100-240V, 50Hz/60Hz
    • Power Consumption: 180W

      Physical
    • Dimensions (LxWxH): 9.33 x 9.10 x 15.15" (237 x 231 x 385mm)
    • Weight: 14.5Lbs (6.5kg)

      Approvals
    • CE/cETLus Approved (Control #4010765)

  • Item Includes:

    • 1x Omega bracket for truss mounting
    • 1x Power cable

  • Warranty:

    • 2 years

  • GTIN:

    0818651027358
