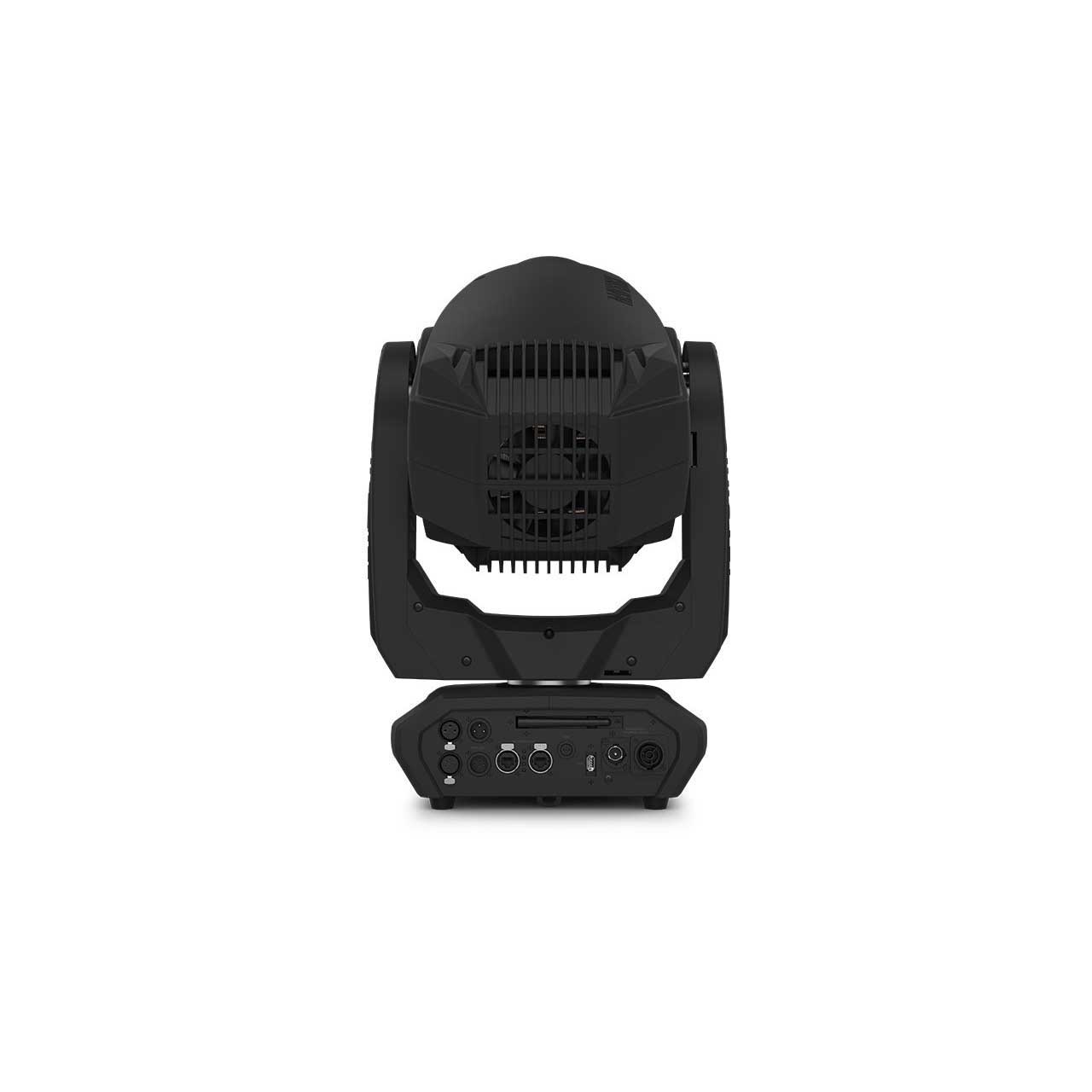

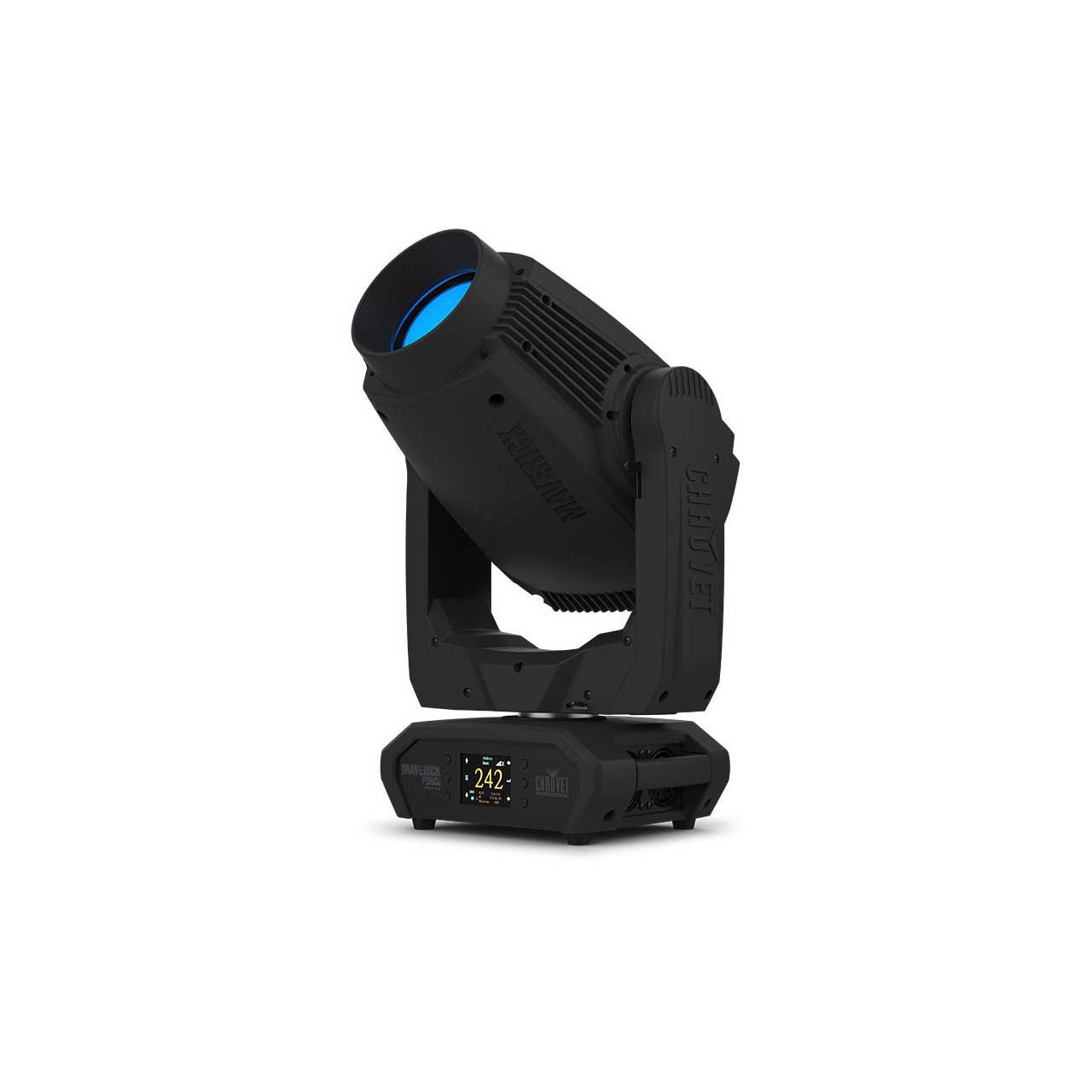

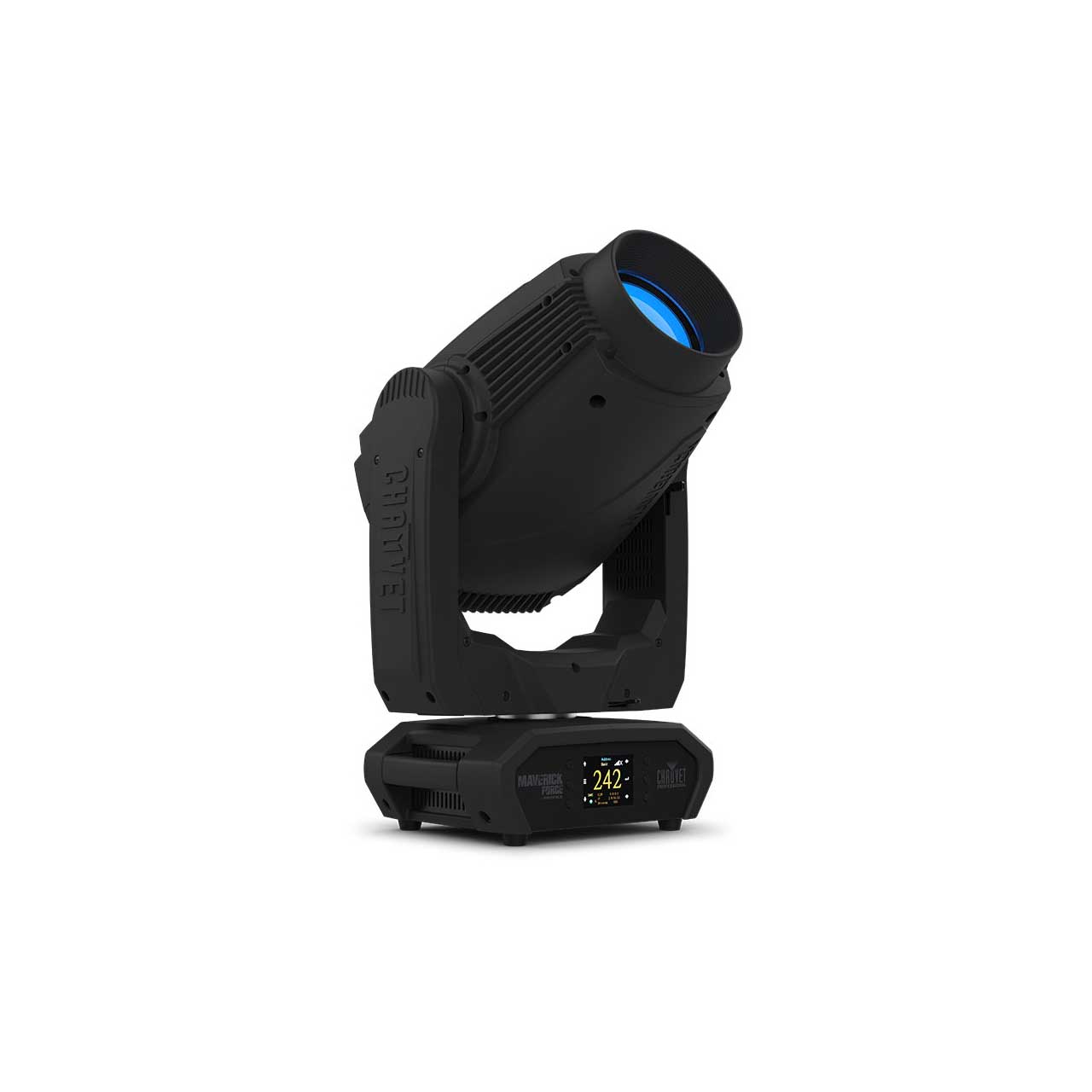

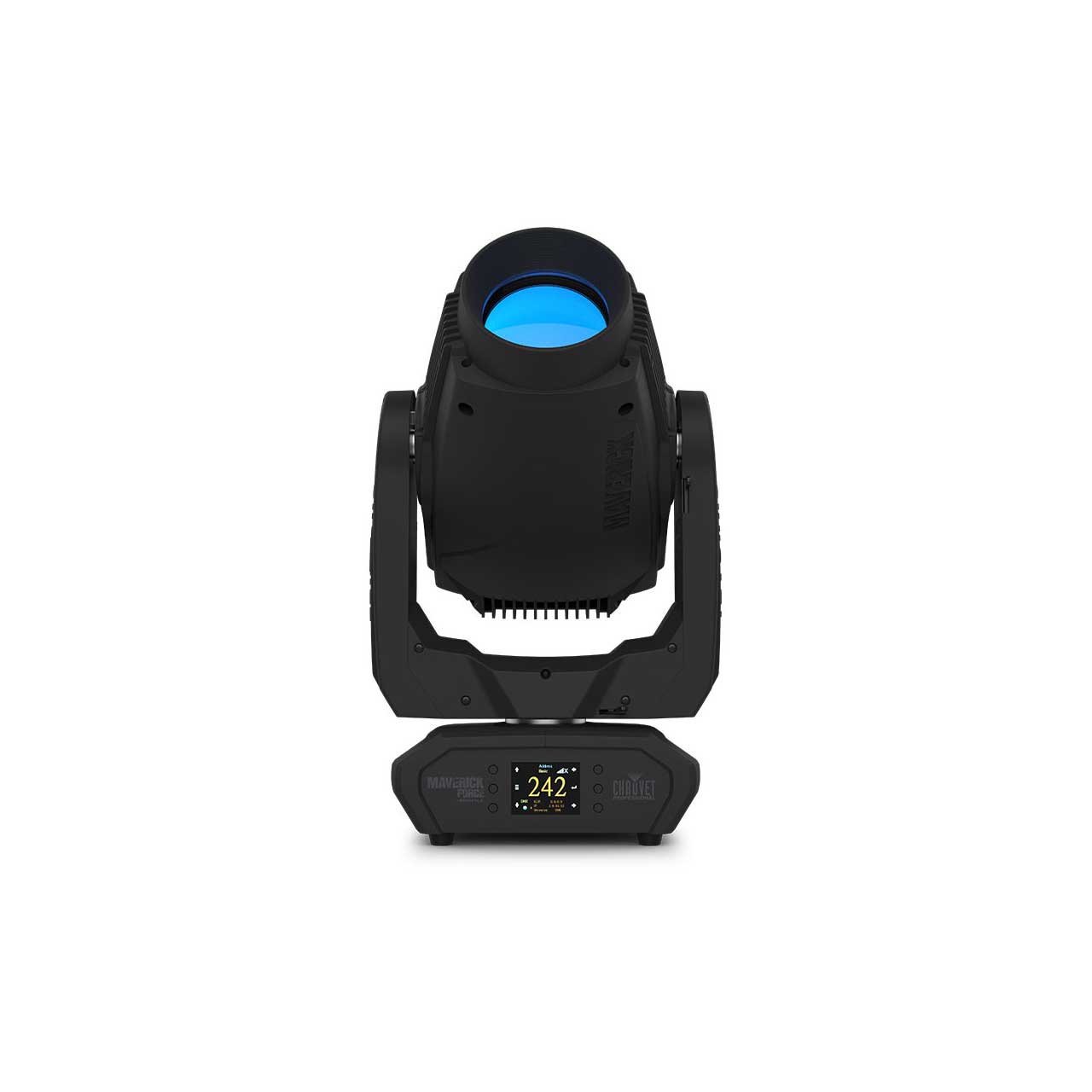

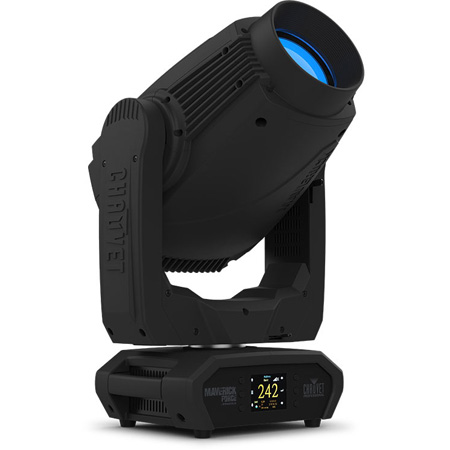

Chauvet MAVERICK FORCE S PROFILE Compact Lightweight 350W LED Yoke Profile Fixture

MAVERICKFORCESPROFILE - Overview

• Features:

  • Fully featured, compact and lightweight 350 W LED yoke profile fixture including CMY color mixing, a color wheel, zoom optics, framing shutters with rotation, and two gobo wheels, one rotating, and one static
  • 16-bit dimming of master dimmer for smooth control of fades
  • Variable CMY color mixing system to create a wide pallet of colors
  • DMX, WDMX, sACN, and Art-Net for full flexibility of control options
  • RDM Enabled for remote addressing and trouble shooting
  • 4.5° to 41.6° zoom range for variable beam sizes
  • Iris, 5-facet prism, and frost for beam control
  • 4 blade framing shutters with dual axis movement, full wipe, and 120 degree total module rotation
  • True 1 compatible power input
  • Three setup menu presets and preset sync for cross loading to multiple like fixtures for easy shop setup
  • USB slot for software uploads
  • Battery backup display with auto-rotate depending on fixture orientation


• Specifications:

  • Optical
  • Light Source: 1 LED (CW) 350 W, (2.7 A), 8400 K, 50,000 hours life expectancy
  • Color Temperature (at full): 6937 K
  • CRI: 69
  • CRI with CRI filter: 89.6
  • Front Lens Dia: 119 mm
  • Beam Angle: 4.5° to 35.9°
  • Field Angle: 45.2° to 40.5°
  • Zoom Angle: 5.8° to 41.6°
  • Lumens - Source: 20,000
  • Lumens – Output: 14,407
  • Illuminance (6.8°) 51,865 lux @ 5 m
  • Illuminance (55.9°) 1,648 lux @ 5 m
  • electable PWM: 600 Hz, 1200 Hz, 4000 Hz, 6000 Hz, 15000 Hz

    Dynamic Effects
  • Pan and Tilt: 540°/270°
  • Pan and Tilt Ranges: 540°, 360°, 180° pan/270°, 180°, 90° tilt
  • Colors: 7 (including CRI and CTB filters) + white, split colors, continuous scroll at variable speeds
  • Colors: CMY Wheels
  • Gobos (1): 7 + open (glass), rotating, interchangeable, indexing, slot-n-lock, continuous scroll at variable speeds
  • Gobos (2): 9 + open (metal), static continuous scroll at variable speeds
  • Gobo Size (1): Gobo Wheel 1 (rotating): 25.5 mm (outside), 17 mm (image), 1.1 mm (max. thickness)
  • Dimmer: Electronic
  • Shutter/Strobe: Electronic
  • Zoom: Motorized
  • Focus: Motorized
  • Frost: Motorized
  • Iris: Motorized
  • Prism: 5 Facets, motorized, rotating
  • Strobe Rate: 0 to 20 Hz
  • Move-in-Black: Yes
  • Dim Curves: 4

    Construction/Physical
  • Dimensions: 15.5 x 9.8 x 25.0 in (361 x 238 x 639 mm)
  • Weight: 52.9 lb (24 kg)
  • Exterior Color: Black
  • Housing Material: High-impact flame-retardant polymer

    Control
  • Control Protocol: Art-Net, sACN, DMX, RDM, W-DMX
  • DMX Channels: 31 or 47
  • Art-Net Channels: 31 or 47
  • Modes/Personalities: 2 personalities (31, 47)

    Connections
  • Power Connection: Edison plug to Seetronic Powerkon IP65
  • Power Input: Seetronic Powerkon IP65
  • Data Connectors: 3-pin and 5-pin XLR, Amphenol XLR Net RJ45 Connectors in/out
  • Cable Length (power): 5 ft (1.5 m)

    Electrical
  • Input Voltage: 100 to 240 VAC, 50/60 Hz (auto-ranging)
  • Power Linking: 2 units @ 100 V; 2 units @ 120 V; 5 units @ 208 V; 4 units @ 230 V; 5 units @ 240 V
  • Power and Current: 580 W, 5.82 A @ 100 V, 60 Hz [9.0 A in-rush]
  • Power and Current: 563 W, 4.75 A @ 120 V, 60 Hz [8.0 A in-rush]
  • Power and Current: 547 W, 2.69 A @ 208 V, 60 Hz [15.0 A in-rush]
  • Power and Current: 546 W, 2.44 A @ 230 V, 50 Hz [17.0 A in-rush]
  • Power and Current: 543 W, 2.33 A @ 240 V, 50 Hz [16.0 A in-rush]
  • Power and Current (resting): 86 W, 0.929 A @ 100 V, 60 Hz
  • Power and Current (resting): 85 W, 0.757 A @ 120 V, 60 Hz
  • Power and Current (resting): 82 W, 0.449 A @ 208 V, 60 Hz
  • Power and Current (resting): 81 W, 0.412 A @ 230 V, 50 Hz
  • Power and Current (resting): 79 W, 0.404 A @ 240 V, 50 Hz


• Item Includes:

  • 1x Maverick Force S Profile
  • 1x Seetronic Powerkon IP65 power cord
  • 2x Omega brackets with mounting hardware
  • 1x Quick Reference Guide


• GTIN:

  0781462221621
