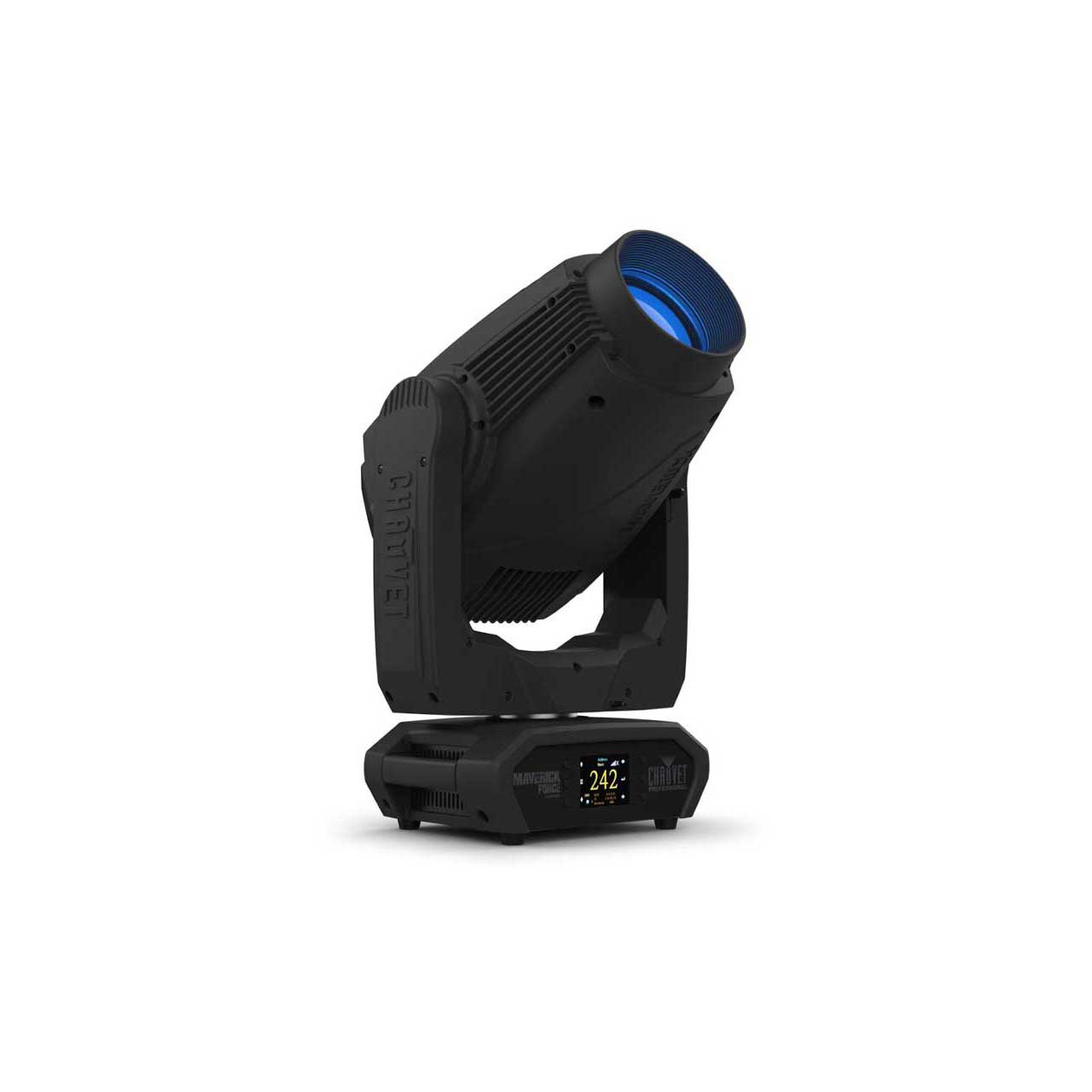

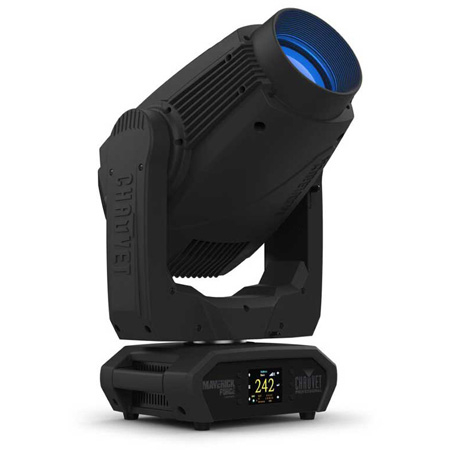

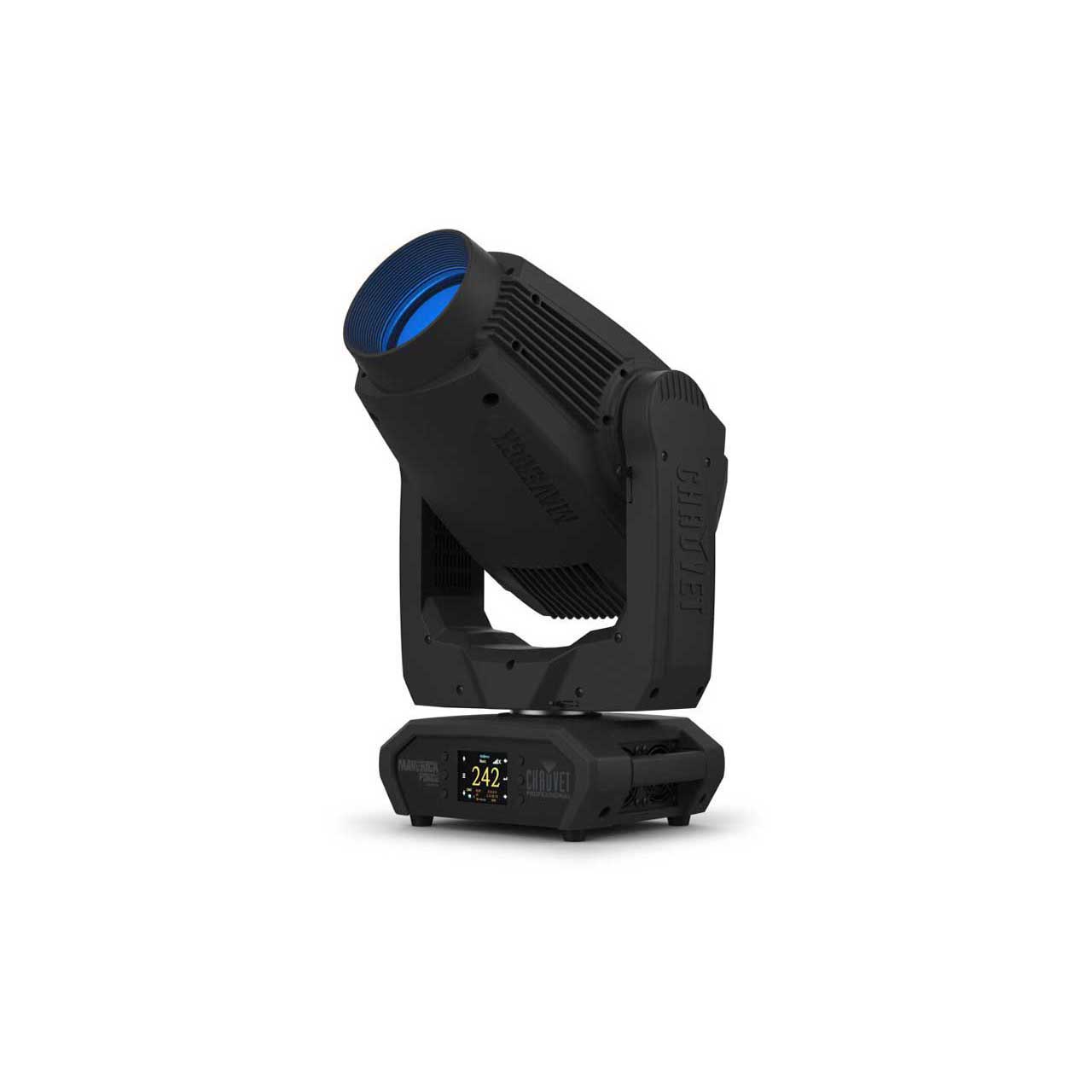

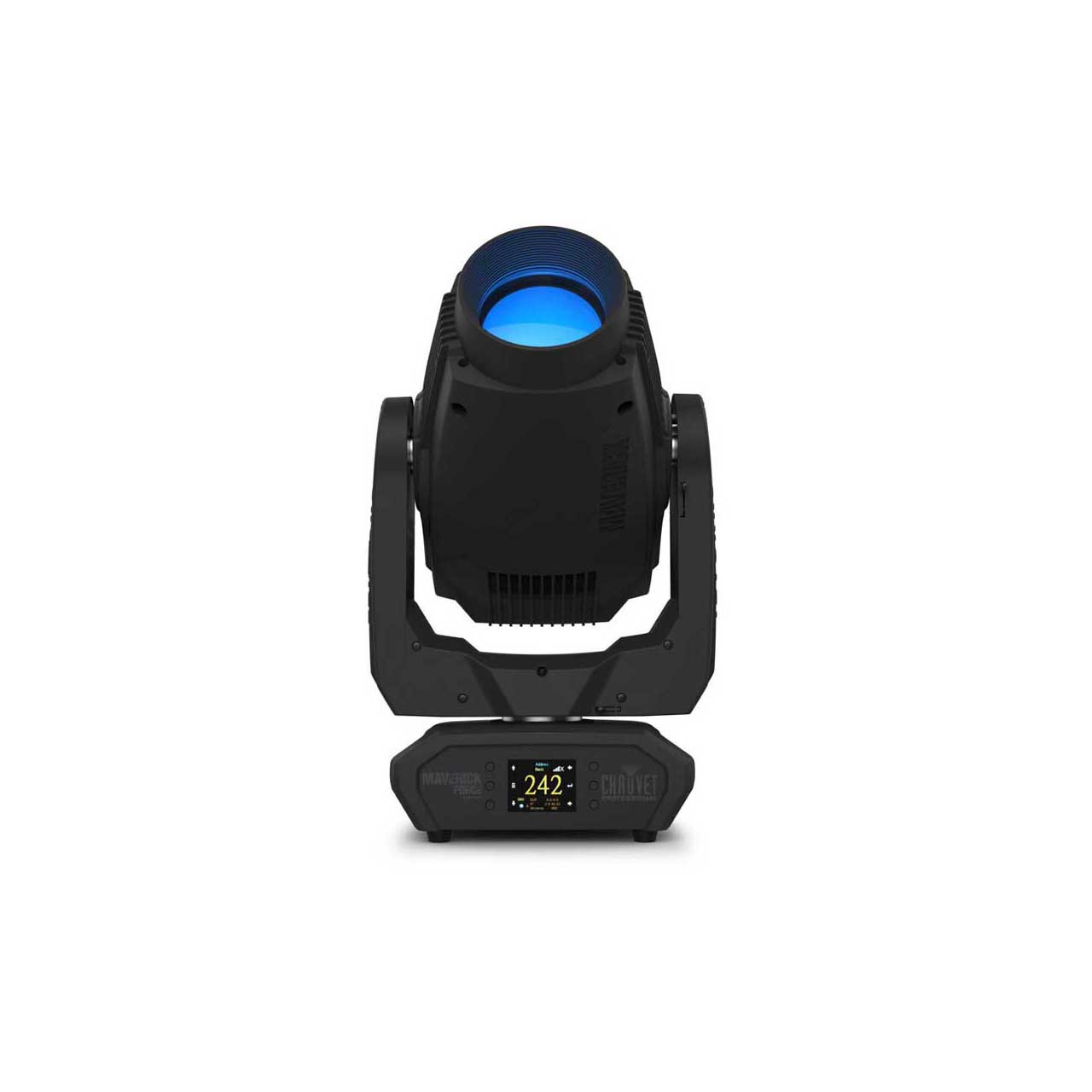

Chauvet MAVERICK FORCE 1 SPOT Compact Lightweight 470W LED Yoke Spot Fixture

MAVERICKFORCE1SPOT - Overview

• Features:

  • Fully featured, compact and lightweight 470 W LED yoke spot fixture including CMY + CTO color mixing, a color wheel, zoom optics, and two gobo wheels, one rotating, and one static, and an animation wheel
  • 16-bit dimming of master dimmer for smooth control of fades
  • Variable CMY + CTO color mixing system to create a wide pallet of colors
  • CRI and CTB filters on color wheel for added flexibility
  • DMX, WDMX, sACN, and Art-Net for full flexibility of control options
  • RDM enabled for remote addressing and trouble shooting
  • 6.3° to 54.4° zoom range for variable beam sizes
  • Iris, 5-facet prism, and frost for beam control
  • True 1 compatible power input
  • Three setup menu presets and preset sync for cross loading to multiple like fixtures for easy shop setup
  • USB slot for software uploads
  • Battery backup display with auto-rotate depending on fixture orientation


• Specifications:

  • Optical
  • Light Source: 1 LED (CW) 470 W, (4 A), 7500K, 50,000 hours life expectancy
  • Color Temperature (at full): 7099 K
  • CRI: 68.8
  • CRI with CRI Filter: 89.4
  • Front Lens Dia: 127 mm
  • Beam Angle: 6.3° to 45.7°
  • Field Angle: 7.3° to 53°
  • Cutoff Angle: 7.6° to 54.4°
  • Zoom Range: 6.3° to 54.4°
  • Lumens - Source: 35,000
  • Lumens – Output: 21,172
  • Illuminance (6.3°): 43,485 lux @ 5 m
  • Illuminance (54.4°): 1,793 lux @ 5 m
  • Selectable PWM: 600 Hz, 1,200 Hz, 2,000 Hz, 4,000 Hz, 6,000 Hz, 15,000 Hz

    Dynamic Effects
  • Pan and Tilt: 540°/270°
  • Pan and Tilt Ranges: 540°, 360°, 180° pan/270°, 180°, 90° tilt
  • Colors: 7 (including CRI and CTB filters) + white, split colors, continuous scroll at variable speeds
  • Colors: CMY+ CTO flags
  • Gobos (1): 7 + open (7 glass), rotating, interchangeable, continuous scroll at variable speeds
  • Gobos (2): 9 + open (9 glass), static, continuous scroll at variable speeds
  • Gobo Size (1): Gobo Wheel 1 (rotating): 25.5 mm (outside), 20 mm (image), 1.1 mm (max. thickness)
  • Animation wheel: static, motorized, continuous scroll at variable speeds
  • Dimmer: Electronic
  • Shutter/Strobe: Electronic
  • Zoom: Motorized
  • Focus: Motorized
  • Frost: Motorized
  • Iris: Motorized
  • Prism: 5 Facets, motorized, rotating
  • Strobe Rate: 0 to 20 Hz
  • Move-in-Black: Yes
  • Dim Curves: 4

    Construction/Physical
  • Dimensions: 15.5 x 9.8 x 25.0 in (394 x 250 x 636 mm)
  • Weight: 48 lb (21.8 kg)
  • Exterior Color: Black
  • Housing Material: High-impact flame-retardant polymer

    Control
  • Control Protocol: Art-Net, sACN, DMX, W-DMX
  • DMX Channels: 25 or 32
  • Art-Net Channels: 25 or 32
  • Modes/Personalities: 2 personalities (25, 32)

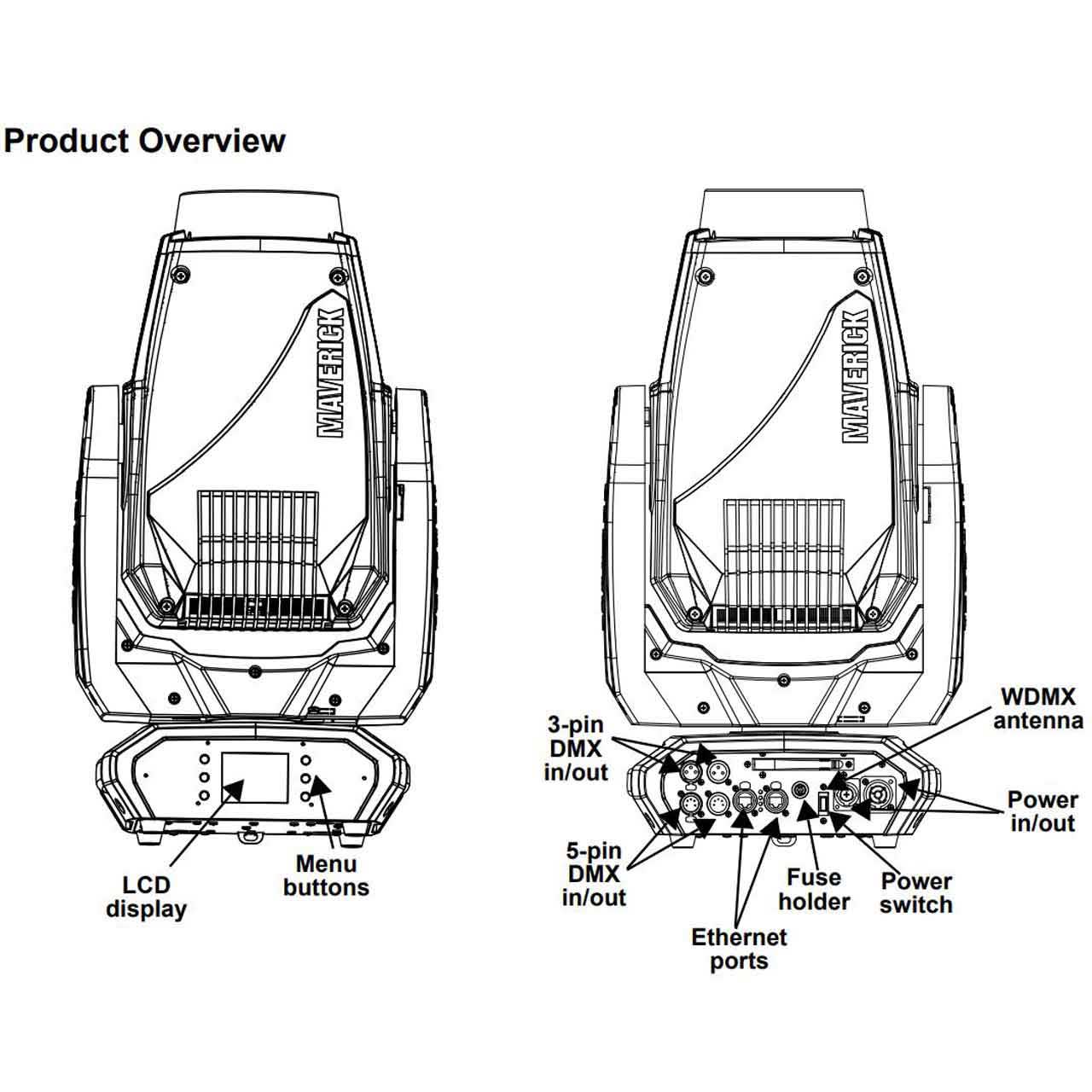

    Connections
  • Power Connection: Edison plug to Seetronic Powerkon IP65
  • Power Input: Seetronic Powerkon IP65
  • Data Connectors: 3-pin and 5-pin XLR, Amphenol XLR Net RJ45 Connectors in/out
  • Cable Length (power): 5 ft (1.5 m)

    Electrical
  • Input Voltage: 100 to 240 VAC, 50/60 Hz (auto-ranging)
  • Power and Current: 670 W, 6.70 A @ 100 V, 60 Hz
  • Power and Current: 660 W, 5.45 A @ 120 V, 60 Hz
  • Power and Current: 637 W, 3.10 A @ 208 V, 60 Hz
  • Power and Current: 632 W, 2.79 A @ 230 V, 50 Hz
  • Power and Current: 630 W, 2.70 A @ 240 V, 50 Hz
  • Power and Current (resting): 80 W, 0.801 A @ 100 V, 60 Hz
  • Power and Current (resting): 80 W, 0.665 A @ 120 V, 60 Hz
  • Power and Current (resting): 84 W, 0.397 A @ 208 V, 60 Hz
  • Power and Current (resting): 84 W, 0.356 A @ 230 V, 50 Hz
  • Power and Current (resting): 89 W, 0.361 A @ 240 V, 50 Hz
  • Power Linking 13.6A: 2 @100v, 2 @120v, 4@208V, 4@230v, 5@240v


• Item Includes:

  • 1x Maverick Force 1 Spot
  • 1x Seetronic Powerkon IP65 power cord
  • 2x Omega brackets with mounting hardware
  • 1x Quick Reference Guide


• GTIN:

  0781462220440
