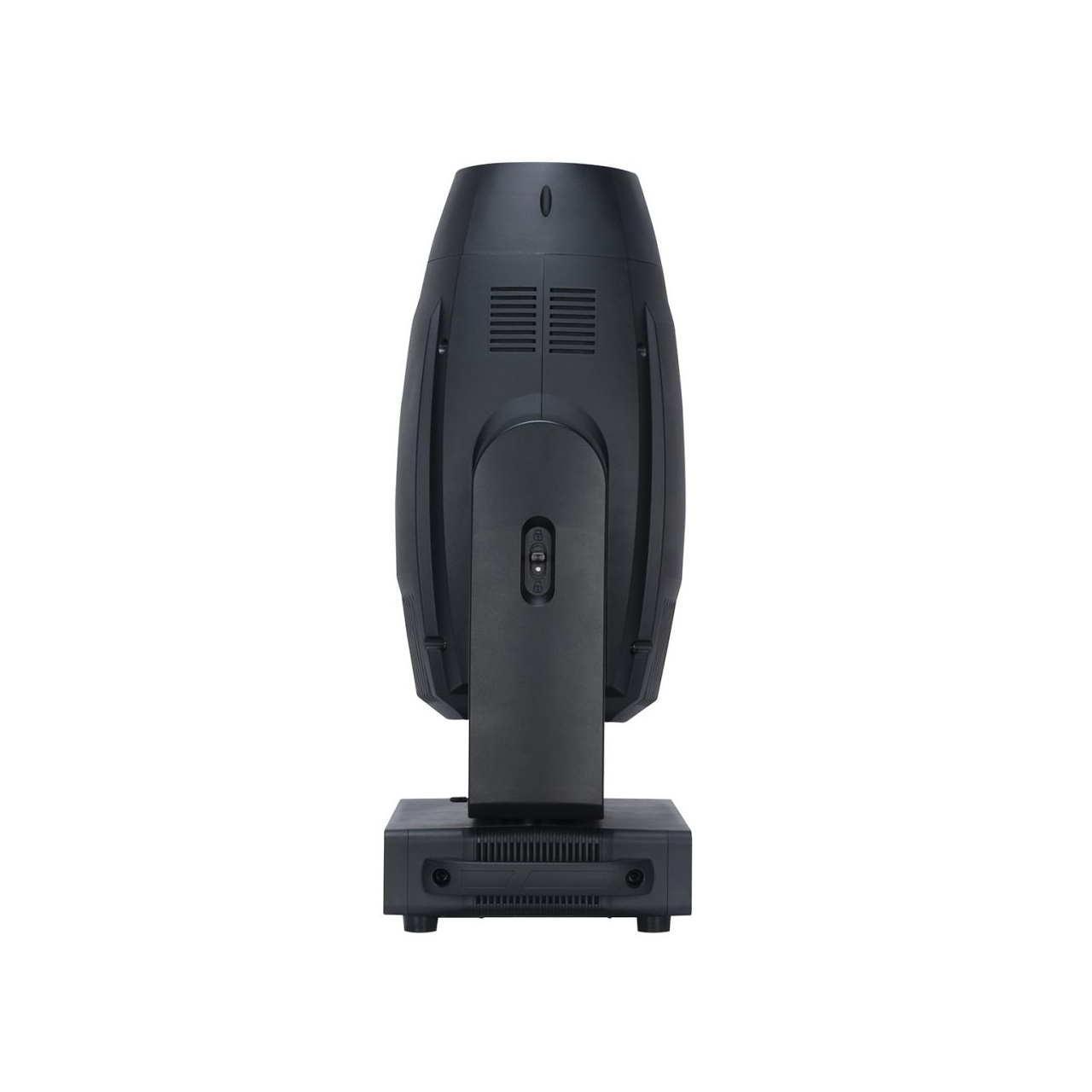

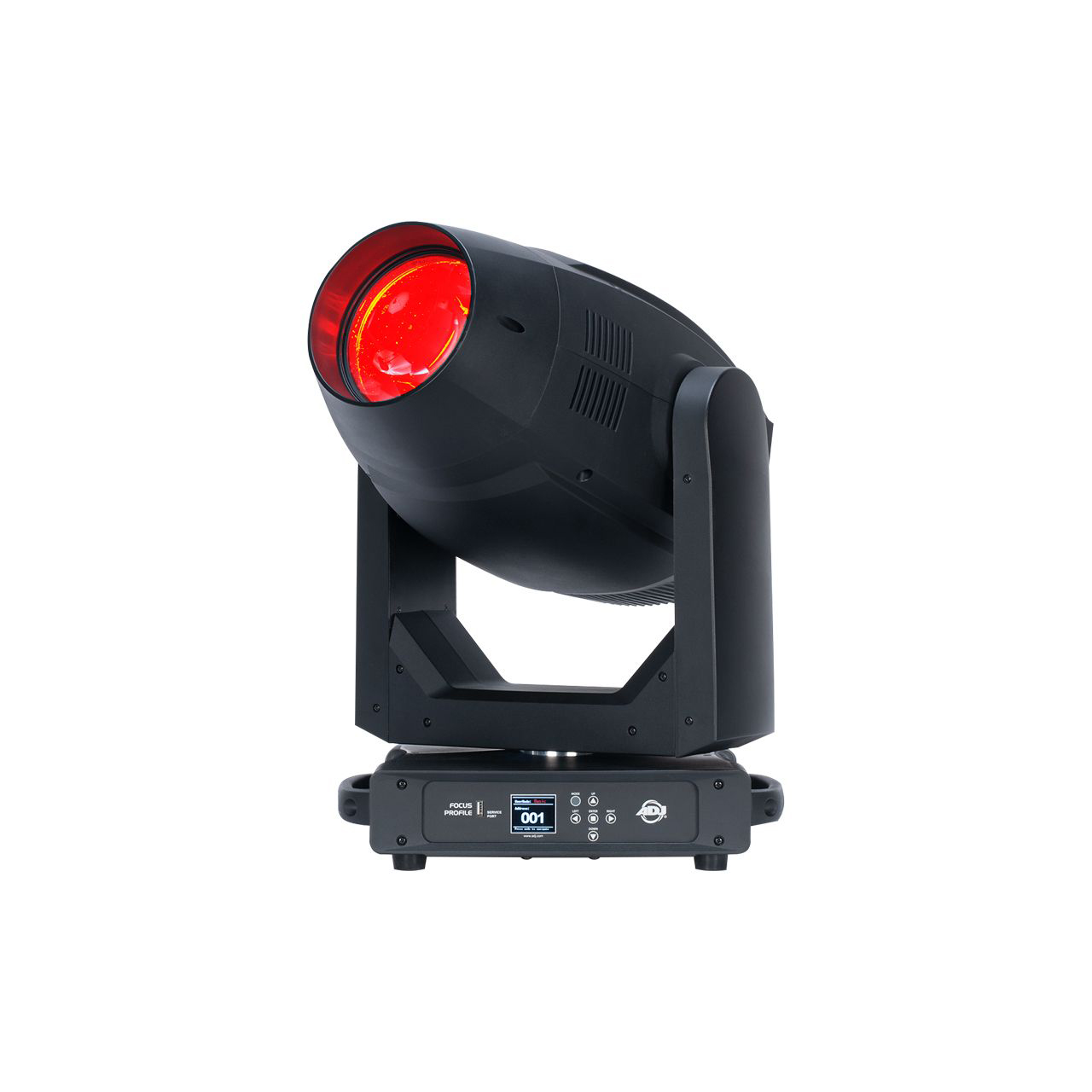

ADJ FOC858 Focus Profile 400W Moving Head Light Fixture with 4 Rotating Framing Shutters - IP20 Rated

ITEM #: AMDJ-FOC858 MFG #: FOC858

Primary Image
  • Product Image Thumbnail 1 of 4
  • Product Image Thumbnail 2 of 4
  • Product Image Thumbnail 3 of 4
  • Product Image Thumbnail 4 of 4
Free Shipping with $49 Minimum Order

List Price:

$8,799.95

Our Price:

$5,999.99

Availability: Ships Factory Direct, Typically in 3-10 Business Days
iAvailability Description Popup


FOC858 - Overview

The brightest and most feature-rich Focus Series fixture to date, the ADJ Lighting FOC858 Focus Profile is a professional caliber automated profile luminaire designed for theatrical, concert touring and event production applications. It features a potent 400W LED engine, with a native color temperature of 6,700K and a CRI in excess of 70, coupled with an exhaustive collection of beam-shaping tools. These include four, independently controllable, rotating framing shutter blades, which can be used to precisely shape the light output. The unit offers full CMY color mixing together with variable CTO color temperature control (2700K to 6700K) and an additional color wheel loaded with 6 dichroic filters comprised of four primaries together with CTB and CRI filters. Two separate GOBO wheels feature 7 replaceable, indexed-rotating GOBOs, and 8 static GOBOs, respectively, while two bi-directional rotating prisms (3-facet and 4-facet) allow for the creation of a wide variety of aerial effects. Motorized focus, iris and zoom (7 - 45°) together with a replaceable (medium) frost filter and an animation wheel complete the lineup of features offered by this powerful and versatile luminaire.

  • Features:

    • 400W LED engine
    • 20,000 total lumens (fully zoomed out)
    • 7 to 45 degree zoom range
    • 6,700K color temperature
    • >70 CRI
    • 4 rotating framing shutter blades
    • Full CMY color mixing
    • 0-100% variable CTO

  • Specifications:

      Source
    • 400W LED Engine
    • 20,000 Hour Average LED Life

      Photmetric Data
    • 20,000 Total Lumens
    • 6,700K, >70CRI (without CRI Filter)
    • 6,200K >87CRI (with CRI Filter)
    • 44,330 LUX 4,118 FC @ 16.4' (5m)(7.32° Beam)
    • 1,767 LUX 164 FC @ 16.4' (5m)(45° Beam)

      Effects
    • 4x Rotating Framing Shutters, ±60°, plus shape rotation
    • 3-Facet Circular & 4-Facet Linear Rotating Prisms
    • Replaceable Medium Frost Filter
    • Animation Wheel
    • Motorized Zoom (7° - 45°)
    • Motorized Focus
    • Motorized Iris
    • Electronic Dimming & Strobe (1-20Hz)

      Color
    • Full CMY color mixing
    • Variable CTO (2700K to 6700K)
    • Colors Wheel with 6 dichroic colors

      Gobos
    • 2x Gobo Wheels
    • #1 - 7x Rotating Glass Gobos (Interchangeable and Indexable)
    • #2 - 8x Static Glass Gobos

      Control/Connections
    • 3x DMX Channel Modes (36/40/51)
    • RDM (Remote Device Management)
    • 6-Button Touch Control Panel
    • Full Color 180° Reversible LCD Menu Display
    • 8/16 Bit Resolution Adjustable Movement
    • 3 & 5 pin XLR DMX In/Out
    • RJ45 Ethernet In/Out (Art-NET)
    • Locking In/Out power connections
    • With Wired Digital Communication Network

      Electrical/Thermal
    • AC 100V - 240V, 50/60Hz
    • Max Power Consumption: 560W
    • Max Ambient Temperature: -13°F - 113°F (-25°C - 45°C)
    • Max Housing Temperature: 136°F (58°C)

      Pan/Tilt
    • Pan: 540°
    • Tilt: 270°
    • Pan & Tilt Locks

      Size/Weight
    • Length: 15.7" (400mm)
    • Width: 10.2" (259mm)
    • Vertical Height: 26.1" (664mm)
    • Weight: 61.2lbs (27.75kg)

      Technical Data
    • DB Rating @ 3ft: 49dB
    • BTU: 0.53
    • BTU/H: 1,909.60

      Approvals/Ratings
    • CE
    • FCC
    • ETL (Control #4010765)
    • IP20

  • Item Includes:

    • 1x FOC858 Moving Head Light Fixture
    • 1x Power Cable
    • 1x Heavy Frost Filter (JMJ03)
    • 2x Omega Brackets

  • Warranty:

    • 2 Year Warranty

  • GTIN:

    0818651029277
