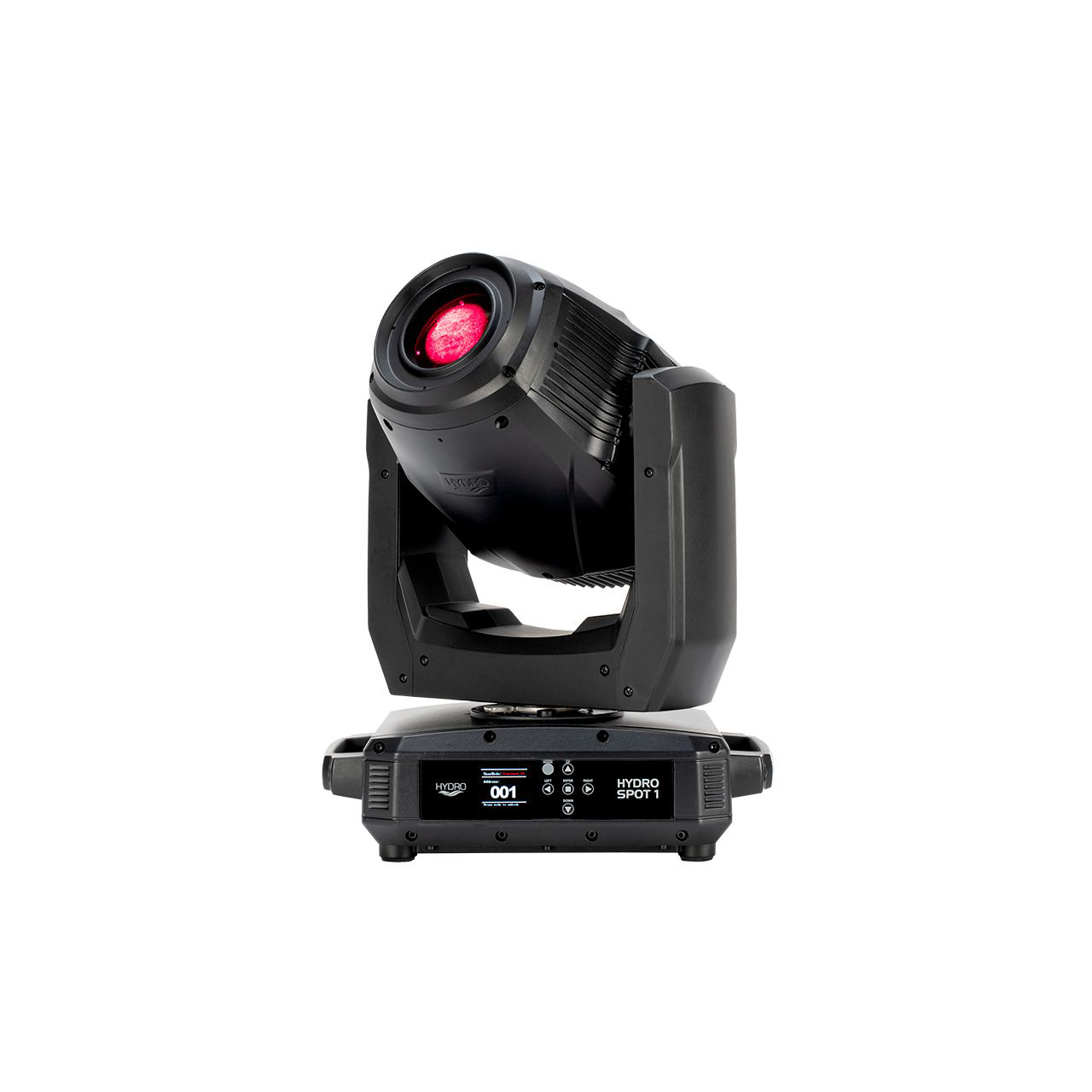

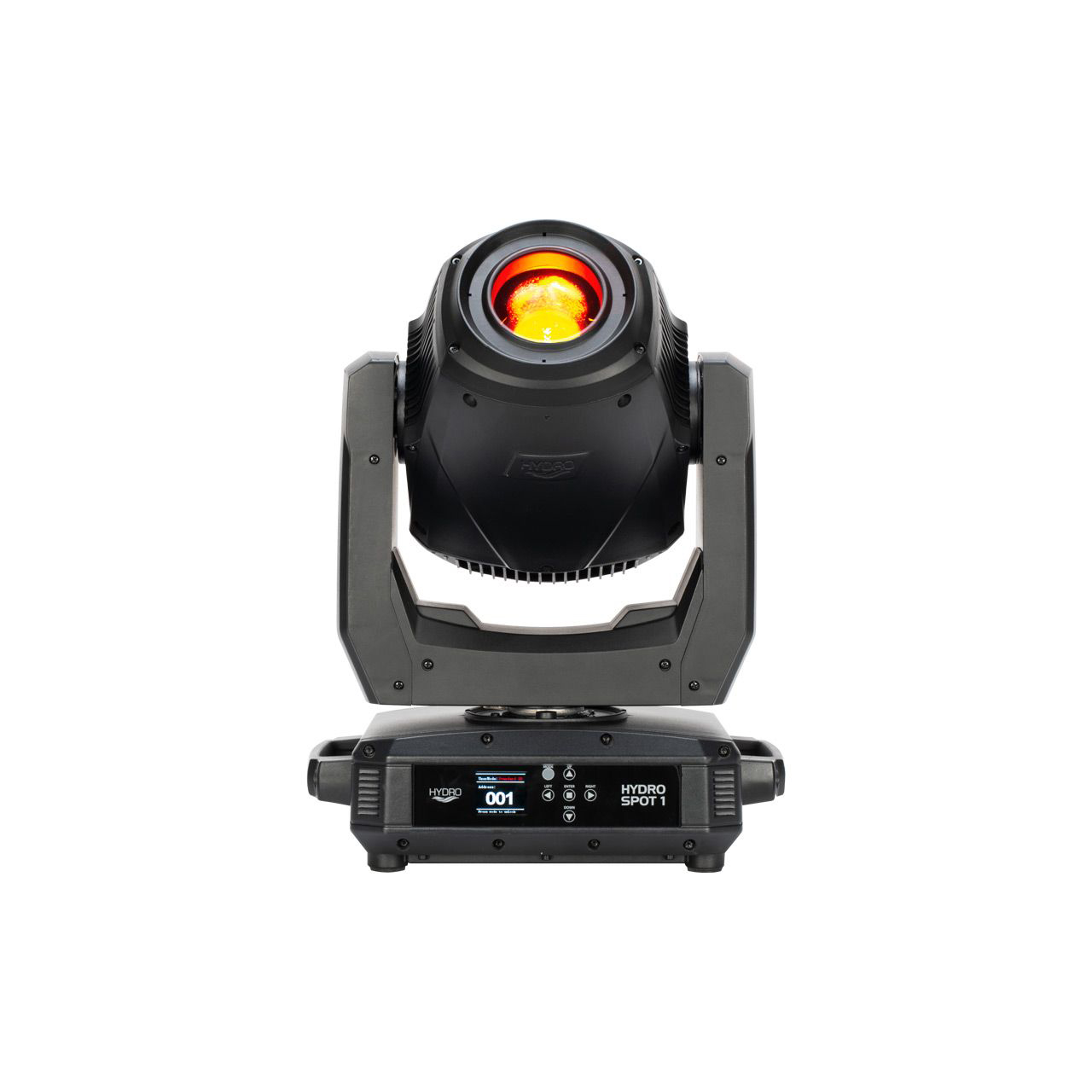

ADJ HYD200 Hydro Spot 1 Moving Head Luminaire Light Fixture with 200W Cool White LED Engine - IP65 Rated

ITEM #: AMDJ-HYD200 MFG #: HYD200

Primary Image
  • Product Image Thumbnail 1 of 4
  • Product Image Thumbnail 2 of 4
  • Product Image Thumbnail 3 of 4
  • Product Image Thumbnail 4 of 4
Free Shipping with $49 Minimum Order

List Price:

$3,799.95

Our Price:

$2,549.99

Availability: Ships Factory Direct, Typically in 3-10 Business Days
iAvailability Description Popup


HYD200 - Overview

Part of ADJ's popular Hydro Series of robust IP65-rated automated luminaires, the HYD200 Hydro Spot 1 is a versatile, LED-powered spot fixture. It is ideal for temporary event production both indoors and outside in any weather, from dusty desert festivals to cold and wet winter attractions. It is also suitable for permanent installation within all kinds of venues, from nightclubs to churches, where its sealed casing design protects its internal components from dust and grime to allow for a reduced maintenance schedule and prolonged operational life expectancy.

Harnessing the power of a potent 200-Watt cool white LED light engine, focused through precision-engineered optics, the Hydro Spot 1 delivers punchy output with even coverage. The efficient LED light source is much brighter than a traditional incandescent bulb that uses the same amount of power, while it's 50,000 hours of expected operational life essentially makes lamp replacement a thing of the past.

An extensive feature set provides lighting designers using the Hydro Spot 1 with a wealth of creative potential. This starts with motorized zoom, allowing for a variable beam angle of 12° ~ 23°, which is paired with motorized focus to ensure pattern projections remain sharp regardless of distance. The fixture features two independent color wheels, each loaded with 8 dichroic colors, including CTO, CTB and UV filters. It also features a separate GOBO wheel, which has 6 slots for replaceable, rotating glass or aluminum GOBO patterns. Two rotating prisms (5-facet linear & 6-facet circular) allow for the creation of stunning aerial effects, while two frost filters (medium and heavy) allow for blurring the edges of GOBO patterns and creating a wash output, respectively.

  • Features:

    • Wifly EXR (Wireless DMX)
    • Motorized Focus
    • Motorized Zoom: 12 ~ 23°
    • 2 Frost Filters (Heavy and Medium)
    • 2 Prism FX: Rotating 5-facet Linear & rotating 6-facet Circular
    • 0-100% smooth dimming
    • Various strobe speeds
    • 2 cooling fans

  • Specifications:

      Source
    • 200W Cool White LED Engine (50,000 hr.)

      Color Wheels
    • 2x Color wheels
    • 8x dichroic colors + white on each wheel (includes CTO, CTB and UV filters)

      Gobo Wheels
    • 1x Wheel with 6 Rotatable GOBOs
    • All GOBOs are replaceable
    • GOBO Shake Effect
    • Aluminum GOBO Size: 23mm (outer); 19mm (viewable); 0.5mm (thickness)
    • Glass GOBO Size: 23mm (outer); 19mm (viewable); 3.3mm (thickness)

      Prism Wheel
    • Prism Wheel 1: Rotatable 6-facet Circular
    • Prism Wheel 2: Rotatable 5-facet Linear
    • Both Prisms are indexable

      Frost Filters
    • Frost 1: Heavy frost for wash effect
    • Frost 2: Medium frost creates lightly blurred edges for Gobo and Prism FX

      Control/Connections
    • 3x DMX Channel Modes: 17/20/22
    • Wifly EXR (Wireless DMX)
    • Color LCD display with 6-button function menu
    • Control Mode: DMX512 or internal programs
    • 6x Dim Modes: Standard, Stage, TV, Architectural, Theatre, Stage2
    • 4x Dim Curves: Square, Linear, Inv. Square and S. Curve
    • Selectable LED Refresh Rates (900Hz - 25kHz)
    • 0% - 100% smooth dimming
    • Various strobe speeds
    • RDM (Remote Device Management)
    • With Wired Digital Communication Network

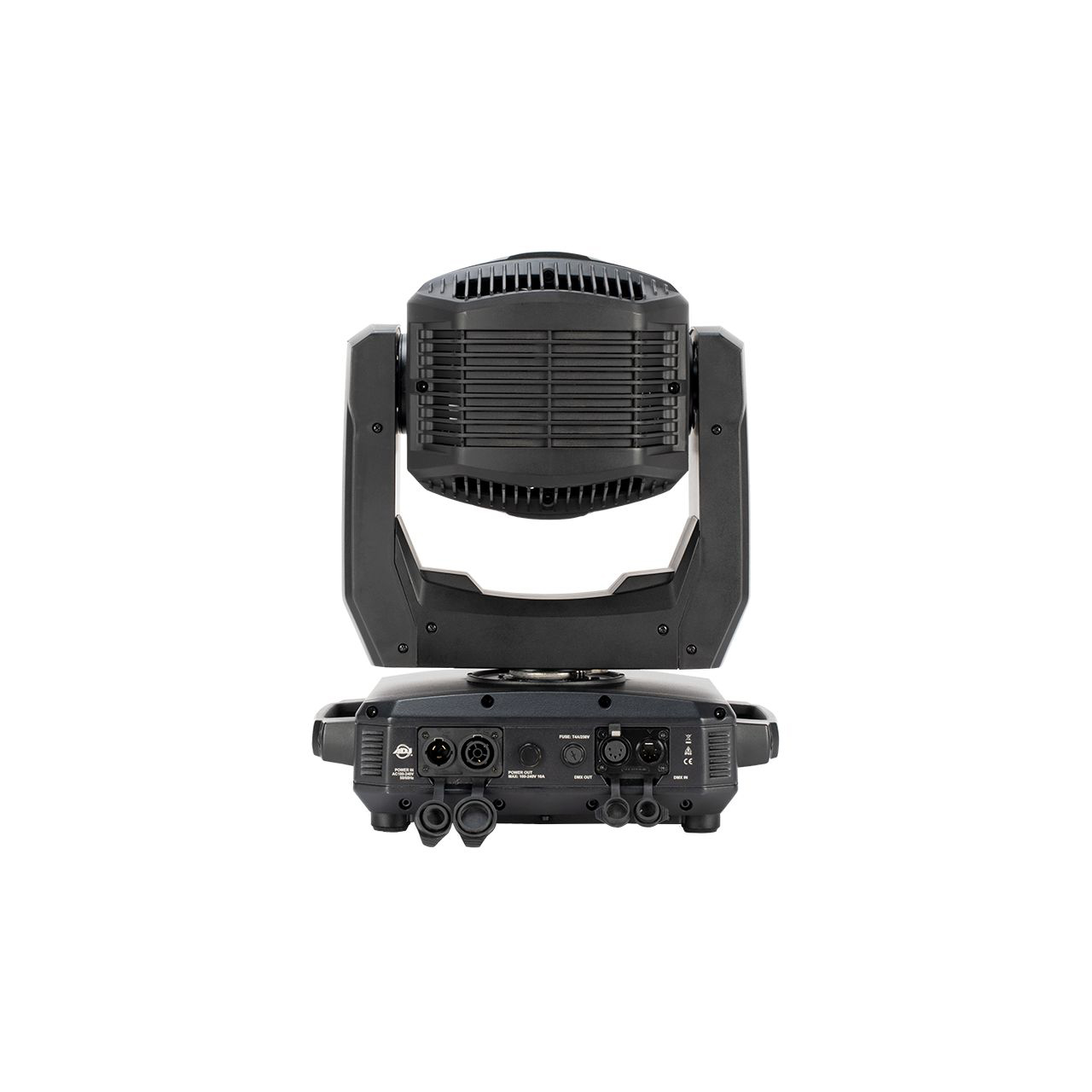

    • DMX Connections: 5-pin XLR In/Out
    • Power Connections: IP65 PowerLock In/Out to daisy chain power

      Electrical
    • Multi-Voltage Operation: 90V - 240V, 50/60Hz
    • Max Power Consumption: 280W
    • Min/Max Ambient Temperature: -4°F - 113°F (-20°C - 45°C)

      Pan/Tilt
    • Pan: 630°
    • Tilt: 270°

      Size/Weight
    • Dimensions (LxWxH): 9.4" x 14.1" x 19.2" (239mm x 357mm x 488.2mm)
    • Weight: 35.2lbs (16kg)

      Approvals/Ratings
    • ETL Approved/CE Certified
    • IP65 with conformal coated PCB

  • Item Includes:

    • 1x HYD200 Light Fixture
    • 1x Locking Power Cable
    • 2x Omega Brackets

  • Warranty:

    • 2 Year Warranty

  • GTIN:

    0810087370480
