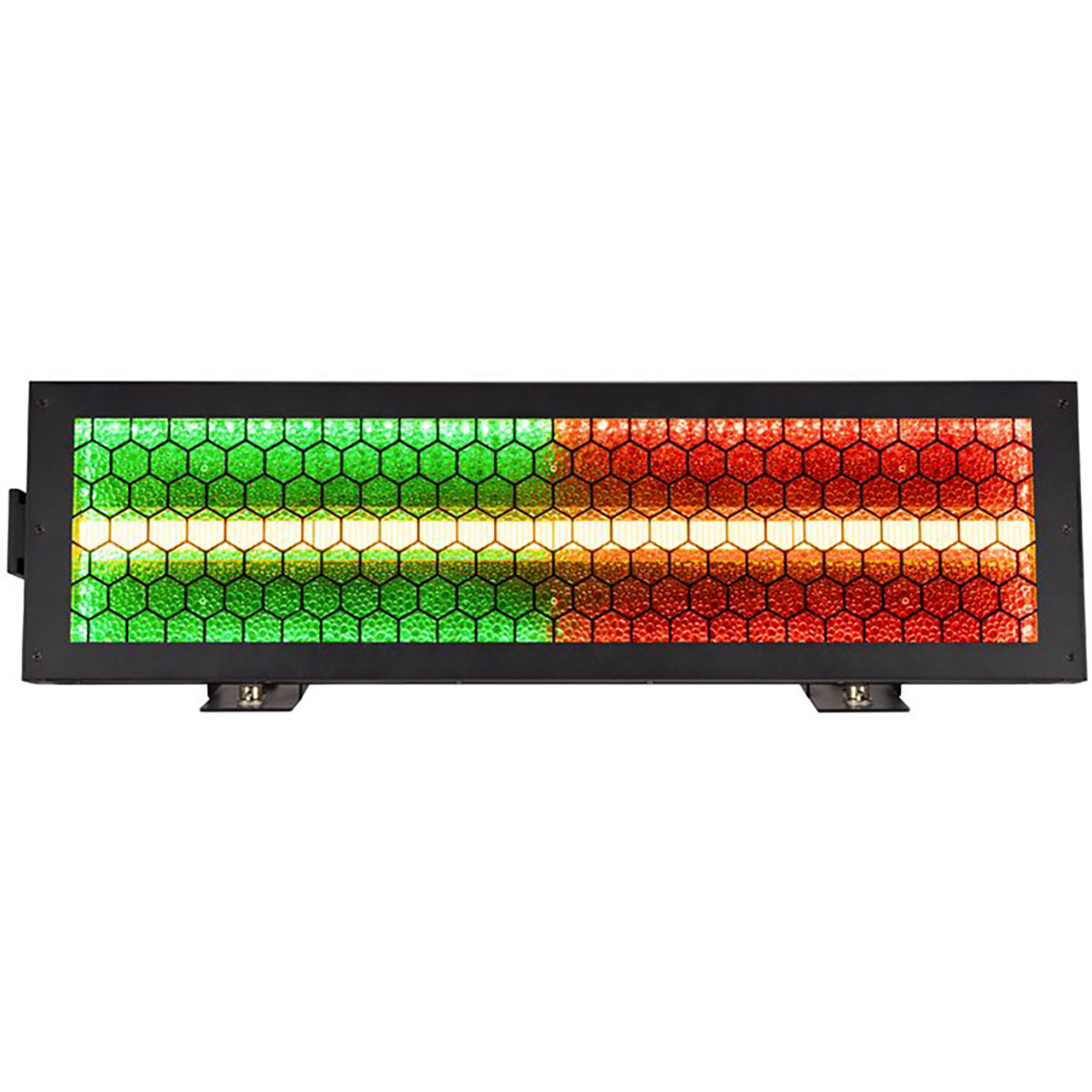

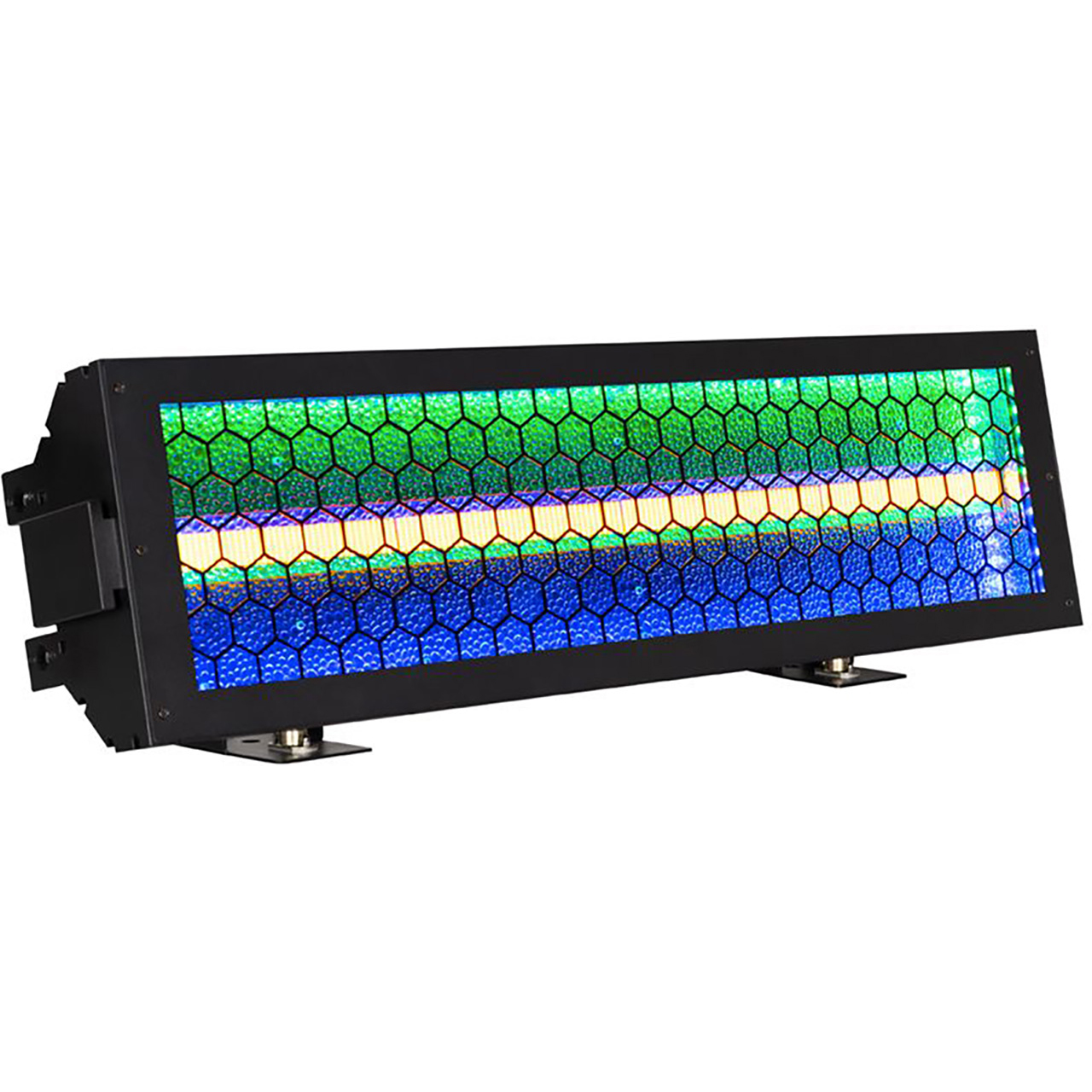

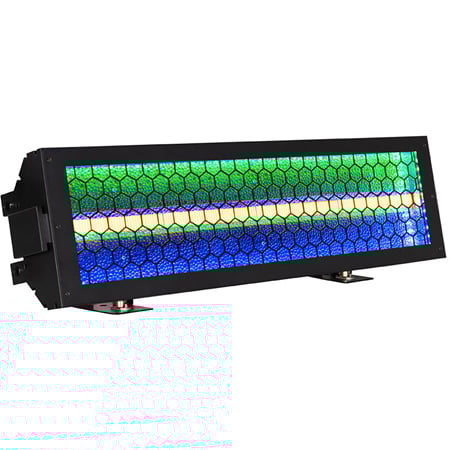

ADJ VIN150 Vintage Bar Lighting Fixture with 4x 150W Amber COB LEDs - 2600K Color Temperature - IP20 Rated

ITEM #: AMDJ-VIN150 MFG #: VIN150

Primary Image
  • Product Image Thumbnail 1 of 4
  • Product Image Thumbnail 2 of 4
  • Product Image Thumbnail 3 of 4
  • Product Image Thumbnail 4 of 4
Free Shipping with $49 Minimum Order

List Price:

$1,799.95

Our Price:

$1,299.99

Availability: Ships Factory Direct, Typically in 3-10 Business Days
iAvailability Description Popup


VIN150 - Overview

The ADJ VIN150 Vintage Bar is a versatile scenic lighting fixture designed to inspire creativity and captivate audiences with its dual-purpose design. It offers four 150W amber COB LEDs (2600K) for a retro blinder effect, combined with vibrant 120 SMD 5050 RGBL background LEDs configured into 20 pixel groups. This combination enables brilliant amber wash lighting, stunning multi-color eye candy effects and smooth dimming transitions.

Its wide field angle of 160° ensures exceptional light dispersion, making it ideal for stage productions, events, theatrical applications. The fixture features advanced strobing, retro background effects, and silent operation. Additional highlights include flicker-free performance, a user-friendly OLED display, and support for DMX, RDM, and Art-NET protocols. The Vintage Bar also features the Aria X2 wireless management system for over the air firmware/software updates for streamlined control.

Built for flexibility, the Vintage Bar offers multiple control modes, pixel mapping, and interlocking capability, making it perfect for immersive lighting setups. With robust engineering and creative potential, it combines vintage charm with modern functionality for modern lighting designs.

  • Features:

    • 4x 150W Amber COB LEDs (2600K)
    • 120 SMD 5050 RGBL Background LEDs, 20 Pixel Groups
    • 160° Field Angle
    • Advanced Strobing
    • Retro Background Effects
    • Silent Operation
    • Flicker-Free Performance
    • OLED Display
    • DMX, RDM, and Art-NET Protocols
    • Aria X2 Wireless Management System
    • Multiple Control Modes
    • Pixel Mapping
    • Interlocking Capability

  • Specifications:

      Optical
    • 4 pcs high-power 150W COB amber LED
    • CCT: 2000K
    • Lumens: > 27,000
    • Lux: 647 @ 5 meters
    • CRI: 70
    • Field Angle: 160°
    • 0% - 100% linear dimming system
    • Background Light Source: 120 pcs SMD 5050 RGBL LEDs (0.8W each) (Configured into 20 pixel groups (6 LEDs per group))

      Effects
    • Powerful strobe, 0.5Hz - 33Hz
    • Unique retro RGBL background effect
    • Silent operation with low noise

      Control
    • Primary/Secondary synchronization
    • Stand-alone mode
    • DMX512 control mode
    • 10 DMX Channel Modes (5/6/8/14/17/18/84/88/90/97 channels)
    • DMX, RDM, sACN and Art-NET protocol support

      Connections
    • IP20 indoor 5-pin DMX Input and Thru
    • IP20 indoor RJ45 Ethernet
    • IP65 outdoor power locking Input and Thru

      Electrical
    • Input: AC 100V - 230V/50Hz - 60Hz
    • Power Consumption: 780W @ 120V, 750W @ 230V
    • Power Link: 1 piece @ 120V or 2 pieces @ 230V

      Size/Weight
    • Dimensions (LxWxH): 35.75" x 11.50" x 10.12" (908mm x 292mm x 257mm)
    • Weight: 41.89lbs (19kg)
    • IP20 (for indoor use only)

  • Item Includes:

    • 1x VIN150 Vintage Bar Light Fixture
    • 2x Adjustable Angle Hanging Bracket
    • 1x Power Cable
    • 2x Omega Bracket

  • Warranty:

    • 2 Year Warranty

  • GTIN:

    0810087374068
