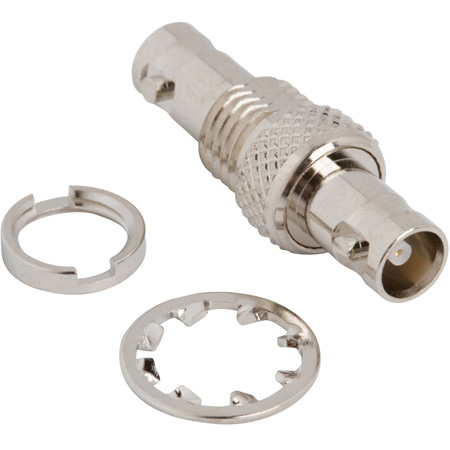

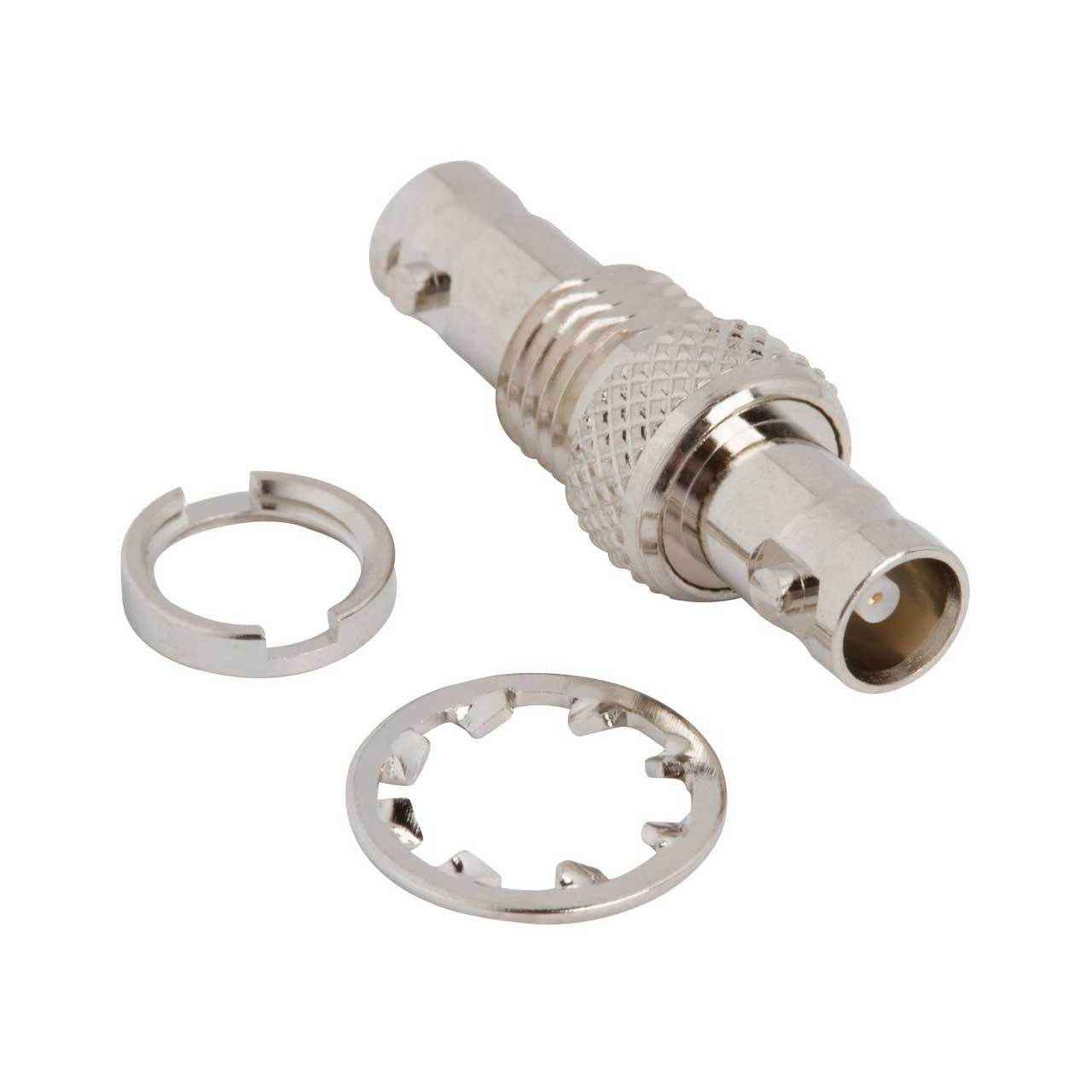

Amphenol 034-1109-12G RF Adapter - In Series HD-BNC Jack to HD-BNC Jack - Black - 12G

034-1109-12G - Overview

• Features:

  • HD-BNC Jack to HD-BNC Jack Adapter 75 Ohm Straight Bulkhead


• Specifications:

  • Adapter Side 1 Series: HD-BNC
  • Adapter Side 1 Style: Jack
  • Adapter Side 2 Series: HD-BNC
  • Adapter Side 2 Style: Jack
  • Body Finish: Nickel
  • Body Material: Brass
  • Contact Finish: Gold
  • Contact Material: Beryllium Copper
  • Export Control Classification Number: EAR99
  • Frequency (Max GHz): 18
  • IP Rating: Not Rated
  • Impedance (Ohms): 75
  • Insulator Material: PTFE
  • Isolated: No
  • Low PIM: No
  • Mil Qualified: No
  • Non Magnetic: No
  • Orientation: Straight
  • Panel Mounting Feature: Bulkhead
  • Temp (Max Degrees Celsius): 165
  • Temp (Min Degrees Celsius): -65
  • Product Compliance: RoHS (EU). Compliant with Exemption 6C, California residents see Prop 65 Warning.


• Item Includes:

  • 1x Amphenol 034-1109-12G RF Adapter - In Series HD-BNC Jack to HD-BNC Jack - Black - 12G
