Amphenol 034-1120-12G Straight Crimp Plug 12G HD-BNC Connector for Belden 4505R Cable - 75 Ohm
  • Amphenol 034-1120-12G Straight Crimp Plug 12G HD-BNC Connector for Belden 4505R Cable - 75 Ohm
  • Amphenol 034-1120-12G Straight Crimp Plug 12G HD-BNC Connector for Belden 4505R Cable - 75 Ohm

Questions? Ask a Markertek Expert:
800-522-2025 Email

Amphenol 034-1120-12G Straight Crimp Plug 12G HD-BNC Connector for Belden 4505R Cable - 75 Ohm

Manufacturer: Amphenol

Item #: AMPH-034-112012G   •   MFG #: 034-1120-12G



List Price:$12.08
Our Price:$8.39

free ship


Availability:
In Stock
i
Item is Available for immediate shipping from our warehouse.


  • This item is not returnable. See Terms & Conditions for details.

California Residents:
8pt-triangleWARNING:
Cancer and Reproductive Harm - www.P65Warnings.ca.gov

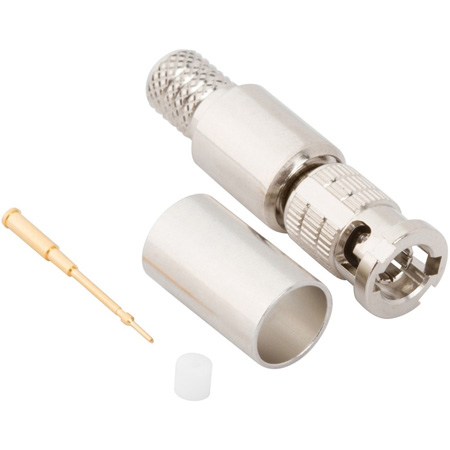

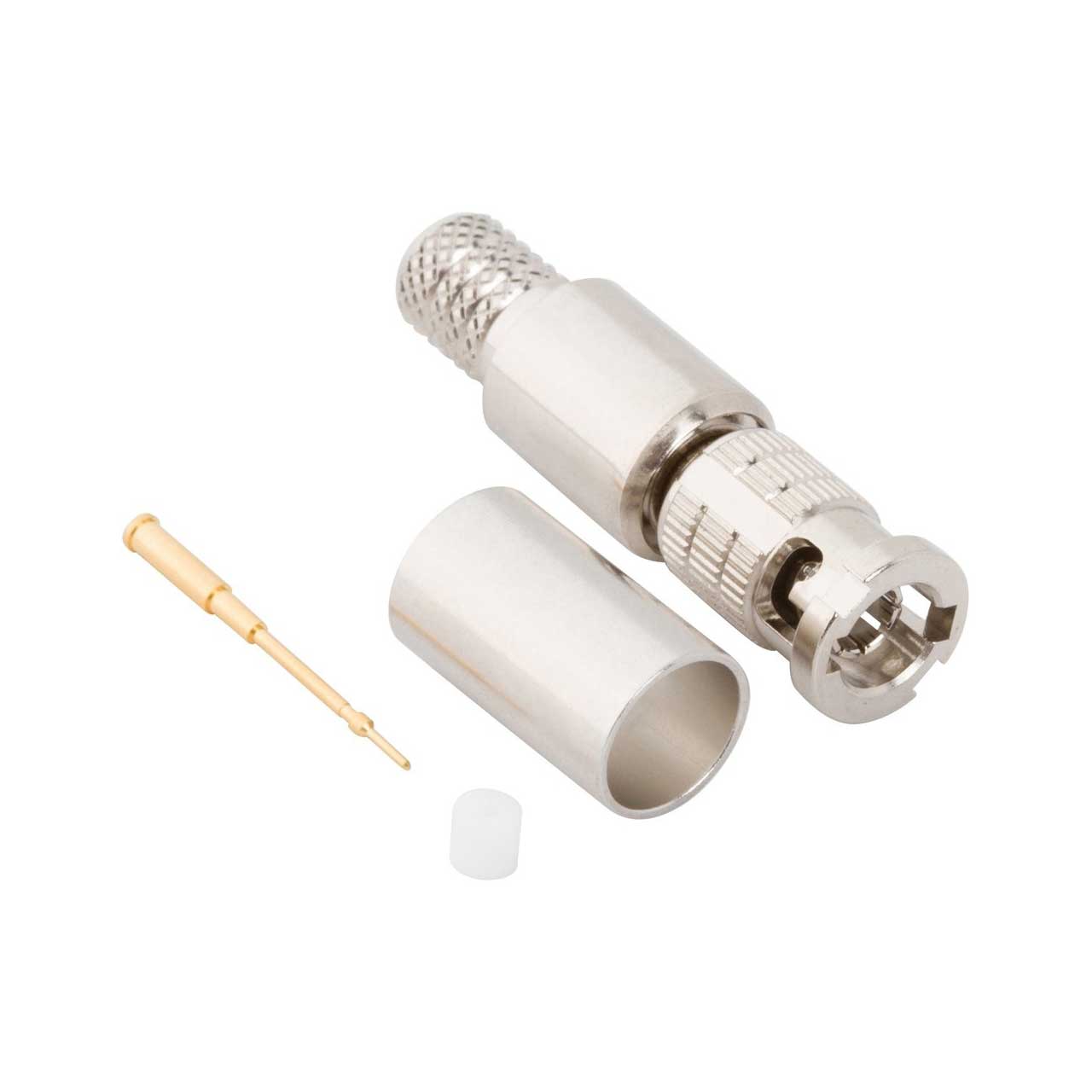

The 034-1120-12G is a 12G Optimized, 75 Ohm RF Connector, HD-BNC Straight Crimp Plug for the Belden 4505R.


  • Specifications

    • Orientation: Straight
    • Termination Style: Cable - Crimp
    • Impedance (Ohms): 75
    • Body Finish: Nickel
    • Body Material: Brass
    • Contact Finish: Gold
    • Contact Material: Phosphor Bronze
    • Contact Termination Style: Crimp
    • Insulator Material: PTFE
    • Cable Group: K3
    • Cable Type: Belden 4505R
    • Crimp Tool: 47-10110
    • Coupling Mechanism: Bayonet
    • Max Frequency (GHz): 18
    • Polarity: Standard
    • Min. Temp. (Celsius): -65
    • Max. Temp. (Celsius): 165
    • Mating Cycles: 500
