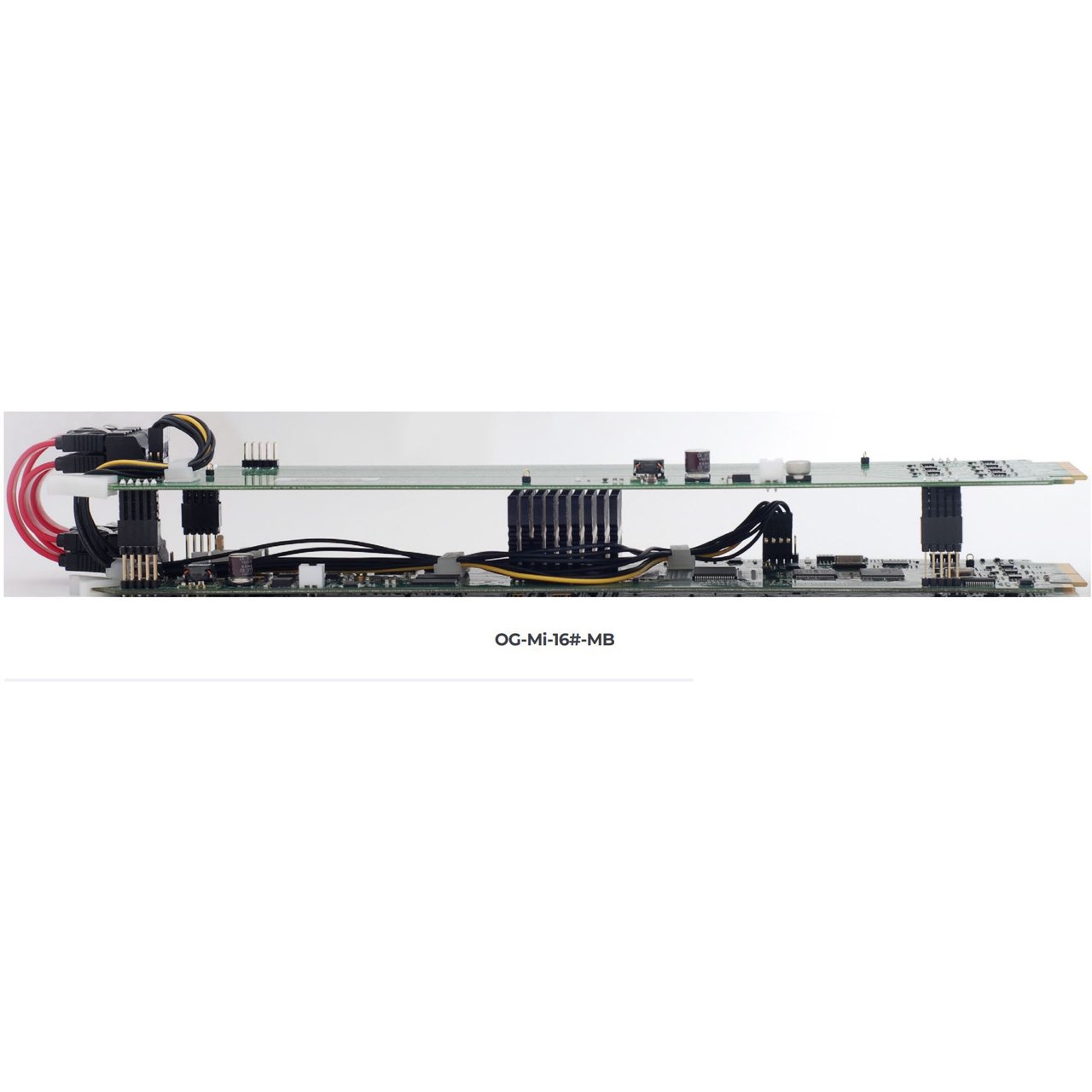

Apantac OG-Mi-16#-MB SDI Video 16x2 Multiviewer openGear Cards

• Features:

  • OpenGear 3.0 card-based form factor
  • Low energy - only uses 15W of power
  • Low latency - single frame processing delay
  • Windows can be sized and moved freely
  • Accepts 9 auto-detect 3G Level A&B/HD/SD-SDI inputs
  • 2 independent outputs: 1x HDMI and 1x SDI output in 1080i/P 50/60Hz with embedded audio
  • Requires an openGear frame with Advanced Networking (onboard Ethernet Switch)
  • Decode up to 16 embedded audio per SDI input
  • Ethernet for configuration and external control
  • Dynamic UMD/labels; Tallies (TSL)
  • Stand alone labels, customizable logos
  • 9 GPIs for tallies, count up/down triggers or preset recall
  • Built-in analog/digital clocks can sync with LTC or NTP
  • Borders can be turned on or off
  • Two sets of safe area markers
  • Visual Alarm tags for video/audio alarm detection


• Specifications:

  • Description: 16 input openGear based multiviewer
  • Video Inputs: Up to 3G (level A/B)/HD/SD-SDI
  • Video Outputs: 2 independent HDMI and SDI with up to 16 windows each
  • Audio Outputs: Embedded stereo audio pair
  • Output Resolution:
    - HDMI: 1920x1080P 50/59.94Hz
    - SDI: 1080P/1080i 50/59.94Hz
  • Serial Digital: SMPTE 424M, 292M, 259M
  • Supports:
    - 525i 59.94
    - 626i 50
    - 720p 50
    - 720p 59.94
    - 720p 60
    - 1080i 50
    - 1080i 59.94
    - 1080i 60
    - 1080P sF25
    - 1080P sF29.97
    - 1080P sF30
    - 1080p 50
    - 1080p 59.94
    - 1080p 60 Level A/B
  • Equalization:
    - 120m at 2.97Gbps
    - 140m at 1.48Gbps
    - 400m at 270 Mbps with Belden 1694A
  • Rerturn Loss:
    - 15dB up to 1.485Gbps
    - 10dB up to 3G
  • Embedded Audio: SMPTE-272M-A
  • Alarms: No audio, audio high/low, no video, video format display
  • On-Screen Display: Borders, static and dynamic labels/UMDs, tally LEDs, alarm tags, clocks and logos
  • Latency: 1 frame
  • SDI Color Encoding: 10 bit 4:2:2
  • GPI: 16 for tally or AXP (ASCII command)
  • IP: 100 Base-T for control and configuration and TSL, AXP protocol
  • Supported IP Protocols: TSL 3.1 for dynamic tallies and labels
    - Optional: Utah and PESA router protocols
  • EMI/RFI: Complies with FCC Part 15, Class A, CE, EU EMC, C-tick
  • Electrical: 20W, 90V - 250V 50/60Hz


• Item Includes:

  • 1x OG-Mi-16#-M openGear Card


• Warranty:

  • 5-Year Limited Warranty
