Smart Display Module High Bandwidth NDI Quad 1080p Input Receiver - Output Up to 4K@60Hz RGB 444 for LCD Monitors

ITEM #: APA-SDM-NDI-QR MFG #: SDM-NDI-QR

Primary Image
  • Product Image Thumbnail 1 of 2
  • Product Image Thumbnail 2 of 2

This item is no longer available.

Ask a Markertek Expert if you need assistance finding an appropriate substitute.

(800) 522-2025Email

Items similar to the APA-SDM-NDI-QR

SDM-NDI-QR - Overview

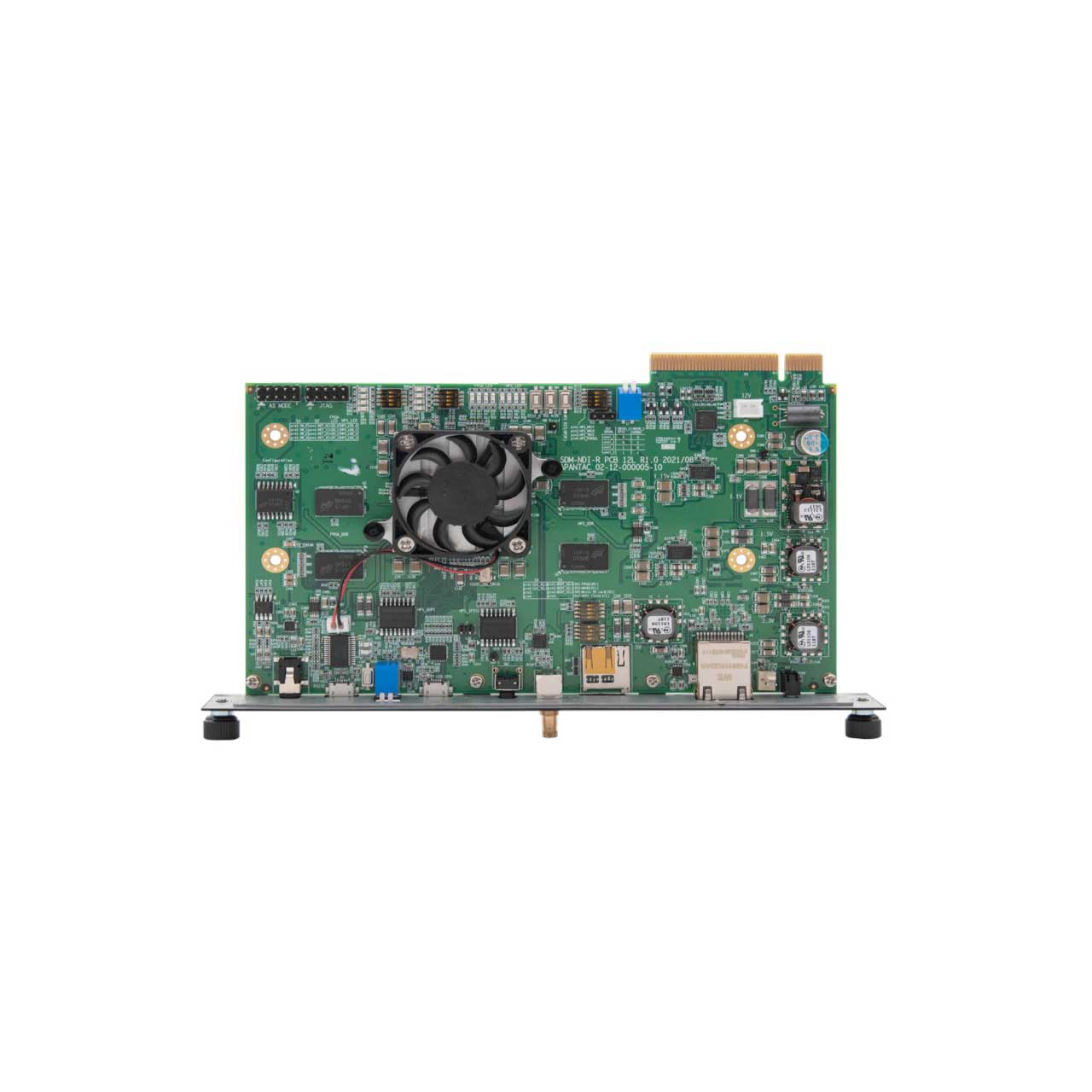

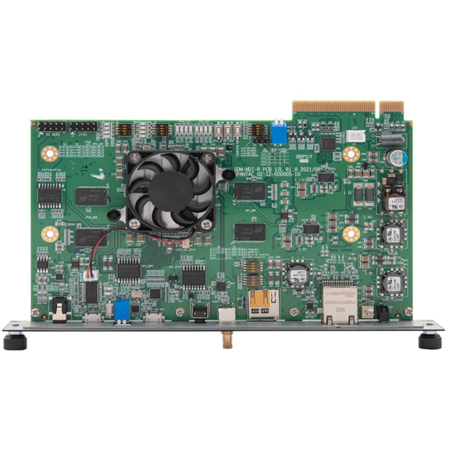

The Apantac SDM-NDI-QR is a High Bandwidth NDI Quad 1080p Input Receiver with output Up to 4K@60Hz RGB 444 for the SDM-L.

Apantac SDM-NDI-QR display interfaces employ Intel's "Smart Display Module" (SDM) platform and reduce power and cabling requirements while providing a streamlined connection system for video walls, displays, and projectors. SDM is designed to be scalable into the future as video formats change and evolve. In addition, Apantac SDM interfaces provide critical information about display performance. With details such as the power being drawn and the amount of cooling needed, you get a better sense of system stability and a larger toolset for ensuring the ongoing reliability of your installed displays."

  • Features:

    • Quad split NDI receiver for SDM-L
    • Decode and display up to 4 x 1080P high bandwidth NDI streams
    • Fixed Quad Split, each window can go full screen
    • Display up to 8 audio meters per window
    • 2 GPI tallies per window
    • 8 GPI contacts, can be configured for tally or ASCII protocol
    • Borders can be turned on or off
    • One 32 character label per window
    • Safe area markers
    • Visual Alarm tags for audio and video presence
    • Supports UHD@60Hz, RGB 444 output
    • Supports NDI v5

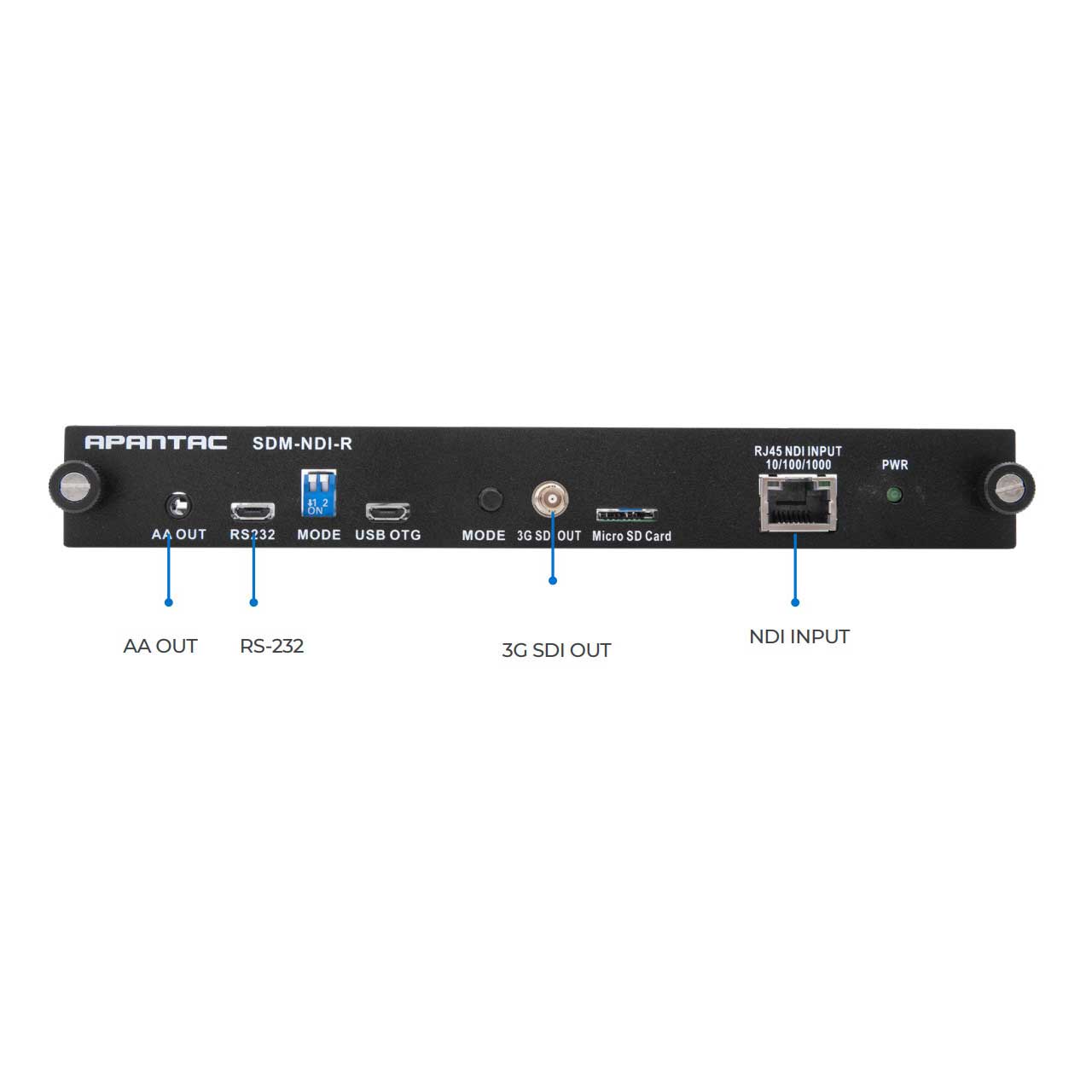

    • Supports Analog audio monitoring output
    • 3G SDI output
    • 10/100/1000 Base Ethernet Interface


  • Specifications:

    • Input: Up to 1 Gbps Ethernet Interface
    • Output: SDM Connector
    • Dimensions: 195 mm Width x 112 mm Depth
    • Power Consumption: Up to 10 W

      Environment:
    • Operating temperature: -20C ~ 60C
    • Humidity: 10%~90% / non-condensing


  • Warranty:

    • 3 Year Limited Warranty
