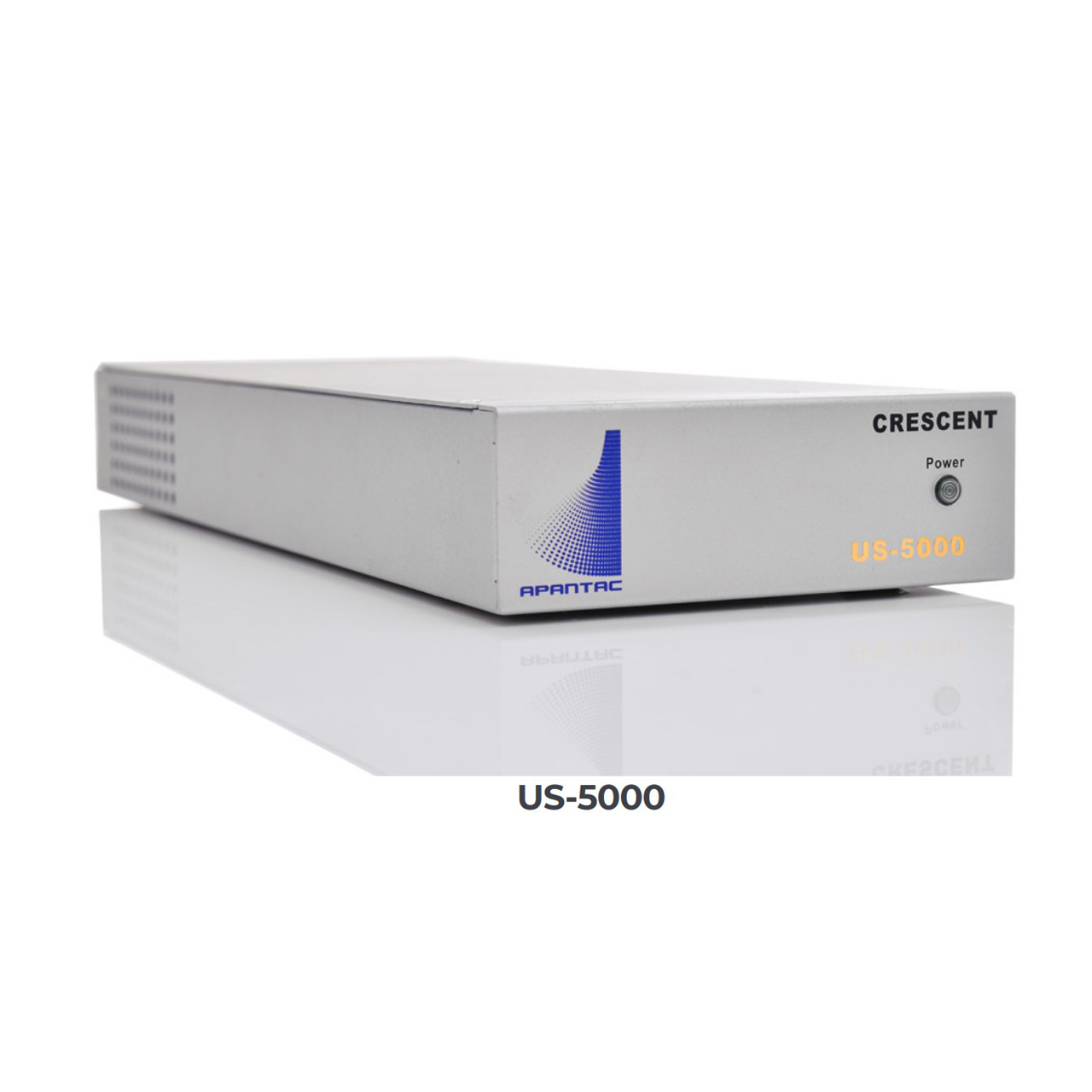

Apantac Crescent - US-5000 Standalone Bi-directional Universal Scaler with Genlock

US-5000 - Overview

• Features:

  • Standalone compact
  • Dashboard connect control enabled
  • HDR metadata pass through

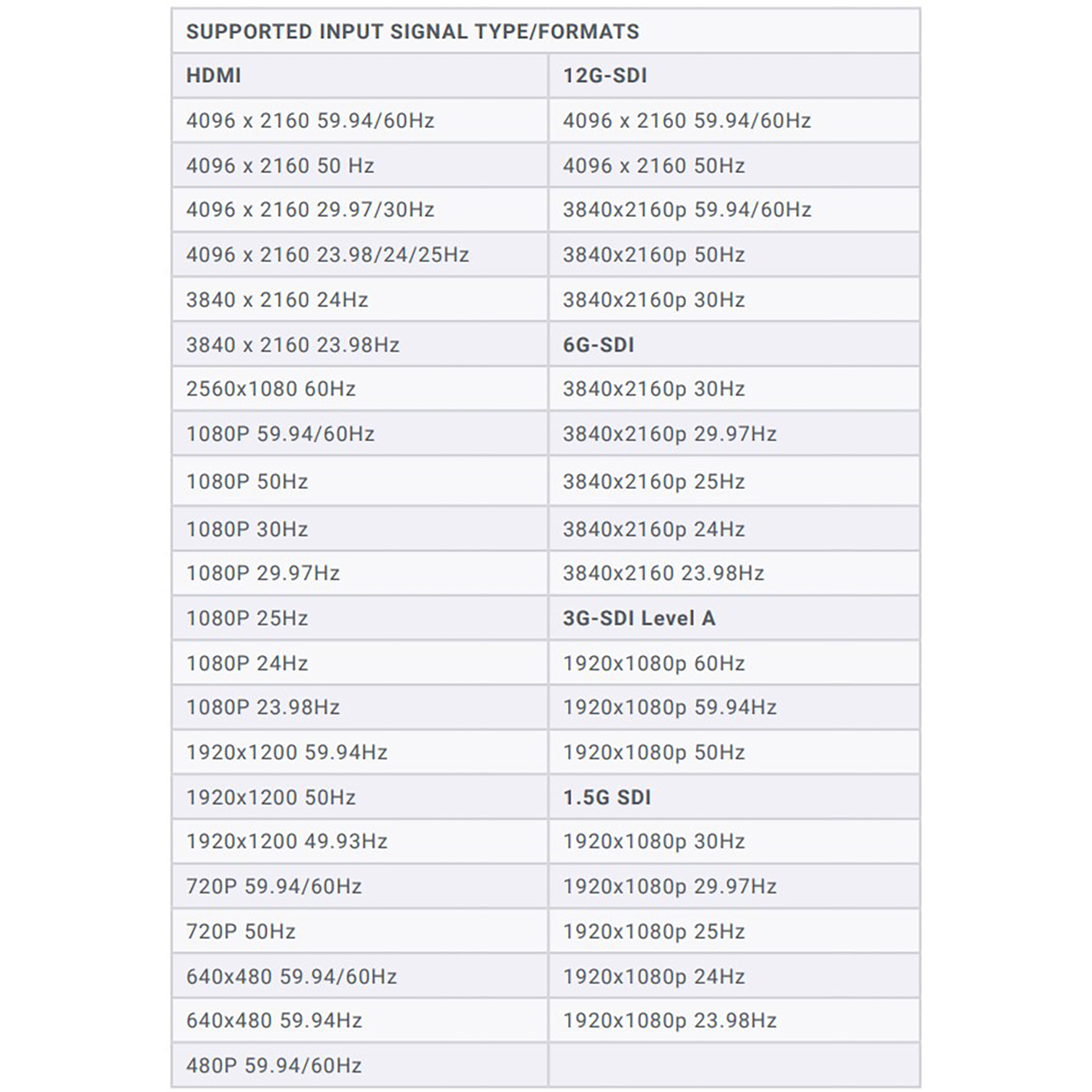

  • Select input among HDMI 2.0, SDI up to 4096x2160p60 or test signal
  • HDMI 2.0 and 12G SDI outputs up to 4096x2160p60, with independently adjustable resolution/frame rate
  • Supports 8 channels of HDMI audio to SDI and vice versa
  • Supports 8 channels of audio when converting from SDI to SDI
  • Can be genlocked to Black Burst
  • SDI output supports 1080P 50/59.94Hz, 3840x2160 50/59.94Hz, 4096x2160P 50/59.94Hz
  • HDMI output supports 1080P 50/59.94Hz, 3840x2160P 50/59.94Hz, 4096x2160P 50/59.94Hz
  • Low power consumption < 25W
  • Region of Interest (ROI)
  • In ROI mode, the HDMI output matches the SDI output resolution


• Specifications:

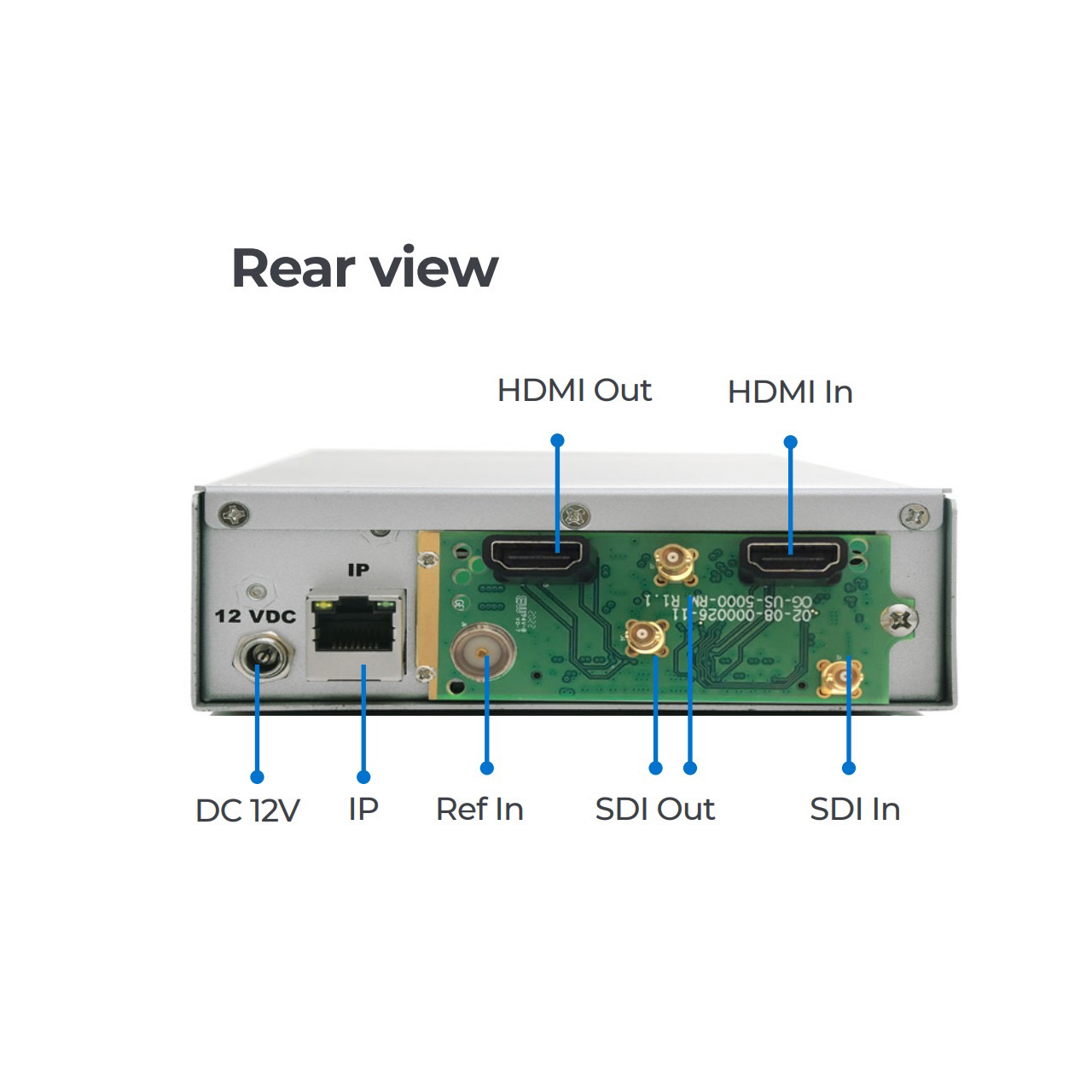

  • Input: HDMI and SDI (SDI is HDBNC)
  • Output: HDMI and SDI (SDI is HDBNC)
  • Control: Dashboard
  • Genlock: Analog black burst via Standard BNC


• Item Includes:

  • 1x Universal Scaler
  • 1x Power Supply


• Warranty:

  • 3 Year Limited Warranty
