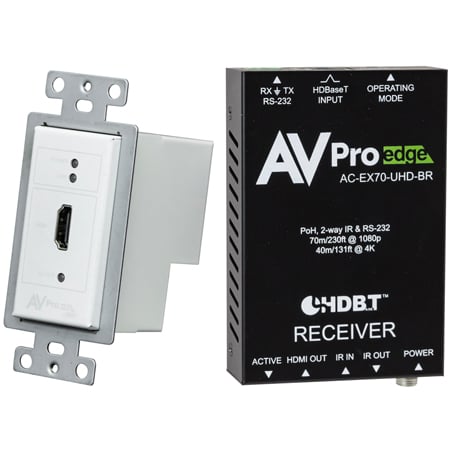

AVPro Edge AC-CXWP-HDMO-BKT HDMI Single Gang Decora Style Wall Plate - HDBaseT Basic Extender Kit (70M HD 1080p) - White

ITEM #: APR-ACCXWPHDMOBK MFG #: AC-CXWP-HDMO-BKT

  • Product Image Thumbnail 1 of 4
  • Product Image Thumbnail 2 of 4
  • Product Image Thumbnail 3 of 4
  • Product Image Thumbnail 4 of 4
free ship

Our Price:

$878.90

Availability: In Stock
iAvailability Description Popup


    AC-CXWP-HDMO-BKT - Overview

    ConferX wall plate transmitters are built to fit with any standard wall plate cover or mud ring you find at local hardware stores. Each transmitter comes with a single 1-gang cover, but fits with any standard size 2, 3 or 4-gang wall plate cover when lining multiple units up side by side.

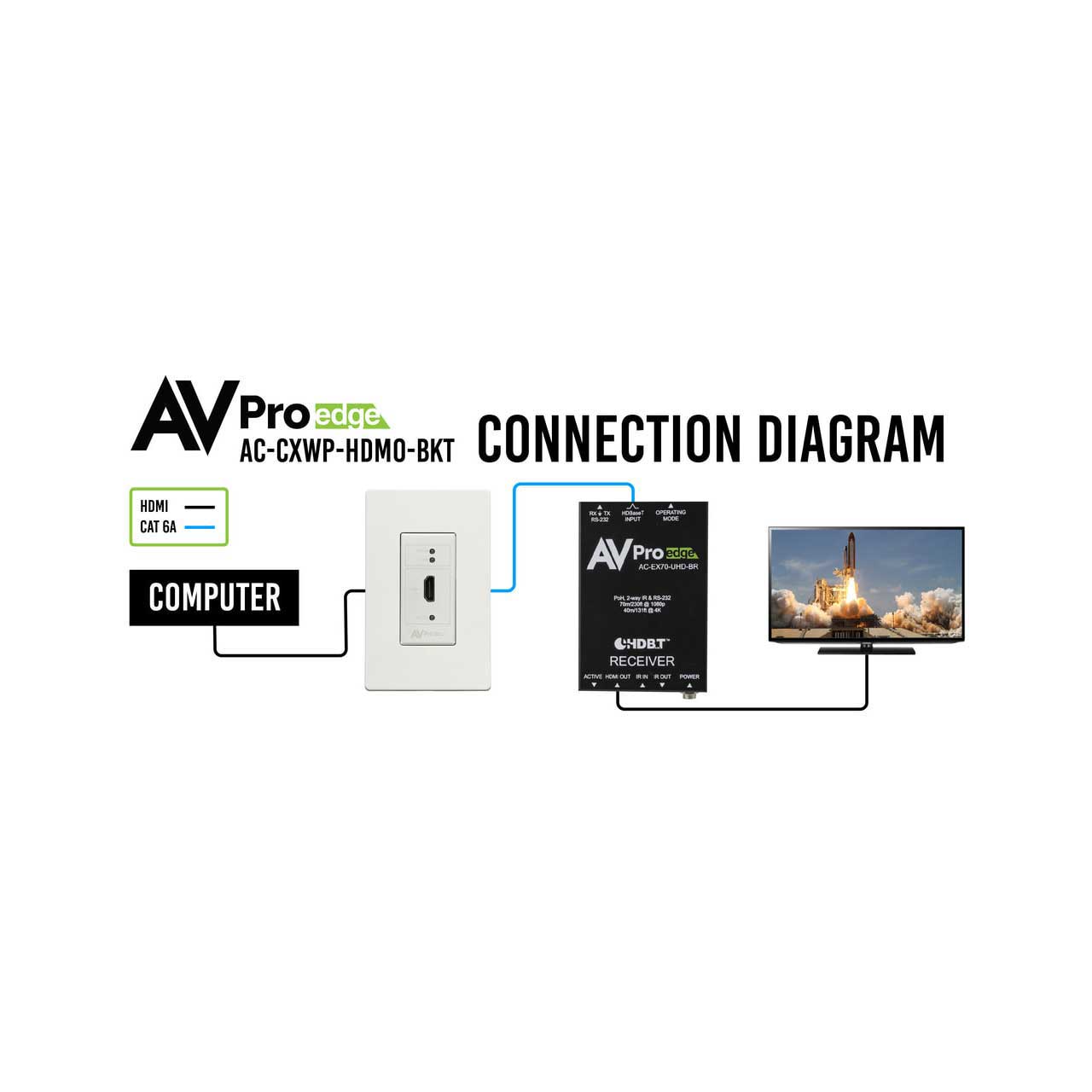

    This AVPro Edge AC-CXWP-HDMO basic HDBaseT wall plate transmitter/receiver kit is a cost effective HDMI extension product from AVPro Edge's ConferX line of products. Able to handle 4k at 10.2 Gbps, this single gang wall plate transmitter fits in any standard mud ring and works with standard category cable to deliver a stable signal long distances. This extender kit is able to send a 4k signal 40 Meters and a 1080p signal 70 meters using CAT6a with HDBaseT technology.

    This is the ideal video extension solution for single office settings, home theaters, conference rooms, huddle spaces and any other place you need to deliver an HDMI signal over a long distance. Perfect for any basic HDMI extension job and able to handle resolutions from PC's, Apple products, Tablets, Bluray Players or any other HDMI source outputting 4K at 30hz.

    4K Wall Plate Extender Applications
    -Conference/huddle room configurations where many sources types can be used, like computers, players, etc.
    -Auditoriums: This unit extends HDMI up to 70 meters for long distance type scenarios.
    -Personal Office: Create simple presentation venues, with audio, that are plug and play and reliable in your office.
    -Non Technical Scenarios: This device is auto sensing, so the end-user has ZERO configuration, this is the perfect transmitter anywhere non-technical users will access the system.

    • Features:

      • HDMI 2.0 (a/b)
      • 4K 30 4:4:4, 4K60 4:2:0 HDMI Support
      • DCI 2K, 1080P, 1920x1080x60 VGA Support
      • HDCP 2.2 & Earlier Supported
      • 70M (230ft) 0n 1080P, Up to 40m (130ft) on 4K (Cat6a)
      • No Local Power Necessary at Wall Plate (Powered by AC-EX70-UHD-BR)
      • Single Gang, Low heat, Straight in rear RJ45 receptacle design.
      • Rugged, long-life chassis
      • Plug & Play auto input sensing
      • Designed for the conference/classroom room so your customer can focus on their meetings, not their video system
      • Single UTP/STP LAN cable (CAT-6A) for all signals
      • Single Gang Construction (Fits Decora Type USA single gang boxes and mud rings)
      • Single Gang (Decora), Low heat, rugged, long-life chassis
      • Compatible with HDBaseT displays, projectors, AVR's
      • Supports uncompressed PCM 2- Ch., 5.1, 7.1, Dolby Digital, DTS, Dolby TrueHD, DTS HD-Master Audio, Atmos

    • Specifications:

      • Video
      • Video Resolutions: up to 4K 60Hz 4:2:0 8-bit
      • VESA Resoluations: up to 2560x2048 (QSXGA)
      • Color Space: YUV, RGB (CSC: REC. 601, REC. 701, BT2020, DCI, P3 D6500
      • Chroma Subsampeling: 4:4:4, 4:2:2, 4:2:0 support
      • Deep Color: up to 16-bit (1080), up to 10-bit (4K)

        Audio
      • Audio Formats Supported (HDMI): PCM 2.0ch, LPCM 5.1 & 7.1, Dolby Digital, DTS 5.1, Dolby Digital Plus, Dolby TrueHD, DTS-HD Master Audio, Doly ATMOS

        Distance
      • Distance 1080p: 230 feet with CAT6A/7
      • Distance 4K & HDR: 131 feet with CAT6A/7

        Other
      • Bandwidth: 10.2 GBPs
      • CEC: Yes
      • HDCP: HDCP 2.2 and earlier

        Ports
      • HDMI Input: Typa-A
      • HDbaseT (Output to Receiver): RJ45

        Environmental
      • Operating Temp: 23-125°F
      • Storage Temp: -4 to 140°F
      • Humidity Range: 5-90% RH (no condensation)

        Power
      • Power Consumption: 12 Watts (16.5 when paired with receiver)
      • Power Supply: Input - AC 100-240V ~ 50/60Hz, Output - DC 12V 2A

        Physical
      • Dimensions (TX only): 2.75 x 2.55 x 12" without walla decora cover
      • Wall Space: Single Gang
      • Compatible Box Types: Mud rings, stud mount, clamp mount, metal & plastic boxes, LV boxes
      • Dimensions (Kit): 7.25 x 12.5 x 3.25"
      • Weight Packaged: 1.5lbs

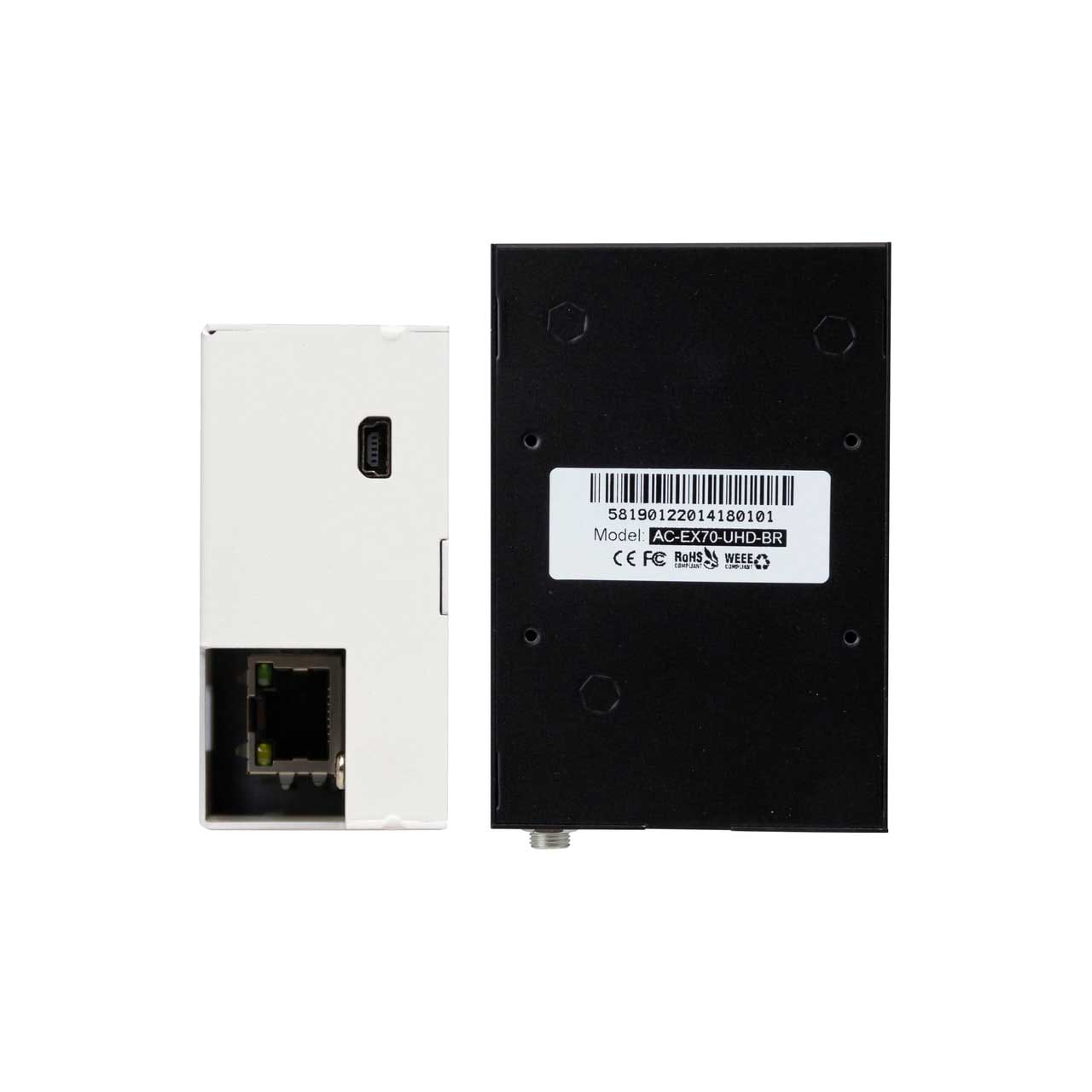

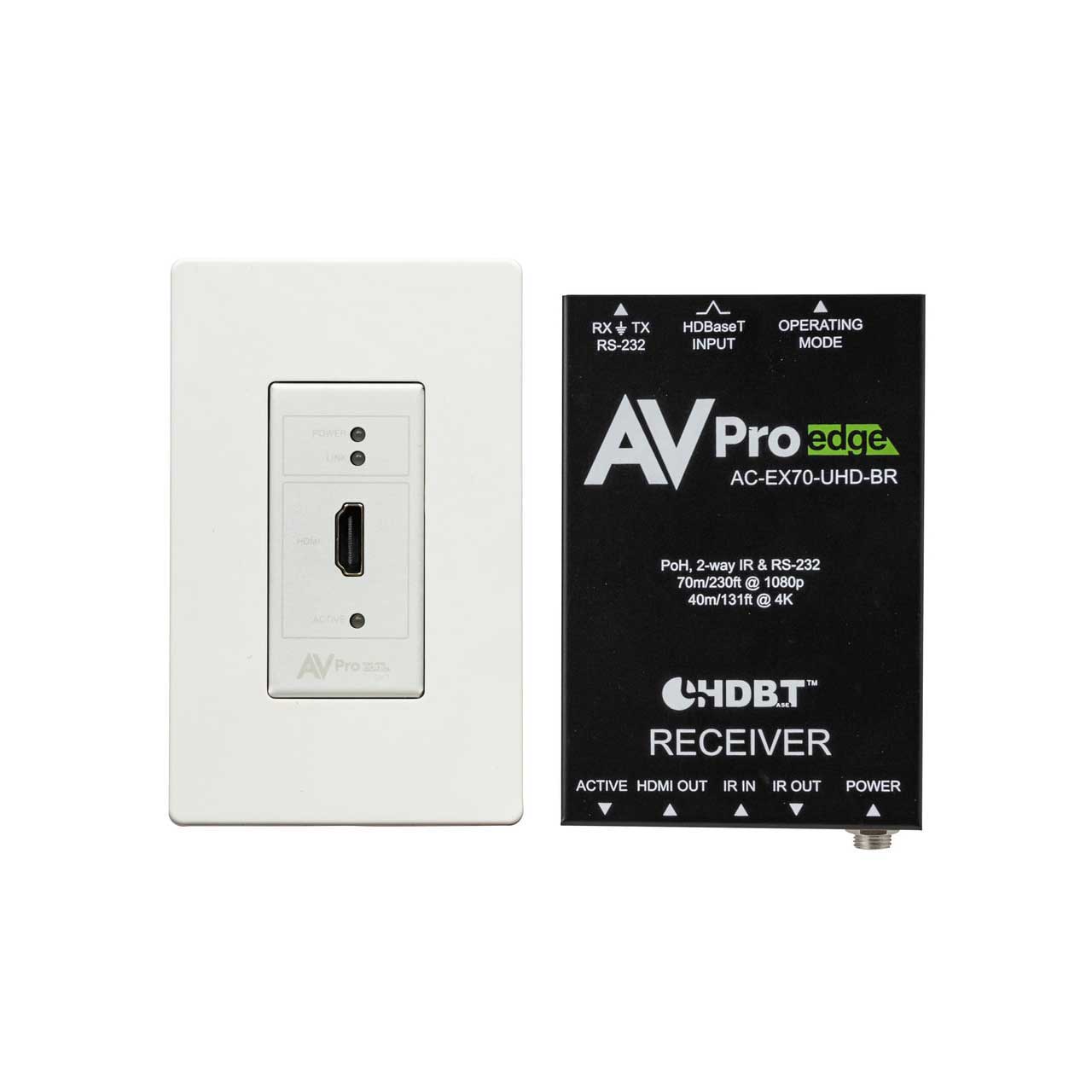

    • Item Includes:

      • 1x AC-CXWP-HDMO-T (Transmitter)
      • 1x AC-EX70-UHD-BR (Reciever)
      • 1x Decora wall plate cover (white)
      • 2x Long electrical outlet screws
      • 1x 12V 2A Locking Power Supply
