    ARCADIA-X4-32P - Overview

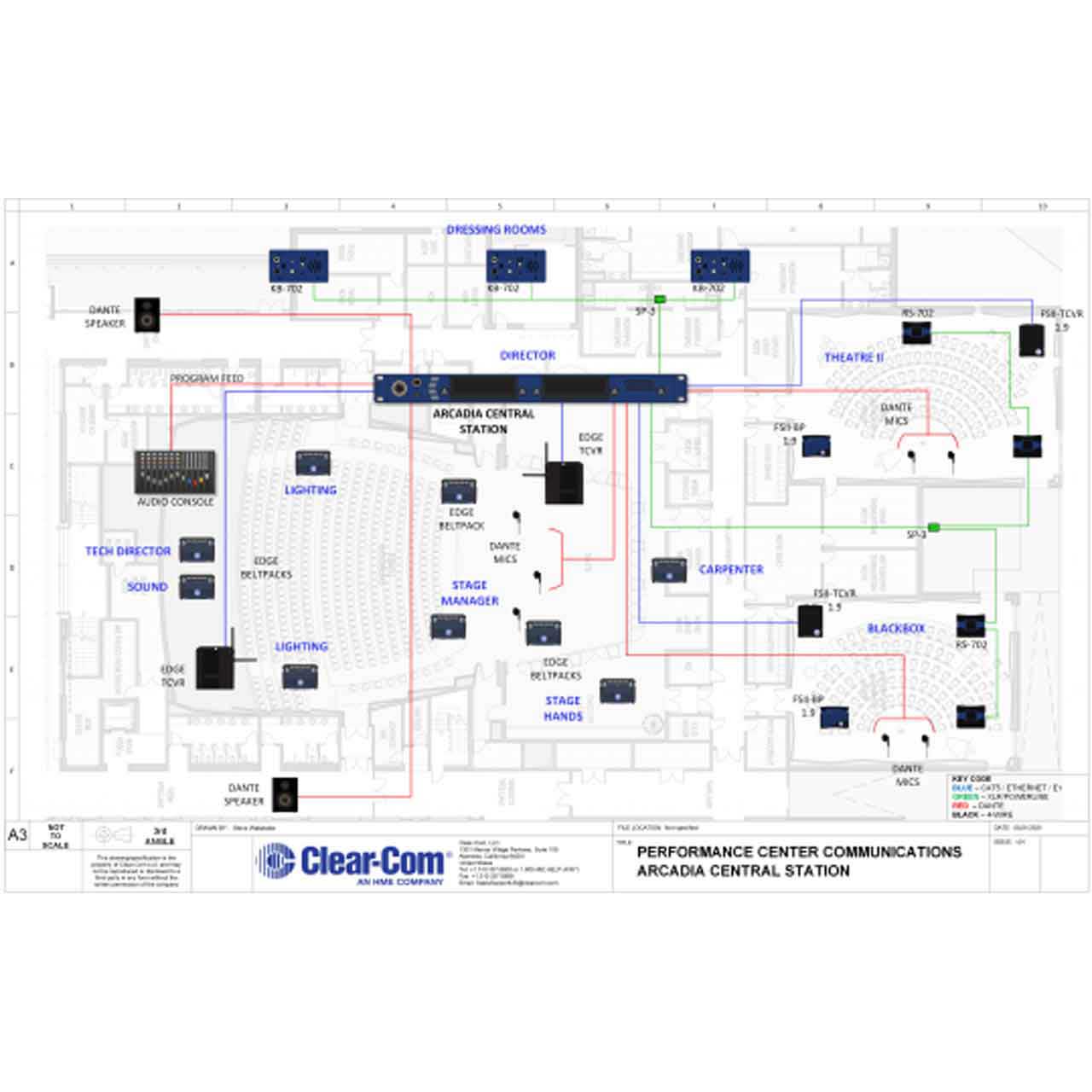

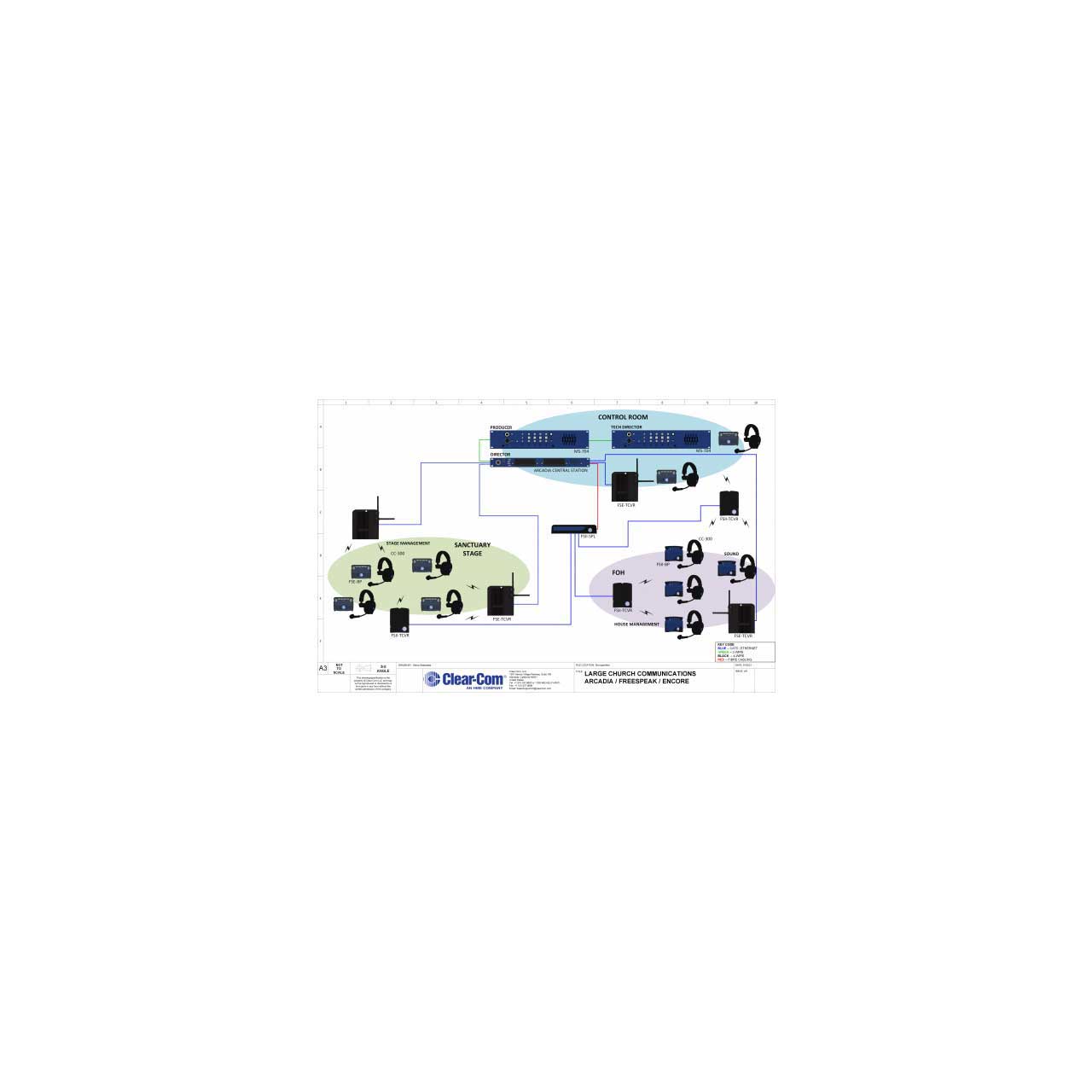

    The ClearCom Arcadia™ Central Station is a scalable IP intercom platform which integrates analog wired and digital wireless partyline systems, including the full range of FreeSpeak™ products. With a mixture of 2-wire and 4-wire audio ports, the 1RU device serves as the centerpiece of a system that includes Clear-Com endpoints along with third-party Dante devices.

    The Arcadia Central Station is an IP-based standalone 1RU device supporting wired and wireless endpoints with up to 96 total ports of connectivity, 64 of which are available for Dante/AES67. Flexible licensing of features - including ports - allows Arcadia to expand over time as needed, making it a future-proof investment. A key feature of Arcadia is its support for the entire FreeSpeak wireless family. Users can leverage a mixture of FreeSpeak Edge® 5 GHz transceivers/beltpacks, FreeSpeak II® 1.9 GHz E1 and IP transceivers/beltpacks*, and FreeSpeak II 2.4 GHz E1 transceivers/ beltpacks. In total, the central station supports up to 32 beltpacks via up to 16 IPTs or FreeSpeak Edge transceivers, and up to 10 E1 transceivers (1.9 or 2.4 GHz).

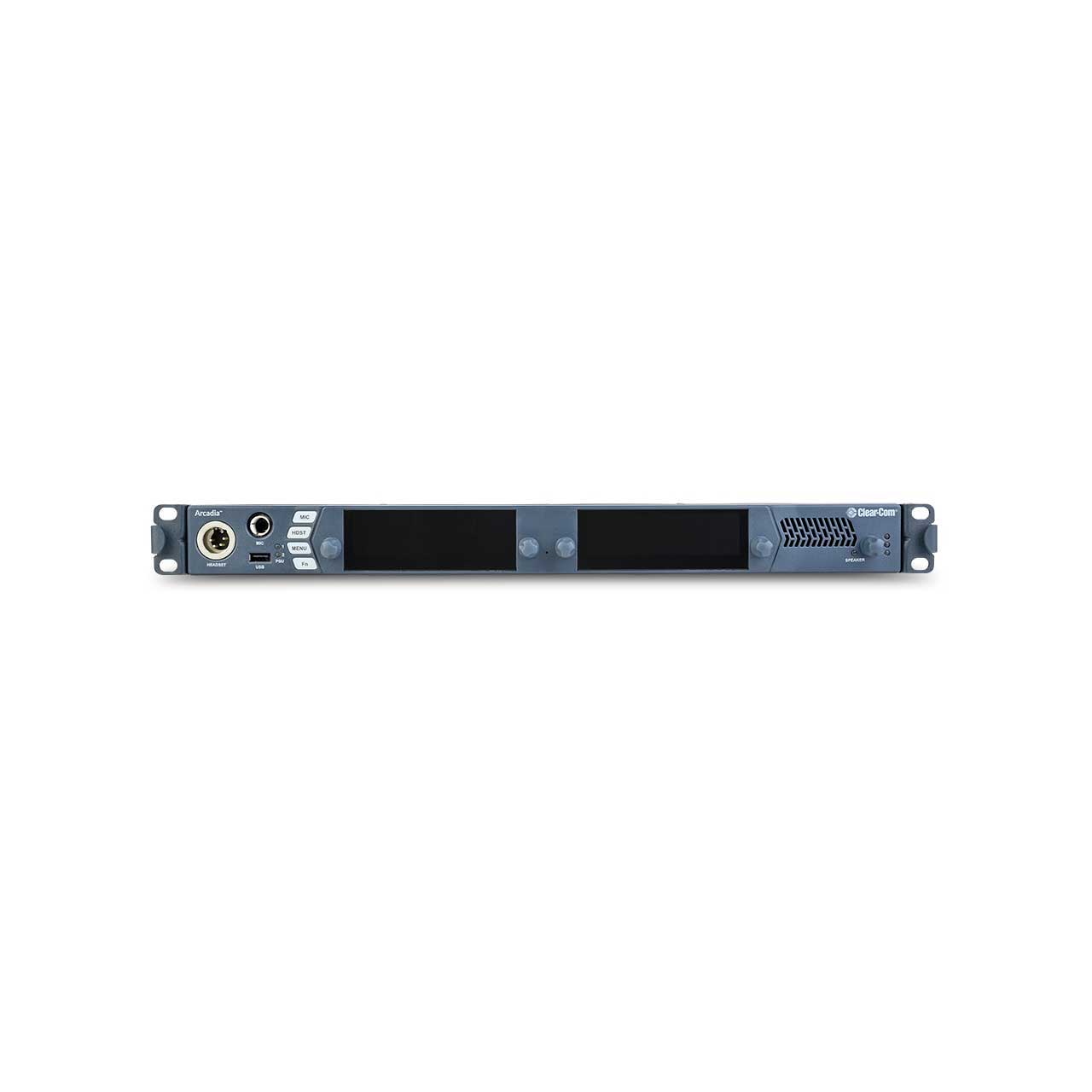

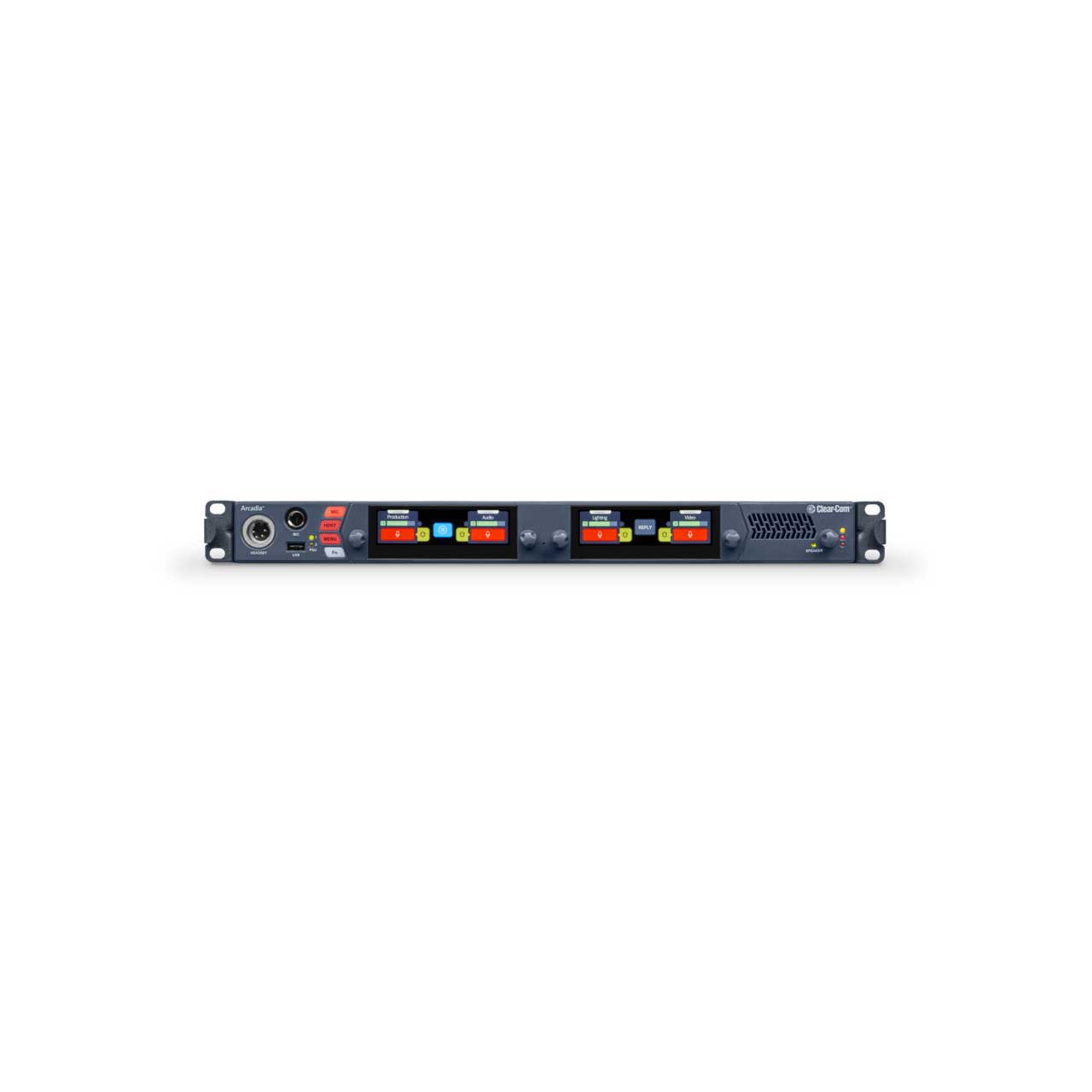

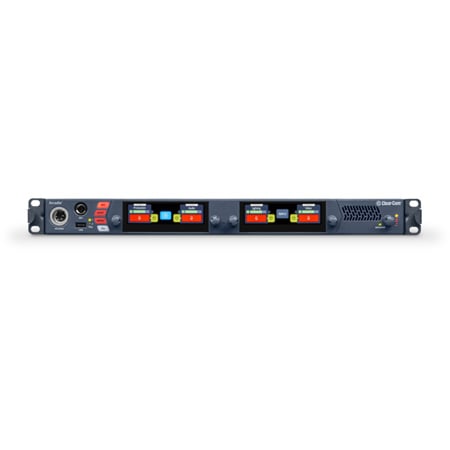

    Built for situations that require quick changes on the fly, Arcadia can be managed directly through two large high resolution TFT color touch screens by using four rotary encoders to quickly scroll through menus and shift pages. Beltpacks can be registered via the front USB port or OTA (Over-the-air) while transceivers can be added from the front panel. A headset connection as well as a microphone and speaker on the front panel allows Arcadia to serve as a user station.

    The system is configured through the Core Configuration Manager (CCM™) software, an integrated, browser-based software utility for enabling rapid setup, configuration and monitoring. The intuitive user interface has a consistent design for a quick and simple means of configuring the base station with role-based beltpacks, including save and restore, text messaging, individual beltpack and group call signal and remote mic kill. *

    Note: A 1.9 GHz beltpack cannot roam between E1 transceivers and IPTs. However, beltpacks which are connected to different types of transceivers can communicate through the Arcadia Central Station.

    Note: The ARCADIA-X4-32P is 32 Ports w/ 4-Pin XLR-Male Headset.

    • Features:

      • Capacity
      • Supports up to 32 beltpacks (FSII and/or FSE), 16 IP transceivers (FSII 1.9 or FSE 5.0GHz) and up to 10 E1 transceivers (1.9 or 2.4GHz)
      • Supports up to 100 channels
      • Up to 96 ports of connectivity

        Central Station
      • Standard 1 rack unit (RU) device
      • High quality 12kHz audio to FS Edge beltpacks
      • 2 large full-color touch screen TFT displays
      • 4 rotary encoders for gain and menu operation
      • Headset or Microphone and Speaker connection
      • Stage Announce and Prog. Audio cable included
      • Functions as PTP Leader Clock

      • Wireless 5GHz Edge transceivers and beltpacks
      • Wireless 1.9GHz and 2.4GHz FSII splitters, transceivers and beltpacks
      • Dante enabled audio devices

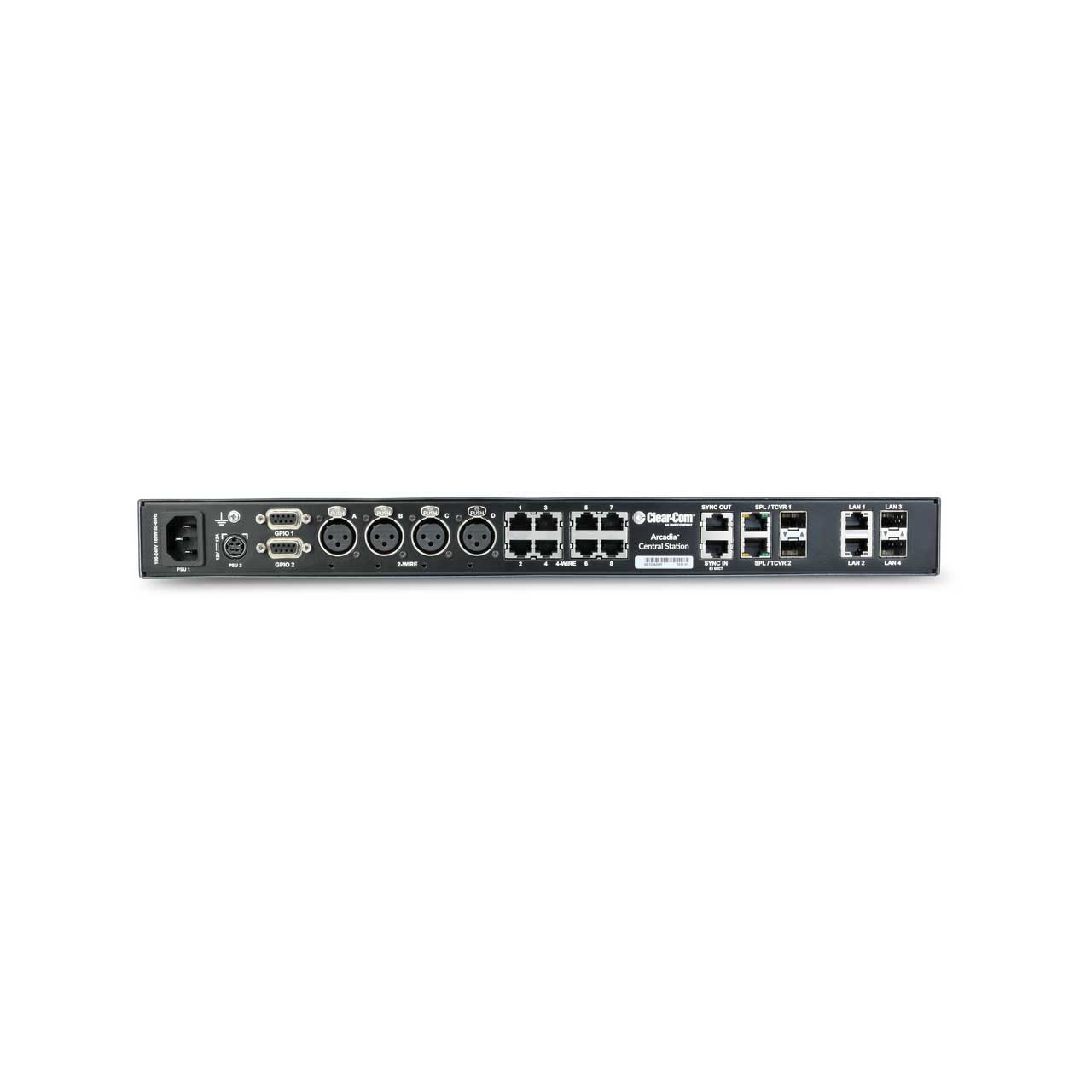

      • 4-wire ports (8 ports RJ45)
      • 2-Wire ports (4 XLR-3F)
      • GPIO (D-type 9 pin)
      • LAN - 2 x RJ45, 2 x SFP

      • CCM configuration tool
      • Direct management with encoders and display
    • Specifications:

      • Capacity:
      • Beltpacks per Station: 32 BPs (FSII or FSE)
      • Transceivers/Antennas Supported by Station: 16 x FSII IP TCVRs (1.9 or FSE 5.0GHz) and 10 x E1 TCVRs (1.9 or 2.4GHz)

        Gooseneck Microphone Input:
      • Input Type: Dynamic/Electret - Selectable
      • Frequency Response: Gooseneck Mic - Partyline: 200Hz - 12kHz + 3dBu
      • Frequency Response: Gooseneck Mic - Line Out: 200Hz - 20kHz + 3dBu
      • Mic Limiter Threshold: -35dBu ±3dB
      • Mic Limiter Range: ≤ 20dB
      • Max Input Level: -10dBu
      • Input Level: -45dBu nominal; -10dBu MAX
      • Headset Mic Voltage: 5V (Electret selectable)

        Speaker Output:
      • Speaker Type: 1.6 x 2.8in oval
      • Load Impedance: 4Ω
      • Max Output Level before 1% Distortion: 18dBu ± 2dB
      • Total Harmonic Distortion (THD): < 0.5% THD at 1kHz
      • Max Speaker Level: 87dB ± 2dB SPL A Weighted at 3ft
      • Frequency Response: 100Hz - 10kHz ± 9dB

      • 4-wire I/O: Output Impedance >10kΩ, Input Impedance 200Ω + 10%, transformer isolated balanced input and output
      • 4-wire Operating Levels: 0dBu Nominal, 18dBu headroom
      • 2-wire I/O: Selectable RTS or Clear-Com mode, Software controlled auto-null, null depth >60dB at 1kHz
      • 2-wire Operating Levels: -18dBu nominal (Clear-Com Mode), -12dBu nominal (RTS Mode), Headroom 18dB
      • Freespeak Edge Beltpack: 200Hz - 12kHz
      • Freespeak II Beltpack: 200Hz - 7.1kHz

        Partyline I/O:
      • 2W Power On/Off: A/B, C/D paired- software controlled
      • 2W Output Voltage: 25 - 28V DC, 560 mA per pair (A/B or C/D)
      • 2W Impedance: >10kΩ
      • 2W Frequency Response: 200 to 12kHz. ±3dB
      • 2W Total Harmonic Distortion (THD): < 0.1% THD at 1 kHz

        Relay Contacts or GPIO:
      • Connector Type: 2 x DB9
      • Relay Contact Type: SPDT
      • Relay Quantity: 4
      • Relay Contact Voltage Rating: 30V DC
      • Relay Contact Current Rating: 1A
      • Input Type: Opto-Isolated
      • Input Quantity: 2
      • Input Voltage Range: 4 - 30V DC or AC
      • Input Current: >=1.2mA required

      • 4-wire I/O: (8) RJ45
      • 2-wire I/O: (4) XLR-3F
      • Program Input: XLR-3M, provided using cable assembly CAB-RJ45-PGM-SA
      • Stage Announce Output: XLR-3F, provided using cable assembly CAB-RJ45-PGM-SA
      • Headset: 4-pin XLR-M, auto headset detect
      • USB: USB type A Receptacle
      • Number of E1 antenna ports: 2 x RJ45, 2 x Fiber (2 active at any time)
      • DECT Radio frequency sync: Rear RJ45 input and output RF sync connectors

        Indicators and Function:
      • Displays: (2) 480 x 128 color TFT LED Touch Screen displays
      • Front Panel Indicators & Function: (2) Power Supply Status LEDs, (1) Status LED (Edge), (1) Three Color Level Control LED

      • AC Mains input: 100-240V AC, 50-60Hz, 160W Max, IEC60320 C14 inlet
      • DC Low Voltage Input: 12V DC +/- 5%, 12A
      • Input: 100-240V AC, 50-60Hz, 2.2A Max, IEC60320 C14 inlet
      • Output: 12V DC +/- 5%, 12.5A

      • Operating: 32° to 113°F
      • Storage: 86° to 158°F
      • Humidity: 20-90% Non-Condensing
    • Item Includes:

      • 1x Arcadia Central Station: (32 Ports) w/ 4 pin XLR-Male headset
    • Warranty:

      • 1 Year Limited Warranty
