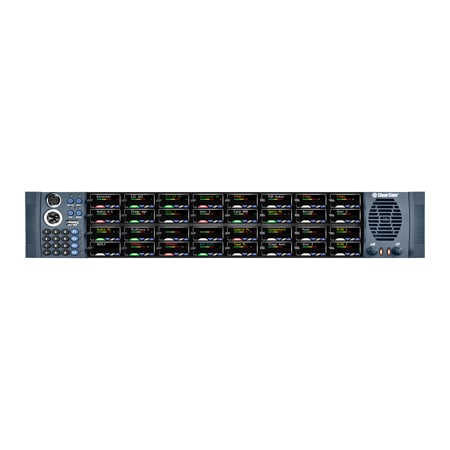

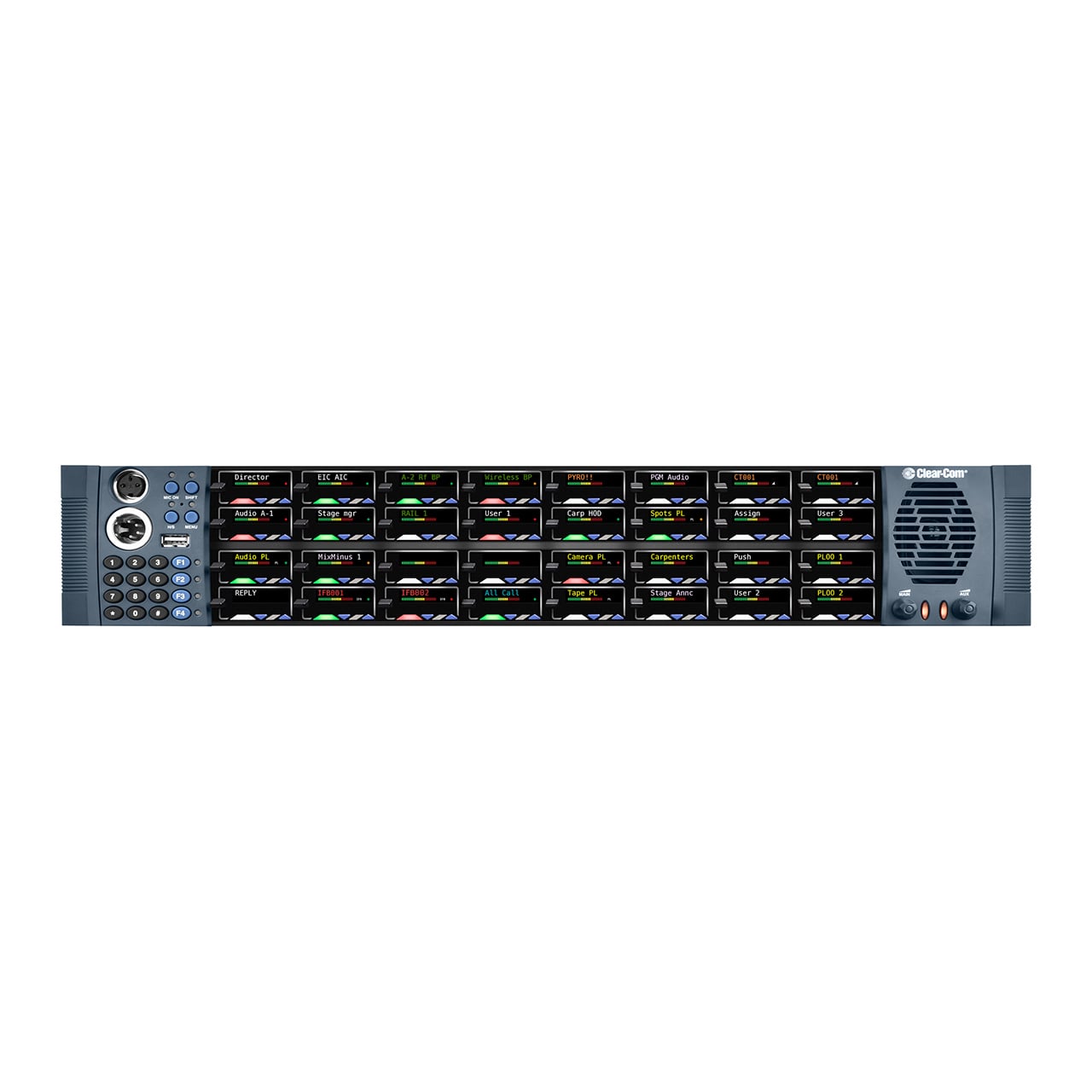

The Clear-Com VI-PNLB-32L-X4 is one of the V-Series IrisX range of high-density keypanel intercom user stations for use with the Eclipse Digital Matrix or Arcadia Central Station. V-Series IrisX panels are available with 12 to 32 keysets in 3 different styles of user controls: rotary with push button, lever, and push button. This is the LEVER version. Each keyset includes a 10-character color display, visual volume bar and lights to display the configuration or status of the capability assigned to the keyset from the host intercom system.
With a V-Series IrisX Keypanel a high-density of keysets assigned to individual ports/users, groups/channels/IFB or system control can be provided to a user to facilitate an effective intercom enabling the user.
The Keypanel can connect to its host intercom system globally via I.V. (/IVC) Ports over LAN, WAN or Internet, locally uncompressed low-latency via AES67 capable networks or directly plug-&-play connected to an Eclipse MVX card port and has access to any capability of the host intercom system.
Please Note: For use with Arcadia Central Station and Eclipse-HX Delta, Delta-Lite, Median & Omega.
