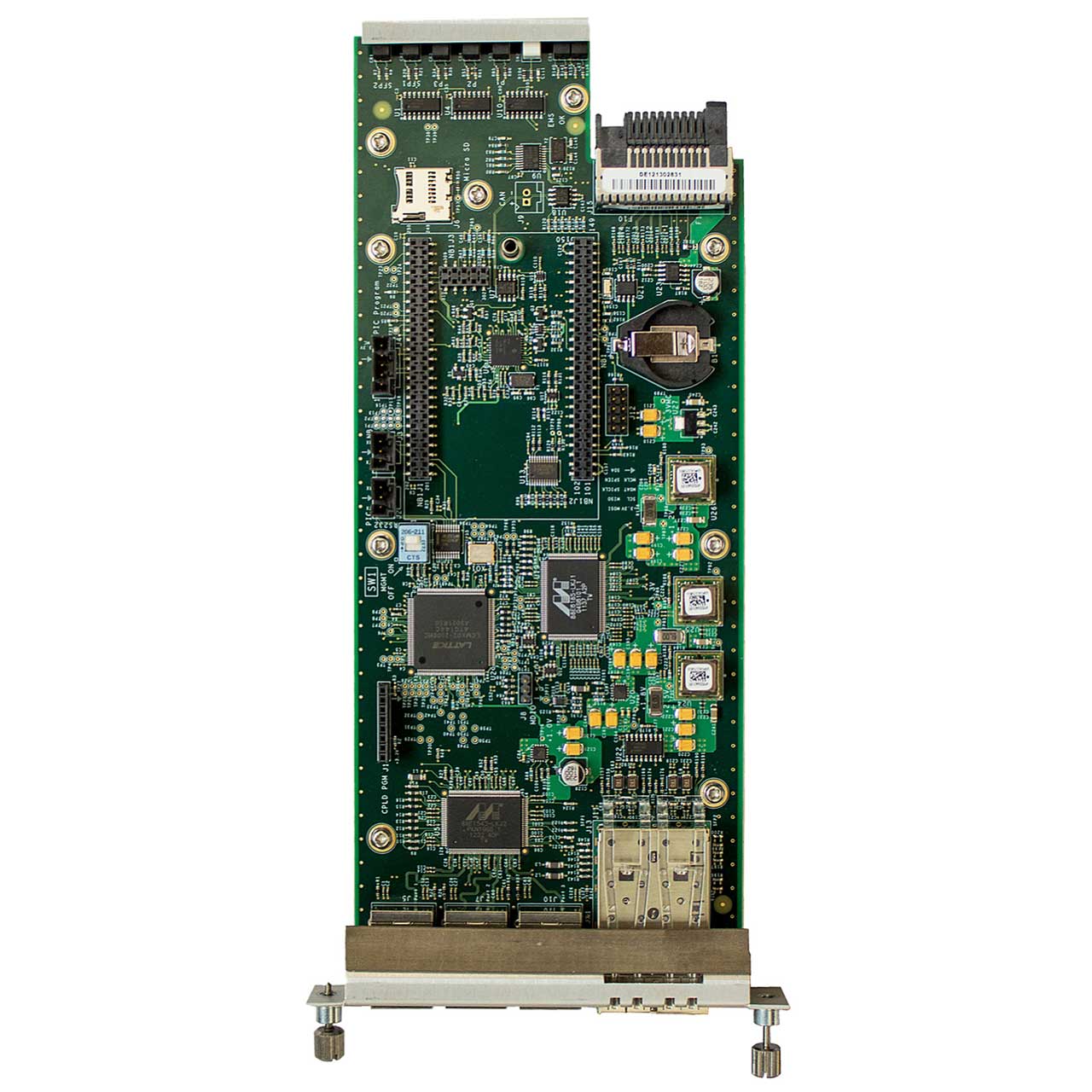

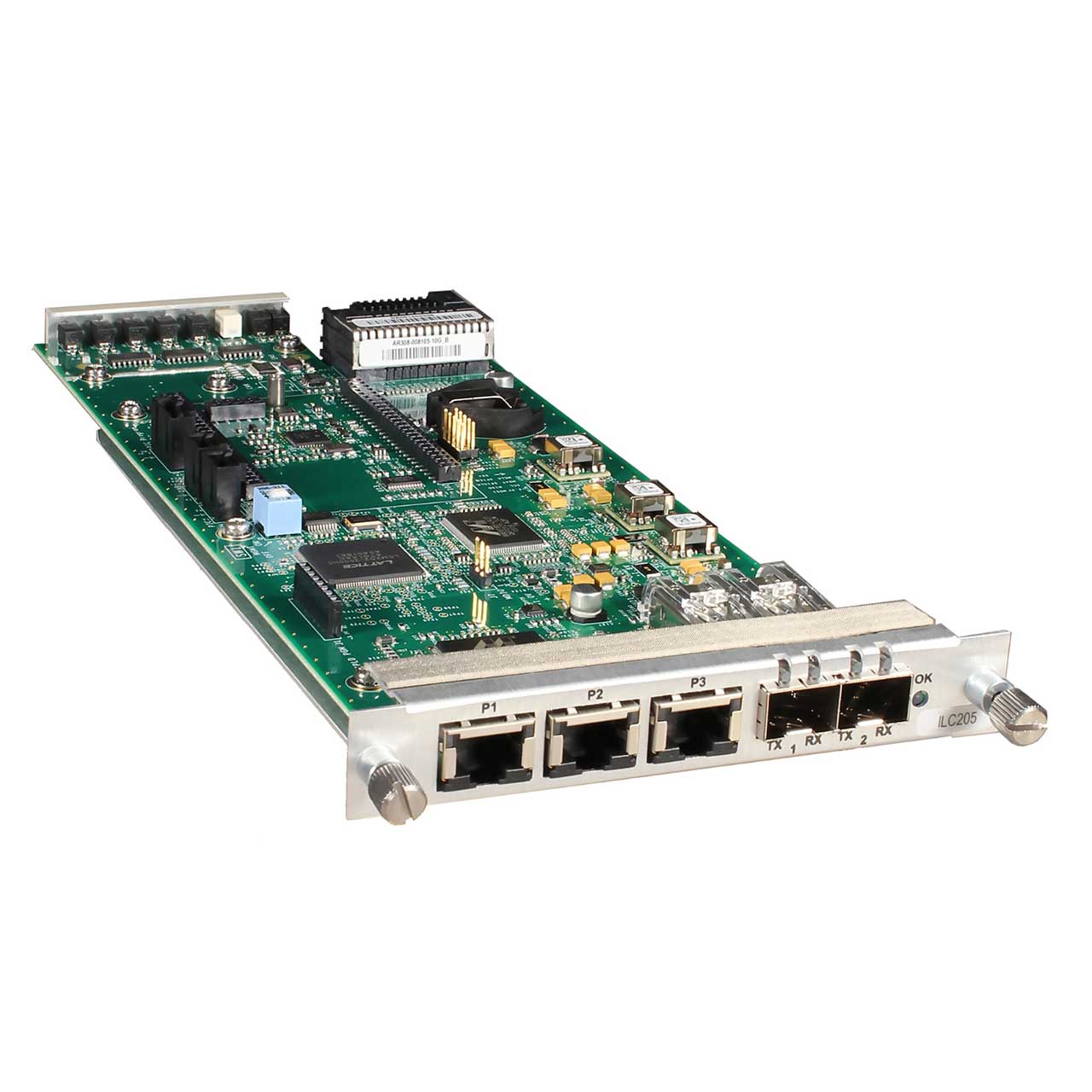

Artel InfinityLink ILC205 9-Port Gigabit Ethernet Switch with VLAN


Primary Image
  • Product Image Thumbnail 1 of 3
  • Product Image Thumbnail 2 of 3
  • Product Image Thumbnail 3 of 3
Free Shipping with $49 Minimum Order

List Price:


Our Price:


Availability: Typically Ships in 3-10 Business Days
iAvailability Description Popup

    ILC205 - Overview

    The ILC205 is a flexible Ethernet switch supporting up to 9 ports of 10/100/1000 traffic with optical connectivity.

    The innovative design of the ILC205 enables users to aggregate 9 channels, 5 external and 4 internal, of 10/100/1000 Ethernet traffic for transport across electrical or optical networks, all in a low cost, single slot InfinityLink module. The module is fully nonblocking with a total capacity of 18 Gigabits of traffic and each port independently supports 10/100/1000 Ethernet. The four internal ports can be linked to other modules in an InfinityLink chassis to provide internal Ethernet connectivity, eliminating the need of external cabling.

    Unlike more complicated designs that require dedicated trunking modules and switching matrixes, the ILC205 is a simple Ethernet aggregator providing a reliable, and low cost solution for transporting video centric traffic and chassis management across Ethernet networks.

    • Features:

      • Aggregate up to nine 10/100/1000 Ethernet links
      • Non-blocking 18 Gigabit of switching capacity
      • Statistics per RFC 2819 Standard

        Provides Optical or Electrical Transport of
      • 10Base-T
      • 100Base-TX
      • 1000Base-T
      • Ethernet standard
        Three RJ-45 Copper Ports
      • 10/100/1000 auto negotiate
      • Auto MDI/MDI-X
      • Auto full-duplex and half-duplex
      • VLAN capabilities

        Externally accessible SFP transceivers
      • 1000BaseT using Electrical SFP
      • Optical budgets to 33dB
      • WDM (1310nm, 1550nm)
      • CWDM ITU G.694.2 (Channels 27-61)
      • DWDM ITU G.694.1 (Channels 21-60)

        Front and rear panel status LEDs
      • Major/minor alarms
      • Link status
      • Activity

        Simple and rugged design
      • Plug and play design requires no pre- deployment configuration
      • Monitor, manage, and review statistics using InfinityLink Manager or SNMPv2
    • Specifications:

      • EXTERNAL ELECTRICAL: Rear (3) RJ-45
      • EXTERNAL SFP: 2 (Optical or RJ-45)
      • INTERNAL: 4 to other modules in InfinityLink chassis
      • DATA RATES: 10/100/1000 Ethernet
      • COMPLIANCE: CSA 60950, EN60950, EN55022 FCC Part 15 (Class A), CISPR 22
      • RELATIVE HUMIDITY: 10 to 95% (non-condensing)
      • POWER DISSIPATION: < 6 Watts
      • DIMENSIONS: 0.8” x 5” x 10.8” (1 slot in InfinityLink chassis)
      • WEIGHT: <2 pounds, (1kg)
