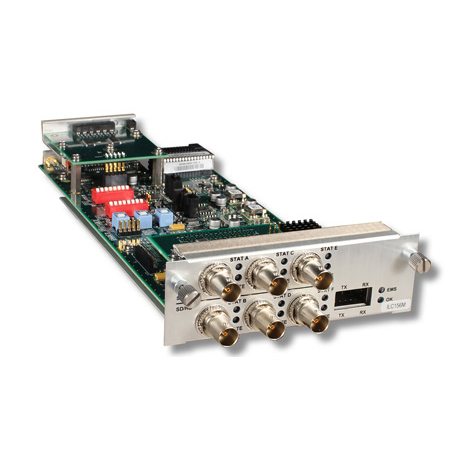

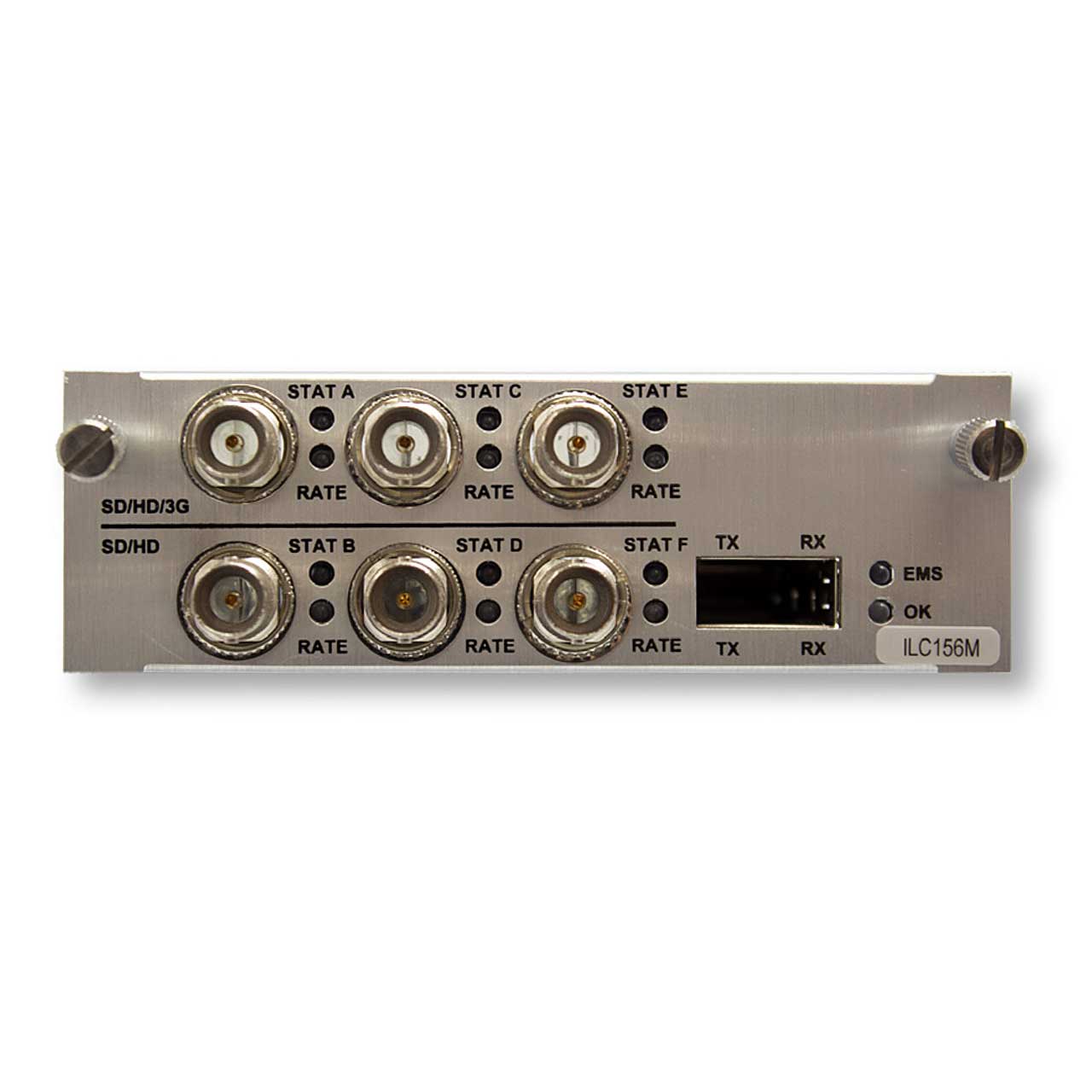

Artel InfinityLink ILC156D 10G 3G/HD-SDI/SD-SDI/ASI 6 Channel Demultiplexer (2 Slots)

ITEM #: ARTL-ILC156D MFG #: ILC156D

Primary Image
  • Product Image Thumbnail 1 of 3
  • Product Image Thumbnail 2 of 3
  • Product Image Thumbnail 3 of 3
Free Shipping with $49 Minimum Order

List Price:

$8,750.00

Our Price:

$7,599.00

Availability: Typically Ships in 3-10 Business Days
iAvailability Description Popup


    ILC156D - Overview

    The ILC156 is a six channel Demultiplexer for transporting uncompressed and compressed video over dark fiber or managed optical networks such as ROADM and OTN. Users can mix and match SD-SDI, ASI, HD-SDI, or 3G-SDI services into a single 10.7 Gb/s optical transport stream.

    The ILC156 is a cost-effective and power-efficient module for transporting up to six HD-SDI or three 3G-SDI digital video services over a single optical wavelength, saving fiber cost and simplifying network design and deployment. Using time division Demultiplexing, each channel is assigned a fixed time-slot, eliminating complex configurations. Six independent, mixed format video signals are aggregated to a single wavelength and two time slots can be combined to carry 3G-SDI.

    The ILC156 supports links in excess of 80 km using hot-swappable 10G XFP transceivers in WDM, CWDM, and DWDM wavelengths. Installing a ILC156 repeater between the link source and destination extends the range of a link. Up to 240 uncompressed HD channels are possible over a single fiber. For additional flexibility, the ILC156 can also be used as a transport aggregator for Artel's ILC274 four-channel TDM module.

    With its format flexibility, easy configuration, and competitive price, the ILC156 is an ideal solution for fiber constrained, multi-service video transport applications.

    • Features:

      • 6 Channel Demultiplexer
      • Advanced Forward Error Correction (FEC) insures error free video
      • Six independent HD-SDI, SD-SDI, or DVB-ASI channels or Three independent 3G-SDI channels or Combinations of both
      • 2.967 Gb/s 3G-SDI (SMPTE 424M)
      • 1.483516 Gb/s HD-SDI (SMPTE 292M)
      • 270 Mb/s: SD-SDI (SMPTE 259M-C, ITU 656), SDTI (SMPTE 305M), DVB-ASI
      • 270 Mb/s, 1.485 Gb/s, and 2.97 Gb/s services

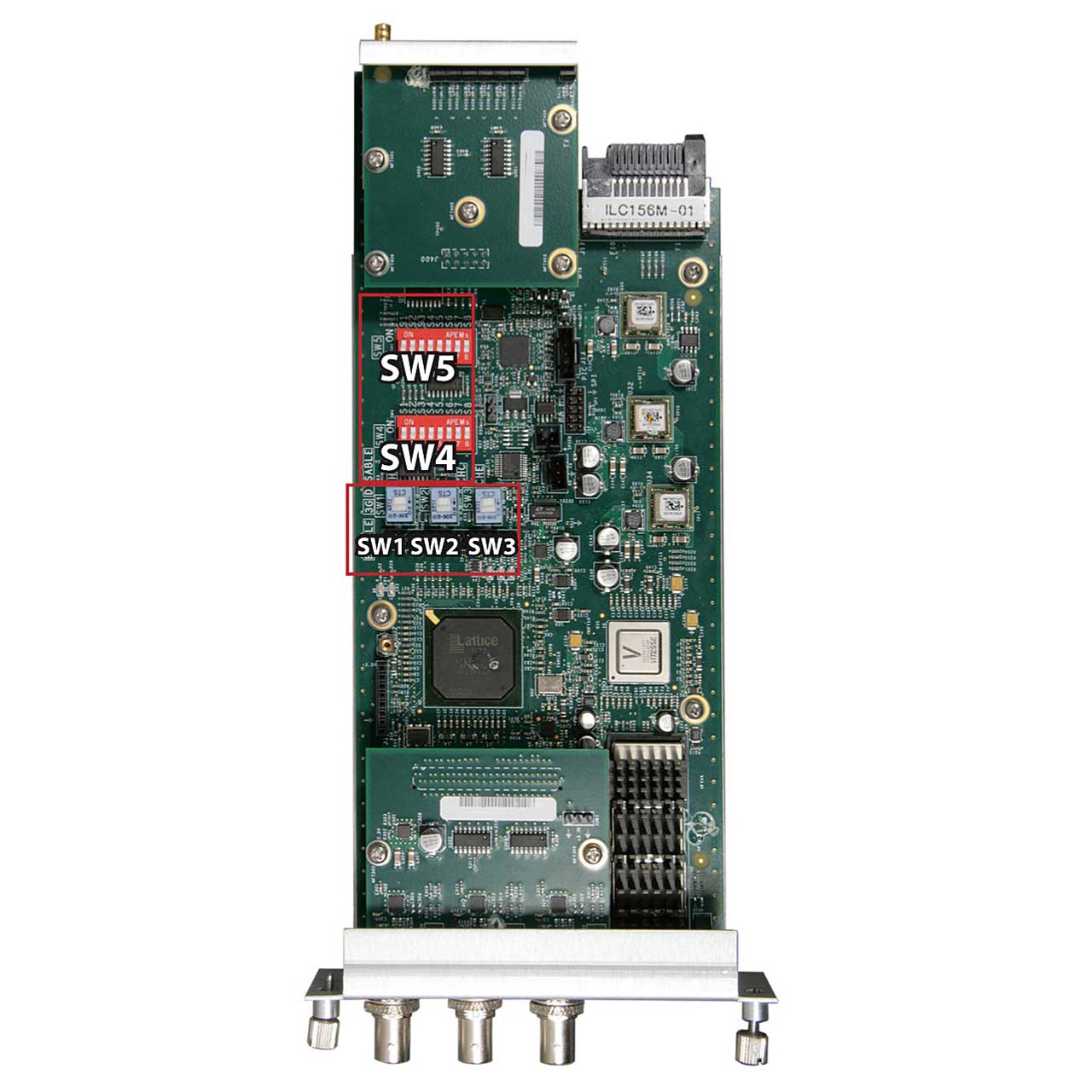

      • Simple and easy configuration with On-board switches & InfinityLink Manager
      • Optical via SFP
      • Other modules in InfinityLink chassis (via backplane)
      • Switch selectable front panel monitor of individual channels (HD-BNC)
      • Front and rear panel status LEDs
      • Loss of video (individual channels)
      • Loss of optical input
      • Laser (XFP) fail

        Externally accessible 10.7 Gb/s XFP transceiver optics
      • Optical budget to 24dB
      • WDM (1310 nm, 1550 nm)
      • CWDM ITU G.694.2
      • WDM ITU G.694.1

    • Specifications:

      • AMBIENT OPERATING TEMPERATURE: 0 to 50°C
      • AMBIENT STORAGE TEMPERATURE: -40 to 80°C
      • RELATIVE HUMIDITY: 10 to 95% (non-condensing)
      • POWER DISSIPATION: < 21 Watts
      • DIMENSIONS: 0.8” x 5” x 10.8” (2 slots in InfinityLink chassis)
      • OPTICAL INTERFACE: ARTEL VIDEO XFP
      • SIGNAL FORMATS: 2.97 Gb/s, -3G-SDI (SMPTE424M), 1.48516 Gb/s, HD-SDI (SMPTE 292M), 270 Mb/s, SD-SDI (SMPTE 259M-C, ITU 656), SDTI (SMPTE 305M), DVB-ASI
      • SIGNAL POLARITY: Non inverting
      • CHANNELS: Six channels ASI, SD/HD-SDI, Three channels of 3G-SDI
      • Input: 6 BNC 75 Ohm
      • Output: 6 BNC 75 Ohm
      • Monitor: 1 HD-BNC 75 Ohm
      • RETURN LOSS: >15 dB, 5-1485 MHz, >10 dB, 1486-2967 MHz
      • CABLE EQUALIZATION FOR BELDEN 1694A TYPE CABLE: 0 to 250 meters (270 Mb/s), 0 to 100 meters (1.483516 Gb/s), 0 to 100 meters (2.97 Gb/s)
      • COMPLIANCE: CSA 60950, EN60950, EN55022 FCC Part 15 (Class A), CISPR 22
