NE8250BD - Overview

Easy to Set Up and Control!

The Ashly Audio NE8250BD is an 8 x 250W @ 4 Ohm Power Amplifier Plus OPDante and the OPDAC 8 Option Card. Connecting and controlling an amplifier for networked systems has now been simplified with Network-Enabled Amplifiers. This line offers ease of use, setup and control using standard 10/100 Ethernet protocol and Protea™ ne Software. No special outboard control units are needed.

ne Series amplifiers are offered in two separate platforms-the standard network amplifier or a network amplifier with an on-board Protea™ DSP Processor. Each can be customized for any installation by adding your choice of AES3 inputs, Dante or CobraNet card.

NE Multi-Channel amplifiers are also offered with 240V Line Voltage in either Low-Z or 100V constant voltage output models for International customers.

  • Features:

    • 10/100 Ethernet comes standard for remote control and monitoring
    • FIR Filter capable (with DSP)
    • Low-Z, 25V, 70V, 100V models
    • Protea DSP, AES3, CobraNet® and Dante® input options
    • DC voltage remote gain control
    • Switched-mode power supply, Class-D output
    • Stepped, calibrated input attenuators
    • Remote power standby
    • Disable all front panel controls via software
    • Temperature sensitive variable speed fan with side-to-front airflow
    • Selectable HPF frequencies (80Hz, 400Hz, off) on 25V, 70V, and 100V models
    • 4-stage level meters
    • Output current and temp indicators
    • Safety/Compliance: cTUVus, CE, FCC, RoHS


  • Specifications:

      General
    • Frequency Response: 20Hz - 20kHz, (unweighted) ±1dB
    • Input Impedance: 20kΩ, Balanced
    • Voltage Gain: 26dB
    • Input Sensitivity: 6.2dBu
    • Maximum Input Level: +21dBu
    • Signal to Noise (20 - 20k, Unweighted): >107dB (2450)
    • Distortion (8Ω load):
      - SMPTE: <0.5% typical
      - THD-N: <0.5% typical (20Hz - 20kHz)
    • Damping Factor (8Ω, 1kHz): >250
    • Output Circuitry: Class D
    • Amplifier/Load Protection: Output Overcurrent, Main Supply Rail Overvoltage, Chassis Temperature, Inrush Limiting, Mains Fuse

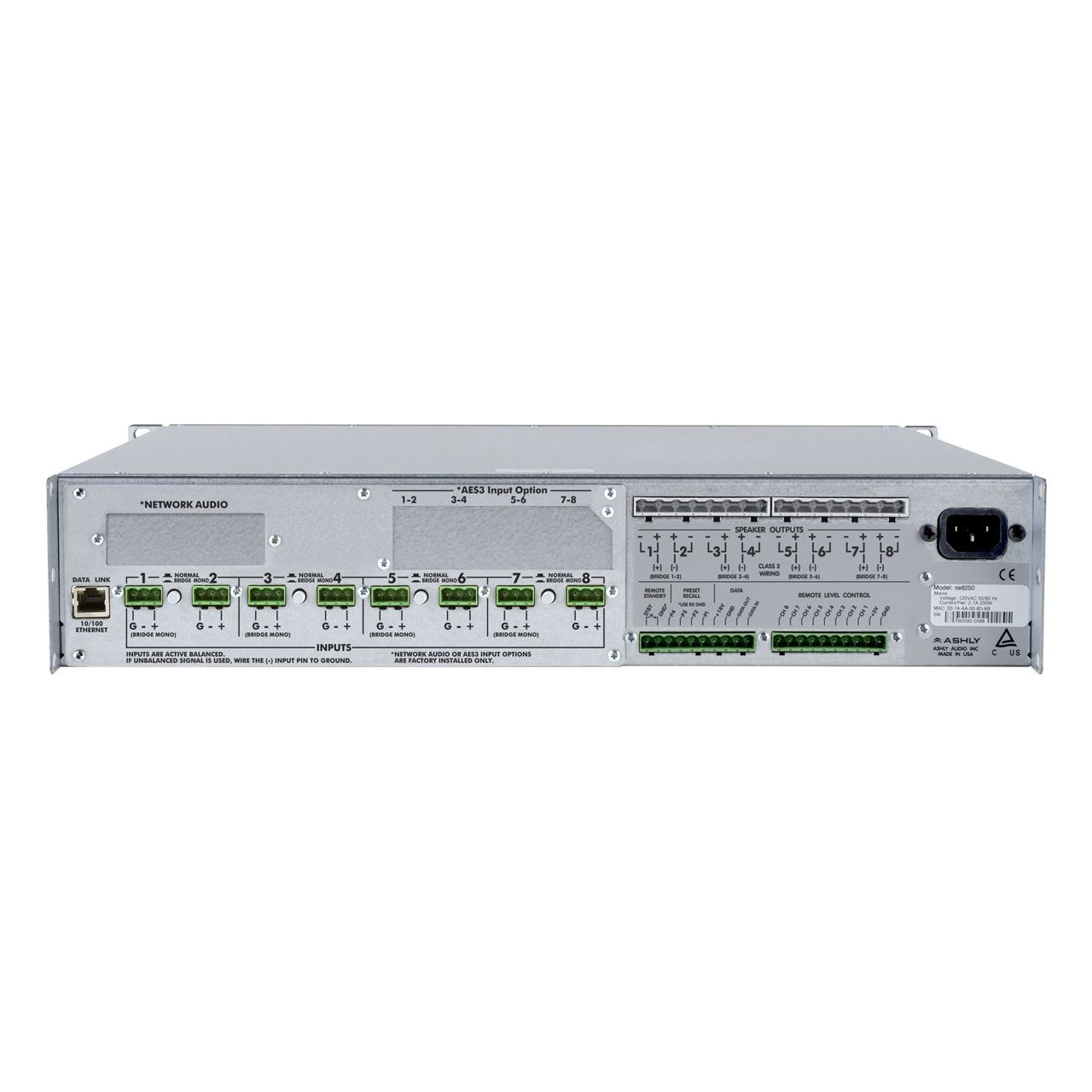

      Rear Panel
    • Controls:
      - Ethernet
      - Channel Bridge Switch
      - Remote Standby
      - 4x Preset Recall
      - 8x Remote Level
      - Remote Data
    • Connectors (each channel):
      - Input: Euroblock
      - Output: Euroblock

      Power Requirements
    • AC Main: 120VAC or 240VAC ±10% (factory set), 50-60Hz
    • Power Cable Connector: 15A Edison, 3-Prong IEC

      Physical
    • Dimensions (HxWxD): 3.50" x 19" x 16.84" (89mm x 483mm x 428mm)
    • Airflow: IN through sides, OUT through front
    • Unit Weight: 24.7lbs (11.2kg)
    • Shipping Weight: 30.8lbs (13.9kg)
    • Environmental: 40°F - 120°F (4°C - 49°C), non-condensing
    • Safety/Compliance: cTUVus, CE, FCC, RoHS


  • Warranty:

    • 5 Year Warranty
