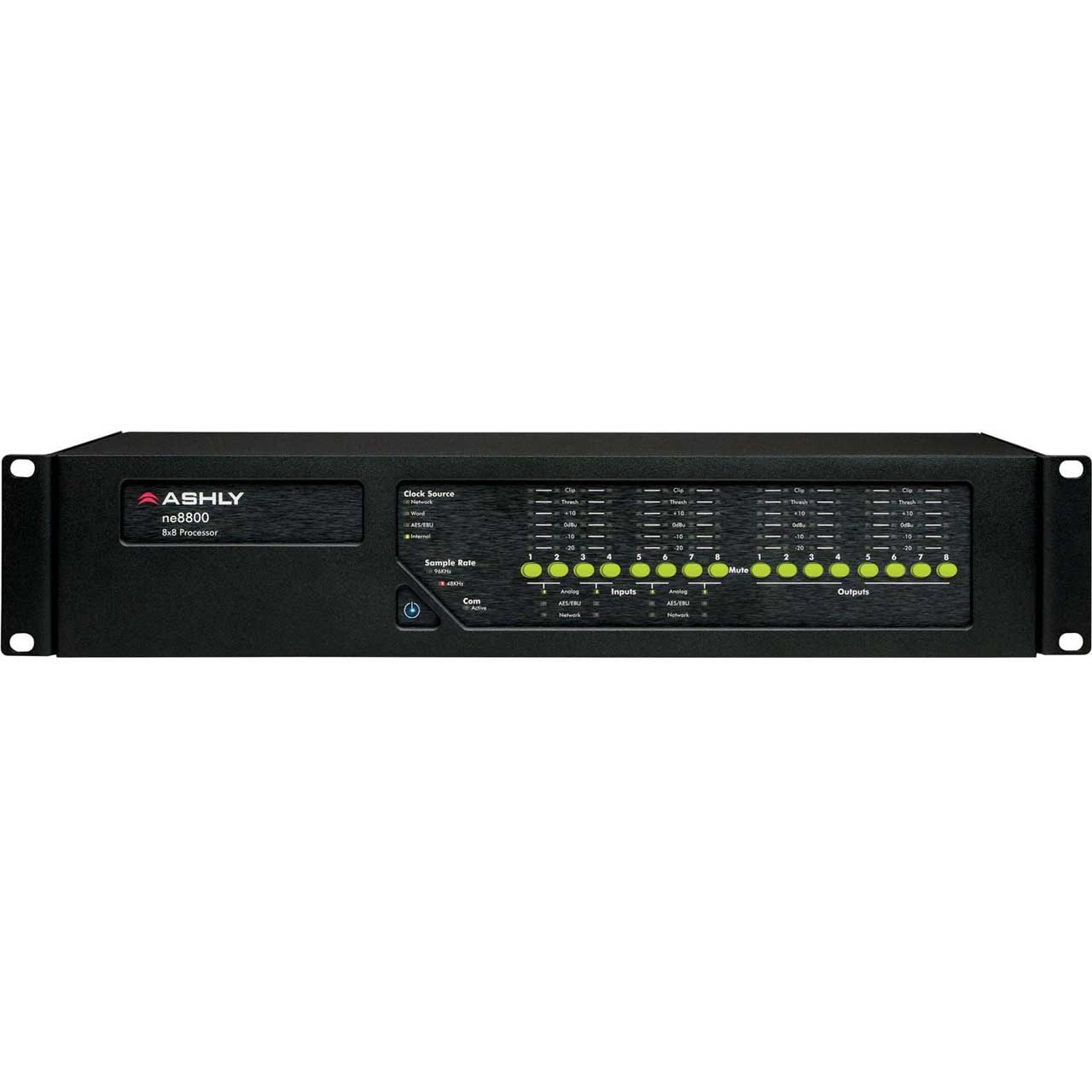

Ashly Audio NE8800 Network Enabled Protea DSP Audio System Processor 8-In x 8-Out

ITEM #: ASH-NE8800 MFG #: NE8800

Primary Image
  • Product Image Thumbnail 1 of 2
  • Product Image Thumbnail 2 of 2
Free Shipping with $49 Minimum Order

List Price:

$3,299.00

Our Price:

$2,649.00

Availability: Usually Ships in 5-14 Days.
Please Email, Chat or Call (800) 522-2025 for Detailed Delivery Info
iAvailability Description Popup


    NE8800 - Overview

    Standard units are analog line input/output format of ne4400 (4×4), ne4800 (4×8), and ne8800 (8×8) with four option bays supporting network audio, AES3, and mic input options. The DSP signal processing library is extensive and utilizes multiple SHARC 32-bit processors with sample rates of either 48KHz or 96KHz.

    Processing blocks include either a 4×4, 4×8 or 8×8 matrix mixer, a full array of graphic, parametric and all pass equalization, crossover filters including 8th-order Butterworth, Bessel, Linkwitz-Riley and notched Linkwitz-Riley.

    The Protea™ Software Suite also includes an extremely advanced automatic feedback suppressor, gain sharing automatic microphone mixing, ambient noise sensing and level adjustment, autolevelers, compressors, matrix duckers, limiters, frequency-keyed noise gates, signal delay up to 1,365ms on every channel and your choice of sinewave, pink or white noise generators.

    All programming is accomplished using standard 10/100 Ethernet or RS-232 protocol and Protea ne Software on a PC platform. Hot-plug software control allows you to plug any function into any channel block even when running live audio with recompiling necessary. Automatic DHCP network IP configuration reduces network set up time. Multi-level software security with password access assures you a tamper-proof audio system.

    • Features:

      • CobraNet® Dante® AES3, Mic Input options
      • 10/100 Ethernet and RS-232 computer interface standard
      • Extensive DSP available
      • Easy and intuitive user interface
      • 24-Bit A/D-D/A audio resolution
      • 32-Bit SHARC DSPs
      • Sample rates of 48kHz and 96KHz
      • Hot-plug software control
      • Automatic DHCP network IP configuration
      • Butterworth, Bessel, Linkwitz-Riley, and Notched-Linkwitz-Riley filters
      • FIR filter capability
      • Advanced automatic feedback suppression
      • Word Clock input and output

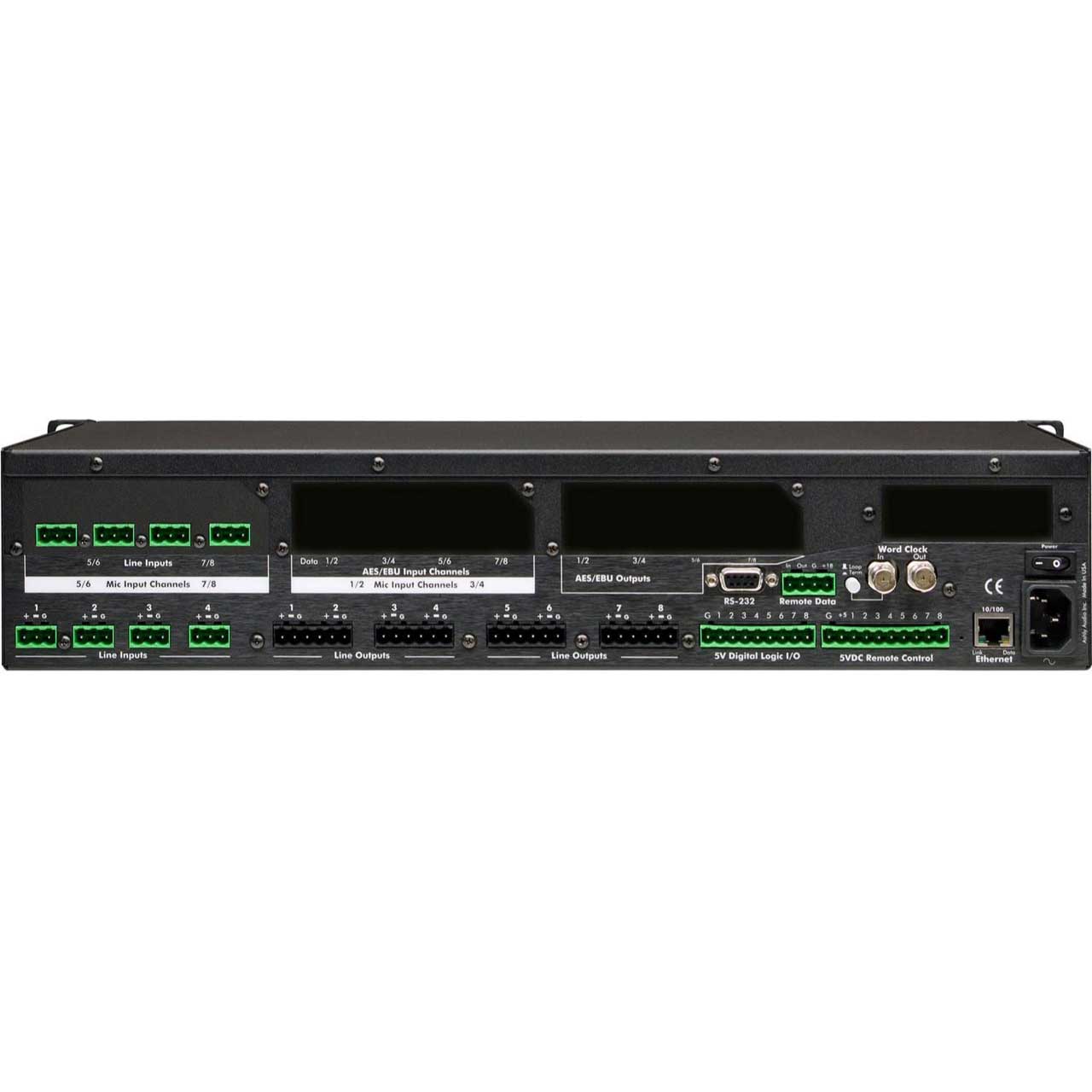

      • Euroblock connectors for audio, preset recall, DC remote level control and data in/out
      • Remote controls for level, logic I/O and programmable functions
      • Third-party control friendly, input and output metering, multi-level security
      • Safety/Compliance: cTUVus, CE, FCC, RoHS

    • Specifications:

      • Word Clock
      • Input/Output Type: 75 Ohms BNC
      • Lock Range: 48kHz +/- 4%, 96kHz +/- 4%
      • Input Impedance: Selectable 75 Ohm or high impedance
      • Input Voltage Range: 1.0Vpp-7.0Vpp
      • Output Impedance: 75 Ohms
      • Output Level: 5.0Vpp nomimal, unterminated

        Master Clock
      • Sources: Audio network, Word Clock, AES3, Internal crystal clock
      • Modes: Prioritized auto switching or manual

        Analog Line/Mic
      • Input Type: Active balanced Euroblock
      • Input Impedance: 20k Ohms
      • Max Input Level: +20dBu

        AES3 Digital
      • Input Type: Transformer balanced female XLR
      • Input Impedance: 110 Ohms
      • Max Input Level: 7.0 Vpp

        Audio Outputs
      • Servo-balanced Euroblock
      • Output Impedance: 20 Ohms
      • Max Output Level: +20dBu
      • AES3 Transformer balanced male XLR
      • Output Impedance: 110 Ohms
      • Max Output Level: 5.0Vpp

    • GTIN:

      0694970813229
