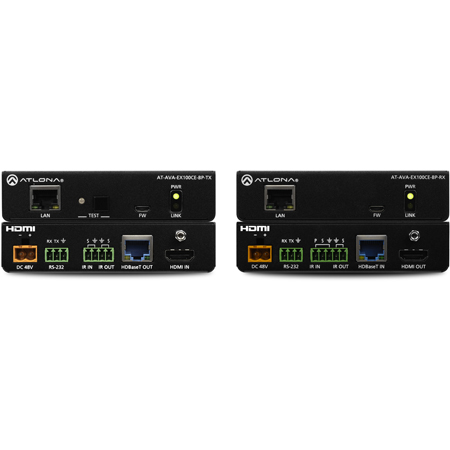

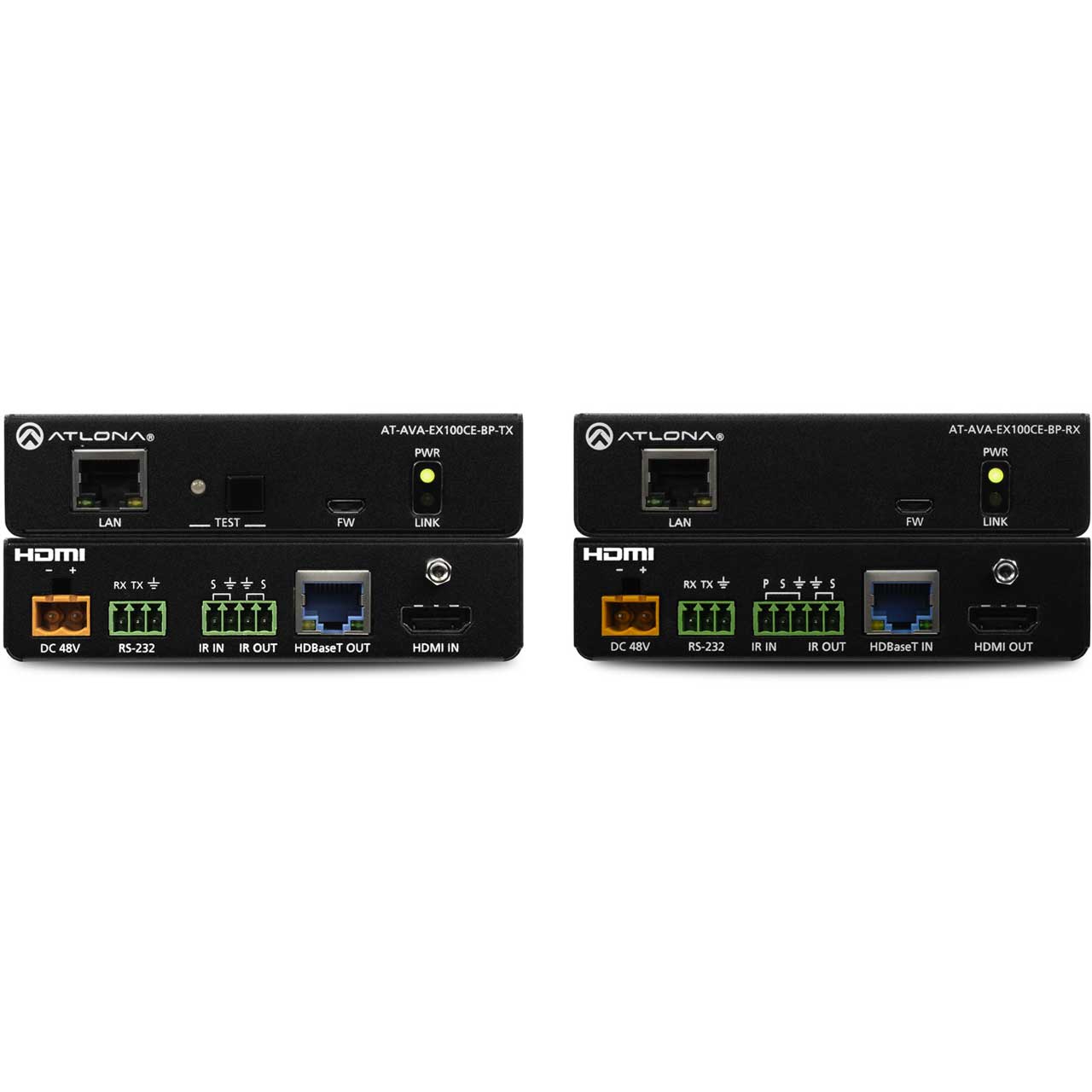

Atlona AT-AVA-EX100CE-BP-KIT Avance 4K/UHD HDMI Extender Kit - Ethernet/Control/Bidirectional Remote Power/HDBaseT Link

ITEM #: AT-AVAEX100CEBPK MFG #: AT-AVA-EX100CE-BP-KIT

Primary Image
  • Product Image Thumbnail 1 of 3
  • Product Image Thumbnail 2 of 3
  • Product Image Thumbnail 3 of 3
Free Shipping with $49 Minimum Order

Our Price:

$987.00

Availability: Typically Ships in 3-10 Business Days
iAvailability Description Popup


    AT-AVA-EX100CE-BP-KIT - Overview

    The Atlona AT-AVA-EX100CE-BP-KIT is an Avance Series HDBaseT transmitter and receiver set that supports Ethernet, control pass-through, and bidirectional remote power capabilities. The kit transmits 4K/UHD 60Hz 4:2:0 video up to 330 feet (100 meters). In addition to video with embedded multi-channel audio, 100Base-T Ethernet data, RS-232 and IR control signals, and remote powering by either the transmitter or the receiver are supported on the single CAT6A/7 cable. EDID filtering and clock stretching ensure video transmission integrity and stable connections. Integrated HDBaseT link test allows quick verification of cable, termination, and link quality. Audio Return Channel (ARC) is available on the HDMI connections to minimize cabling in audio return applications. The AT-AVA-EX100CEBP-KIT includes both transmitter and receiver endpoints. Compact enclosures and included brackets allow the devices to be surface mounted in furniture or behind a display. The AT-AVA-EX100CE-BP-KIT delivers a costeffective solution for extension of video, audio, Ethernet, control, and bidirectional power at resolutions up to 4K/UHD.

    Applications Include:

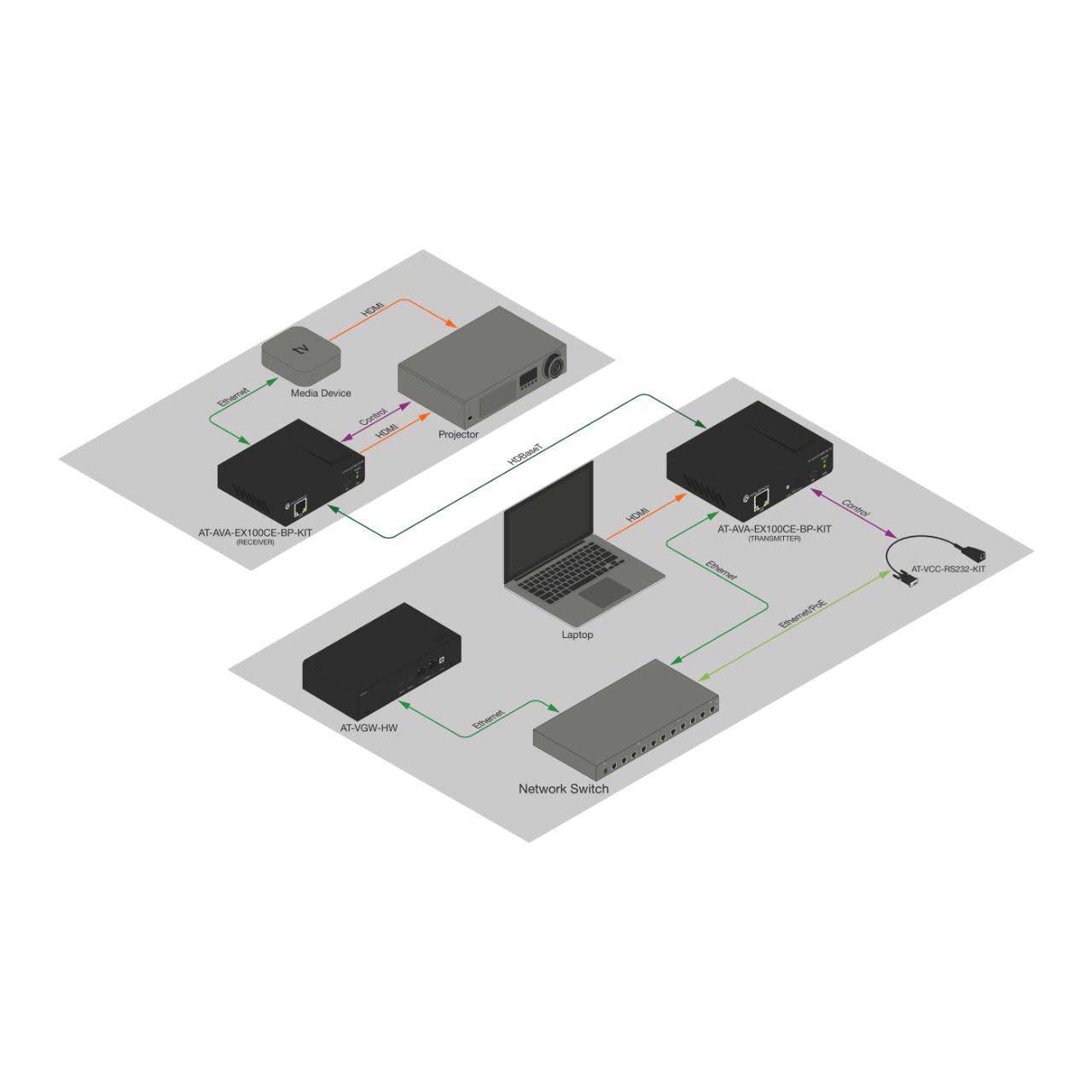

    Conference Room - Transmit 4K/UHD content from a laptop or room PC to the flat panel display at the front of the room.
    Classroom - Transmit 4K/UHD content from an instructor computer to a projector or flat panel display.
    Residential - Advanced integration features ensure transmission of content to a remote TV at resolutions up to 4K/UHD

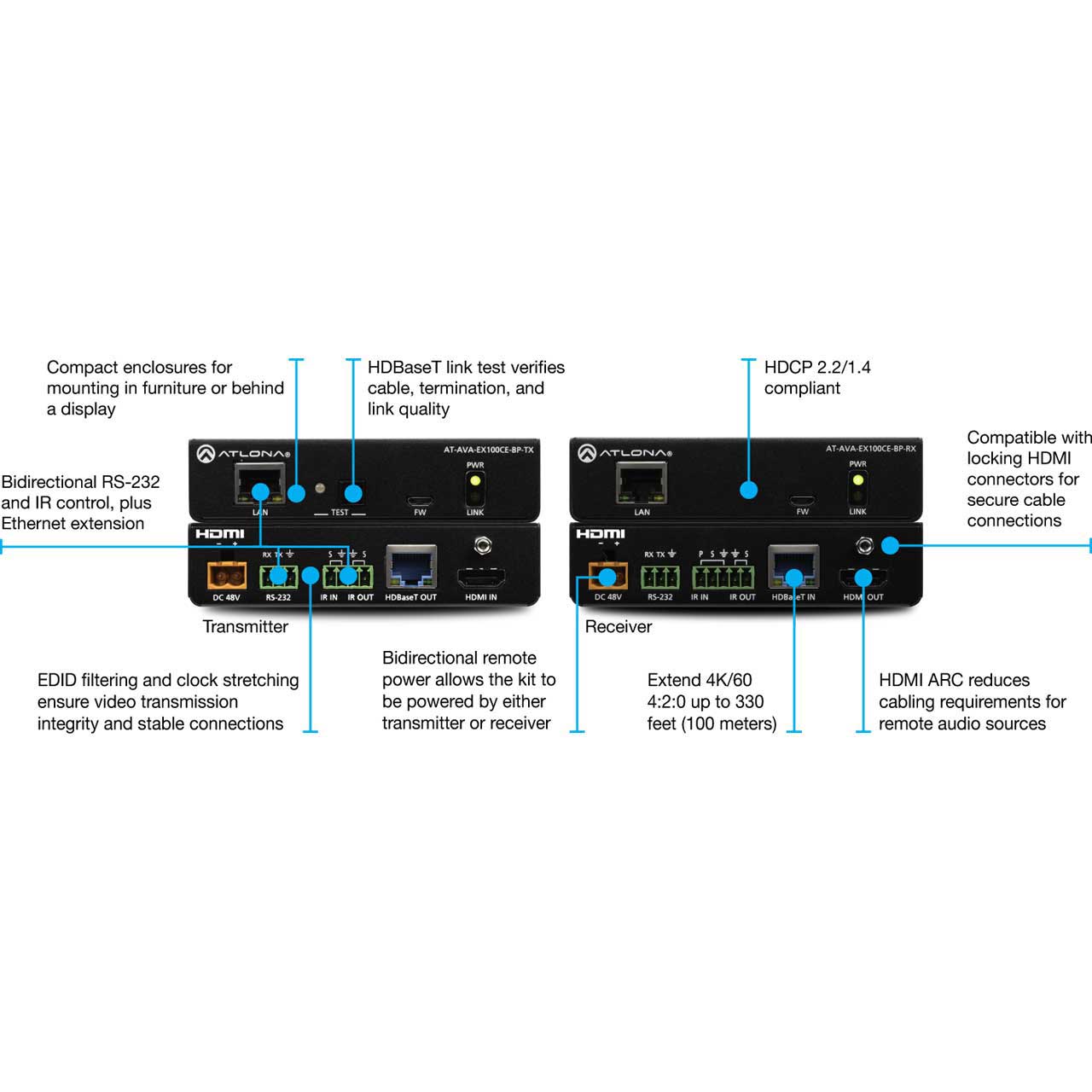

    • Features:

      • Extends 4K/UHD 60 Hz 4:2:0 up to 100 meters (330 feet) with Category 6/6A
      • Extends bidirectional Ethernet data as well as RS-232 and IR control signals over HDBaseT
      • Bidirectional remote power allows the kit to be powered by either the transmitter or the receiver over HDBaseT
      • HDMI Audio Return Channel (ARC) minimizes cabling in applications where an audio return channel from the display is required
      • EDID filtering prevents extension of unsupported resolutions to increase the integrity of video transmission
      • HDMI Clock stretching provides more stable connections with problematic HDMI sources
      • HDBaseT link test verifies cable, termination, and link quality for more reliable installations
      • Compliant with HDCP 2.2, the latest specification for passing protected content between devices
      • Front panel Power and Link status LEDs
      • Rear panel connections simplify wire management and save installation time
      • Front panel USB port for firmware updates
      • Multi-channel audio compliant for all PCM, Dolby, and DTSr formats
      • Compact enclosures can be mounted in furniture, behind a display, or above a projector
      • Rack mounting available with the optional AT-RACK-1RU-ME multi-extender rack mount shelf
      • Kit includes transmitter, receiver, power supply, IR emitter, wall/table mounting brackets, and installation guide

    • Specifications:

      • Signal: HDMI w/ARC
      • Copy Protection: HDCP 1.4/2.2
      • Pixel Clock: 300MHz
      • UHD/HD/SD: 4096x2160@60(1)/5 (1)/30/25/24Hz, 3840x2160@60(1)/50(1)/30/25/24Hz, 1080p @ 60/59.9/50/30/29.97/25/24/23.98Hz, 1080i@30/29.97/25Hz, 720p@60/59.94/50Hz, 576p@50Hz, 576i@25Hz, 480p@60/59.96Hz, 480i@30Hz
      • Color Space: YUV, RGB
      • Chroma Subsampling: 4:4:4, 4:2:2, 4:2:0
      • Color Depth: 8-bit, 10-bit, 12-bit
      • HDMI / HDBaseT: Pass-Through Formats: PCM 2.0, LPCM 5.1, LPCM 7.1, Dolby Digital, Dolby Digital Plus, Dolby TrueHD. Dolby Atmos, DTS Digital Surround, DTS-HD Master Audio, DTS:X.
      • Bit Depth: Up to 24-bit
      • Sample Rate: 32 kHz, 44.1 kHz, 48 kHz, 88.2 kHz, 96 kHz, 176.4 kHz, 192 kHz
      • HDMI IN (TX): 1 - Type A, 19-pin female
      • HDBaseT OUT (TX): 1 - RJ45, female
      • HDMI OUT (RX): 1 - Type A, 19-pin female
      • HDBaseT IN (RX): 1 - RJ45, female
      • FW - Firmware (RX and TX): 1 - Micro-A USB
      • PWR (RX and TX): 1 - 2-pin 48V captive screw connector
      • Ethernet (RX and TX): 1 - Ethernet port
      • RS-232 (RX and TX): 1 - 3-pin captive screw connector
      • IR (RX and TX): 1 - 4-pin captive screw connector (TX), 1 - 5-pin captive screw connector (RX)
      • Operating Temp: 32 to 122 degrees farenheit
      • Storage Temp: -4 to 140
      • Humidity (RH): 20% to 60%, non-condensing
      • Consumption (KIT): 13.55 W
      • Supply Input: AC100~240V 50/60Hz
      • Output: DC 48V/0.83A
      • Unit Dims: 1.02 x 4.29 x 5.20 (H x W x D)
      • Power Supply Dims: 1.42 x 1.81 x 4.41 (H x W x D)
      • Weight: TX 0.80 lbs - Rx 0.80 Lbs
