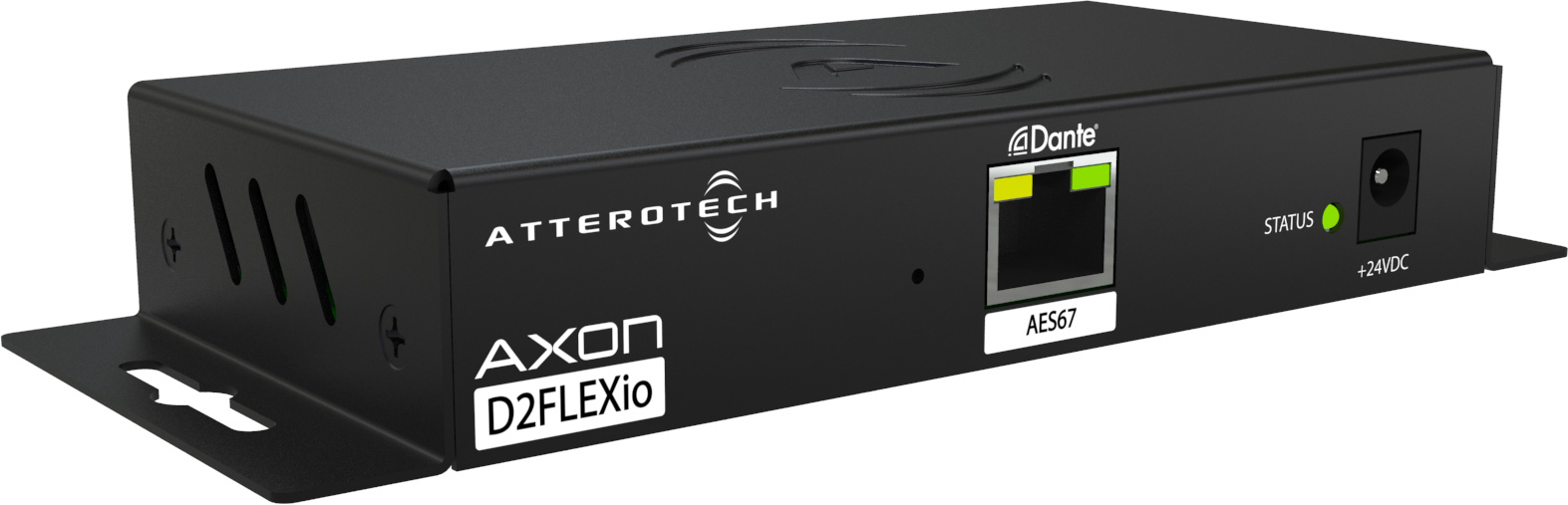

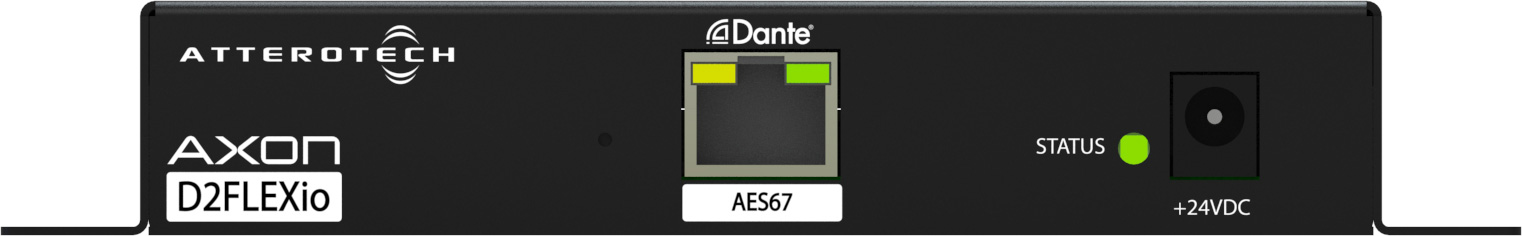

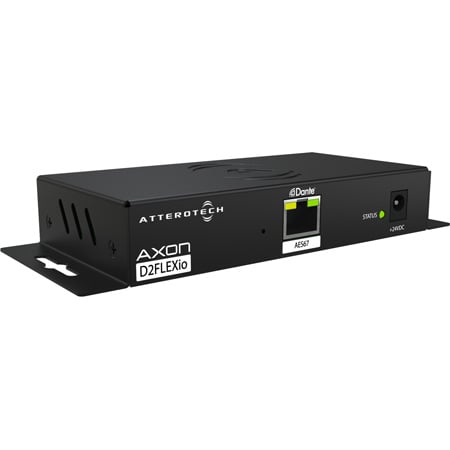

Attero Tech Axon D2FLEXio 2 Channel Flex Line Level I/O Interface - PoE or 24VDC

AXON D2FLEXIO - Overview

• Features:

  • 2 line level balanced flex I/O with +24dBu maximum input and output levels
  • Powered by either IEEE 802.3af PoE or +24VDC from an external supply
  • Individual input gain, output level, and mode (input or output) controls for each flex I/O
  • Extremely cost-effective installation grade Dante/AES67 analog to network connectivity
  • Supports Dante and AES67


• Specifications:

  Analog Audio Inputs (when selected)
  • I/O Type: Two switchable Balanced and RF filtered 3-pin de-pluggable terminal blocks
  • Maximum Input Levels: 0 dBu to +24dBu line-level (Pad attenuation 0 to -24dB)
  • THD+N: <= 0.05% at 3dB for all attenuation level; Dynamic Range >= 100 dB (20 -22 kHz)
  • Frequency Response: 20 to 20 kHz, +/- 1 dB at all attenuation settings

    Analog Audio Outputs (when selected)
  • I/O Type: Two switchable Balanced and RF filtered 3-pin de-pluggable
  • Maximum output level: 0 dBu to +24 dBu (0 to +24 dB gain range)
  • THD+N: <= 0.05% at 3dB for all gain levels; Dynamic Range >= 95 dB (20 -22 kHz) @ any output gain

    Dante™/AES67 Network
  • Physical Layer: Ethernet
  • Connector (s): RJ-45
  • Cable Quality: CAT-5e or better, UTP
  • Transmission Speed: 100 Mbps
  • Supported Bit Rates: 16, 24
  • Supported Sample Rates: 44.1kHz, 48kHz (default), 88.2kHz, 96kHz
  • Minimum Audio Latency: 1ms
  • AES67 Support: AES67, SAP based stream discovery

    Power Specifications
  • PoE Power: 802.3af Class 0
  • Power Consumption: < 3W Max
  • Local Power: +24V DC

    Physical Dimensions
  • Width: 6.485"
  • Height: 1"
  • Depth: 2.622"
  • Weight: 0.65 lbs.

    Regulatory Compliance
  • Certifications: FCC Part 15, Subpart B, Class A EMC, CE (EN55032 EMC / EN55024 ESD), WEEE, RoHS, REACH

    Environmental Operating Specifications
  • Operating Temperature 0 to 40° C


• Warranty:

  • 5 Year
