    UND6IO - Overview

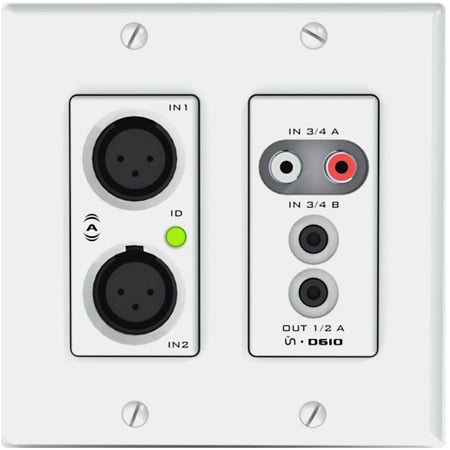

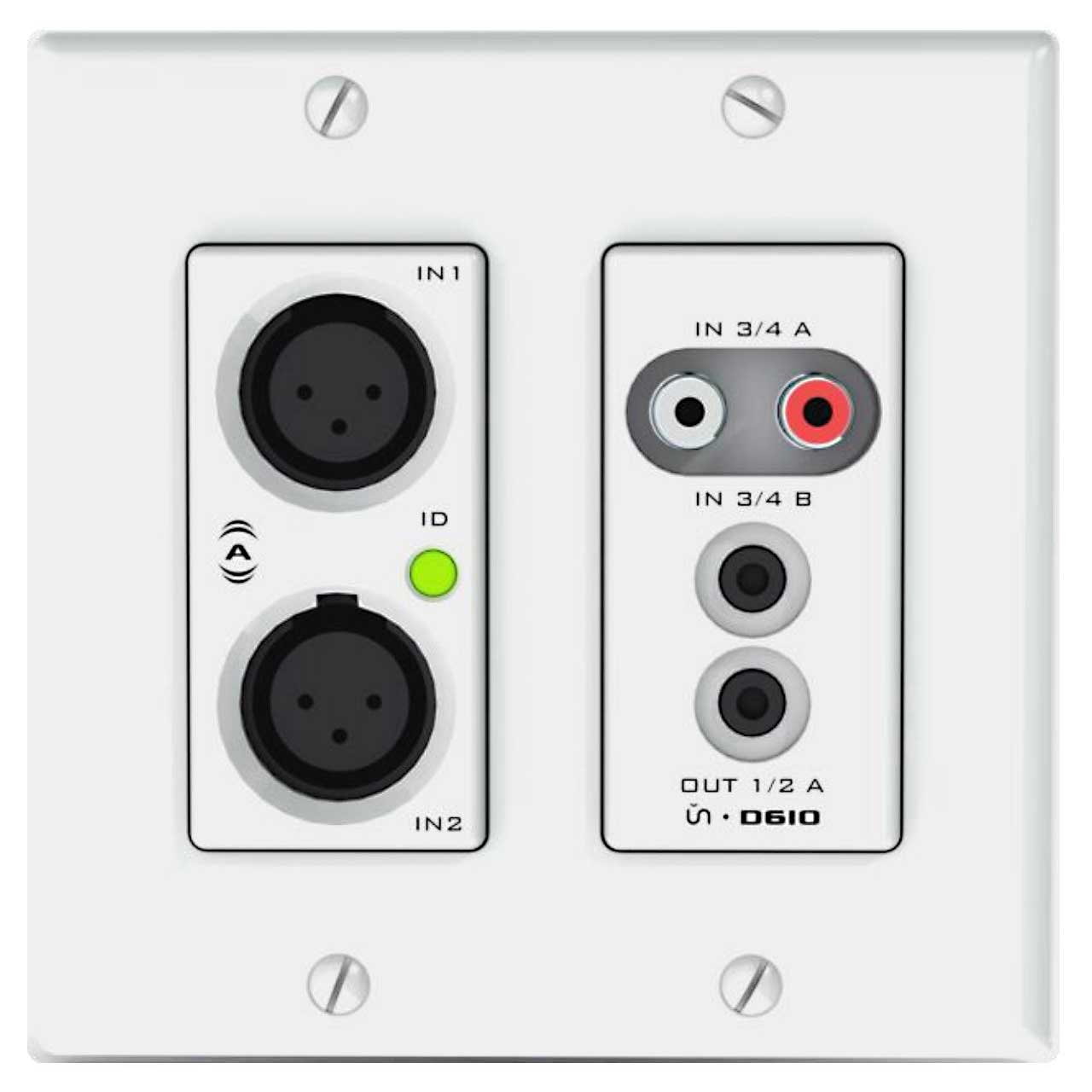

    The Attero Tech unD6IO DanteTM Audio Interface is a cost effective multi-IO wall box. The unD6IO features two balanced mic/line XLR inputs, and two balanced outputs on side panel de-pluggable connectors. Two RCA line level inputs and a 3.5mm TRS line level input complete the available inputs. A 3.5mm TRS line level output is also included.

    The unD6IO is designed to fit into most dual gang US junction boxes and is PoE enabled, so all connectivity (power, control and audio data) is provided by a single CAT-5e/6 cable. The unD6IO's size and I/O density make it easy to put Dante connectivity wherever it's needed - near the audio source or sink - thereby eliminating costly and interference prone analog wiring.

    • Features:

      • Fully DDM ready
      • 2 balanced XLR mic/line inputs, 2 RCA and one 3.5mm input, one 3.5mm output, and two balanced outputs on a sidemounted depluggable connector, with software controlled volume
      • 802.3af compliant PoE powered to work with any compliant
      • PoE network switch
      • 3 gain levels are available on the XLR input to accomodate a wide variety of input levels and devices. Input gain is adjustable via software
      • +48V Phantom power - powers virtually all types of phantom powered microphones typically used in installed AV systems
      • Phantom power is switchable via software
      • ID LED allows easy identification of the unD6IO with which
      • Attero Tech's Unify software is communicating
      • RCA inputs and 3.5mm input (carried as stereo) can be selected via software, individually or in combination, as an audio flow (see Audio Flow diagram)
    • Specifications:

      • XLR Mic/Line Input Type: Balanced and RF filtered
      • Phantom Power: +48V, software selectable
      • Mic/Line Gain: -18dB, -3dB, +25dB, +40dB, all software selectable
      • Input Impedance: >1.8K ohms at any gain setting
      • Equivalent Input Noise: -115dBu (+40dB gain)
      • Maximum Input Levels (XLR): +20dBu @ -18dB gain, +6dBu@ -3dB gain, -23dBu @ +25dB gain, -38dBu at +40dB gain
      • RCA and 3.5mm Inputs: RF filtered line level, input source software selectable
      • Maximum Input Levels (3.5mm/RCA): +12dBu
      • Depluggable Output Type: Balanced line level with automatic muting on loss of Dante signal (located on the side of the unD6IO)
      • Output Gain: 0dB to -60dB in 1dB steps, software selectable
      • Output Noise: <-90dBu @ 0dB gain
      • Maximum Output Level (Balanced depluggable): +20dBu
      • 3.5mm Output: RF filtered line level
      • Maximum Output Level(3.5mm): +12dBu
      • System THD: <.02% at any gain, input signal 3dB below maximum
      • PoE Class: Class 0 802.3af PoE PD compliant
      • Certifications: FCC 47CFR Parts 15B and 18 (Class A), EN 55011, ICES-003, CE (EN55022 Class A and EN55024 Class A)
      • Power Consumption: 5.5W maximum
      • Dimensions (W x H x D): 3.54 inch x 4.2 inch x 1.88 inch
      • Operating Temperature: 0°C - 40°C
