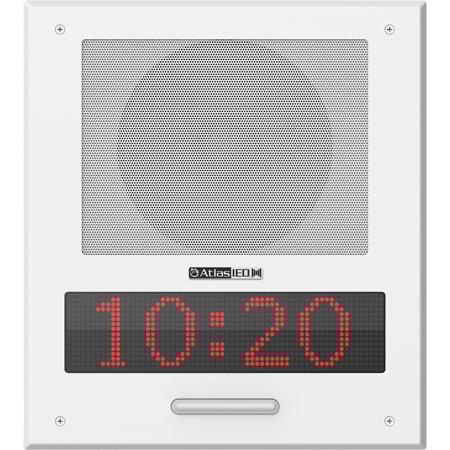

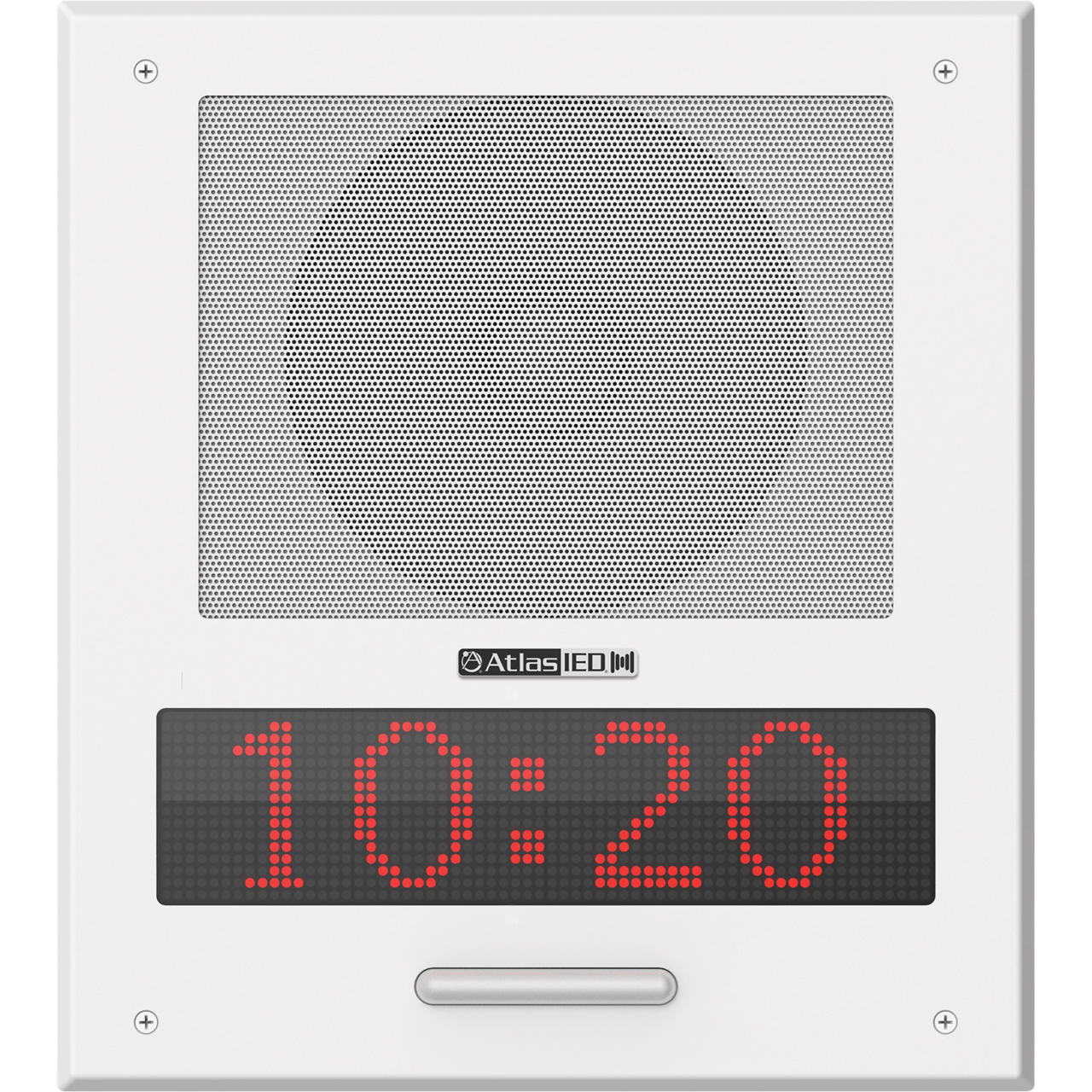

Atlas IP-8SCMF PoE+ Indoor Wall Mount IP Endpoint Speaker with LED Display/Talkback Mic and LED Flashers

ITEM #: ATL-IP-8SCMF MFG #: IP-8SCMF

Primary Image
  • Product Image Thumbnail 1 of 3
  • Product Image Thumbnail 2 of 3
  • Product Image Thumbnail 3 of 3
Free Shipping with $49 Minimum Order

List Price:

$1,906.99

Our Price:

$1,528.99

Availability: Usually Ships in 5-14 Days.
Please Email, Chat or Call (800) 522-2025 for Detailed Delivery Info
iAvailability Description Popup


IP-8SCMF - Overview

The AtlasIED IPX Series IP-8SCMF indoor wall mount IP speaker with display, talkback, and flasher leverage the VoIP Communication solution to extend tele-presence with enhanced audio for those environments where network-wide communication is desired and that require large speakers with high output to overcome high ambient noise areas or large spaces.

AtlasIED IP-8SCMF registers as a communication endpoint directly within InformaCast, and Revolution Advanced Notification applications, supporting both visual text and audio broadcast to enhance physical security while improving day-to-day communications through advanced alerting, bell schedules, pre-recorded, scheduled announcements & intercom, while leveraging the WAN/LAN Network Architecture.

IP-8SCMF IP speakers with display, talkback, and flasher provide equality "effective communication".

"Under Title II of the ADA, all state and local governments are required to take steps to ensure that their communications with people with disabilities are as effective as communications with others."

What does it mean for communication to be "effective"? Simply put, "effective communication" means that whatever is written or spoken must be as clear and understandable to people with disabilities as it is for people who do not have disabilities.

Where 3rd party notification applications are not required, the IP-8SCMF speakers can register as SIP devices directly to a SIP server or VoIP Communications Manager for critical alerts /public address applications and two-way communication.

Ideal for Corporate Applications, Education Institutions, Entertainment Complexes, Industrial Facilities, Government Buildings, Healthcare Facilities, Houses of Worship, Transportation Hubs - anywhere critical alerts/public address needs exist, and prefer using a single enterprise-class communications platform.

  • Features:

    • Dynamic or Static IP Address
    • IEEE802.3 10/100Base-T Ethernet
    • IEEE 802.1q Tagging
    • IEEE 802.11AT Compliant
    • VoIP Standard Audio: G.711 u-law/a-law (64 kbit/s) or G.722 Wideband Audio (64 kbit/s)
    • Auto Registration: SLP for Singlewire Applications, DHCP Option 72 for Syn-Apps' Applications or IEDNet+ for AtlasIED Applications
    • Static Registration: HTTP GUI for Static Configuration
    • Integrated Amplifier 15-Watt Total Power: Primary Speaker Output 8 ohm
    • Aux Audio Line-In Balanced (2.8Vpp 10K)
    • Aux Audio Line-Out Balanced (2.8Vpp 10K)
    • 2 General Purpose Inputs
    • PoE+Enabled
    • 1 General Purpose Output (2A @ 30 VDC)
    • Phone/Night Loud Ringer
    • External Power Supply Option

  • Specifications:

      System
    • Type: PoE+ Indoor IP Speaker System with LED Display, Microphone and LED Flasher
    • Indicators: Network Status (On Back)
    • Frequency Response (±5dB): 86Hz - 15.5kHz
    • Vertical Coverage: 105° 800Hz - 4kHz
    • Horizontal Coverage: 105° 800Hz - 4kHz
    • Directivity Factor (Q): 17 @ 2kHz
    • Max SPL at 1m (passive): 120dB SPL Continuous/123dB SPL (peak 6Ω)
    • General Purpose Interface: 2 Trigger Inputs/1 Relay Output (2A @ 30VDC)

      Transducers
    • LF Transducer Size: 8"
    • HF Transducer Size: 3"
    • HF Crossover Frequency: 2,800Hz, First Order
    • Voice Coil Size: 1"
    • Cone Material: Curvelinear, Treated Industrial Paper
    • Max SPL at 1m (Passive): 98dB SPL Continuous

      Amplification
    • Type: Single-Channel Class D Topology with Primary and Secondary Outputs
    • AC Power Input: PoE or PoE+ and External 24VDC
    • Power Rating (RMS): 12W Max/25W Max
    • THD: <0.2%
    • Cooling: Passive/Convection

      Microphone
    • Sensitivity: Minus 35 (±4dB)/(0db = 1V/pa, 1kHz)
    • Impedance: Less than 2.2kΩ
    • Directivity: Omnidirectional
    • Frequency Range: 20Hz - 20kHz
    • Standard Operation Voltage: 2V
    • Max. Operation Voltage: 10V
    • Current Consumption Max.: 0.5 mA
    • Sensitivity Reduction Within: Minus 3dB @ 1.5V
    • S/N Ratio: More than 62dB

      Audio Inputs and Outputs
    • Input Analog Audio Type(s): One Unbalanced Line Level
    • Input Analog Connectivity: Secured Screw Terminal Block
    • Input Network Audio Type(s): G.711 U-Law/A-Law and G.722 Capable
    • Input Network Connectivity: RJ-45 female
    • Output Analog Audio Type(s): One Unbalanced Line Level
    • Output Analog Connectivity: Secured Screw Terminal Block
    • Output Digital Audio Type(s): G.711 U-Law/A-Law and G.722 Capable (Multicast)
    • Output Digital Connectivity: N/A
    • Output Speaker Level: 8Ω, 12W, 25W
    • Output Speaker Connectivity: Primary and Slave Secured Screw Terminal Block

      Display
    • Display Type: LED Display
    • Display Color Range: Red Only
    • Display Lumens: 162 lux
    • LEDs per Character: 16x64
    • Character Max Height: 2.125"
    • Viewable Dimensions (HxW): 10.125" x 2.5625"
    • Control: Time via NTP - Text Controlled via Software

      Network
    • Ethernet: IEEE 802.3 10/100Base-T
    • PoE: IEEE 802.3AF/AT Compliant
    • VLAN: IEEE 802.1q Tagging

      Protocols
    • IP Addressing: DHCP/Static
    • Auto-Provisioning: HTTP/TFTP
    • Auto-Registration: HTTP/Service Location Protocol/IEDNet
    • Time: NTP or Host Server
    • Telephony: SIP

      Software
    • GCK Compatible Version 3.0+
    • InformaCast Advanced Compatible Version 8.0+
    • InformaCast Fusion Compatible Version 3.0+
    • SA-Announce Compatible Versions 9.0.18+

      Enclosure
    • Color: White
    • Grille Material: Powder Coated Steel, White Finish, Paintable
    • Baffle Material: 18-gauge Corrosion-Resistant Zinc Plated Steel
    • Mounting/Rigging: Enclosure sold separately
    • Safety Agency Ratings ETL Listed to Comply with 62368-1, CSA C22.2 #62368-1, IEC 62368-1 CB Scheme and FCC
    • Product Dimensions: 14.38" x 12.88" x 2.77"
    • Shipping Dimensions: 14.56" x 13.19" x 4.5"
    • Net Weight: 5lbs
    • Shipping Weight: 6.25lbs

  • Item Includes:

    • 1x Atlas IP-8SCMF PoE+ Indoor Wall Mount IP Endpoint Speaker with LED Display / Talkback Mic and LED Flashers

  • Warranty:

    • 1 Year Warranty
