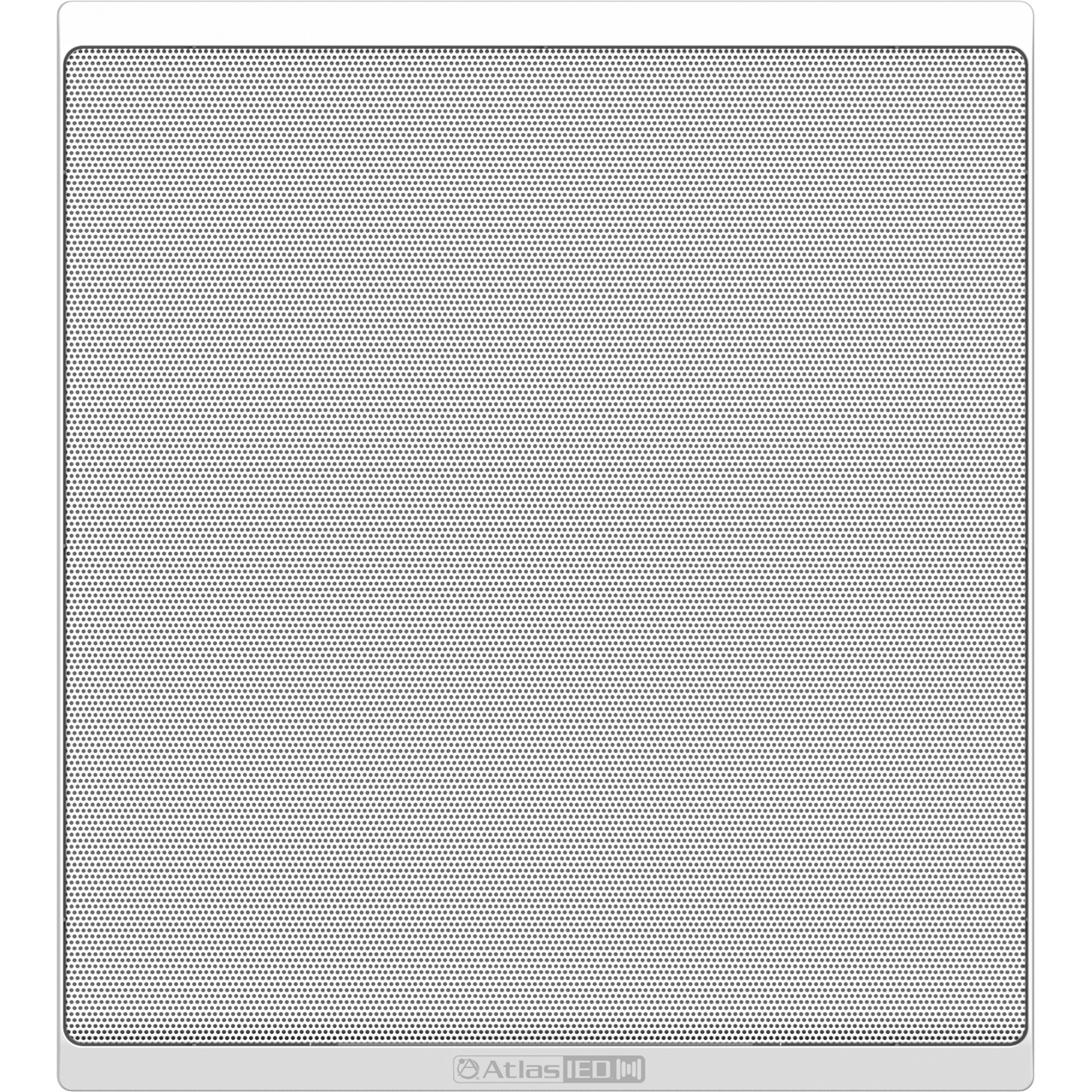

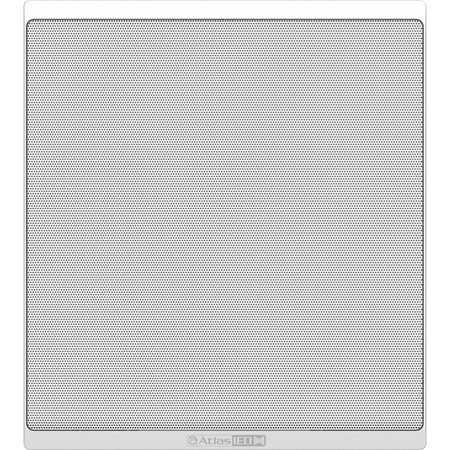

The AtlasIED IPX Series IP-SM-72 indoor wall/ceiling mount IP speakers with talkback leverage the VoIP Communication solution to extend tele-presence with enhanced audio for those environments where network-wide communication is desired and that require large speakers with high output to overcome high ambient noise areas or large spaces.
AtlasIED IP-SM-72 registers as a communication endpoint directly within InformaCast and Revolution Advanced Notification applications, supporting audio broadcast to enhance physical security while improving day-to-day communications through advanced alerting, bell schedules, pre-recorded, scheduled announcements, & intercom, while leveraging the WAN/LAN Network Architecture.
Where 3rd party notification applications are not required, the IP-SM-72 speakers can register as SIP devices directly to a SIP server or VoIP Communications Manager for critical alerts /public address applications and two-way communication.
Ideal for Corporate Applications, Education Institutions, Entertainment Complexes, Industrial Facilities, Government Buildings, Healthcare Facilities, Houses of Worship, Transportation Hubs - anywhere critical alerts/public address needs exist, and prefer using a single enterprise-class communications platform.
IP-SM-72 indoor speakers are fitted with an 8" (205mm) coaxial speaker that is optimized for voice intelligibility. Additionally, the IP-SM-72 includes an attached 25V/70V transformer on the rear of the speaker and a switch on the front baffle that allows selection between 25V/70V and network. This enables a facility to install the IP-SDM-72 and use an existing analog paging system to deliver messages until the controller and software are installed. Once that is complete, the grille can be removed, and the switch can be changed to network, causing the speaker to receive its information from the controller without the need to remove the speaker. This is ideal for retrofit applications or for systems where components are being installed in phases, and the speakers must work during the rollout.
Please Note: IP-STBE Tile Bridge required for install.
