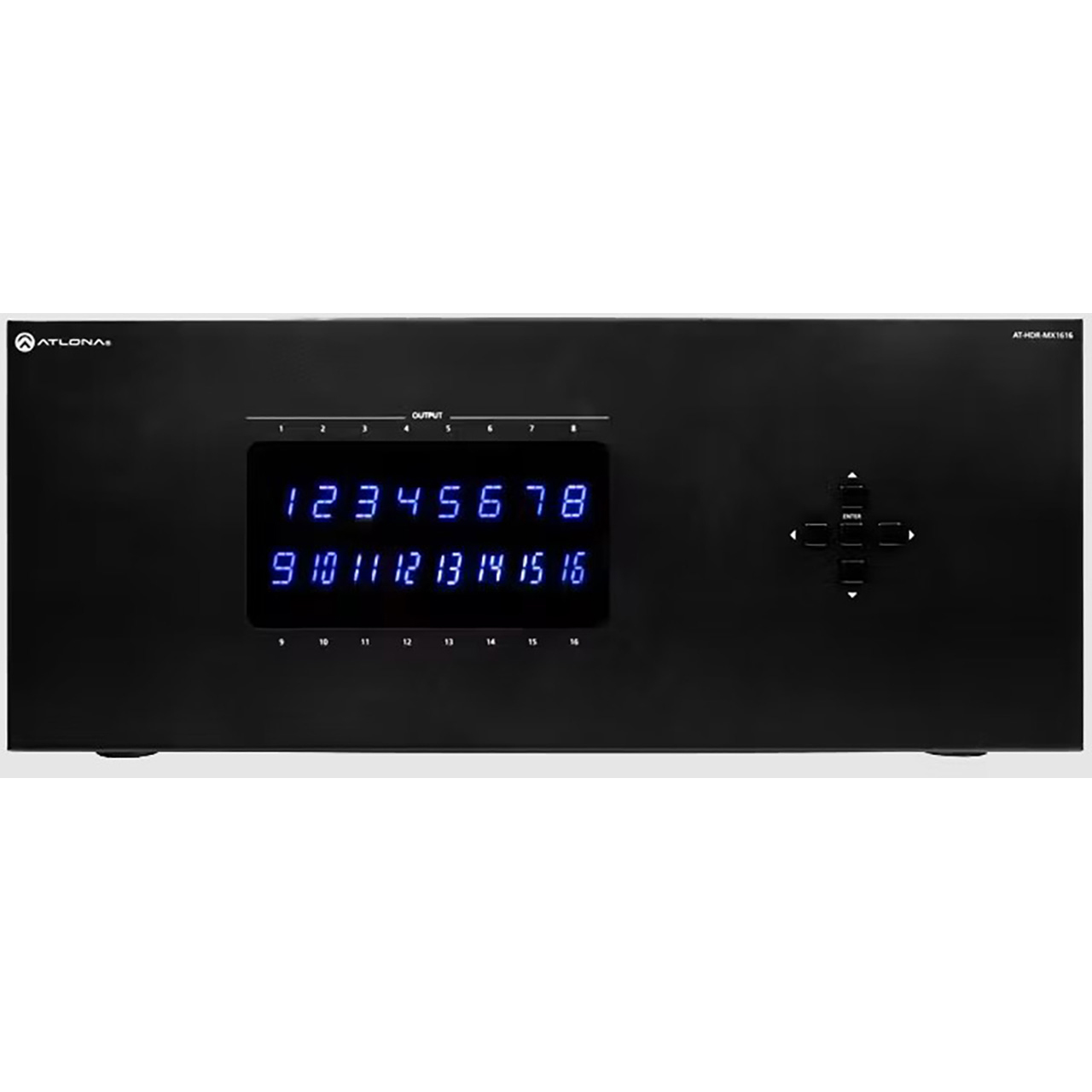

Atlona AT-HDR-MX1616 4K 16x16 HDR HDBaseT HDMI Matrix Switcher with CAT6A/7 Transmission Up to 330 Feet

AT-HDR-MX1616 - Overview

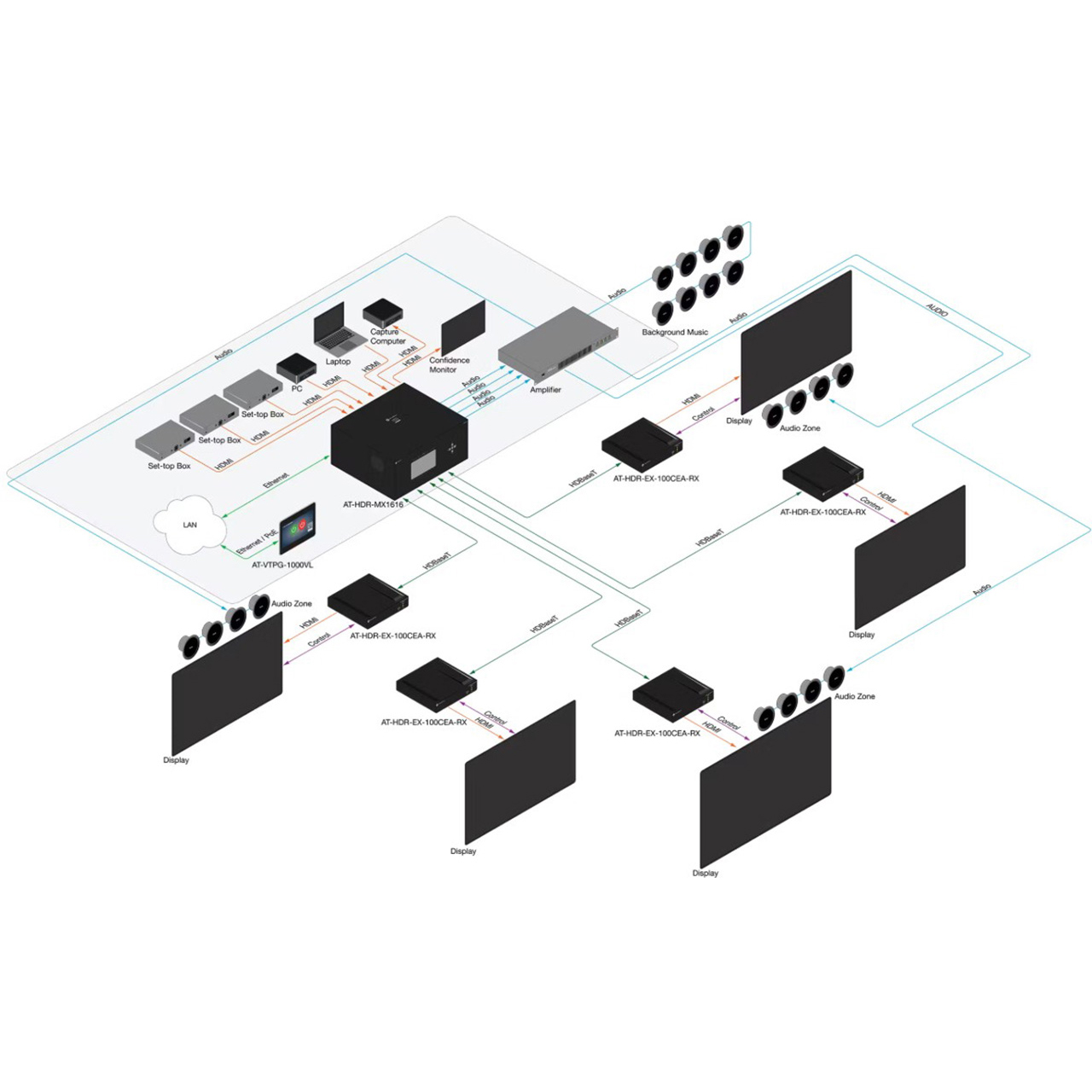

High Density Matrix Switching

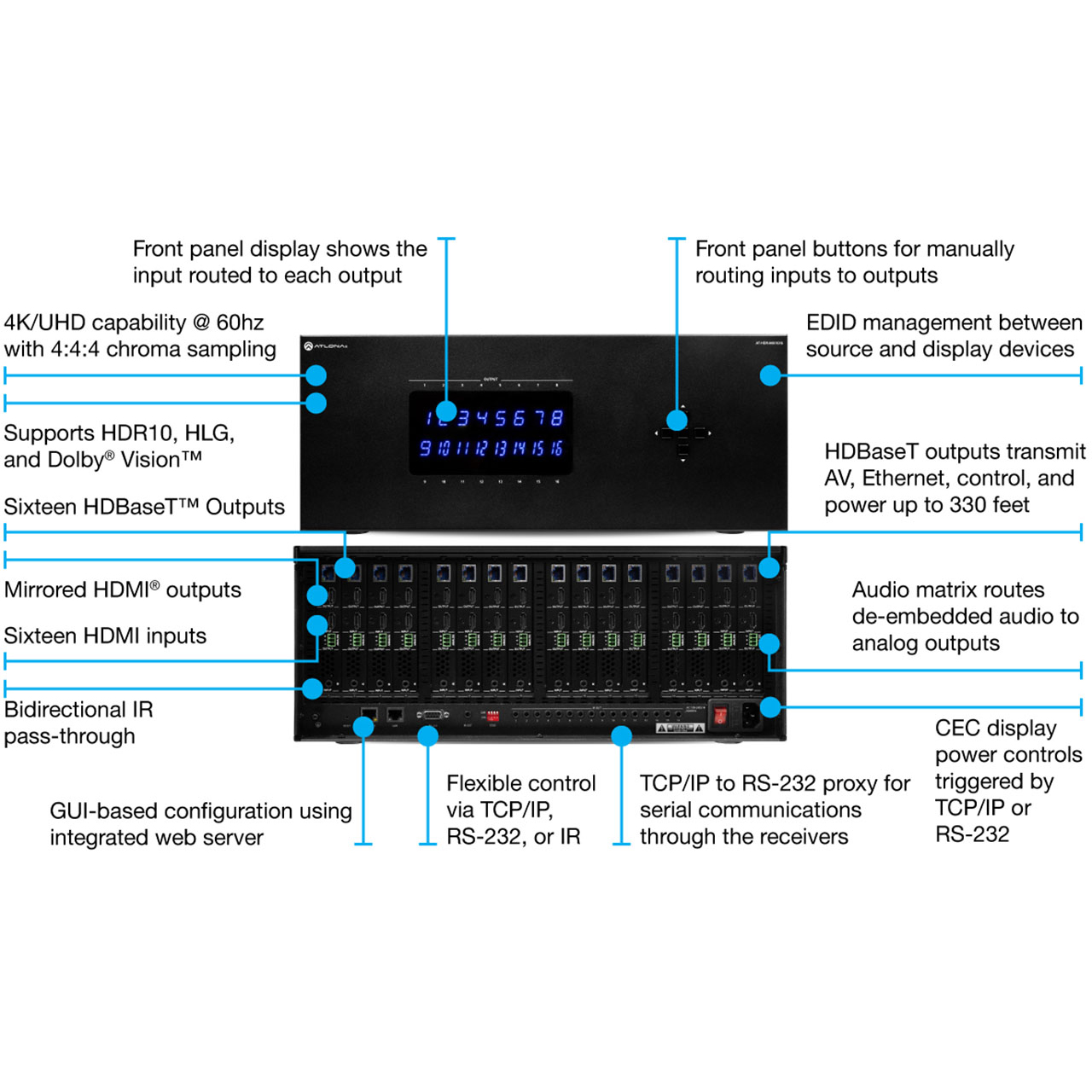

• Features:

  • 4K HDR: 4K/UHD capability @ 60Hz with 4:4:4 chroma sampling, plus support for HDR formats.
  • HDMI I/O: 16 HDMI inputs as well as a mirrored HDMI output for each HDBaseT output.
  • HDBaseT Outputs: 16 HDBaseT outputs extend AV, Ethernet, control, and power up to 330ft (100m).
  • Audio Matrix: Routes 16 de-embedded audio sources to 16 unbalanced stereo analog outputs.


• Specifications:

  Video
  • Signal:
    - Input: HDMI
    - Output: HDBaseT, HDMI
  • Copy Protection: HDCP 1.4/2.2
  • Pixel Clock: Up to 600MHz with a compatible receiver
  • UHD/HD/SD:
    - 4096x2160(DCI)@60/50/30/25/24Hz
    - 3840x2160(UHD)@60/50/30/25/24Hz
    - 2560x1440@30Hz
    - 1920x1080p@60/59.94/50/30/29.97/25/24/23.98Hz
    - 1920x1080i@30/29.97/25Hz
    - 1280x720p@60/59.94/50/30Hz
    - 720x576i/p@50Hz
    - 720x480i/p@60Hz
  • VESA (All resolutions are 60Hz):
    - 2560x1600
    - 2048x1536
    - 1920x1200
    - 1680x1050
    - 1600x1200
    - 1440x900
    - 1400x1050
    - 1280x1024
    - 1280x800
    - 1366x768
    - 1360x768
    - 1152x864
    - 1024x768
    - 800x600
    - 640x480
  • Chroma Subsampling: 4:4:4, 4:2:2, 4:2:0
  • Color Depth: 8-bit, 10-bit, 12-bit
  • HDR: Up to 4K HDR10@60Hz, 4K Hybrid-Log Gamma (HLG)@60Hz, and 4K Dolby Vision@60Hz

    Audio
  • HDMI Pass-Through Formats:
    - LPCM 2.0
    - LPCM 5.1
    - LPCM 7.1
    - Dolby
    - Dolby Digital Plus
    - Dolby Atmos
    - DTS Digital Surround
    - DTS-HD Master Audio
    - DTS:X
  • Bit Depth: Up to 24 bits
  • Sample Rate: 32kHz, 44.1kHz, 48kHz, 88.2kHz, 96kHz, 176.4kHz, 192kHz
  • Analog Audio:
    - Format: Stereo 2-Channel
    - Type: Unbalanced Audio

    LAN
  • Port: 1x RJ45
  • Standards and Protocols: HTTP, HTTPS, Telnet, SSH, mDNS
  • Speeds: 10/100 Mbps
  • Addressing: DHCP, Static

    CEC
  • Ports:
    - 16x HDMI OUT, Type A, 19-pin female
    - 16x HDBaseT pass through, RJ45
  • Triggering: via Auto, and built-in Web Server

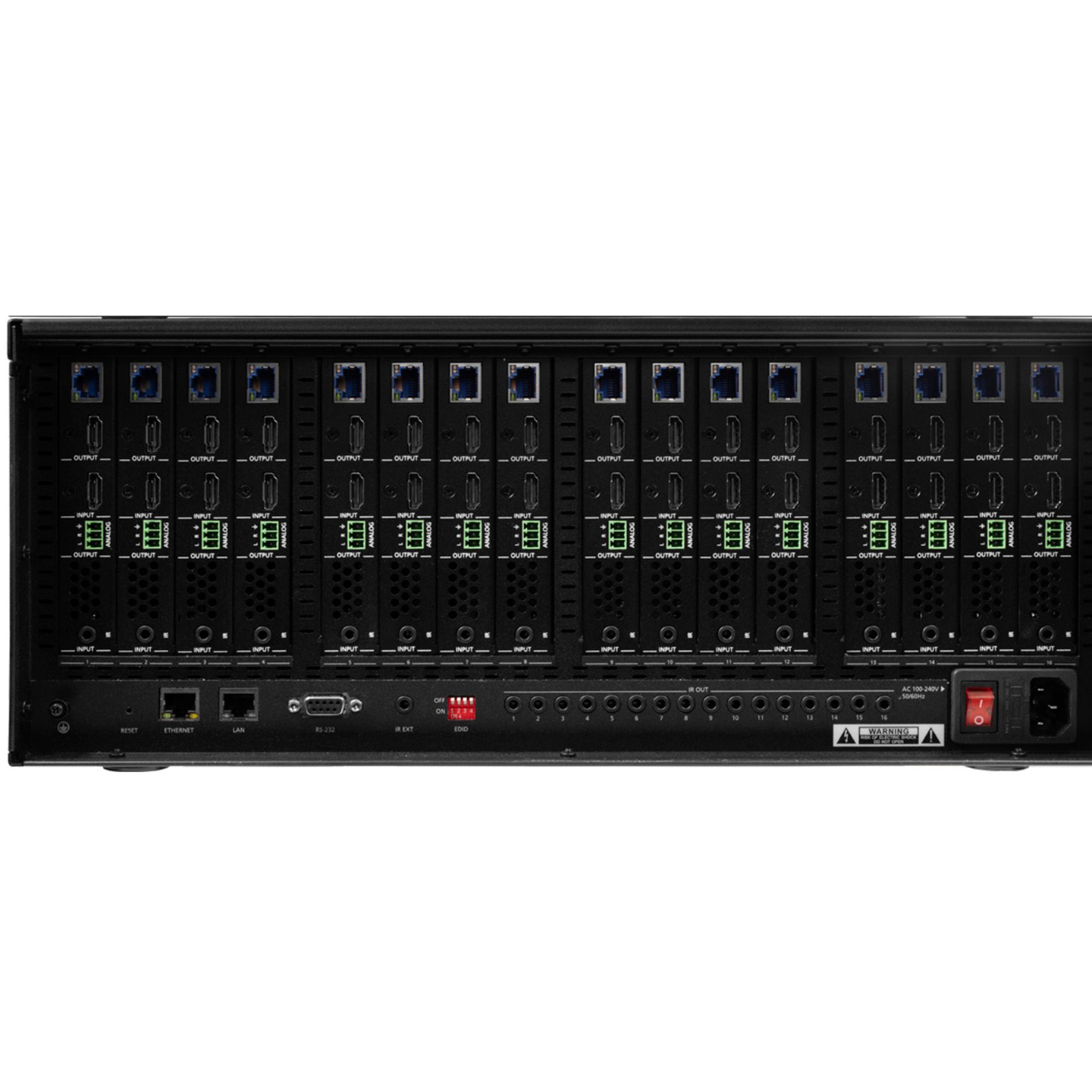

    Connectors
  • HDMI IN: 16x Type A, 19-pin female
  • HDMI OUT: 16x Type A, 19-pin female
  • HDBaseT OUT: 16x RJ45
  • Analog Audio Out: 16x 3-pin captive screw
  • IR IN/OUT/Ext: 33mm x 3.5mm, female
  • ETHERNET/LAN: 2x RJ45
  • RS-232: 1x DE-9
  • AC 100V - 240V 50/60Hz: 1x IEC connector


• Item Includes:

  • 1x AT-HDR-MX1616


• Warranty:

  • 3 Year Limited Warranty
