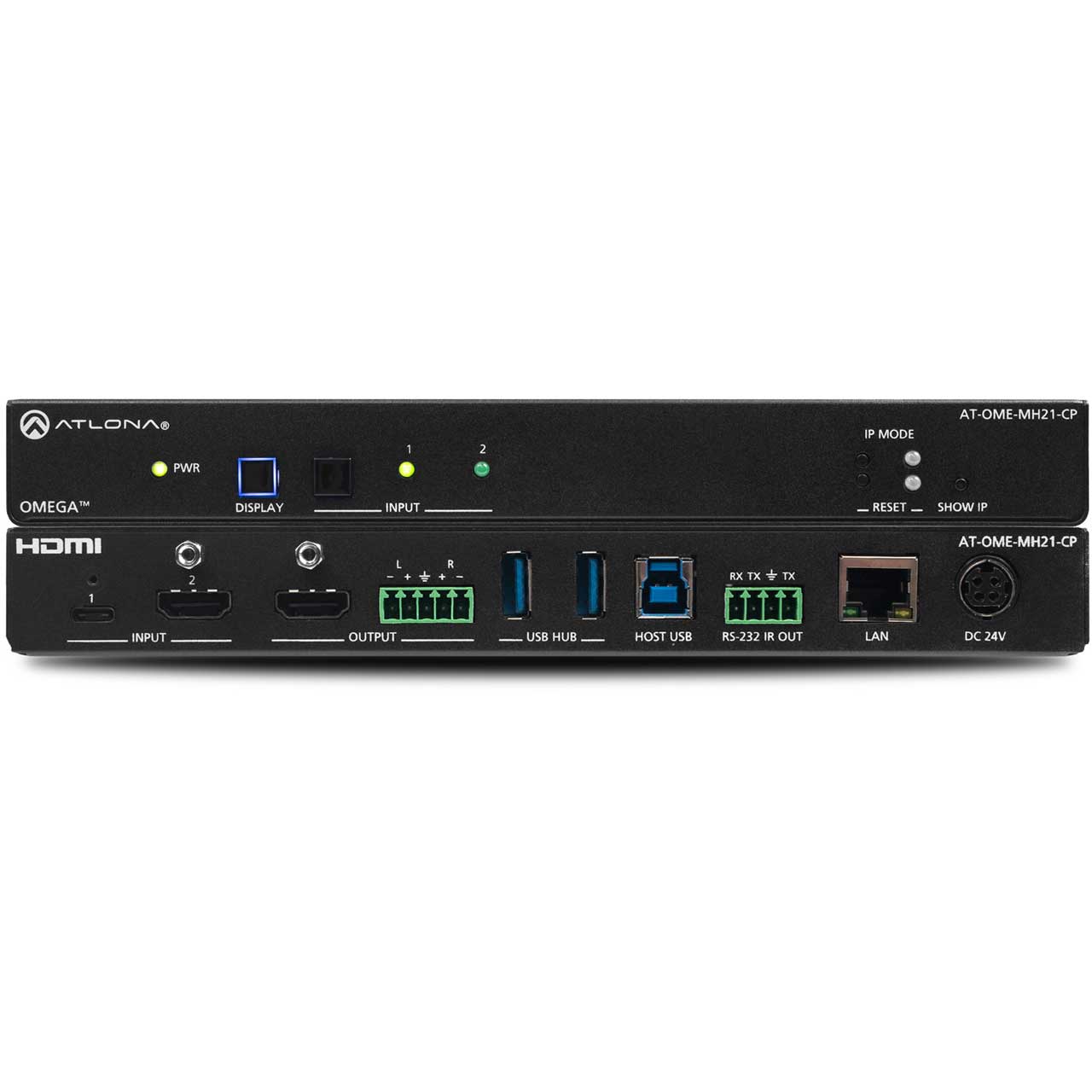

Atlona AT-OME-MH21 Omega 4K/UHD Meeting Hub Switcher with USB-C and HDMI Inputs and HDMI Output

AT-OME-MH21-CP - Overview

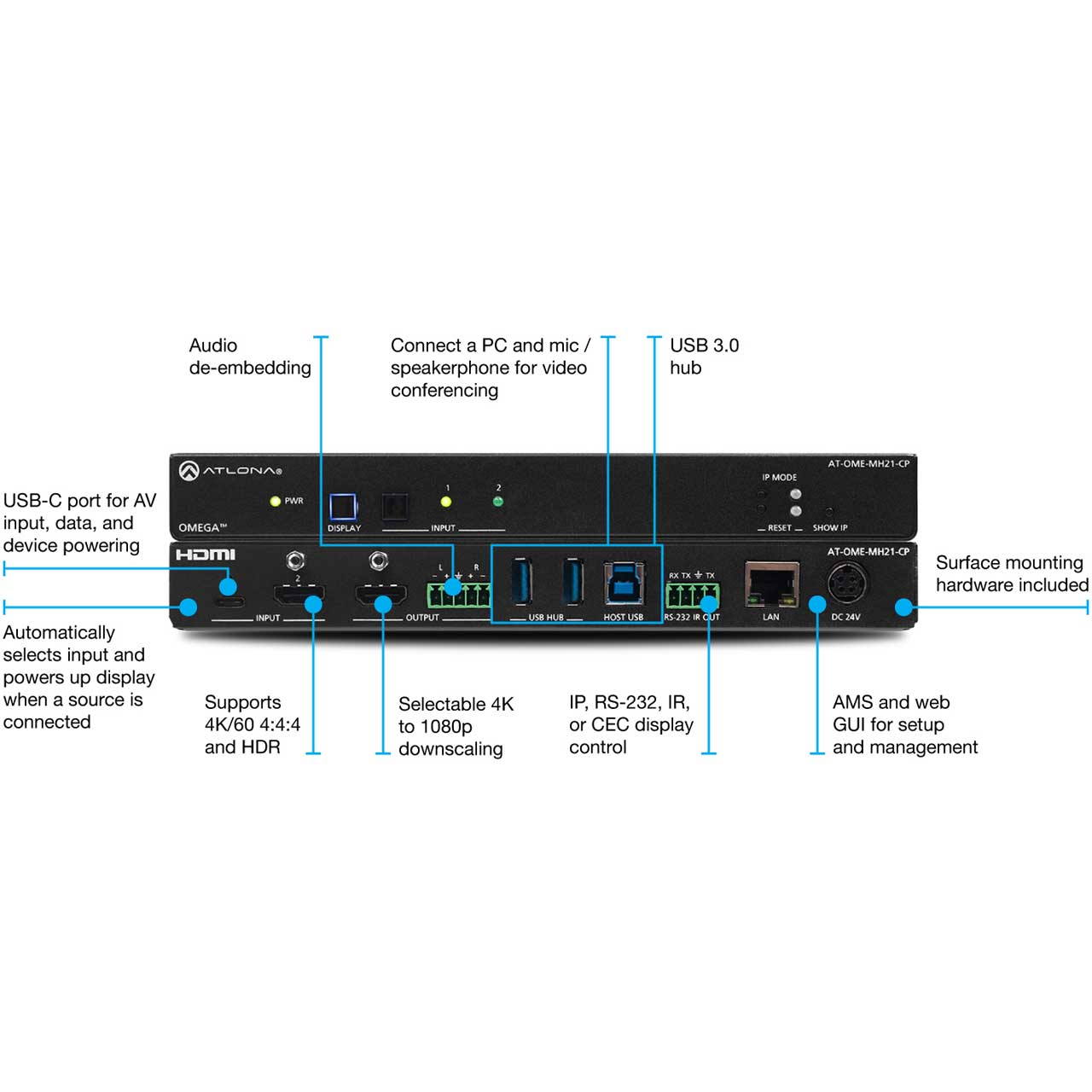

• Features:

  • Two-input AV switcher
  • USB-C input for AV and data
  • Integrated USB 3.0 hub
  • Selectable 4K to 1080p downscaling
  • Audio de-embedding
  • Automatic display control
  • Automatic input selection using hot plug detect and video detection technology


• Specifications:

  • Video
  • Signal: HDMI
  • Copy Protection: HDCP 2.2
  • Pixel Clock: 600MHz
  • UHD/HD/SD:
    4096x2160@60/50/30/25/24Hz
    3840x2160@60/50/30/25/24Hz
    1920x1080p@60/59.9/50/30/29
    1920x1080i@30/29.97/25Hz
    1280x720p@60/59.94/50Hz
    720x576p@50Hz
    720x576i@50Hz
    640x480p@60/59.96Hz
    640x480i@30Hz
  • VESA (All resolutions are 60Hz)
    2560x1600 2048x1536 1920x1200
    1680x1050 1600x1200 1440x900
    1400x1050 1280x1024 1280x800
    1366x768 1360x768 1152x864
    1024x768 800x600 640x480
  • USB-C: Up to 4K/UHD @ 60Hz
  • Color Space: YUV, RGB
  • Chroma Subsampling: 4:4:4, 4:2:2, 4:2:0
  • Color Depth: 8-bit, 10-bit, 12-bit
  • HDR: HDR10, Hybrid-Log Gamma (HLG), and Dolbyr VisionT @ 60Hz

    Audio
  • HDMI / HDBaseT Pass-Through Formats
    PCM 2.0
    LPCM 5.1
    LPCM 7.1
    Dolbyr Digital
    Dolby Digital PlusT
    Dolby TrueHD
    DTSr Digital SurroundT
    DTS-HD Master AudioT
  • Bit Depth: up to 24-bit
  • Sample Rate: 32 kHz, 44.1 kHz, 48 kHz, 88.2 kHz, 96 kHz, 176.4 kHz, 192 kHz

    USB
  • Signal: 3.0
  • Maximum Data Rate: 5 Gbps
  • USB-C: Supports audio, video, device and host data

    Control
  • RS-232: Device control and configuration, Supported baud rates: 2400, 4800, 9600, 19200, 38400, 57600, 115200
  • IP Protocols: HTTPS, Telnet, mDNS, Modes: DHCP, Static - selectable through front panel and built-in web server
  • IR: Sends commands over IR from the AT-OME-MH21 to sink device
  • CEC: Yes

    Connectors
  • HDMI IN: 1 - Type A, 19-pin female
  • USB-C IN: 1 - USB Type-C v3.1, 24-pin female, AV input (Alternate Mode)
  • HDMI OUT: 1 - Type A, 19-pin female
  • USB HUB: 2 - Type A, 4-pin female
  • USB HOST: 1 - Type B, female
  • AUDIO OUT: 1 - 5-pin captive screw, balanced / unbalanced 2-channel
  • RS-232 / IR OUT: 1 - 4-pin captive screw (bidirectional)
  • LAN: 1 - RJ45, 100Base-T
  • PWR: 1 - Barrel connector, locking

    Environmental
  • Operating Temperature: +32 to +122
  • Storage Temperature: -4 to +140
  • Operating Humidity: (RH) 20% to 90%, non-condensing

    Power
  • Consumption: Nominal: 17.9 W, Idle: 16.8 W
  • External Power Supply: 100 - 240 V AC, 50/60 Hz
  • Output: 5 V / 2.6 A DC


• Item Includes:

  • 1x Omega 4K/UHD Two-Input Switcher for HDMI and USB-C with USB Hub


• Warranty:

  • 10 Year Limited Warranty


• GTIN:

  0846352006594
