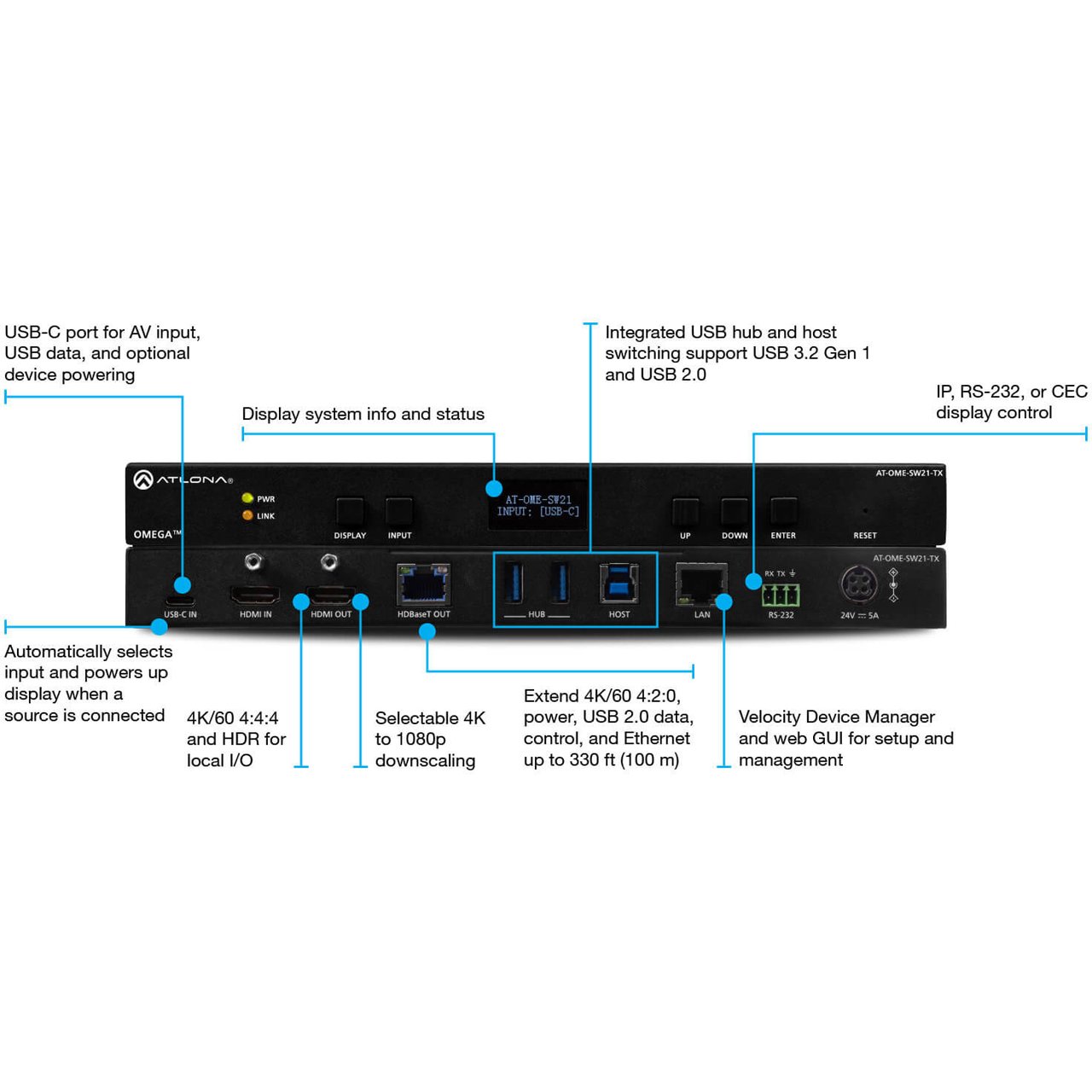

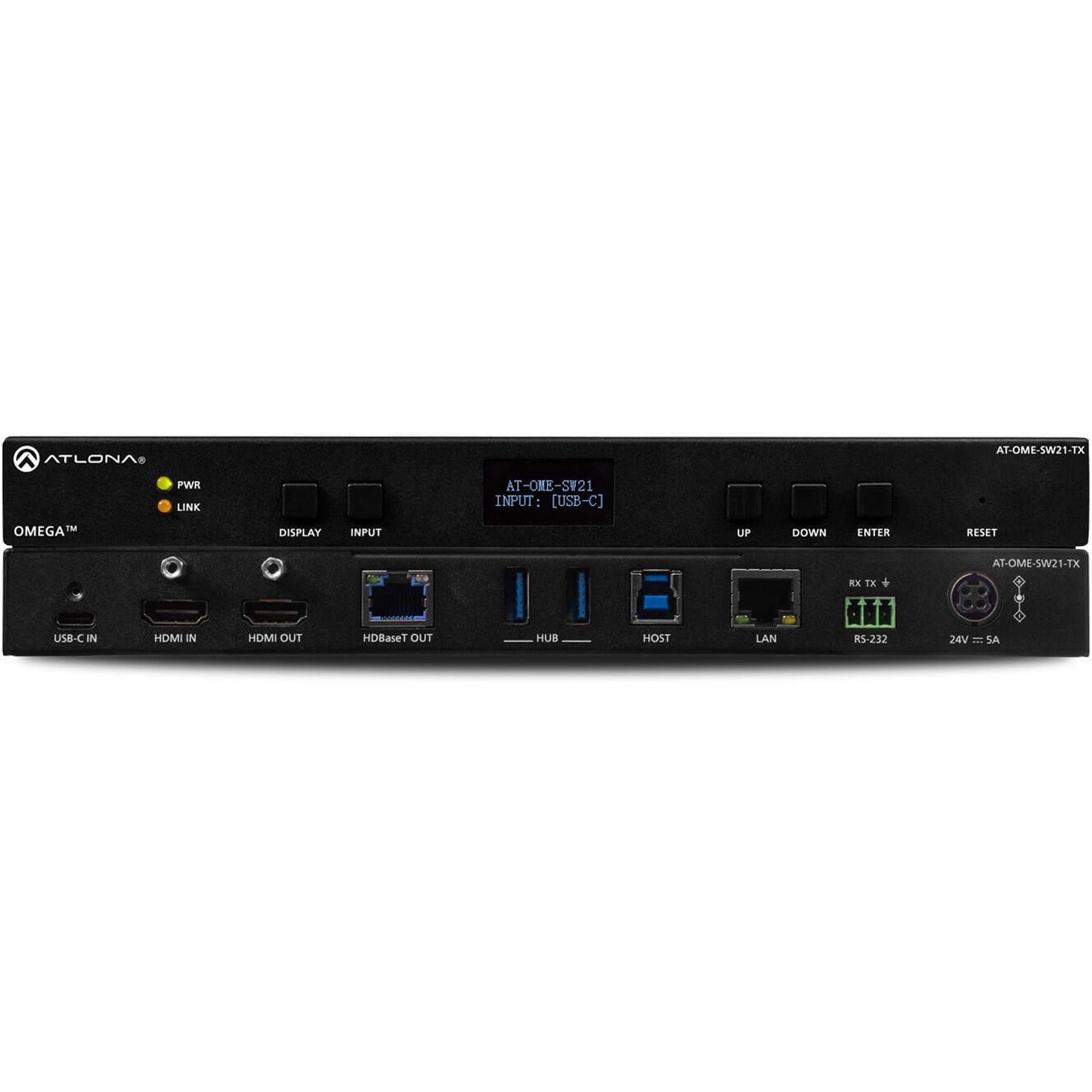

The Atlona AT-OME-SW21-TX is a compact, versatile switcher and HDBaseT transmitter with USB-C and HDMI inputs. It sends video up to 4K/60 4:2:0, plus embedded audio, control, and USB 2.0 over distances up to 330ft (100m). Part of the Omega™ Series of integration products for modern AV communications and collaboration, the OME-SW21-TX features mirrored HDMI and HDBaseT outputs and is HDCP 2.3 compliant. With a matching HDBaseT receiver, the integrated USB extension addresses the challenge of connecting between USB devices at remote locations, and is ideal for software video conferencing and interactive touch displays. The OME-SW21-TX includes a USB hub which supports USB 3.2 Gen 1 up to 5Gbps, and USB 2.0 up to 480Mbps for local devices and 120Mbps over HDBaseT. Host switching is provided with USB type B and USB-C interfaces, plus two USB type A interfaces for peripherals as well as integrating with USB 3.2 Gen 1 extenders. Both inputs and the local HDMI output support 4K HDR and 4K/60 4:4:4 at HDMI data rates up to 18 Gbps. Additionally, 4K downscaling to 1080p is available for the HDMI output when connected to an HD sink. The OME-SW21-TX is ideal for use with Omega Series receivers, switchers with HDBaseT inputs, or even as a standalone AV system unit.
Ready for Remote Collaboration and Hybrid Meetings
Enhance productivity and connect a laptop to share AV content and interface with a USB speakerphone. Take advantage of USB over HDBaseT to remotely interface with a camera or conferencing bar at the receiver.
Convenient for Education Applications

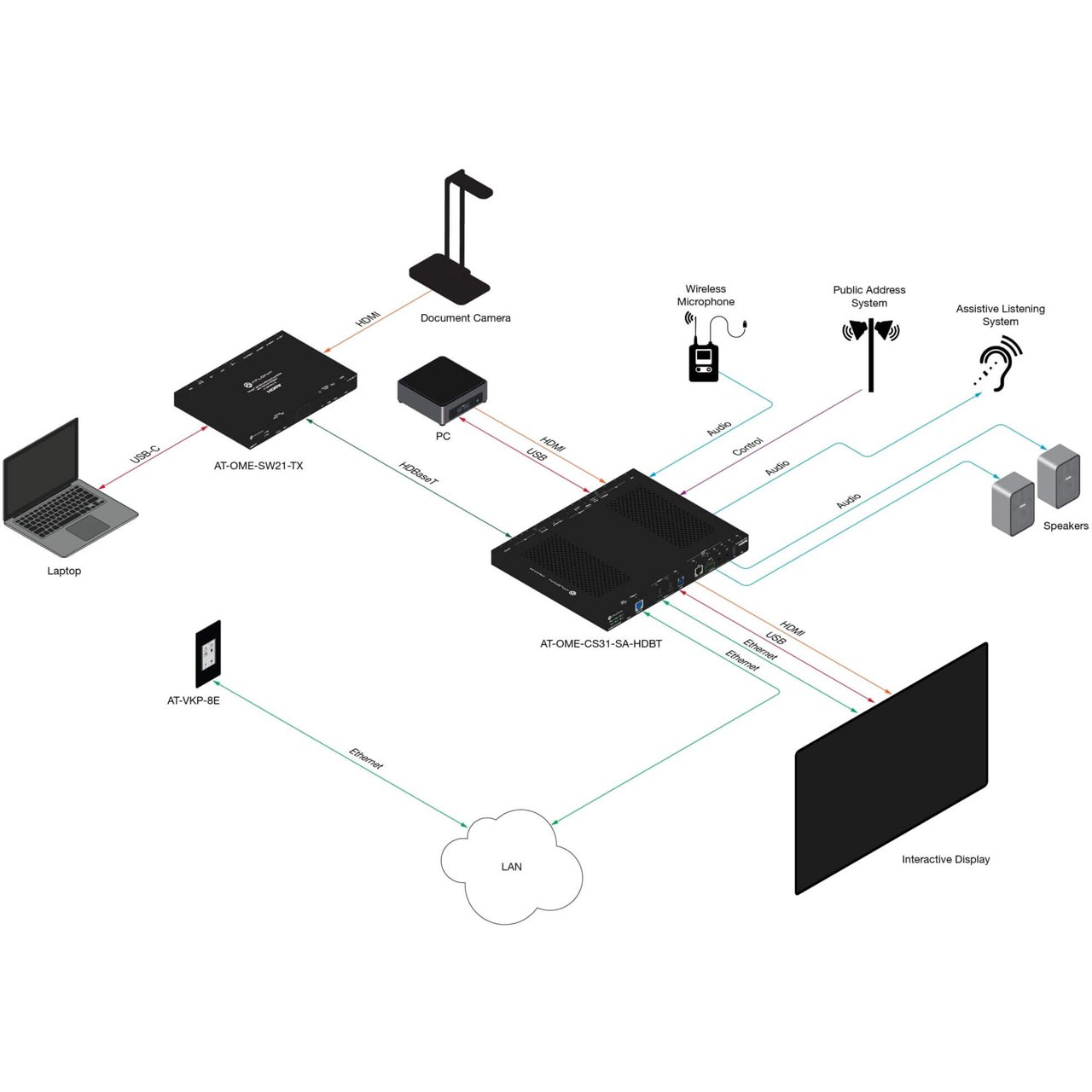

The OME-SW21-TX can be installed into a desk or lectern, with AV and USB connected over HDBaseT to the AT-OME-CS31-SA-HDBT switcher, audio amplifier, and USB hub behind a wall-mounted display.
Hands-Free, Zero UI Operation
Connect your device to the switcher, and watch the display power up and present your content. From there, you can disconnect your device and hand off to another presenter, or just walk away and the system shuts down the display.
Applications:

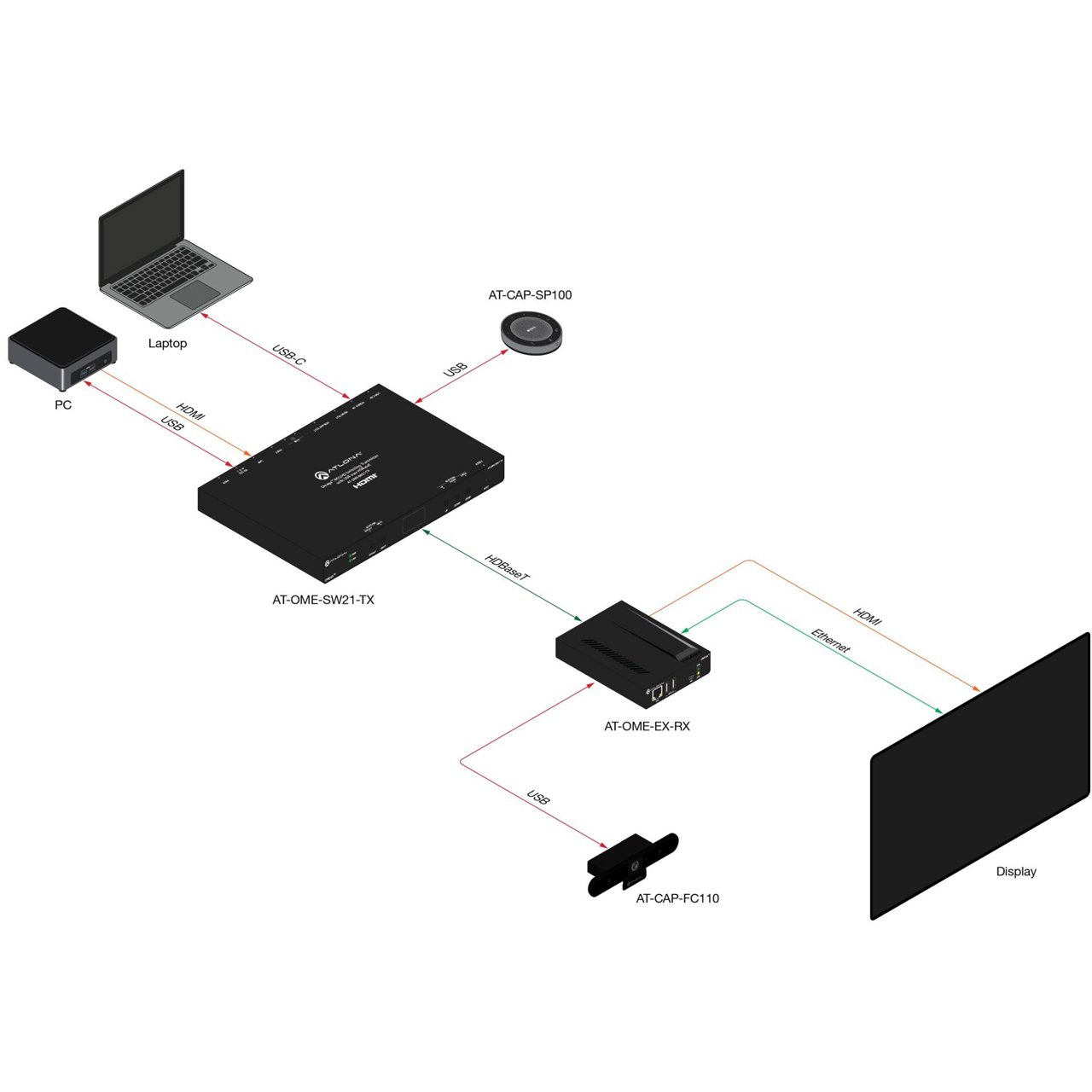

• Complete System Integration - The OME-SW21-TX and OME-SR21 or OME-EX-RX together provide a compact, yet comprehensive and cost-effective integration solution.
• Classrooms - This transmitter is ideal for extending AV connectivity from an OME-CS31-SA-HDBT behind a flat-panel display, to a lectern or desk where the instructor can easily access the system.

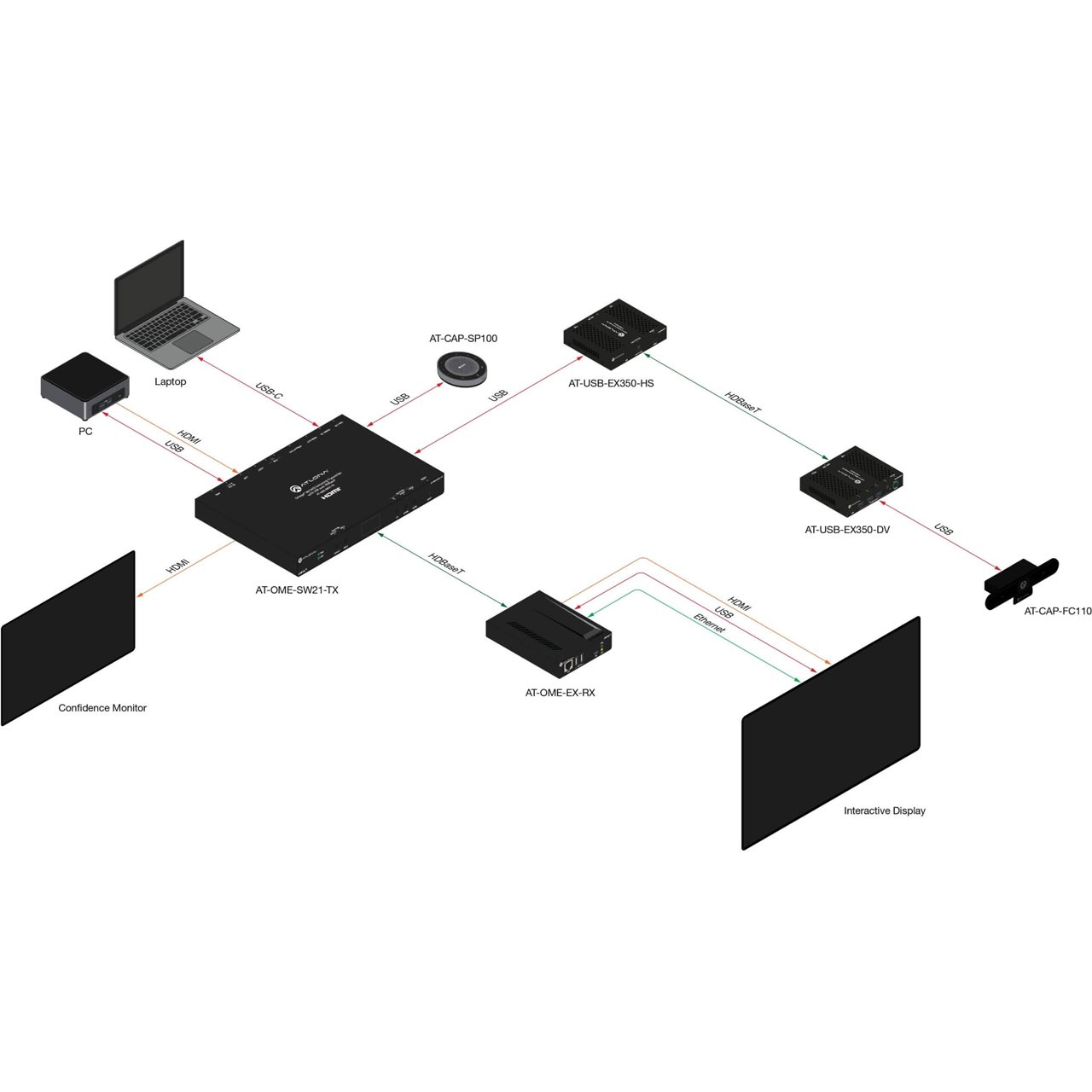

• Larger Classrooms - With the optional power supply, the OME-SW21-TX can serve an HDBaseT-equipped projector. The local HDMI output is available for a confidence monitor at the lectern.
• Meeting Spaces - The OME-SW21-TX can be installed below a meeting table, connected over HDBaseT to an OME-MS42-HDBT in a credenza or equipment rack, with another HDBaseT connection to an OME-EX-RX behind a display (or above a projector).
• Large Meeting Rooms - This switcher can be installed with the OME-MS42-HDBT to provide USB-C and HDMI input connectivity at both ends of a long conference table.
