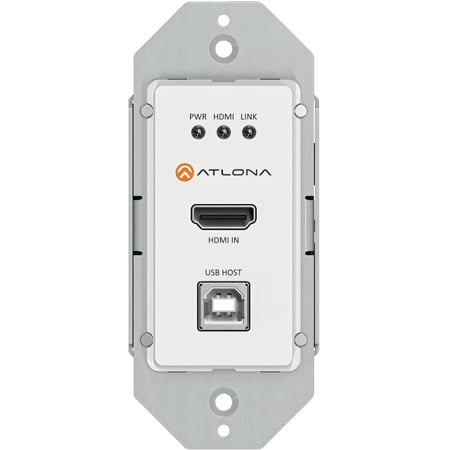

Atlona AT-DSCV-E1111-WP Discovery HDBT 4K Wall Plate Transmitter with USB 2.0 Pass-Through - Transmits 4K up to 131 Feet

AT-DSCV-E1111-WP - Overview

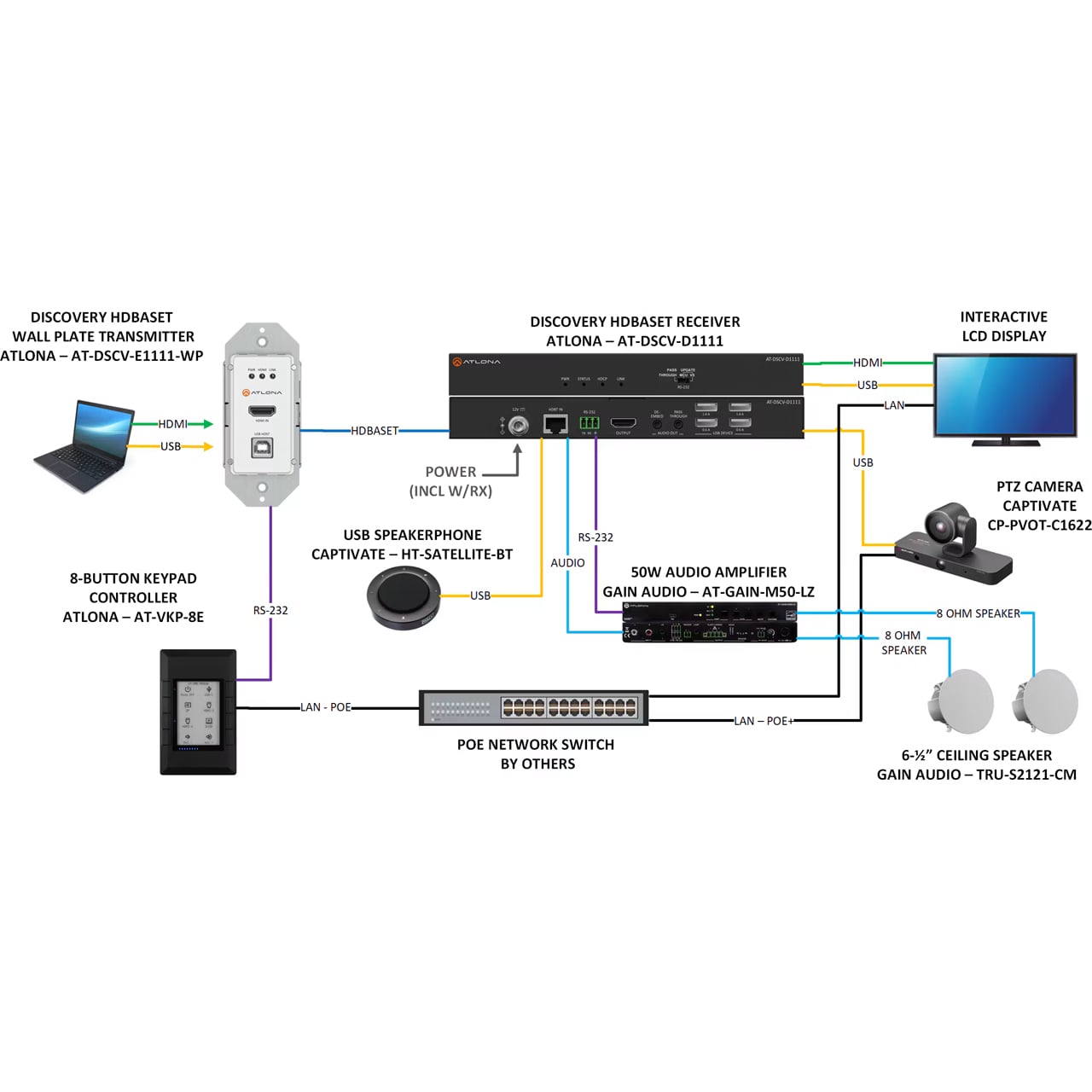

Easily integrates with Zoom, Teams, Skype, WebEx, and more!

• Features:

  • Cost-Effective 4K extension with flexible USB capabilities for software video conferencing and audio extraction
  • Can transmit 4K signal up to 115ft (35m) via a single Cat 5e/6 cable and up to 131ft (40m) via a single Cat 6a/7 cable
  • Audio extraction at the receiver to engage with a complete room audio system
  • The transmitter also features USB pass-through and RS232 pass-through over HDBT
  • High-speed USB 2.0 over HDBT with the maximum bandwidth is 127Mbps
  • Provide 4x USB 2.0 device ports on the receiver, of which 2 high-current ports (1.4A) for connecting high-power devices such as camera
  • HDMI 1.4 with 4K@60Hz 4:2:0 8bit and HDCP 2.2 compatibility
  • Supports signal transmission up to 115ft (35m) for 4K and 197ft (60m) for 1080P via a single Cat 5e/6 cable
  • Supports signal transmission up to 131ft (40m) for 4K and 230ft (70m) for 1080P via a single Cat 6a/7 cable
  • Supports one-way PoH, the transmitter can be powered by the receiver with PSE module
  • Supports USB pass-through and RS232 pass- through via HDBT port
  • Supports firmware upgrade through RS232 port and can be set through the DIP switch


• Specifications:

  Technical

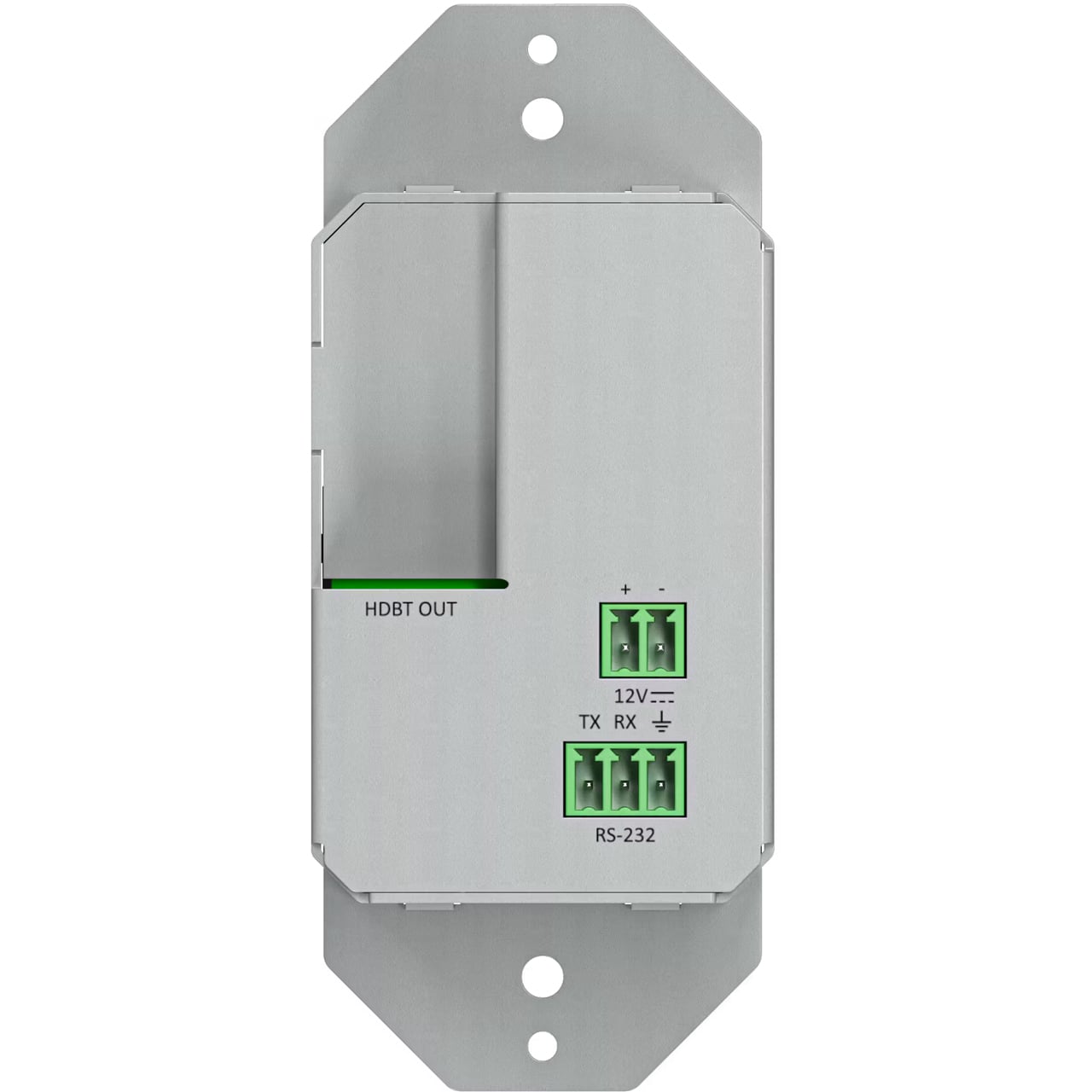

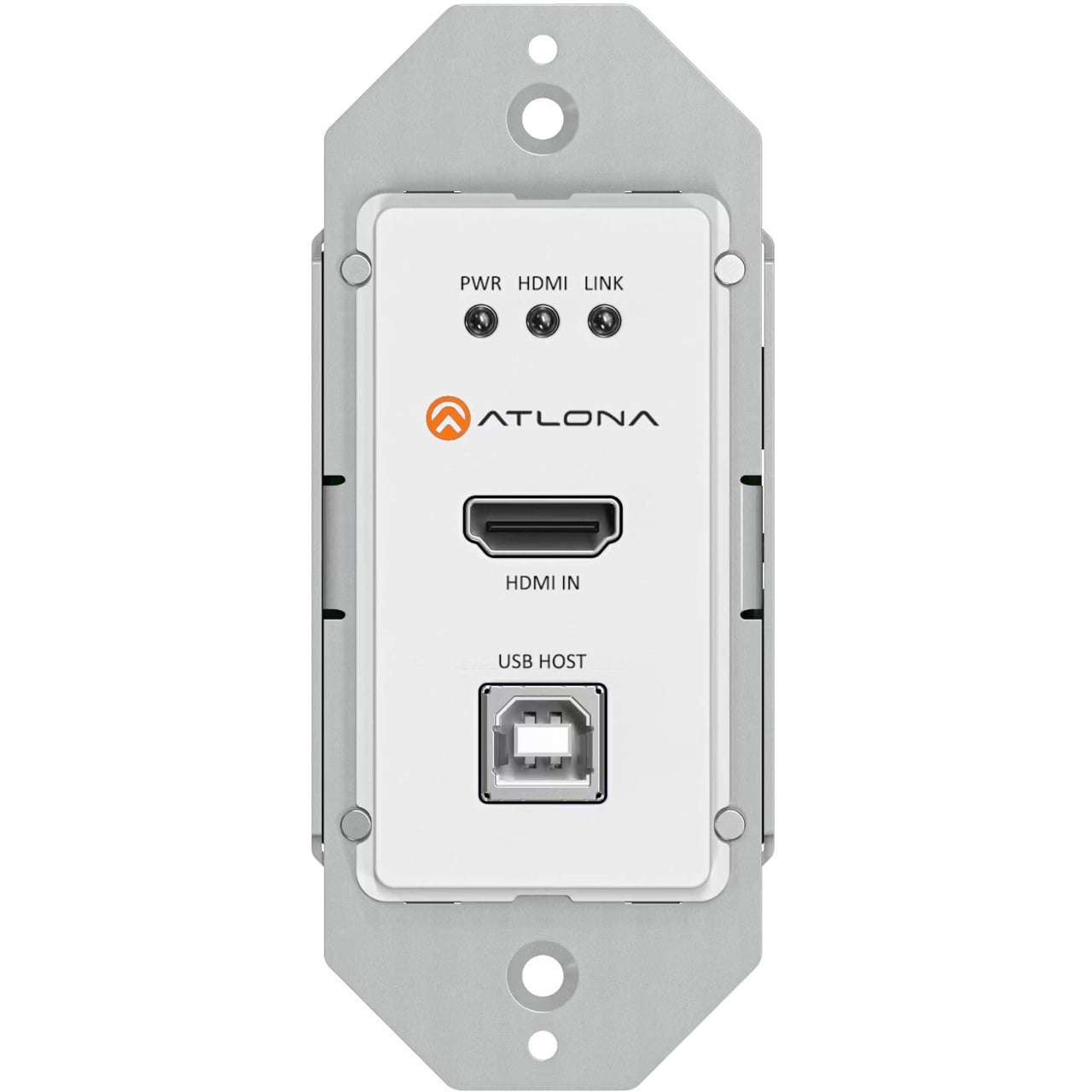

  • Input/Output Port: 1x HDMI IN, 1x HDBT OUT, 1x RS232, 1x USB HOST, 1x DIP Switch, 1x DC 12V IN (2-Pin Phoenix Connector)
  • Input/Output Resolution Supported:
    - VESA: 800x600, 1024x768, 1280x768, 1280x800, 1360x768, 1366x768, 1440x900, 1600x900, 1600x1200, 1680x1050, 1920x1200
    - SMPTE: 1280x720P, 1920x1080I, 1920x1080P, 3840x2160, 4096x2160
    - 1 = at 23.98Hz, 2 = at 24Hz, 3 = at 25Hz, 4 = at 29.97Hz, 5 = at 30Hz, 6 = at 50Hz, 7 = at 59.94Hz, 8 = at 60Hz
    NOTE: 4096x2160/3840x2160@50Hz/60Hz is based on chroma subsampling 4:2:0 8-bit only.
  • Maximum Data Rate: 10.2Gbps
  • Maximum Pixel Clock: 340MHz
  • Input/Output Audio Formats Supported:
    - HDMI OUT: Supports multi-channel audio formats, including PCM 2.0/5.1/7.1, Dolby TrueHD, Dolby Atmos, DTS-HD Master Audio and DTS:X
    - AUDIO OUT: Stereo

    General
  • Operating Temperature: 32°F - 113°F (0°C - 45°C)
  • Storage Temperature: -4°F - 158°F (-20°C - 70°C)
  • Humidity: 10% - 90%, non-condensing
  • ESD Protection (Human Body Model):
    - ±8kV (Air-gap discharge)
    - ±4kV (Contact discharge)
  • Power Supply: DC 12V 2A, with PoH function, the transmitter can be powered by the receiver with PSE module
  • Power Consumption (Max): 13.44W
  • Device Dimension (WxHxD): 1.77" x 1.78" x 4.16" (45mm x 45.3mm x 105.6mm)
  • Product Weight: 0.35lbs (0.16kg)


• Item Includes:

  • 1x Wallplate Transmitter
  • 1x Phoenix Connector (3.5mm, 2 Pins)
  • 1x Phoenix Connector (3.5mm, 3 Pins)
  • 1x 1-Gang US Socket Cover, White (with Screws)
  • 1x User Manual


• Warranty:

  • 3 Year Warranty
