Atlona HW-LUMA-E4211 LumaStream H.264/H.265 Networked HDMI Encoder with Dante LAN Port

Name: Atlona HW-LUMA-E4211 LumaStream H.264/H.265 Networked HDMI Encoder with Dante LAN Port
Brand: Atlona Technologies
SKU: ATNO-HWLUMAE4211
Price: 700.00 USD
Availability: Backorder

ITEM #: ATNO-HWLUMAE4211 MFG #: HW-LUMA-E4211

Atlona Technologies

Our Price:

$700.00

Add to Wish List Leasing Options

Availability: Usually Ships in 5-14 Days.
Please Email, Chat or Call (800) 522-2025 for Detailed Delivery Info

Notify when in stock

Report Lower Price Large Quantity Quote

Required Accessories

Recommended Accessories

HW-LUMA-E4211 - Overview

Designed for High-performance Distribution of Video, Audio, and Control over Data Networks, with Emphasis on Bandwidth Efficiency and Scalability

The Atlona HW-LUMA-E4211 is a networked H.264 and H.265 AV encoder for HDMI sources. H.265 (HEVC) encoding is ideal for multicast video distribution to HW-LUMA-D4111 decoders, while H.264 encoding is ideal for internet streaming via RTMP. Accepts HDMI input up to 4K/60 4:4:4; encodes up to 4K/60 4:4:4. Features MJPEG streaming, snapshot capture, Dante audio encoding, video deinterlacing, audio de-embedding, automated multicast configuration, and image/text overlay.

Applications:
• Digital Signage: Retail, hospitality, hotels, sporting venues, casinos, convention centers, and menu boards.
• Bars, Restaurants & Venues: Streaming television and informational content to displays and video walls.
• Educational Institutions: K-12 school video and audio announcements to classrooms and common areas.
• Livestreaming: H.264 RTMP streaming to YouTube, Facebook, and compatible online services.

Features:
- H.264 and H.265 (HEVC) encoder for HDMI sources with HDCP 2.2/1.4 compliance
- Accepts HDMI source input up to 4K/60 4:4:4; encodes up to 4K/60 4:4:4
- H.265 encoding enables up to 50 simultaneous 4K streams over a Gigabit Ethernet link
- HDMI loop-through output ideal for local display or AV switcher connection
- Supports RTMP (Real-Time Messaging Protocol) streaming to YouTube, Facebook, and Wowza
- Simplified multicast configuration with pre-assigned multicast IP addresses
- MJPEG sub-stream preview up to 854x480 @30 fps at 2048 kbps
- Logo overlay, full-screen backup image, and scrolling text overlay
- Simultaneous LumaStream and Dante audio streaming from main or Dante LAN port
- Balanced analog audio input and output (5-pin captive screw, ±20dBu)
- PoE+ (IEEE 802.3at) powered - no local power supply required.
- AES-128 encrypted content distribution with IEEE 802.1X network authentication
- Front panel LCD display and four-button navigation menu
- Intuitive web-based GUI; TCP/IP control with open JSON API
- Velocity™ Device Manager integration; field-updatable firmware
- Compact fanless enclosure with optional rack mounting
Specifications:
- Signal Input: HDMI
- Signal Output: HDMI (loop-through), Network (encoded)
- Copy Protection: HDCP 1.4/2.2
- Pixel Clock: 600MHz
- Input Resolutions UHD/HD:
  - 4096x2160 @ 30/29.97/25/24/23.98Hz
  - 3840x2160 @ 60/59.94/50/30/29.97/25/24/23.98Hz
  - 1920x1080p @ 60/59.94/50/30/29.97/25/24/23.98Hz
  - 1920x1080i @ 60/59.94/50Hz
  - 1280x720p @ 60/59.94/50Hz
- SD Input Resolutions: 720x576p/i @ 50Hz; 720x480p/i @ 59.96Hz
- VESA Input Resolutions: 2560x1600, 1920x1200, 1600x1200, 1440x900, 1280x1024, 1280x800, 1024x768, 800x600, 640x480
- Chroma Subsampling: 4:4:4, 4:2:2, 4:2:0

  Encoding
- Video Compression: H.265, H.264 (main stream); MJPEG up to 854x480 @30fps (preview stream)
- Encoded Chroma: 4:2:0
- Bit Rate: 128kbps - 60Mbps (main); 128kbps - 2048kbps (preview)
- Downscale Options: 1920x1080, 1280x720, 854x480, 640x360
- Max Latency: 150 ms end-to-end

  Audio
- Input: HDMI, Balanced Analog (5-pin captive screw)
- Output: HDMI, Balanced Analog (5-pin captive screw), Network
- HDMI Format: LPCM 2.0 up to 16-bit, 32/44.1/48kHz
- Analog: +20dBu max.
- Analog Level: 20Hz - 20kHz ±0.5dB
- Analog THD+N: < 0.025% (20Hz - 20kHz)
- Network Audio: 2-channel LPCM or AAC, 8kbps - 240kbps
- Dante Audio: 2-channel on main LAN or Dante LAN port

  Network
- Port: 2x RJ45, 10/100/1000Mbps
- Streaming Protocols: RTP, RTSP, RTMP
- Addressing: DHCP, Static
- Encryption: AES-128
- Management: HTTP, HTTPS, SSH, Telnet, WebSocket, LLDP
- Authentication: IEEE 802.1X (PEAP-MSCHAPv2, EAP-TLS)
- IP Multicast: IGMPv3

  Control
- RS-232/IR Port: 1x 4-pin captive screw
- Baud Rates: 9600, 19200, 38400, 57600, 115200
- IR Protocols: Pronto, Global Cache

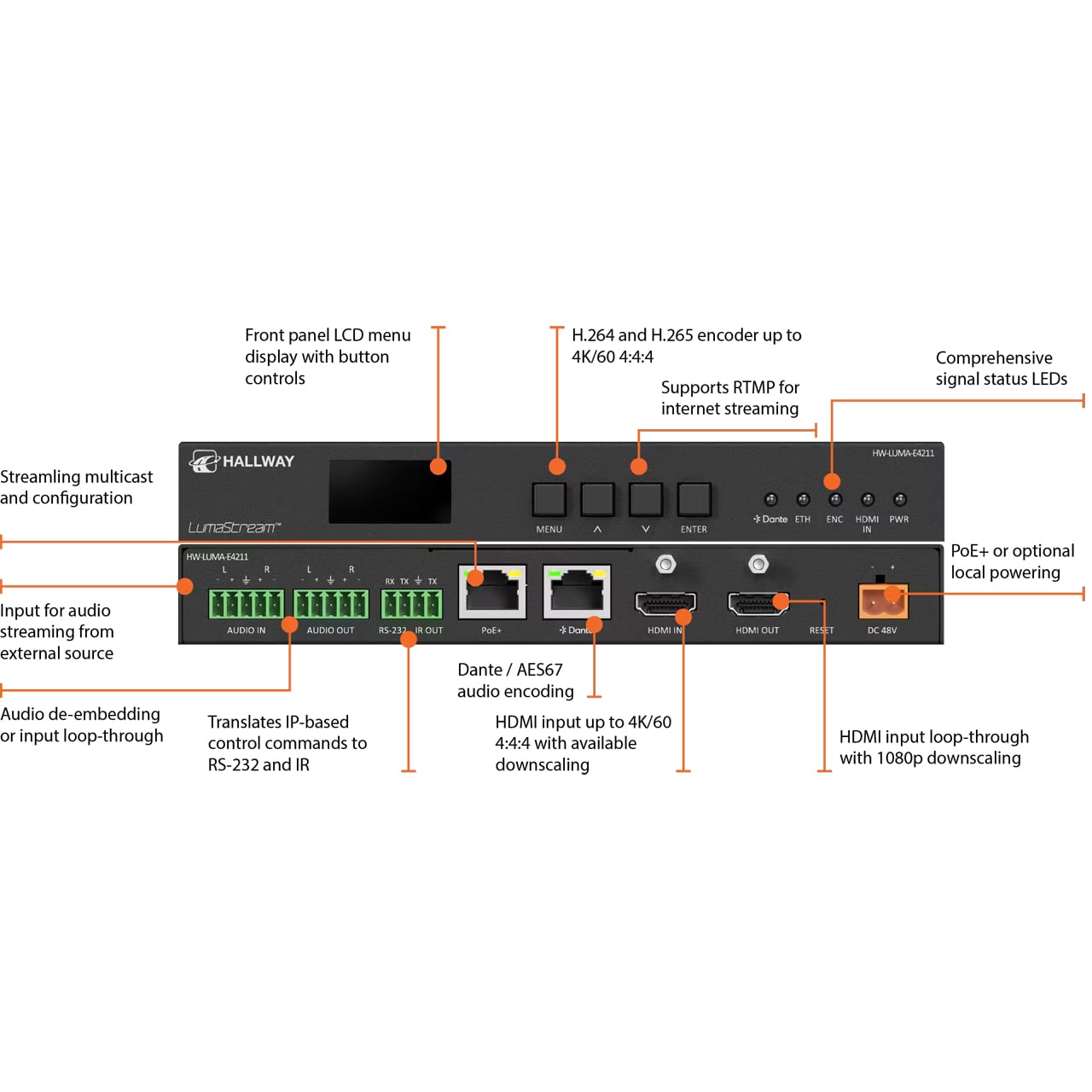

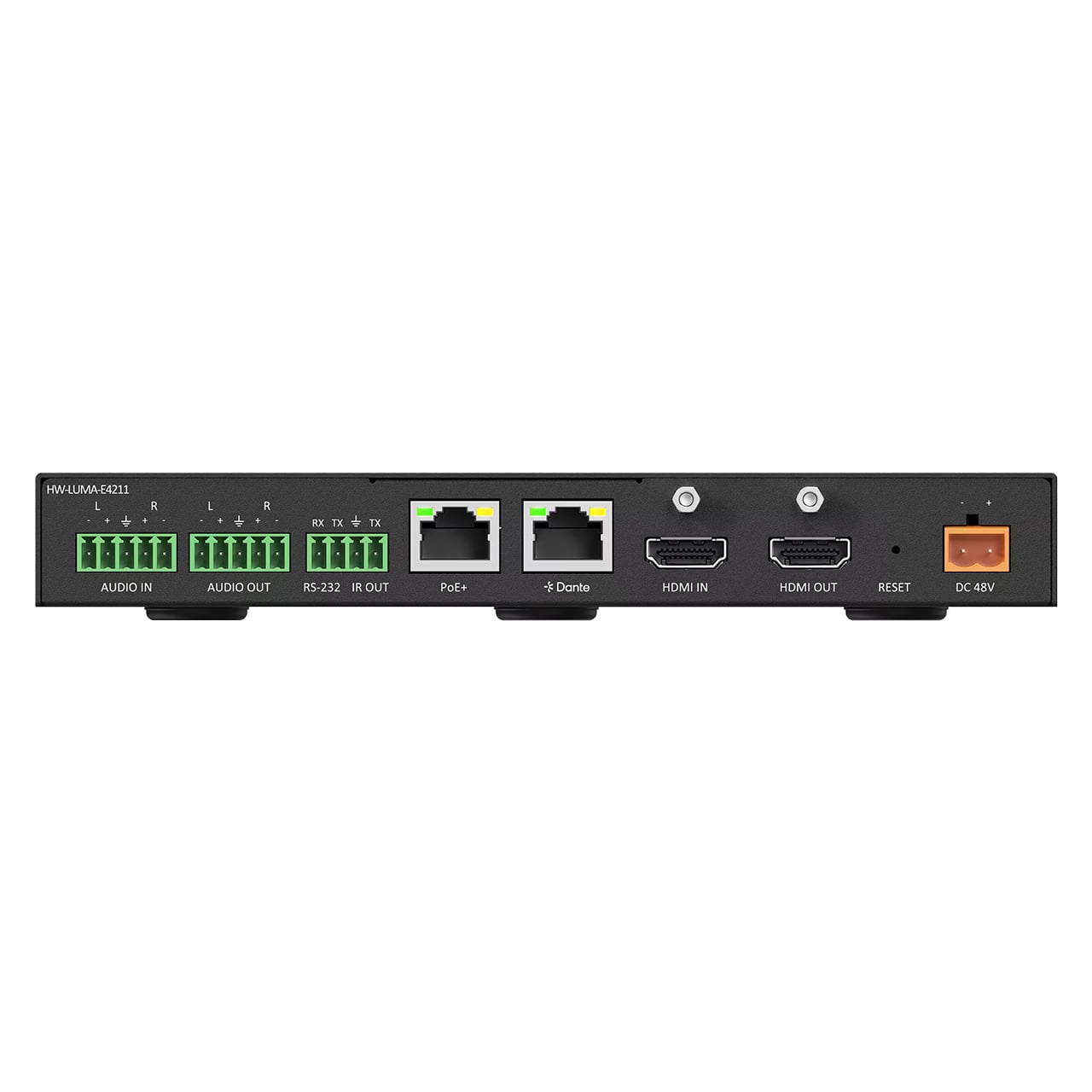

  Connectors
- HDMI In: 1x Type A, 19-pin female
- HDMI Out: 1x Type A, 19-pin female (loop-through)
- Dante LAN: 1x RJ45
- LAN (PoE+/AV): 1x RJ45
- RS-232/IR: 1x 4-pin captive screw
- Audio IN: 1x 5-pin captive screw
- Audio Out: 1x 5-pin captive screw
- DC 48V: 1x 2-pin captive screw

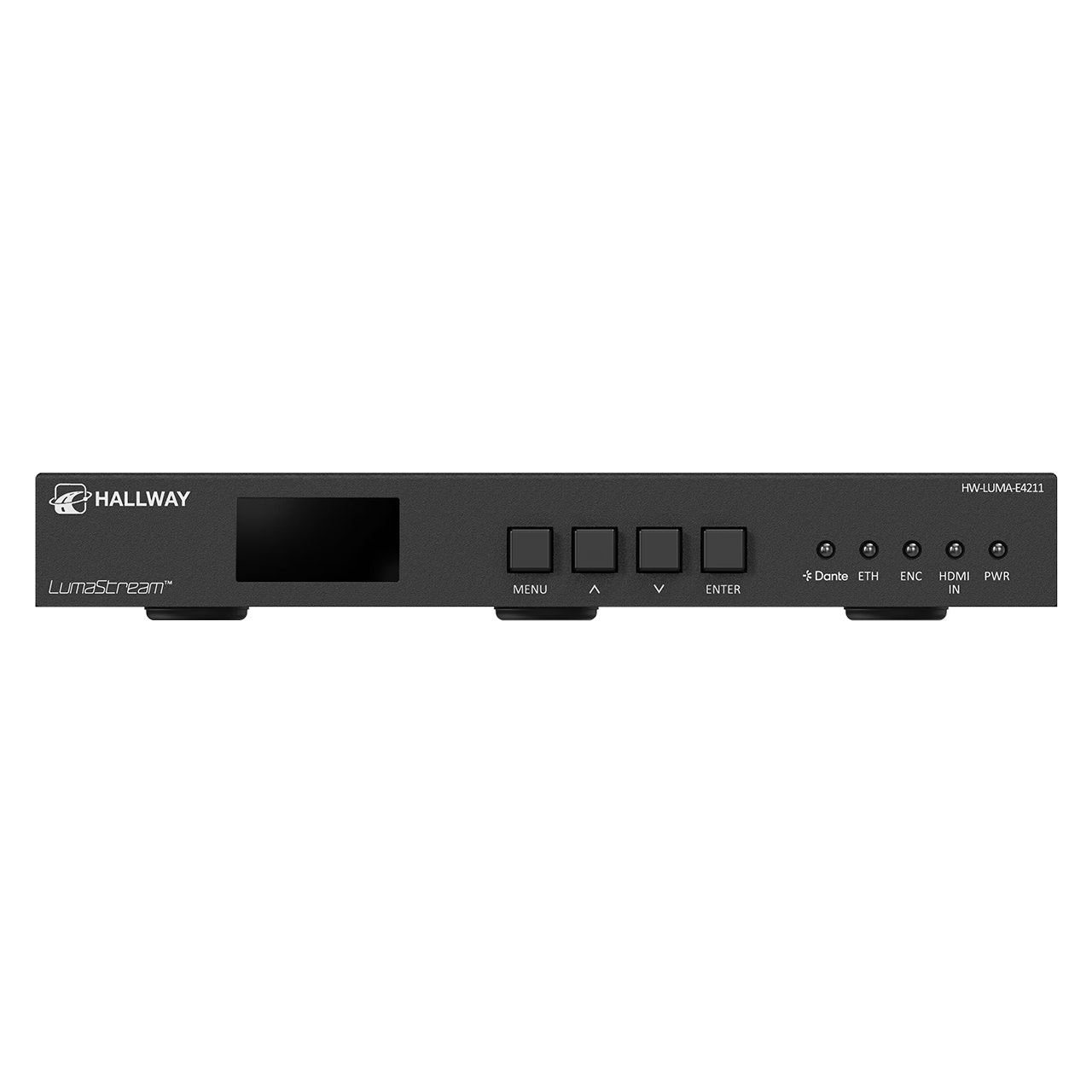

  Indicators & Controls
- Buttons: Menu, Up, Down, Enter - 4x momentary, tact-type
- LEDs: PWR, HDMI In, ENC, ETH, Dante - 5x red/green
- Display: OLED, 128x64 matrix

  Power
- PoE+: IEEE 802.3at
- Consumption: Up to 13.5W
- External Power Supply: AT-PS-48083-C (optional, sold separately, 48V DC)

  Mechanical
- Operating Temperature: 32°F - 104°F (0°C - 40°C)
- Storage Temperature: -4°F - 140°F (-20°C - 60°C)
- Operating Humidity: 20% - 90%, non-condensing
- Dimensions (LxWxH): 7.09" x 7.48" x .98" (180mm x 190mm x 24.8mm)
- Weight: 1.98lbs
- Certifications: CE, FCC
- NDAA-889 Compliance: Yes
Warranty:
- 2 Year Limited Warranty
GTIN:
0084635200892
