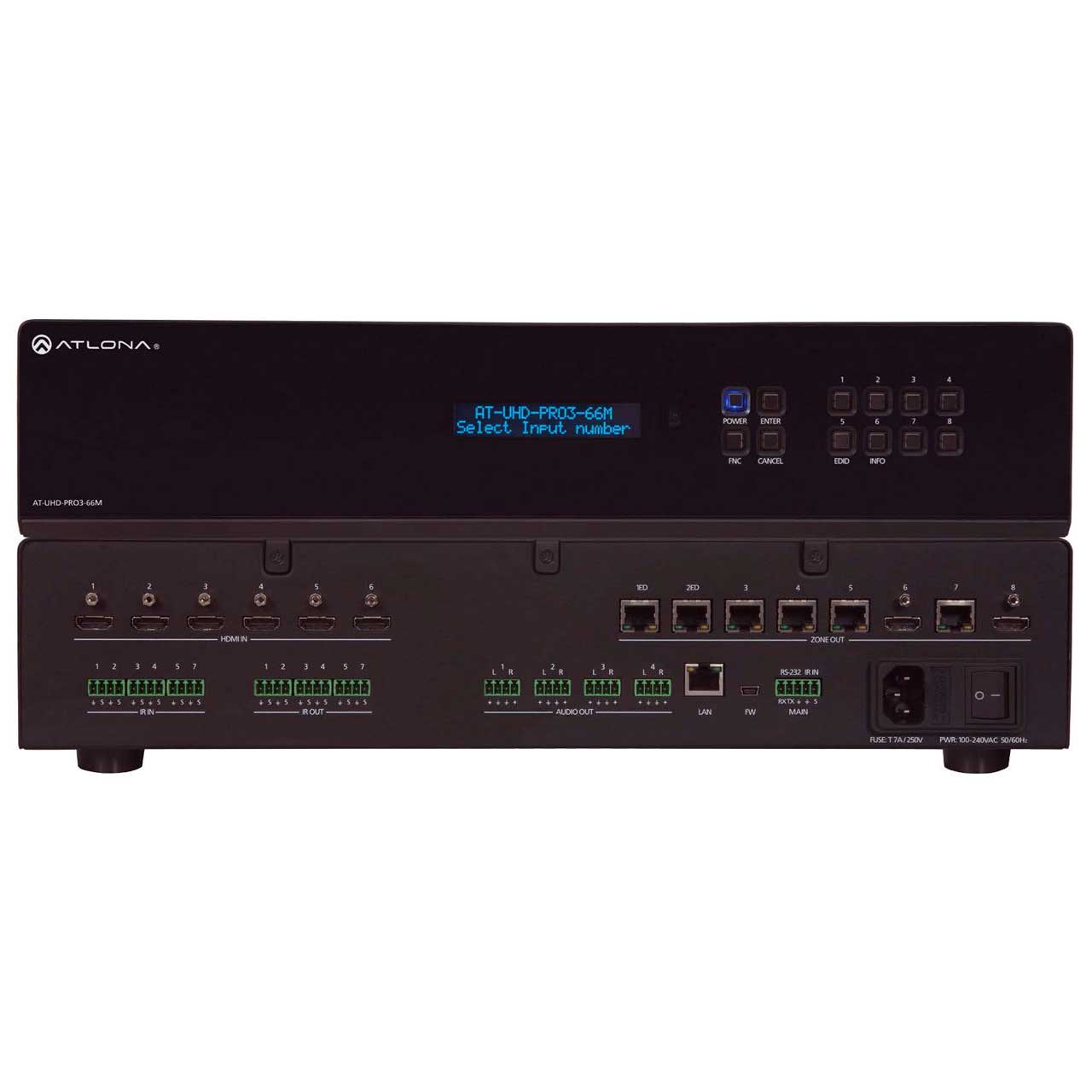

Atlona AT-UHD-PRO3-66M 4K/UHD Dual-Distance 6x6 HDMI to HDBaseT Matrix Switcher with PoE

ITEM #: ATNO-UHDPRO366M MFG #: AT-UHD-PRO3-66M

Primary Image
  • Product Image Thumbnail 1 of 2
  • Product Image Thumbnail 2 of 2
Free Shipping with $49 Minimum Order

Our Price:

$5,500.00

Special Price:

$3,506.25

Availability: In Stock
iAvailability Description Popup


    AT-UHD-PRO3-66M - Overview

    The Atlona AT-UHD-PRO3-66M is a dual-distance 6x6 HDMI to HDBaseT matrix switcher for 4K/UHD @ 60 Hz video signals with Power over Ethernet for receivers and analog audio breakout. The matrix provides flexible HDBaseT routing with both extended distance, 330 foot (100 meter) and long distance, 230 foot (70 meter) transmission over category cable with bidirectional extension of both RS- 232 and IR Control. Two HDMI outputs are provided as mirrored outputs designed for routing HDMI-based audio to an AVR or as additional matrix outputs. The matrix switcher is HDCP 2.2 compliant and supports EDID communication. The matrix is control system-friendly and integrates with any TCP/IP, RS-232, or IR based control signals. Designed for multi-zone residential or commercial distribution applications, the PRO3-66M features a 2U, rack-mountable enclosure with internal, international power supply.

    Advanced AV Signal Distribution
    The matrix switcher features advanced capabilities for AV signal distribution and a host of integrator-friendly features. The switcher supports 4K/UHD @ 60 Hz, 4:2:0, 8-bit video signals; offers 3D pass-through and meets HDCP 2.2 copy protection standards. Remote power for compatible Atlona UHD-EX Series HDBaseT receivers is provided using industry standard IEEE 802.3af PoE supplied by the switcher over HDBaseT links. Professional audio capabilities include analog audio de-embedding with volume, mute, and five-band EQ on captive screw connectors tied to the first four HDBaseT outputs. The matrix supports digital audio signals up to 192 kHz/24-bits. Flexible control capability is provided by the supplied IR remote, front panel control, GUI-based integrated web server as well as compatibility with TCP/IP, RS-232, or IR-based control system. The PRO3-66M also features a 2U enclosure with ultra-quiet active cooling and an internal, international power supply.

    (Note: The PRO3-66M de-embeds HDMI two-channel PCM audio. For extracting and downmixing Dolbyr and DTSr audio, Atlona recommends the AT-HDR-M2C or AT-HDR-M2C-QUAD audio converters.)

    Applications:

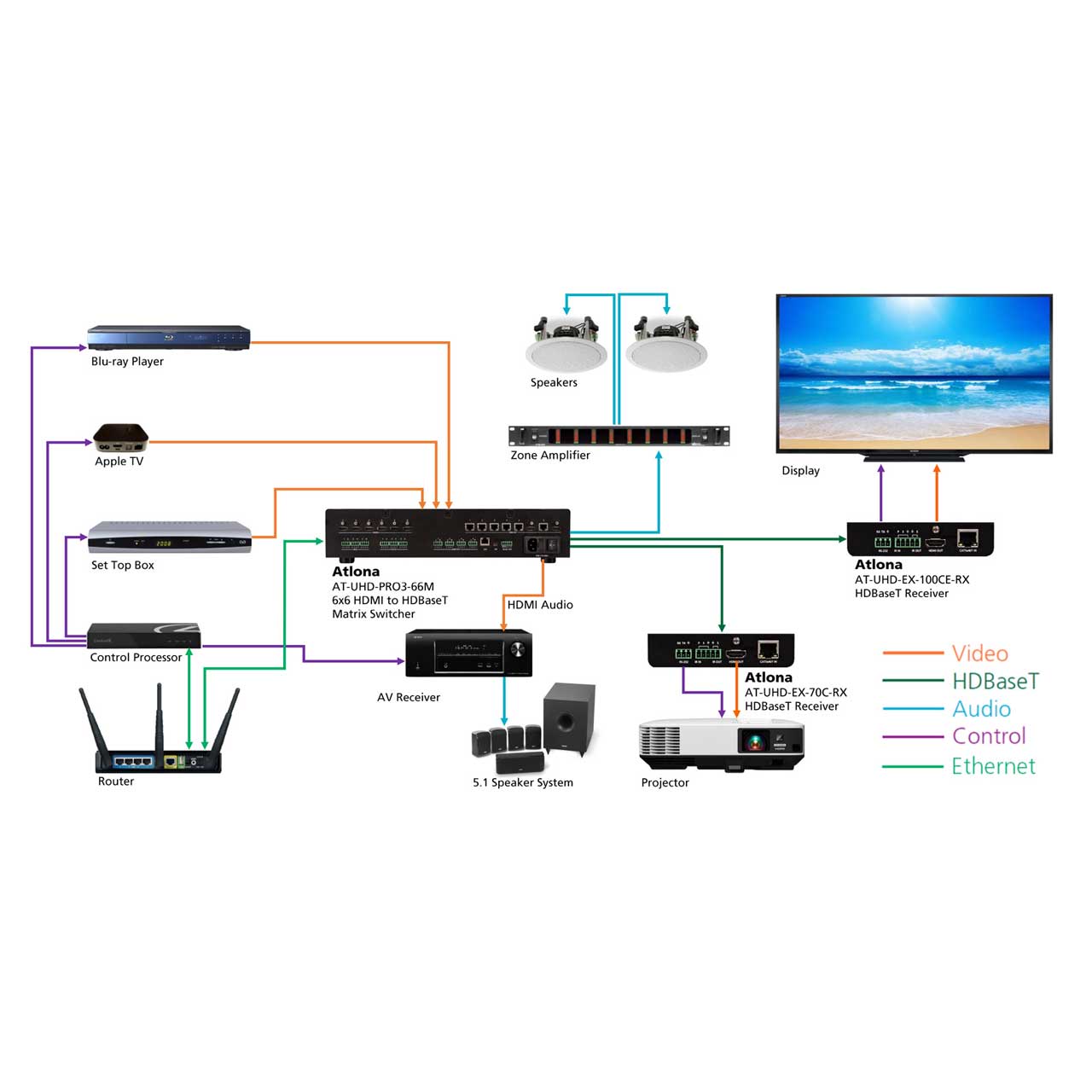

  • Multi-zone applications to distribute multiple AV signals along with control signals - A mix of 330 foot (100 meter) and 230 foot (70 meter) HDBaseT outputs meets a variety of distribution distances and needs throughout a residence. (See this featured application as an example.)
  • Home AV systems with separate distributed audio systems - Unbalanced audio outputs on captive screw connectors simplify connection to multi-channel amplifiers for zoned audio where level, mute, and a five-band graphic EQ can be applied in the matrix switcher for each zone. (See this featured application as an example.)
    • Features:

      • Six HDMI® inputs
      • Six HDBaseTTM outputs with 330 foot (100 meter) and 230 foot (70 meter) transmission of HDMI, power, and control
      • Two HDMI outputs with independently selectable mirror and matrix modes
      • 4K/UHD capability @ 60 Hz with 4:2:0 chroma subsampling
      • HDCP 2.2 compliant
      • Audio de-embedding with volume, mute, and five-band EQ
      • PoE (Power over Ethernet) source - remotely powers compatible HDBaseT endpoints
      • TCP/IP, RS-232, and IR control

    • Specifications:

      • Resolution
      • Video: 4096x2160@24/25/30/50*/60Hz*, 3840x2160@24/25/30/50*/60Hz*, 2048x1080p, [email protected]/24/25/29.97/30/50/59.94/60Hz, 1080i@50/59.94/60Hz, 720p@50/59.94/60Hz, 576p, 576i, 480p, 480i
      • VESA: 2560x2048, 2560x1600, 2048x1536, 1920x1225, 1680x1050, 1600x1225, 1600x900, 1440x900, 1400x1050, 1366x768, 1360x768, 1280x1024, 1280x800 1280x768, 1152x768, 1024x768, 800x600, 640x480
      • Colorspace: YUV, RGB
      • Chroma Subsampling: 4:4:4, 4:2:2, 4:2:0
      • Color Depth: 8-bit, 10-bit, 12-bit
        * 4096x2160@50/60Hz & 3840x2160@50/60Hz supported @ chroma subsampling 4:2:0 8-bit only

        Audio
      • Analog Output: PCM 2Ch (de-embedded)
      • HDMI IN/OUT: PCM 2Ch, LPCM 5.1, LPCM 7.1, Dolby Digital, DTS 5.1, Dolby Digital+, Dolby TrueHD, DTS-HD Master Audio, Dolby Atmos, DTS:X
      • Sample Rate: 32kHz, 44.1kHz, 48kHz, 88.2kHz, 96kHz, 176.4kHz, 192kHz
      • Bit Rate: Up to 24-bit

        Distance
      • Ports 1-2: CAT5e/6 @ 4K: Up to 70 meters (230 feet)
      • Ports 1-2: CAT6a/7 @ 4K: Up to 100 meters (328 feet)
      • Ports 1-2: CAT5e/6 @ 1080p: Up to 100 meters (328 feet)
      • Ports 3-5,7: CAT5e/6 @ 4K: Up to 35 meters (115 feet)
      • Ports 3-5,7: CAT6a/7 @ 4K: Up to 40 meters (130 feet)
      • Ports 3-5,7: CAT5e/6 @ 1080p: Up to 60 meters (197 feet)
      • Ports 3-5,7: CAT6a/7 @ 1080p: Up to 70 meters (230 feet)
      • HDMI IN/OUT @ 4K: Up to 5 meters (15 feet)
      • HDMI IN/OUT @ 1080p: Up to 10 meters (30 feet)

        Signal
      • Bandwidth: 10.2 Gbps
      • CEC: No
      • HDCP: Supports up to 2.2

        Connector
      • Firmware: LAN Port
      • HDBaseT: RJ45 (8P8C)
      • HDMI: Type A
      • Audio: 4-pin captive screw
      • LAN: RJ45 (8P8C), TCP/IP control
      • IR: 2-pin captive screw
      • RS-232: 3-pin captive screw
      • Power: Internal, AC100-240V 50/60Hz

        Temperature
      • Operating: 32°F to 104°F (0°C to 40°C)
      • Storage: -40°F to 158°F (-40°C to 70°C)
      • Humidity: 20 to 90% non-condensing

        Power
      • Consumption: 110W
      • Idle Consumption: 75W
      • Supply: AC100~240V 50/60Hz

        Dimension
      • H x W x D w/feet: 99.02 x 439.74 x 301.63 (mm): 3.90 x 17.31 x 11.88 (inch)
      • H x W x D w/rack ears: 88.63 x 482.60 x 301.63 (mm): 3.49 x 19.00 x 11.88 (inch)

        Weight
      • Unit: 11.4lbs (5.18kg)

        Certification
      • Unit: CE, FCC, RoHS, RCM, TUV

    • Item Includes:

      • 1x AT-UHD-PRO3-66M
      • 14x 4-pin captive screw connectors
      • 1x 5-pin captive screw connector
      • 1x IR remote control
      • 1x IEC power cable
      • 2x 19" mounting brackets
      • 1x Installation Guide

    • Warranty:

      • 10 Years

    • GTIN:

      0846352004576
