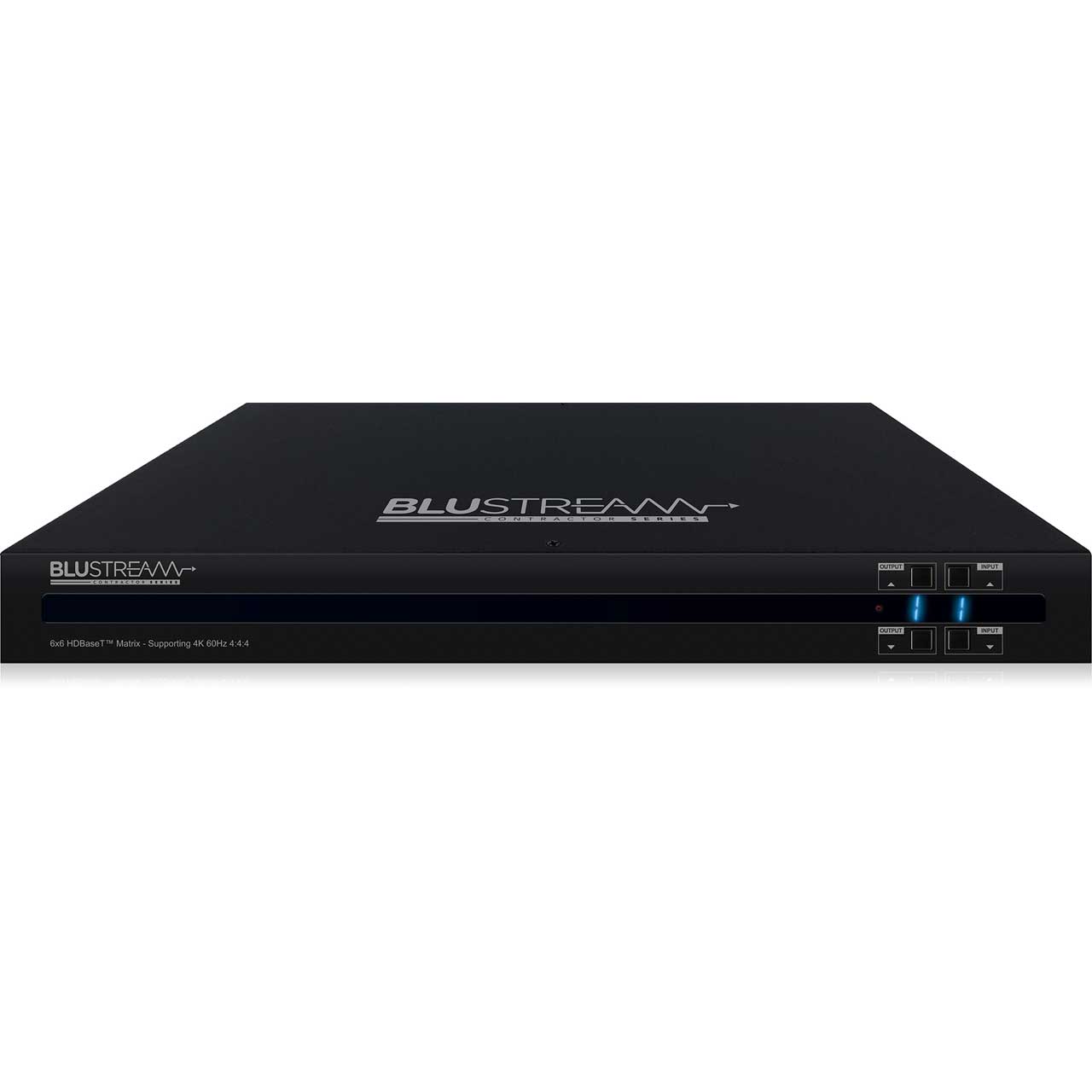

Blustream C66CS Contractor 6x6 HDBaseT 18G Matrix - 70m (4K 40m)

C66CS - Overview

• Features:

  • Advanced HDBaseT™ technology offering distribution of video and audio over a single CAT cable
  • Advanced Colour Space Conversion (CSC) supports HDMI 2.0 18Gbps specification including HDR*
  • Features 6 x HDMI inputs which can be independently routed to 6 x HDBaseT™ outputs
  • Output 1 features simultaneous HDMI and HDBaseT™ output
  • Video down-conversion on HDBaseT™ outputs allowing a display only capable of supporting lower video resolutions (4K 60Hz 4:2:0 or 1080p) to receive 4K 60Hz 4:4:4 video content while still showing maximum original 4K UHD resolution on remaining video outputs
  • Supports 4K 60Hz 4:4:4 UHD video up to 40m
  • Extends HDMI 1080p video up to 70m
  • Supports all industry standard video resolutions including VGA-WUXGA and 480i-4K
  • Supports all known HDMI audio formats including Dolby TrueHD, Dolby Atmos, Dolby Digital Plus and DTS-HD Master Audio transmission
  • Web interface module for control and configuration of matrix
  • Supports bi-directional IR on all HDBaseT™ outputs
  • Control via front panel, IR, RS-232 and TCP/IP
  • Supports PoC (Power over Cable) to power compatible HDBaseT™ receivers
  • Supplied with Blustream IR receivers and emitters
  • 3rd Party drivers available for major control brands
  • 1U Design for 19"" rack mount integration - mounting kit included
  • Advanced EDID management
  • HDCP 2.2 compliant
  • *For CSC support use RX70CS receivers


• Specifications:

  • Video Input Connectors: 6 x HDMI Type A, 19-pin, female
  • Video Output Connectors: 1 x HDMI Type A, 19-pin, female, 6 x HDBaseT™ RJ45 connector
  • RS-232 Serial Port: 1 x 3-pin Phoenix connector
  • TCP/IP Control: 1 x RJ45, female
  • IR Input Ports: 7 x 3.5mm stereo jack
  • IR Output Ports: 6 x 3.5mm mono jack
  • Rack Mountable: 1U rack height, rack ears included
  • Case Dimensions (without feet) (W x D x H): 437mm x 377mm x 44mm
  • Dimensions (W x D x H): 437mm x 384mm x 53mm
  • Shipping Weight: 6.25kg
  • Operating Temperature: 32°F to 104°F (-5°C to +55°C)
  • Storage Temperature: -4°F to 140°F (-25°C to +70°C)
  • Power Supply: Internal 100-240V AC


• Item Includes:

  • 1x C66CS
  • 1x Rack Mounting Kit
  • 1x Remote Control
  • 6x IR Emitters
  • 7x IR Receivers
  • 1x RS-232 Control Cable
  • 1x IR Control Cable - 3.5mm-3.5mm Cable
  • 1x Quick Reference Guide
  • 1x Power Cable(s)


• Warranty:

  • 3 Year Warranty


• GTIN:

  9340242003478
