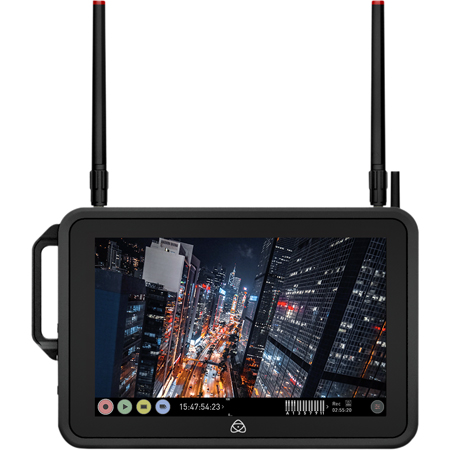

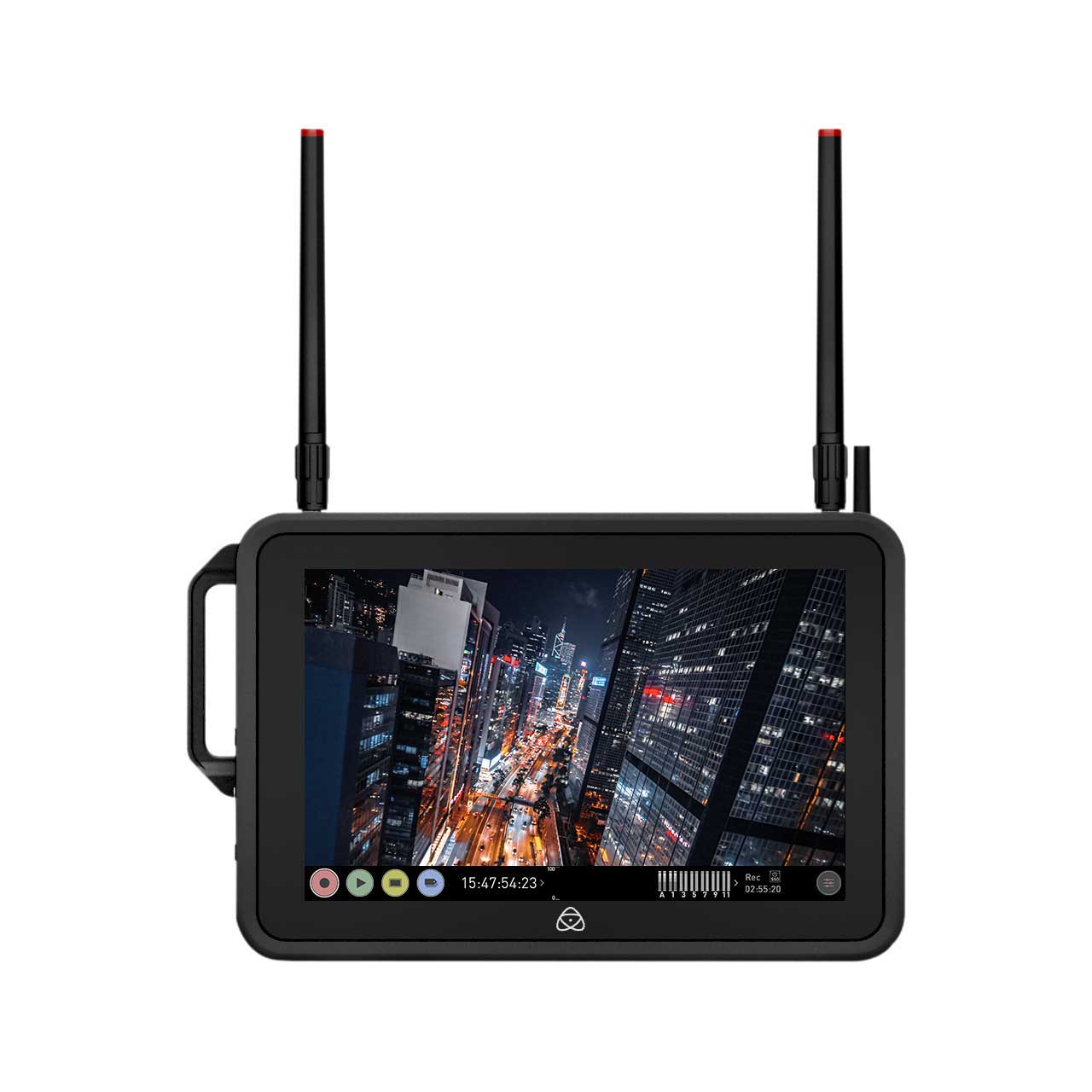

Atomos ATOMSHGCO1 SHOGUN CONNECT 7-Inch Network-Connected HDR Video Monitor & Streaming Recorder 8kp30/4kp120

ATOMSHGCO1 - Overview

• Features:

  • 7" 2000nit monitor with built in video recording via HDMI and SDI up to 4Kp60
  • Capture RAW via HDMI at up to 8Kp30 / 4Kp120 and via SDI at 6Kp60 and 4K120p to Apple ProRes RAW
  • Simultaneous record of Hero ProRes RAW, ProRes or DNxHR/HD with matched H.265 Proxy
  • 12G SDI IN with support for video 4K at up to 60fps, with option for SDI RAW 6Kp30, 4Kp120fps and 2Kp240 (limitations apply with dual record)
  • Long range ATOMOS AirGlu™ sync technology for wireless timecode via RF and Bluetooth LE
  • Wi-Fi 6 provides high performance wireless connection and mobile hotspot support for connection
  • 1GbE Ethernet for high-speed robust hardwired network connection

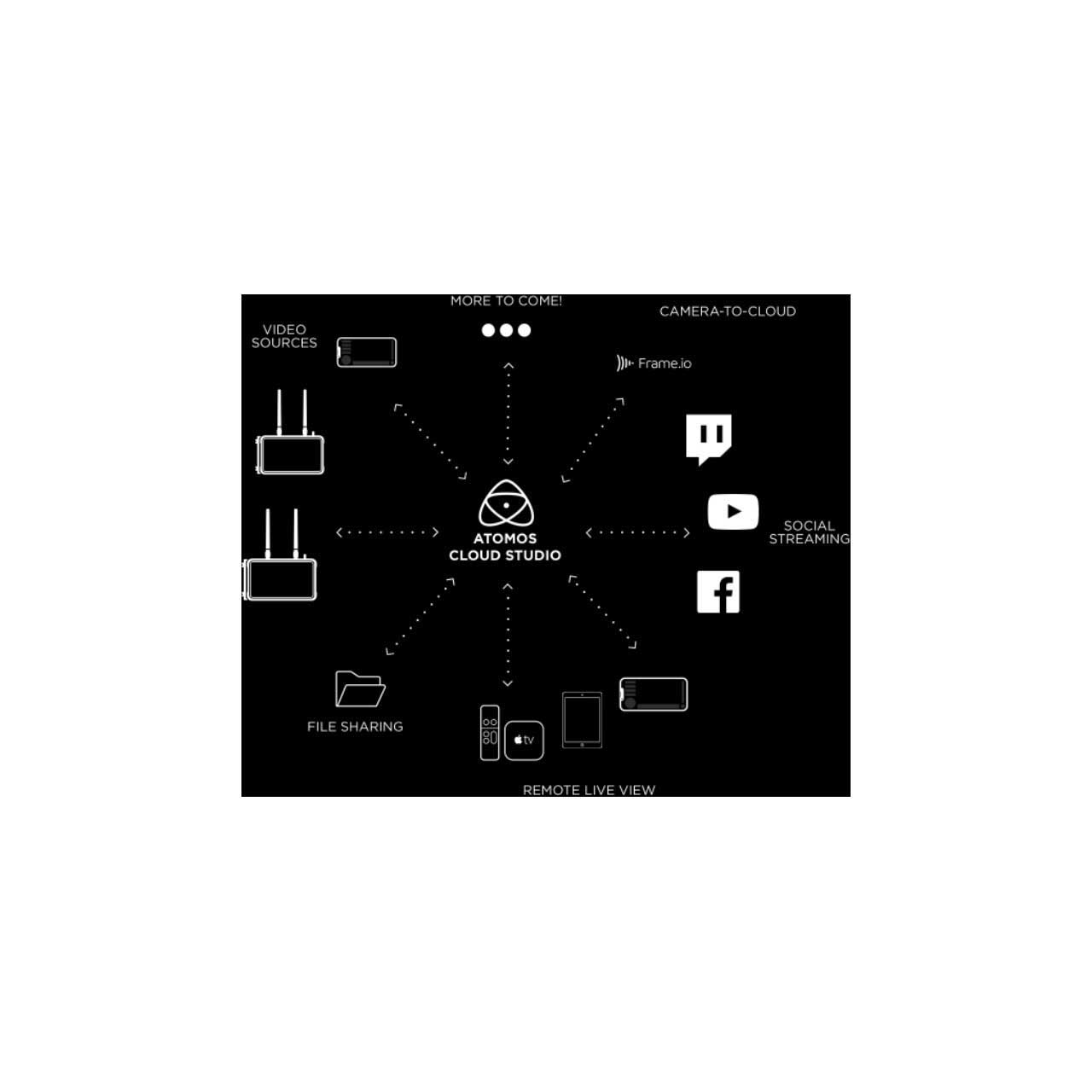

  • CONNECT to ATOMOS Cloud Studio services
  • Livestream to Facebook Live, Twitch, YouTube, and more, directly from your network-connected device
  • Bi-directional HDMI<=>SDI input conversion with simultaneous SDI & HDMI outputs


• Specifications:

  • Physical Specifications
  • Dimensions (WxHxD): 7.8 x 5.2 x 1.57"
  • Weight: 1.6Lbs (excluding batteries)
  • Mount Points: Top: 1 x 1/4"20 or 3/8" with anti rotational points, Bottom: 1 x 1/4"20 or 3/8" with anti rotational points, Right: 1 x 1/4"20 or 3/8" with anti rotational points

    Environmental
  • Operating Temperature: 32° to 104°F

    Construction & Control
  • Body: Aluminum alloy chassis with ABS Polycarbonate back plate
  • Cooling: Actively controlled fan and heat sink
  • Multi-Function Button: Power / lock Screen
  • Tally Light: Yes

    Power
  • Input Voltage: 6.2V to 16.8V
  • Compatible Batteries: 1 x NP-F / L-Series
  • Battery Voltage: 7.2V
  • DC In Connector: Locking DC Jack (5.5mm OD & 2.1mm ID)
  • D-Tap: Via optional D-Tap to DC cable

    Display
  • Touchscreen: SuperAtom IPS panel (capacitive touch)
  • Size: 7"
  • Resolution: 1920 x 1200
  • PPI: 325
  • Bit Depth: 10-Bit (8+2 FRC)
  • Backlight Type: Edge lit
  • Brightness (cdm2 / Nits): 2000nit +/-10%
  • Aspect Ratio: 16:9 Image Display
  • Color Gamut: Rec.709
  • Calibration Support: ATOMOS Calibrator with Calibrite ColorChecker Display Pro or ColorChecker Display Plus

    Color Pipeline
  • Gamma: Sony SLog / SLog2 / SLog3, Canon CLog / CLog2 / Clog3, ARRI Log CEI160 / LogCEI200 / LogCEI250 / LogCEI320 / LogCEI400 / LogCEI500 / LogCEI640 / LogCEI800 / LogCEI1000 / LogCEI1280 / LogCEI1600, Panasonic Vlog, JVC JLog1, RED LogFilm / Log3G10 / Log3G12, FujiFilm Flog, PQ (HDR10), HLG, Nikon N-Log, Z CAM Z-Log2, Olympus OM-Log400 / Flat, Leica L-Log
  • Gamut: BT2020, DCI P3, PDCI P3 65, Sony SGamut / SGamut3 / SGamut3.cine / Canon Cinema / DCI P3 / DCI P3+ / BT2020, Panasonic V Gamut, ARRI Alexa Wide Gamut Rec709, JVC LS300, Red DragonColor / DragonColor2 / RedColor2 / RedColor3 / RedColor4 / RedWideGamut
  • 3D LUT Display: .Cube Format
  • 3D LUT Output: Loop out
  • 3DLUT 50/50: Yes
  • Monitoring Modes: Native / 709 / HLG / PQ / 3D LUT
  • HDR Output Conversion: HLG / PQ

    Color Management
  • Calibration: ATOMOS Calibrator with Calibrite ColorChecker Display Pro or ColorChecker Display Plus
  • Display Controls: Backlight, Lift, Gamma, Gain
  • AtomHDR: Built in Technical Log to HDR EOTF
  • 3D luts: Display, monitor and output, Record, Load via SSD
  • Legalize: Input

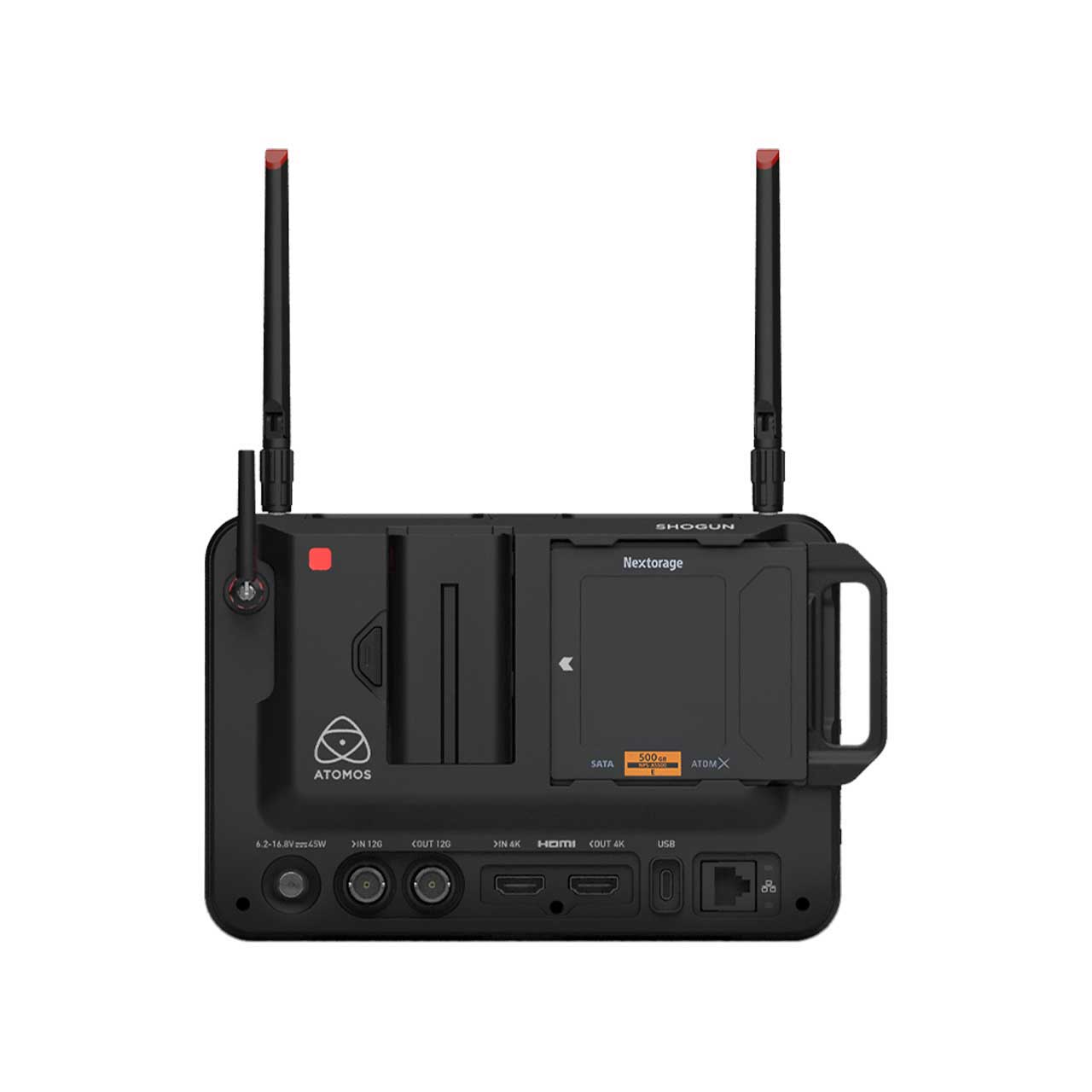

    Video Input
  • HDMI: 1 x HDMI 2.0
  • SDI: 1 x 12G SDI
  • Bit Depth: 8 / 10 bit
  • Video Chroma Subsampling: YCbCr 420 & 422
  • HDR: Yes with HDMI Auto detection

    Video Output
  • HDMI: 1 x HDMI 2.0
  • SDI Loop Out: 1 x 12G SDI
  • HDR: Yes with Auto detection

    Audio In/Out
  • Audio Quality: 24-Bit / 48kHz
  • Audio Codec: PCM
  • HDMI : 8ch 24Bit, input dependent
  • SDI: 12ch 24Bit, input dependent
  • Analogue Audio in: 3.5mm Jack - 5v power
  • Analogue Audio Out: 3.5mm Jack
  • Headphone Out: 3.5mm Jack

    Network
  • Ethernet: 1GbE RJ45
  • Wi-fi: WI-FI 6
  • Wireless RF: AirGlu™ SYNC Time code Network
  • Cellular: Connect to Hot Spot via Wi-Fi

    Supported Applications
  • XML - Cut, Tag & Edit: Final Cut Pro
  • Apple ProRes Raw: Apple Final Cut Pro, Adobe Premiere, Avid Media Composer, Grass Valley Edius, ASSIMILATE SCRATCH
  • Apple ProRes: All Applications with support for Apple ProRes in .MOV wrapper
  • Avid DNx: All Applications with support for Avid DNX in .MOV wrapper


• Item Includes:

  • 1x SHOGUN CONNECT International Power supply
  • 1x 7" protective Pouch
  • 1x AtomX SSDmini Handle
  • 1x MasterCaddy III with screws
  • 1x Wifi Antenna with Black caps
  • 1x RF antenna, Antenna storage Pouch
  • 1x 3.5mm audio jack to jack cable
  • 1x Antenna colored caps
  • 1x Antenna mount covers
  • 1x Screen Cloth


• Warranty:

  • 1 Year Warranty


• GTIN:

  0814164022736
