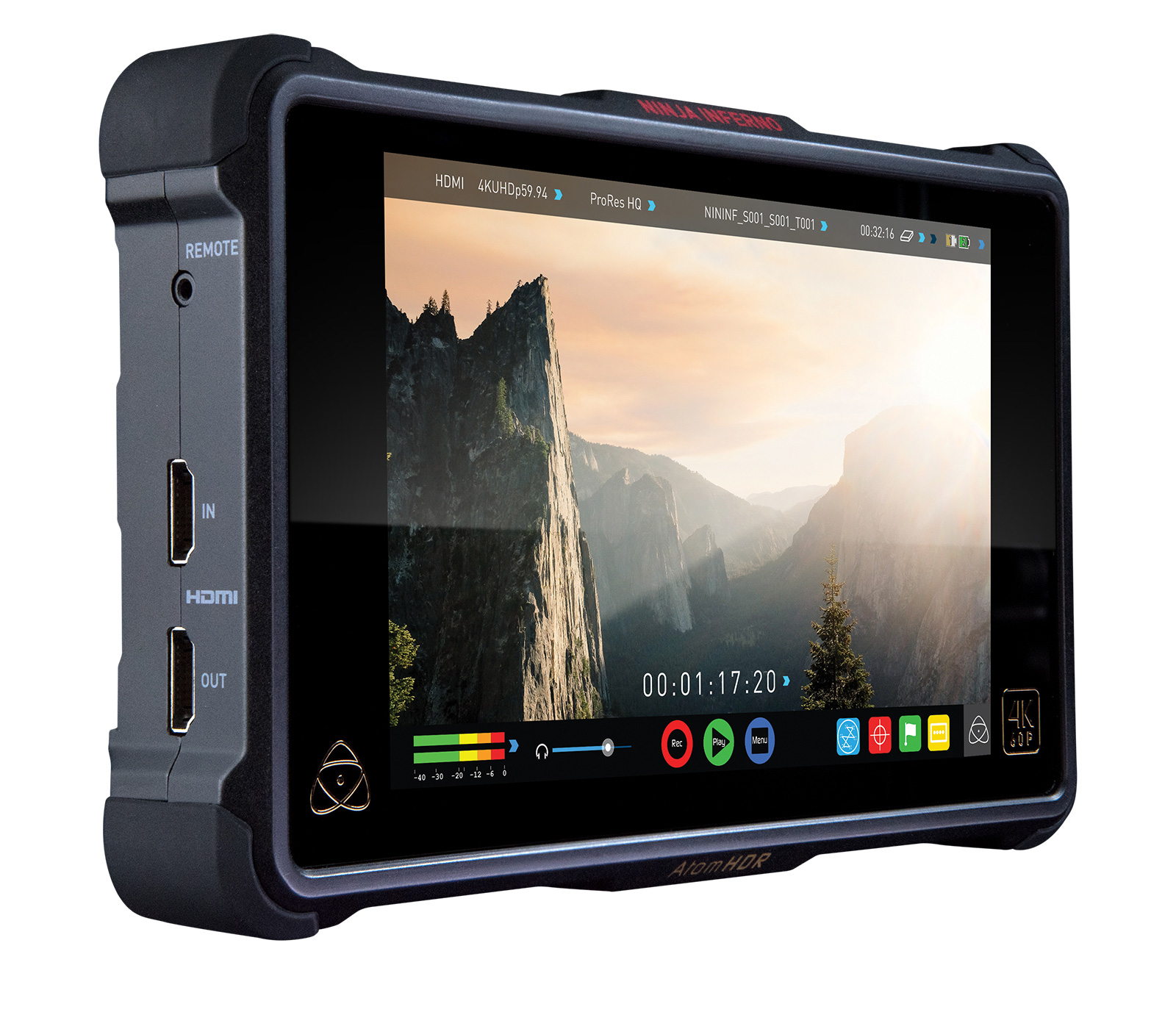

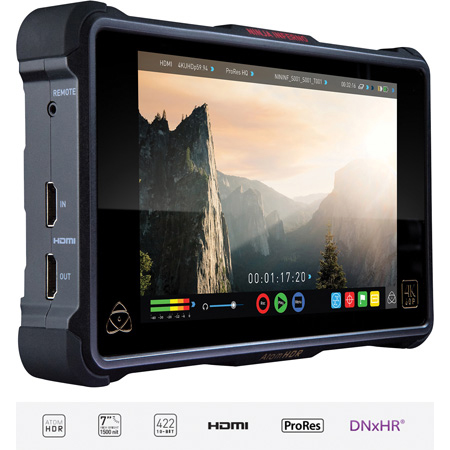

Atomos Ninja Inferno 7 Inch 4K HDMI Touch Screen LCD Recorder & Monitor
  • Atomos Ninja Inferno 7 Inch 4K HDMI Touch Screen LCD Recorder & Monitor
  • Atomos Ninja Inferno 7 Inch 4K HDMI Touch Screen LCD Recorder & Monitor
  • Atomos Ninja Inferno 7 Inch 4K HDMI Touch Screen LCD Recorder & Monitor
  • Atomos Ninja Inferno 7 Inch 4K HDMI Touch Screen LCD Recorder & Monitor
  • Atomos Ninja Inferno 7 Inch 4K HDMI Touch Screen LCD Recorder & Monitor


Atomos Ninja Inferno 7 Inch 4K HDMI Touch Screen LCD Recorder & Monitor

Manufacturer: Atomos

Item #: ATO-NINJAINFERNO   •   MFG #: ATOMNJAIN1



This item is no longer available.
Ask a Markertek Expert if you need assistance finding an appropriate substitute.

800-522-2025Email





Item unavailable. Please select another option.

Items similar to the ATO-NINJAINFERNO

California Residents:
8pt-triangleWARNING:
Cancer and Reproductive Harm - www.P65Warnings.ca.gov





Power, Video & Audio that won't let you down
The rugged case with built-in armor houses an arsenal of professional connectivity including full size HDMI 2.0 for signals up to 4K 60p, a HDMI output for playback or play-out to a view finder or other monitors, a hot swappable dual battery system for continuous power backed up with DC mains connectivity, auto HDMI start/stop recording trigger from selected Canon, Sony, Panasonic and Nikon cameras and even conversion of interlace video from your camera to progressive with built-in 3:2 and 2:2 pulldown.

4K60p 10-bit Pro-Res & DNxHR
Recording 4K 60p within the camera might seem enough but recording with the wrong codec restricts flexibility in post and even risks having your footage technically rejected. Ninja Inferno records direct from the sensor as full individual frames just like film to 4K 60p Apple Pro-Res or Avid DNxHR with 10-bit color information and precise yet efficient 4:2:2 color encoding.

Professional Audio Monitor & Recorder
Monitor and record up to 8ch of embedded HDMI 2.0 24bit digital audio. Don't be restricted by the limited audio on most HDMI cameras, truly upgrade to professional levels. We've added an optional 48V stereo XLR breakout cable so you can connect and power external microphones for balanced analogue audio. Audio control is simple with dedicated meters and menus to select channels for recording/monitoring and adjustments for frame delay and gain.

Calibrate for accurate color, Scopes for accurate exposure and focus
All monitors drift in color over time, which is why all high end monitors have calibration. Atomos has partnered with calibration leader X-Rite to allow their i1DisplayPro to calibrate the Ninja Inferno.

With peace of mind on the color front, simply tap the screen to bring up focus peaking, 2:1/1:1 zoom, Zebra, False Color, Frame guides, SMPTE Safe Area, Waveform, RGB parade, Vectorscope, Anamorphic desqueeze and a flexible 3D LUT implementation to upload your own LUTs as .cube files.


  • Specifications

    • HDR
    • AtomHDR: Yes
    • Supported Log formats: Sony SLog2 / SLog3, Canon CLog / CLog 2, Arri Log C, Panasonic Vlog, JVC JLog, Red LogFilm
    • Supported Gamuts: Sony SGamut / SGamut3 / SGamut3.cine/ Canon Cinema / BT2020 / DCI P3 / DCI P3+/ Panasonic V Gamut/ Arri Alexa Wide Gamut
    • Bit depth: 10-bit (8+2 FRC)
    • Brightness: 1500nit (+/- 10%)
    • HDR input (PQ/HLG): Yes / Yes
    • HDR output (PQ/HLG) Yes / Yes

      Video Input/Loop Out
    • HDMI: 1 x HDMI (2.0)
    • Signal: Uncompressed true 10-bit or 8-bit 422 (camera dependent)

      Video Output (Play Out)
    • HDMI: 1 x HDMI (2.0)
    • Signal: Uncompressed true 10-bit or 8-bit 422 (playback file dependent)

      Audio In/Out (48kHz PCM Audio)
    • HDMI: 2 or 8ch 24-bit, camera dependent
    • Audio-
    • 2ch balanced XLR analog in/out
    • Dynamic range: >90dB
    • Max signal level: +24dBu
    • Max analog gain: +52dB
    • 48V Phantom Power for Mic

      Touchscreen
    • Size: 7.1"
    • Resolution: 1920 x 1200
    • PPI: 325
    • Aspect ratio: 16:9 native
    • Color Gamut: REC709 HDTV
    • Look up table (LUT) support: 3D LUT (.cube format)
    • Anamorphic de-squeeze: 2x, 1.5x, 1.33x, Panasonic 8:3
    • Technology: SuperAtom IPS panel (capacitive touch), calibration to Rec.709 with optional calibration unit

      Power
    • Operating power: 10 - 33W
    • Compatible batteries: NP-F series and supporting accessories
    • Input voltage (battery): 6.2V to 16.8V
    • Battery time (based on 7.4V)-
    • 5200mAh - up to 1.5hrs (monitor & record 4K 30p)
    • 7800mAh - up to 2.2hrs (monitor & record 4K 30p)
    • DC In: 1 x DC in (6.2 - 16.8V)
    • Continuous power: Primary-secondary battery system, Change batteries without losing power, Loop batteries continuously

  • Item Includes

    • 1x - Ninja Inferno unit
    • 1x - 12V-3A AC adapter
    • 1x - Master Caddy II
    • 1x - Travel case

  • GTIN:

    0814164020688
