Audio Technica ATW-3211/893XTHDE2 3000 Series Wireless System (4th gen) - Band DE2 470-530Mhz

ITEM #: ATW3211893XTHDE2 MFG #: ATW-3211/893XTHDE2

Primary Image

This item is no longer available.
Ask a Markertek Expert if you need assistance finding an appropriate substitute.

(800) 522-2025Email

Items similar to the ATW3211893XTHDE2

ATW-3211/893XTHDE2 - Overview

Providing easy setup, versatile operation and rock-solid, richly detailed high-fidelity sound, Audio-Technica's fourth-generation 3000 Series wireless systems give users the power and flexibility to operate within the congested UHF spectrum.

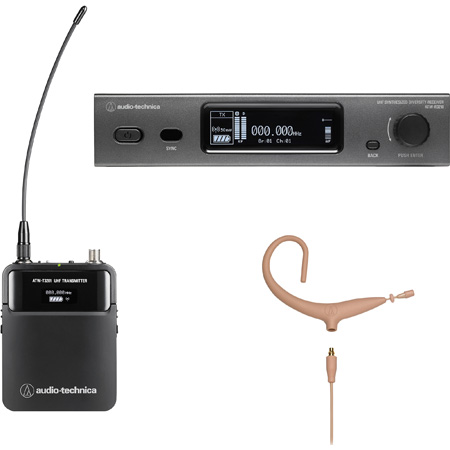

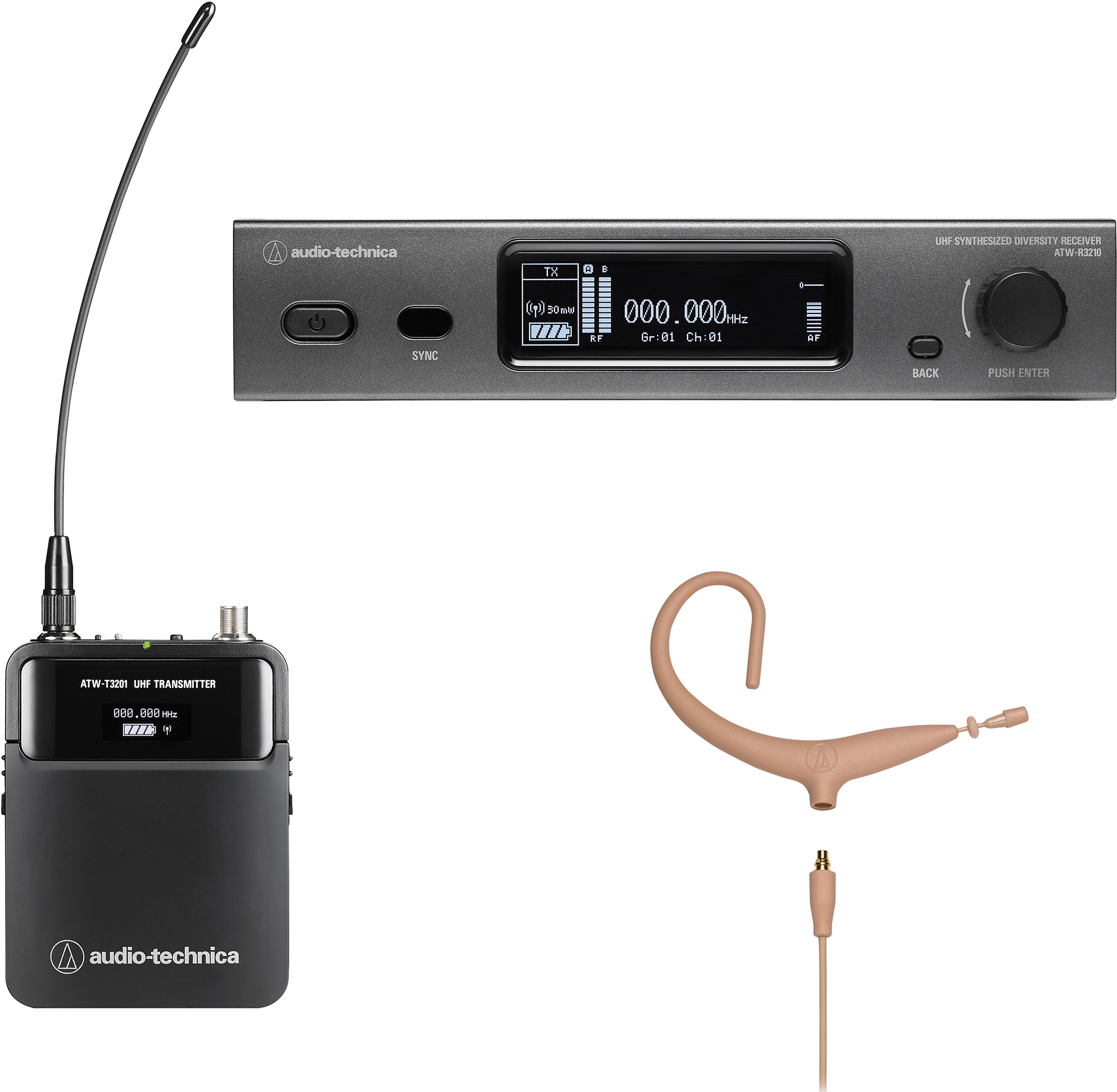

The ATW-3211/893XTHDE2 includes ATW-R3210 receiver and ATW-T3201 body-pack transmitter with BP893xcH-TH MicroEarset (beige) omnidirectional condenser headworn microphone.

With a class-leading 60 MHz tuning range - more than twice that offered by the previous versions - the 3000 Series systems are available in 6 frequency bands - DE2 (470-530 MHz), EE1 (530-590 MHz), EF1 (590-650 MHz), FG1 (650-700 MHz), GH2 (795 - 806 MHz) and HH2 (821 - 865 MHz). Frequencies can be easily scanned and selected on the receiver and then synced with the transmitter via IR sync functionality. The 3000 Series even lets users set a backup frequency that can be quickly swapped by pressing the transmitter's multifunction button in the event of unexpected interference.

This system configuration features an ATW-R3210 receiver along with an ATW-T3201 body-pack transmitter. The ATW-T3201 is equipped with Audio-Technica's new cH-style screw-down 4-pin connector for secure connection to Audio-Technica's cH-style lavalier and headworn microphones, or cables. The transmitter features rugged, metal housings and is powered by two AA batteries. Charging terminals on the transmitter work with the ATW-CHG3 and networkable ATW-CHG3N smart charging docks (sold separately) to recharge NiMH batteries. Antenna power is available for powered antennas and other in-line RF devices. A ground-lift switch helps eliminate audible hum caused by ground loops. The system features balanced and unbalanced audio output jacks.

  • Features:

    • 60 MHz UHF tuning bandwidth in each of 6 available frequency bands
    • Unique multifunction button to switch to a backup frequency
    • Frequency scan and IR sync functionality for ease of setup
    • Body-pack transmitter features tactile mute toggle switch
    • Charging terminals on transmitter to recharge NiMH batteries
    • Rugged 4-pin cH-style screw-down connector provides secure connection

  • Specifications:

    • Operating Frequencies: Band DE2: 470.125 to 529.975 MHz. Please note that some frequency bands might not be available in your territory or could come with a limited tuning bandwidth / transmitting power due to local regulations.
    • Minimum Frequency Step: 25 kHz
    • Modulation Mode: FM
    • Maximum Deviation: ATW-T3201: ±38 kHz (THD:10%), ATW-T3202: ±36 kHz (THD:10%)
    • Simultaneous Use: 40 Channels per band* For assistance with multi-band operation or other frequency coordination issues, please contact your regional Audio-Technica customer service representitive. *Region and band dependent
    • Frequency Response: ATW-T3201: 31 Hz to 15500 Hz, ATW-T3202: 25 Hz to 16700 Hz
    • Operating Range: 100 m
    • Dynamic Range: ATW-T3201 Mic input: > 115 dB (A-weighted), typical, ATW-T3201 Inst input: > 112dB (A-weighted), typical; ATW-T3202: > 115 dB (A-weighted), typical
    • Total Harmonic Distortion: <1.0% (at 1 kHz, ±17.5 kHz deviation)
    • Operating Temperature Range: -5 °C to +45 °C

      Receiver
    • Receiving System: True Diversity
    • Sensitivity: 20 dBuV at 60 dBA S/N ratio (50Ω termination)
    • Maximum Output Level: XLR / Balanced: +14 dBV, 6.3 mm (1/4"") / Unbalanced: +8 dBV
    • Antenna Input: BNC-type, 50 Ω
    • Power Output: 12 V DC, 160 mA (combined)
    • Power Supply: 100-240V AC (50/60 Hz) to 12V DC 1A (center positive) switched mode external power supply
    • Dimensions: 8.26 inch x 7.51 inch x 1.7 inch / 210.0 mm x 191.0 mm x 43.4 mm (W x D x H)
    • Weight: 2.42lbs / 1100 g, without accessories
    • Accessories Included: Two Flexible UHF antennas
    • AC adapter (country dependent)
    • Rack Mount Adaptors

      Belt Pack
    • RF Power Output: High: 30 mW, Low: 10 mW (switchable), at 50 Ω
    • Spurious Emissions: Following Federal and National Regulations
    • Input Connections:
    • 4-Pin screw down cH-Style Connector
    • Pin 1: GND
    • Pin 2: INST INPUT
    • Pin 3: MIC INPUT
    • Pin 4: DC BIAS +5V

    • Battery Type: Two 1.5V AA, not included
    • Battery Life: High: 8.0 hours / Low: 9.0 hours (alkaline) High: 9.0 hours / Low: 9.5 hours (Ni-MH 1900mAh) Depending on battery type, usage and environmental conditions.
    • Dimensions: 2.51 inch x 3.22 inch x 0.9 inch / 64 mm x 82 mm x 23 mm (W x H x D)
    • Net Weight: 0.22lbs / 102 g

  • Item Includes:

    • 1x ATW-R3210 receiver
    • 1x ATW-T3201 body-pack transmitter
    • BP893xcH-TH MicroEarset (beige) omnidirectional condenser headworn microphone

  • Warranty:

    • U.S. Two-Year Limited End-User Warranty

  • GTIN:

    0042005200245
