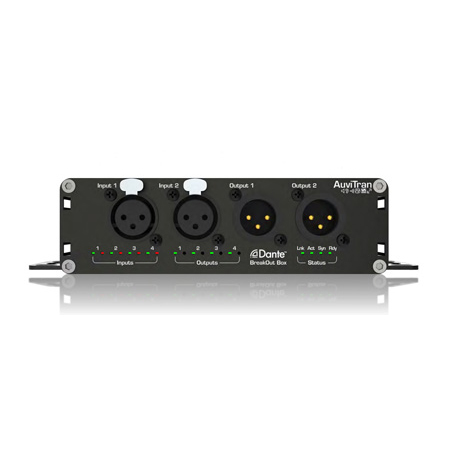

AuviTran AVDT-BOB-ADX8IO Dante Break Out Box AES/EBU and Analog I/O with DSP

Manufacturer: AuviTran

Item #: AUT-AVDTBOBADX8I   •   MFG #: AVDT-BOB-ADX8IO



List Price:$1,475.00
Our Price:$1,342.49

free ship


Availability: Direct Ship From Manufacturer
i
Item ships directly from the manufacturer and is subject to manufacturer availability. We will contact you with expected availability. You can also email [email protected], chat or call customer service (800)-522-2025 for expedited delivery options.



    California Residents:
    8pt-triangleWARNING:
    Cancer and Reproductive Harm - www.P65Warnings.ca.gov





    The AuviTran AVDT-BOB is a compact Dante break out box with embedded Digital Signal Processing. The AVDT-BOB has state-of-the-art analog microphone preamplifiers for a very high audio dynamic and quality over Dante at a very contained price.

    The AVDT-BOB has a DSP to process and mix audio signal at the source and at the output. The AVDT-BOB features a dual core ARM processor associated with a large amount of flash memory for a universal and multiplatform remote control over IP (iOS, Android, Windows, Mac OS, Linux). They provide to the AVDT-BOB a powerful processing with an efficient, easy and smart remote control.

    The AVDT-BOB integrates an internal 5 ports Gigabit switch to ease the cabling, to increase the throughputs and to reduce latency. It allows to Daisy-Chain the AVDT-BOB together with other Dante devices without necessarily requesting any external switch devices. The AVDT-BOB embeds an internal PoE module connected to its main Ethernet port for powering and communicate with a single Ethernet cable.

    The AVDT-BOB box is made of a very lightweight, robust and smart extruded aluminum. This box was thought to bring to the user many mounting options, thanks to side rails that allows to attach any type of fixations. The AVDT-BOB is delivered with side ears that can be mounted in any positions. An optional mounting kit allow to interconnect up to 3x AVDT-BOB devices and so to build a Dante unit with for example 12x Mic/Line inputs and 12 analog outputs in the only space of a 1U 19" rack.


    • Features

      • 4x Dante input channels and 4x Dante output channels with Dante routing
      • 2x or 4x Mic/Line balanced inputs with independent phantom +48V
      • 2x or 4x Analog balanced outputs
      • 60dB gain range by 3dB step with Input Noise (EIN) as low as -125dBu
      • Stereo AES/EBU Input and Output on SUBD25
      • 4x Analog GPIOs for remote control on SUBD25
      • Smart embedded DSP for advanced internal audio mixing and effect processing
      • 4 independent mixers of the 6x to 8x inputs
      • 8 equalizations and 8 limiters compressors
      • Build-in dual ARM RISC processor with Web 2.0 HTML5 interface
      • Direct remote without any installation via Mac OSX, Windows, and Linux computer or via iPad, iPhone or Tablet, Smartphone
      • Integrated Gigabit switch for easy daisy-chaining of multi devices

    • Specifications

      • General
      • Size: 144 mm x 100 mm x 42 mm - regular 1U, 1/3 of 19" rack
      • Main Power Supply: PoE (12W) via "Main" Port
      • Auxiliary Power Supply: +12Vdc 1A max via 6.4mm lockable DC Jack Plug
      • Storage: Temp/Humidity (non-condensing): -5°C to 70°C / Max 95% (non-condensing)
      • Operating: Temp/Humidity (non-condensing): 0°C to 50°C / 5% to 90% (non-condensing)
      • Remote Control OS Supported: Web 2.0 Interface compatible HTML5 (iOS, Android, Mac OS, Windows, Linux)

        Audio Inputs/Outputs and Connectors
      • Number of Inputs: 2x to 4x analog mic or line inputs and 4x digital inputs from Dante network
      • Number of Outputs: 2x to 4x analog outputs and 4x digital outputs to Dante network
      • 1x SUBD 25 connector for GPIO and AES/EBU inputs and outputs with proprietary pin-out
      • 2x XLR Female + 2x XLR Male connectors for analog inputs and outputs on front face
      • 1x Neutrik EtherCon connector "Main" with PoE capability
      • 2x SFP cages to plug up to 2x Gigabit Media convertors Optical Fiber or RJ45

        MIC/Line Audio Inputs
      • Sampling Frequency: 44.1 kHz / 48 kHz
      • A/D resolution: 24 bits
      • Input specification: Balanced MIC/Line inputs on Euroblock or SUBD connectors
      • Input maximum level: +12 dBu
      • Analog Gain Range: 0 to +60 dB (20 values, 3dB step)
      • Input sensibility: +12 dBu to -48 dBu
      • Input Impedance: 3.5 kω (balanced)
      • E.I.N. @ (Rs=150ω G=+60dB): -124 dBu (fs=48KHz & BW 22KHz)
      • Dynamic Range: > 104 dB A-weighted (fs=48KHz & BW 22KHz)
      • THD+N (1KHz/G=0dB or G=+50dB): < -95 dB (fs=48KHz & BW 22KHz)
      • Frequency response: 20Hz - 20kHz (+0 / -0,5 dB)
      • Phantom Power: +48 V (individually controllable for each channel)

        Line Audio Outputs
      • Sampling Frequency: 44.1 kHz / 48 kHz
      • A/D resolution: 24 bits
      • Frequency response: 20Hz - 20kHz (+0 / -0,5 dB)
      • Dynamic Range: >104 dB A-weighted
      • THD+N (1KHz / BW 22KHz): < -90 dB
      • Output specification: Balanced analog outputs on Euroblock or SUBD connectors with <100ω impedance
      • Output level at 0dBfs: +12dBu
