Osprey Video Raptor 945 4x 3G SDI all Channels I/O Embedded 8 Stereo Audio Pairs Per Channel

ITEM #: OSP-945 MFG #: 945

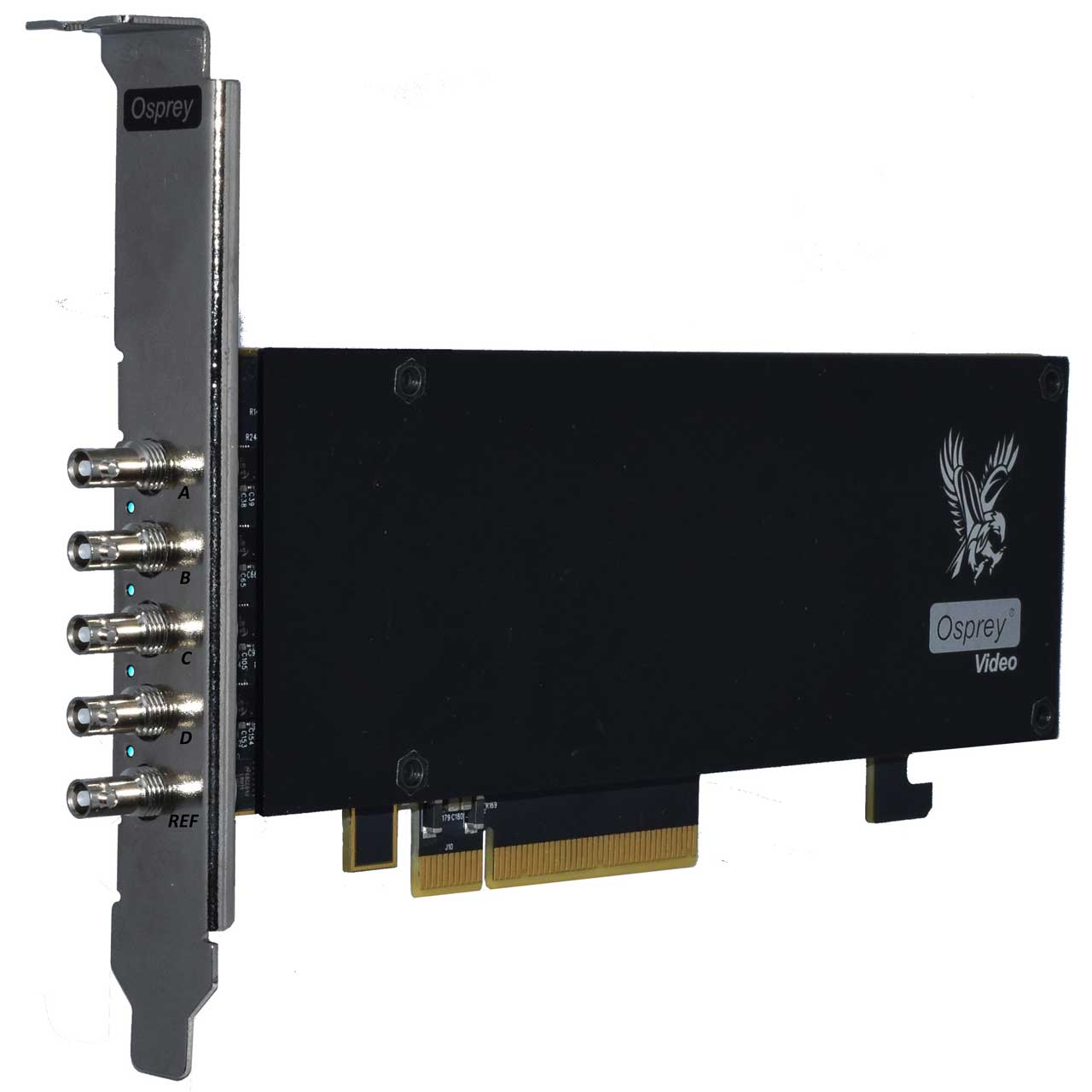

Primary Image
Free Shipping with $49 Minimum Order

List Price:

$1,640.00

Our Price:

$1,544.00

Availability: Typically Ships in 3-10 Business Days
iAvailability Description Popup


    945 - Overview

    The Osprey Raptor 945 features four 3G-Gb/s connections. Ports are bi-directional and work with SD, HD, and 3G frame sizes. All 9xx Raptor cards can capture and playback up to 60fps. Each SDI Input supports 16 Audio Channels (8 Stereo Channels) for a total of up to 128 combined Audio Channels between all inputs. A Genlock Input allows for frame synchronization if the card is used in Output Mode

    • Features:

      • 3G-SDI
      • Inputs up to 1080P60
      • Programmable Loopouts
      • Video Outputs
      • 16 Audio Channels per Input
      • Simulstream
      • Medialooks SDK Support
      • Independent Scaling and Frame Rate Conversion for each Input

    • Specifications:

      • Computer Interface: PCI Express Gen2 x8
      • Power Consumption: ~ 8.10W
      • Operating Temperature: 0 to 40C
      • Weight: 132g
      • In the Box: Capture Card with Full Height Bracket, Half Height Bracket
      • Connections: 4 x bi-directional 3Gb/s SD/HD/3G-A (Micro HD BNC)
      • SDI Audio Inputs and Outputs: Embedded 16 Channels (8 Stereo) per connection
      • Sync Input: Tri-Sync or Black Burst (Micro HD BNC)
      • SD Video Standards: 525i59.94 NTSC, 625i50 PAL
      • 3G/HD Video Standards: 720p50,59.94,60, 1080p23.98,24,25,29.97,30,50,59.94,60, 1080i50,59.94,60
      • SDI Compliance: SMPTE 259M, SMPTE 292M, SMPTE 296M SMPTE 372M, SMPTE 425M, SMPTE 435, ITU-R BT.656 and ITU-R BT.601.
      • SDI Metadata Support: CEA-608, CEA-708 for closed captioning
      • Audio Sampling: Television standard sample rate of 48 kHz at 24-bit.
      • SDI Color Precision: 8, 10, 12-bit RGB 4:4:4, YUV 4:4:4 and 4:2:2
      • Multiple Rate Support: Auto Detect SD/HD/3G-A

    • GTIN:

      0850189006788
