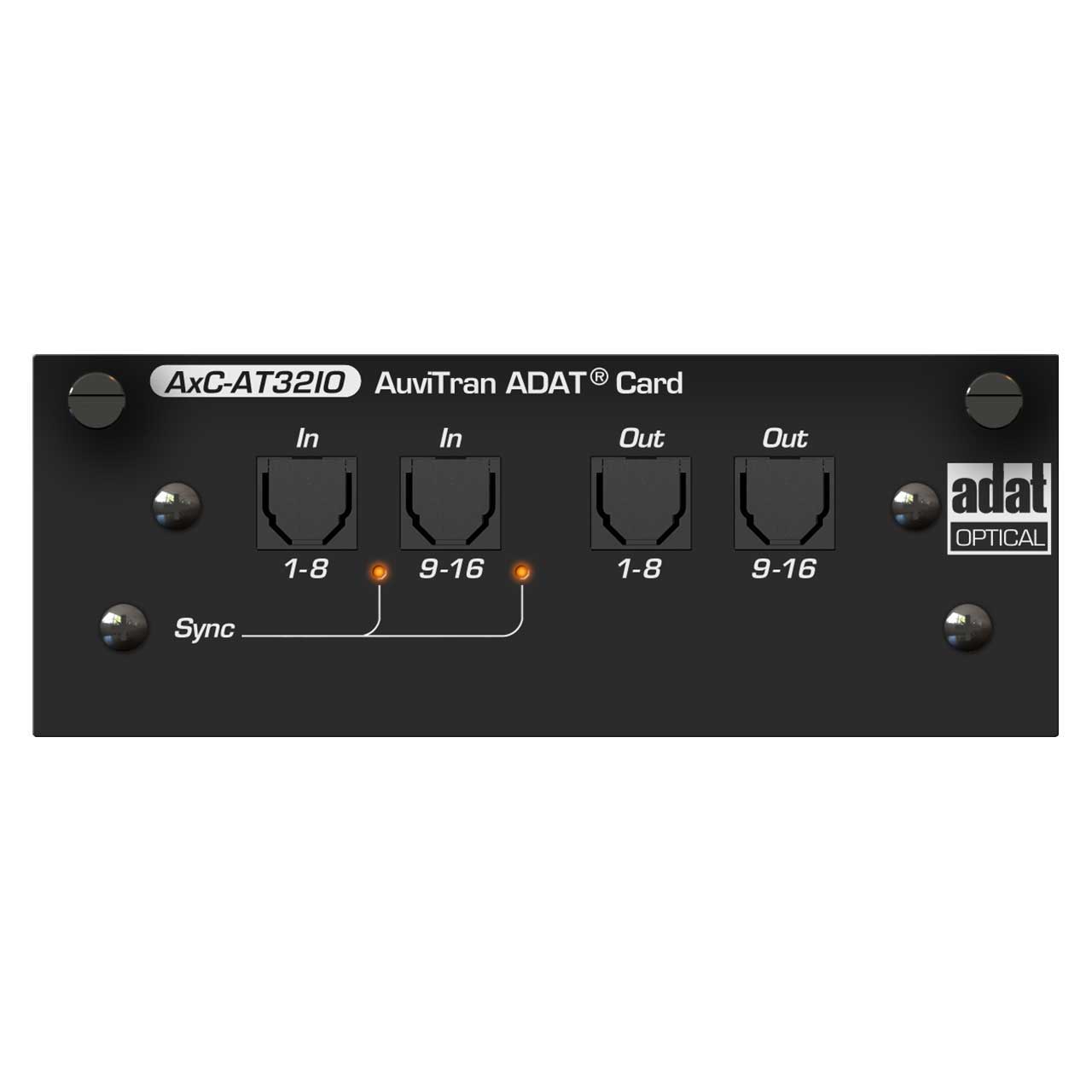

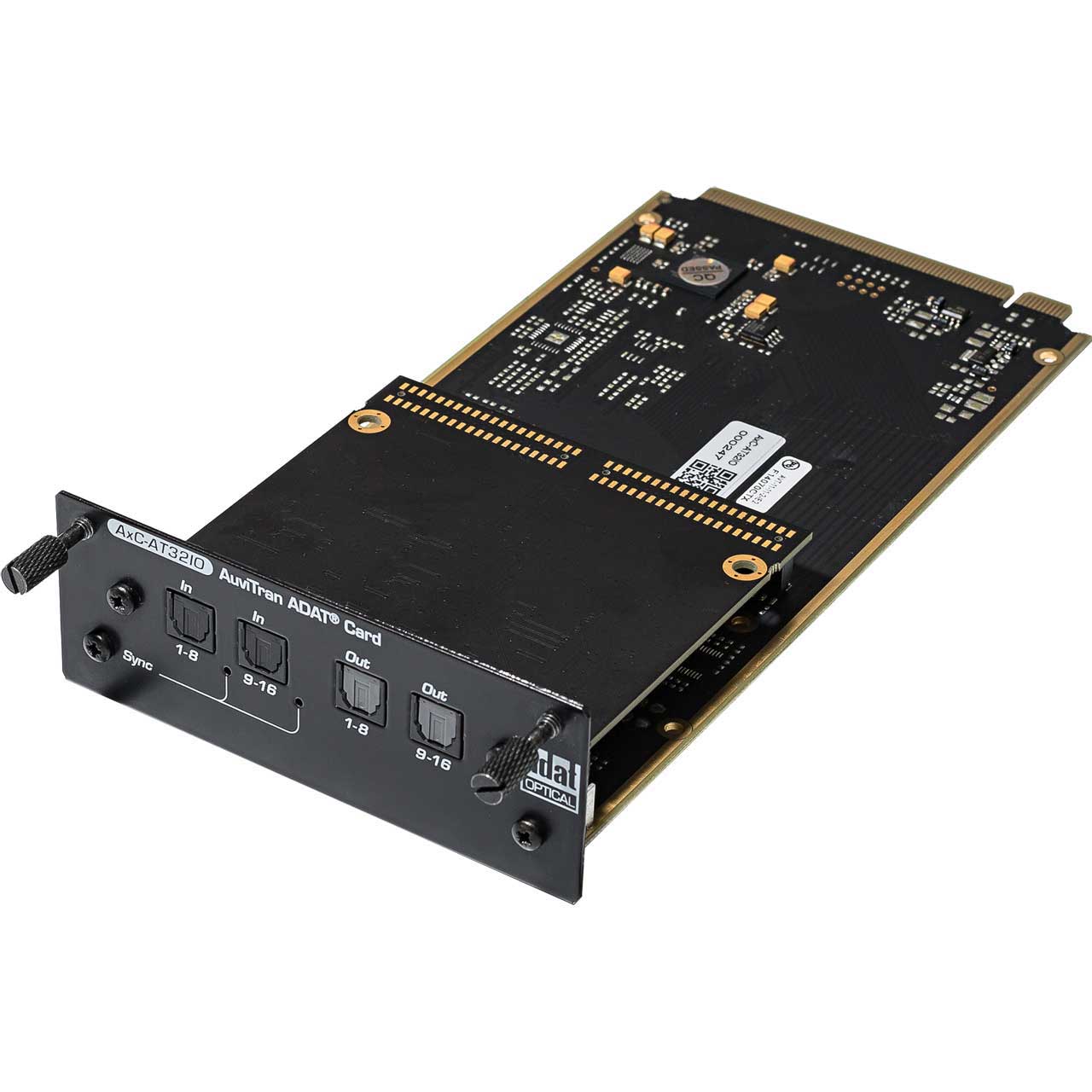

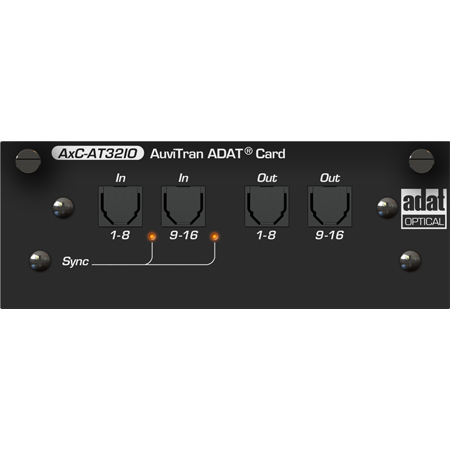

AuviTran Audio Toolbox AxC-AT32io ADAT Card with 16 In and 16 Out on 4x Optical TOSLINK

ITEM #: AUT-AXC-AT32IO MFG #: AXC-AT32IO

Primary Image
  • Product Image Thumbnail 1 of 2
  • Product Image Thumbnail 2 of 2
AuviTran
Free Shipping with $49 Minimum Order

List Price:

$1,185.00

Our Price:

$1,066.50

Add to Wish ListLeasing Options
Availability: Typically Ships in 3-10 Business Days
iAvailability Description Popup
    Report Lower PriceLarge Quantity Quote

    AXC-AT32IO - Overview

    Just as every AxC card within the Audio ToolBox range, the Auvitran AxC-AT32IO ADAT Card can equally be used in AVBx3 or AVBx7 platforms. The AxC-AT32IO interface, combined with an AuviTran Audio ToolBox AVBx3 or AVBx7 rack, constitutes the ideal solution to connect two 16 channels between an ADAT device and other analog, digital or network devices.

    Smart, expandable, and sustainable
    Meet AuviTran's versatile and flexible platforms that brings convergence among network technologies and audio interfaces. With two 19" rack chassis AVBx7 and AVBx3 both available in StageBox or Installation modes, plus 14 interface cards, build the configuration you need.

    Combined with other AuviTran Audio ToolBox cards, the card AxC-AT32IO opens exciting interconnections possibilities such as:
    - Bridge ADAT - Dante
    - Bridge ADAT - MADI
    - Bridge ADAT - EtherSound
    - Bridge ADAT - AES/EBU
    - Bridge ADAT - Analog

    Live applications (AVBx3/7 StageBox mode)
    - Concerts
    - Live Broadcast, broadcast studios and OB vans
    - Recording studio

    Installations Fixes (AVBx3/7 mode Installation)
    - Stadiums, concerts halls
    - Theaters, bars, pubs and discos

    • Features:

      • 16x ADAT digital inputs on 2x Optical TOSLINK connectors
      • 16x ADAT digital outputs on 2x Optical TOSLINK connectors
      • Word clock synchronization possibility on each ADAT input
      • Remote management with AVS-Monitor software
      • Dedicated control page for remote monitoring and controlling all the card parameters


    • Specifications:

      • General
      • Dimensions: 7.87 x 3.94 x 1.57 In (200 x 100 x 40 mm) - AuviTran Audio ToolBox platform cards format
      • Power Supply: +12V / +3.3V Through AuviTran Audio ToolBox backplane
      • Storage: Temp/Humidity - 23°F to 158°F (-5°C to 70°C)/ 0% to 95% (non-condensing)
      • Operating: Temperature/Humidity 32°F to 122°F (0°C to 50°C)/ 5% to 90% (non-condensing)
      • Connectors: 2x Optical TOSLINK connectors for 16 inputs (8x inputs for each connector)/2x Optical TOSLINK connectors for 16x outputs (8x outputs for each connector)

        Audio Inputs
      • Number of Inputs: Up to 16x ADAT inputs routed through the AuviTran Audio ToolBox backplane from other cards/Up to 8 ADAT inputs in Double Speed mode (88.1 et 96 KHz)
      • Sampling frequency: 44.1 kHz / 48 kHz / 88.2 kHz / 96 kHz
      • A/D Resolution: 24 bits
      • Inputs Specification: ADAT weave on Optical TOSLINK connector
      • Synchronization: Possibility of synchronization from each ADAT input

        Audio outputs
      • Number of Outputs: Up to 16 ADAT outputs routed through the AuviTran Audio ToolBox backplane from other cards/Up to 8 ADAT outputs in Double Speed mode (88.1 et 96 KHz)
      • Sampling Frequency: 44.1 kHz / 48 kHz / 88.2 kHz / 96 kHz
      • D/A Resolution: 24 bits
      • Output Specification: ADAT weave on Optical TOSLINK connector
