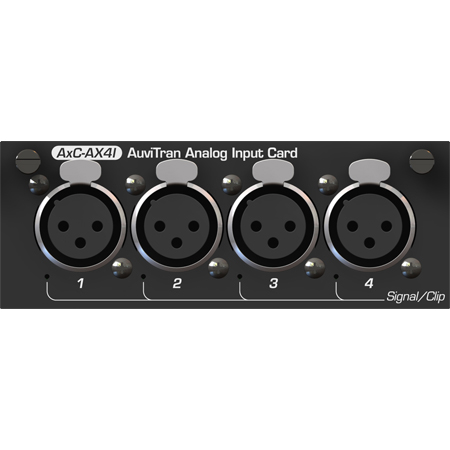

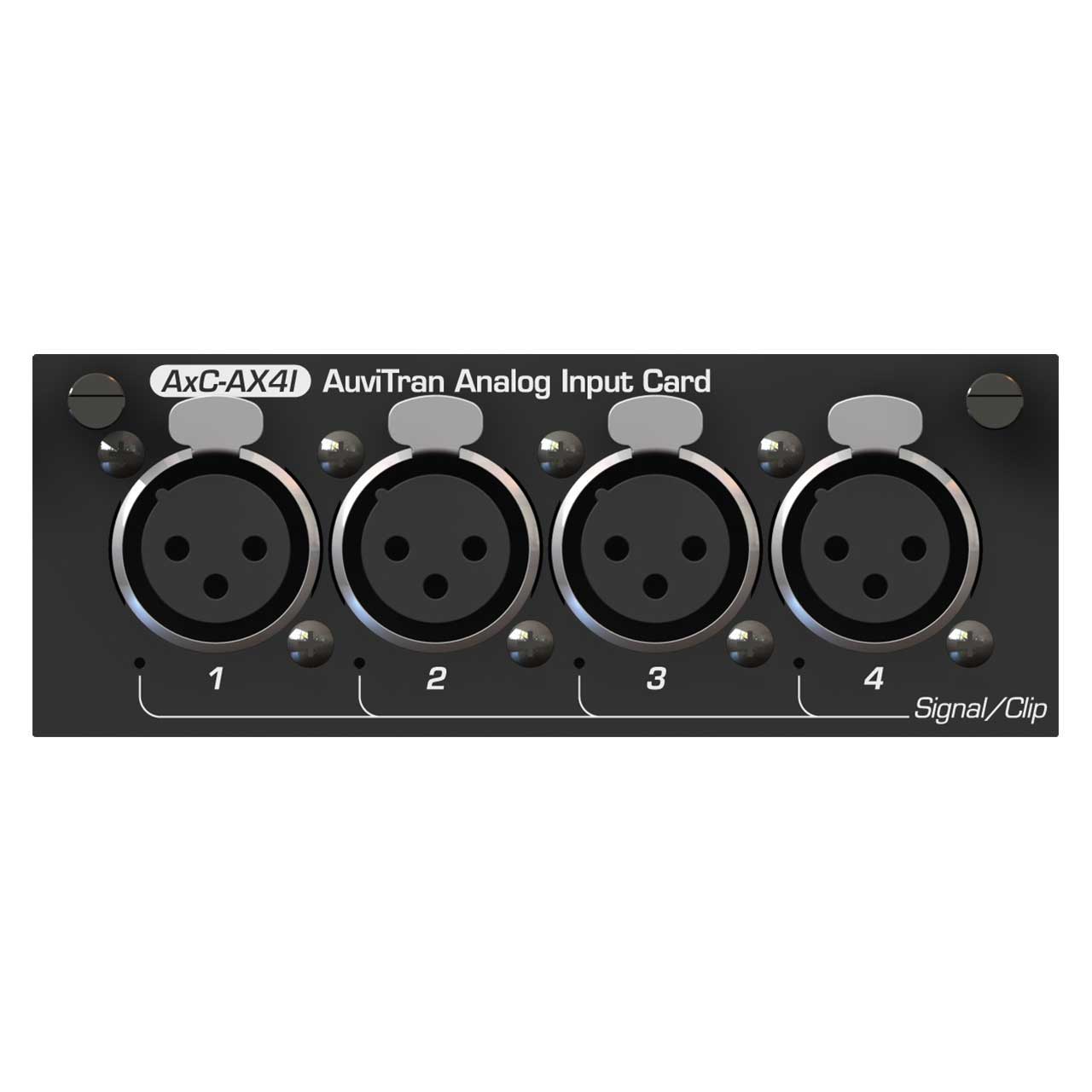

AuviTran Audio Toolbox AxC-AX4i Analog Input Card with 4 In on 4x XLR

ITEM #: AUT-AXC-AX4I MFG #: AXC-AX4I

Primary Image
  • Product Image Thumbnail 1 of 2
  • Product Image Thumbnail 2 of 2
AuviTran
Free Shipping with $49 Minimum Order

List Price:

$765.00

Our Price:

$688.50

Add to Wish ListLeasing Options
Availability: Typically Ships in 3-10 Business Days
iAvailability Description Popup
    Report Lower PriceLarge Quantity Quote

    AXC-AX4I - Overview

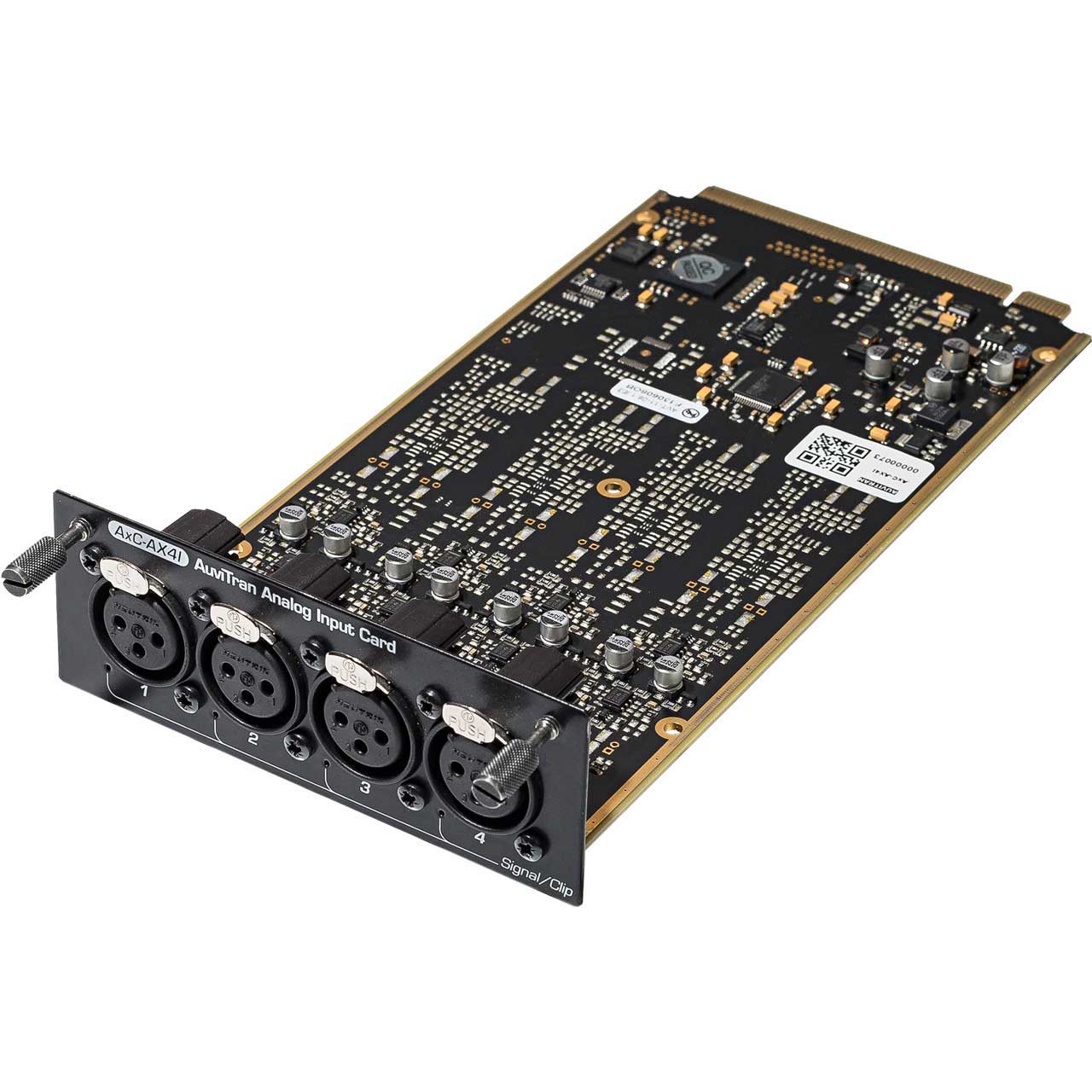

    Just like every AxC card within the Audio ToolBox range, the Auvitran AxC-AX4I can equally be used in AVBx3 or AVBx7 platforms. This four channel high-end analog input AxC card with XLR connectors combines high-performance AD converter chips with an excellent circuit design in a format of one AxC card.

    Smart, expandable, and sustainable
    Meet AuviTran's versatile and flexible platforms that brings convergence among network technologies and audio interfaces. With two 19" rack chassis AVBx7 and AVBx3 both available in StageBox or Installation modes, plus fourteen interface cards, build the configuration you need.

    Up to two AxC-AX4I cards can be inserted in an AVBx3-ES100 for several kinds of applications:
    - Live applications (AVBx3 in Stage-box mode)
    - Live concerts and recording
    - Live broadcast studios and OB Vans
    - Recording studios

    Fixed installations (AVBx3 in Installation mode)
    - Stadiums, concert halls
    - Theaters, bars, pubs discos

    • Features:

      • 4x high quality balanced inputs with Dynamic range > 115 dB (A-weighted) and THD +N < -100 dB
      • Professional XLR female connectors
      • Remote management with AVS-Monitor software through the EtherSound Network
      • Dedicated control page for monitoring and controlling all the card's parameters
      • Individual gain control of each input
      • Attenuation-gain setting and vu-meter monitored and individually controlled per channel via network for a remote management from virtually anywhere
      • AD conversion for high-end audio professional applications
      • A 0.5 dB step digital attenuator/gains from - 115dB to +12dB and two hardware reference level pads of +10 dBu or +24 dBu fully controllable via software. It enables fine level calibration for addressing a large kind of applications in professional audio systems


    • Specifications:

      • General
      • Size: 7.87 x 3.94 x 1.57 In (200 x 100 x 40 mm) - AuviTran Audio ToolBox platform cards format
      • Power Supply: +12V / +3.3V - Through AuviTran Audio ToolBox backplane
      • Storage Temp / Humidity: - 23°F to 158°F (-5°C to 70°C)/ 0% to 95% (non-condensing)
      • Operating Temp / Humidity: 32°F to 122°F (0°C to 50°C)/ 5% to 90% (non-condensing)
      • Connectors: 4x female XLR connectors

        Audio Inputs
      • Number of I/O: Up to 4x analog inputs routed through the AuviTran Audio ToolBox backplane to the other cards
      • Sampling Frequency: 44.1 kHz / 48 kHz / 88.2 kHz / 96 kHz
      • A/D Resolution: 24 bits
      • Frequency Response: 20Hz - 20kHz (± 0.1dB)
      • Dynamic Range (BW 22KHz): >115 dB A-weighted (> 112 dB un-weighted)
      • THD+N (1KHz / BW 22KHz): < -100 dB
      • Input Specification: Balanced analog on XLR connectors , 10kω Input Impedance (differential)
      • Input Level Pad for 0dBfs: +24dBu or +10dBu configurable by software via network
      • Input Volume Control: +10dB to -115dB with 0.5 dB step digital control by software via network with click and pop free management
      • Input Phase: Phase inversion configurable by software via network
