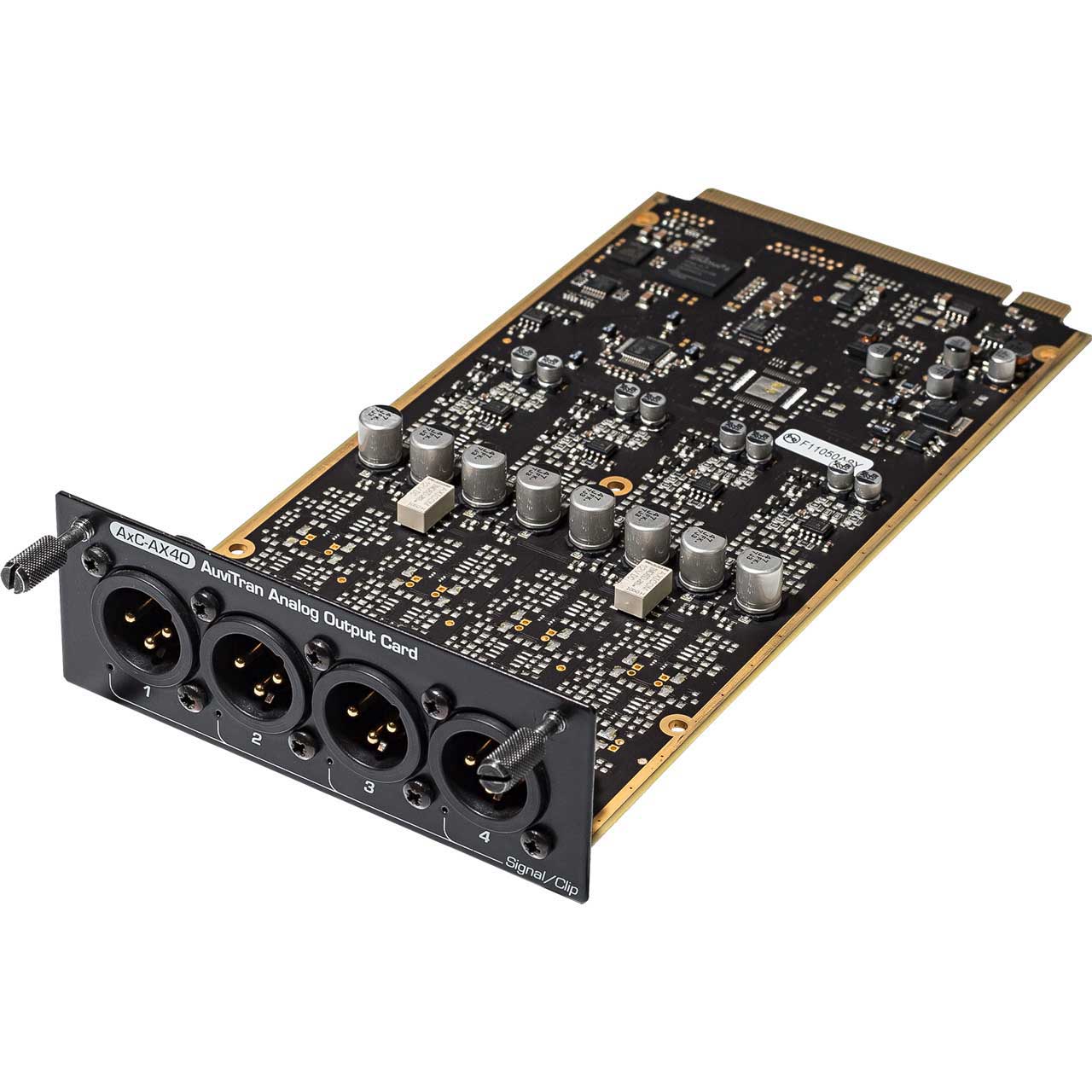

AuviTran Audio Toolbox AxC-AX4o Analog Output Card with 4 Out on 4x XLR

AXC-AX4O - Overview

• Features:

  • 4x high quality balanced outputs with Dynamic range > 115 dB (A-weighted) and THD +N < -100 dB
  • Professional XLR male connectors
  • Remote management with AVSMonitor software through the EtherSound Network and dedicated control page for monitoring all the card's parameters
  • Individual gain control of each output
  • An internal smart design to reduce loud noises during start-up and cut-off, meeting the constraints of use for high power sound reinforcement systems
  • A 0.5 dB step digital attenuation-gain from -115dB to +12dB and two hardware reference level pads of +10 dBu or +24 dBu, all fully controllable via software to enable fine tuning for addressing a large kind of applications in professional audio systems
  • Attenuation-gain setting and vu-meter can be monitored and controlled individually per channel via network for a remote management from virtually anywhere


• Specifications:

  • General
  • Size: 7.87 x 3.94 x 1.57 In (200 x 100 x 40 mm) - AuviTran Audio ToolBox platform cards format
  • Power Supply: +12V / +3.3V Through AuviTran Audio ToolBox backplane
  • Storage Temp / Humidity: - 23°F to 158°F (-5°C to 70°C)/ 0% to 95% (non-condensing)
  • Operating Temp / Humidity: 32°F to 122°F (0°C to 50°C)/ 5% to 90% (non-condensing)

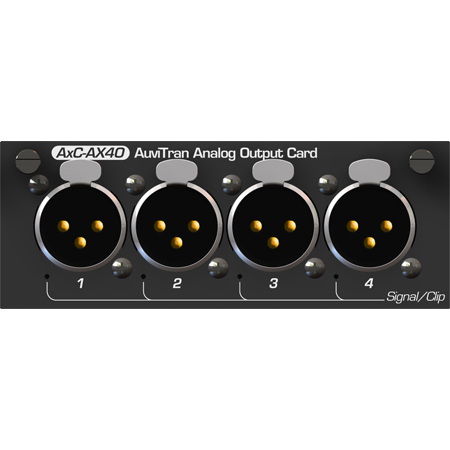

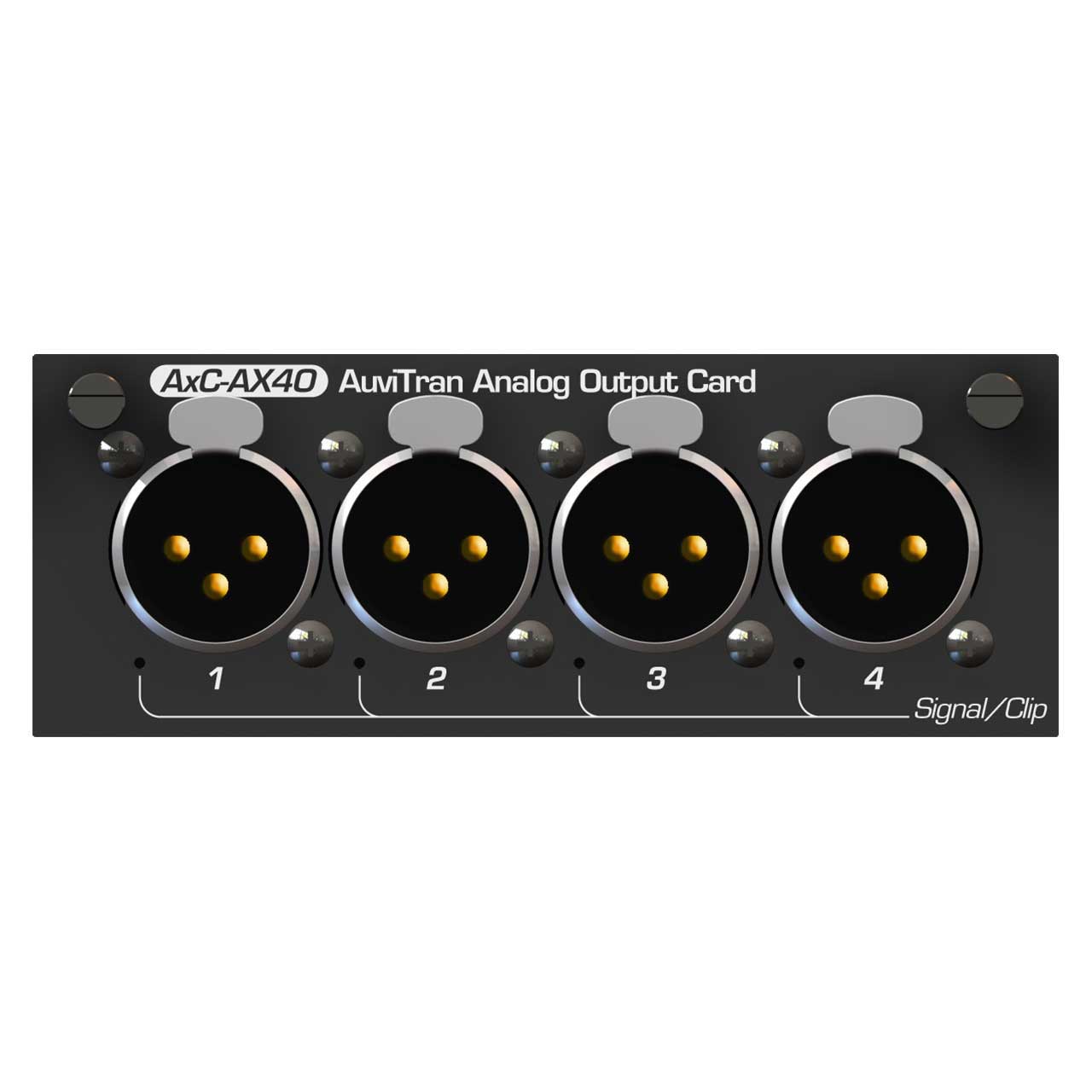

  • Connectors: 4x male XLR connectors

    Audio Outputs
  • Number of outputs: Up to 4x analog outputs routed through the AuviTran Audio ToolBox backplane from the other cards
  • Sampling Frequency: 44.1 kHz / 48 kHz / 88.2 kHz / 96 kHz
  • D/A Resolution: 24 bits
  • Frequency Response: 20Hz - 20kHz (±0.15dB)
  • Dynamic Range(BW 22KHz): >115 dB A-weighted (> 112 dB un-weighted)
  • THD+N (1KHz / BW 22KHz): < -100 dB
  • Output Specification: Servo-balanced on XLR connectors, <100ω Output Impedance
  • Output Level Pad for 0dBfs: +24dBu or +10dBu configurable by software via network
  • Output Volume Control: +10dB to -115dB with 0.5 dB step digital control by software via network with click and pop free management. Digital automatic mute @ zero-data with pop-free output mute
  • Output Phase: Phase inversion configurable by software via network
